Frigidaire GLGC30S9EBA Manual de usuario

GLGC30S9E.eps MGLGC30S9ESA.eps BPLGC30S9ECA.eps 318047111.eps

Right

Rear

Simm er B u rner

Left

Rear

PowerBurner

Left

Front

Right

Front

PowerPlusBurner

GALLERY SERIES

Product No. GLGC30S9EBA GLGC30S9EQA GLGC30S9ESA

3775621675061 3775621675041 3775621675011

Series 30" gas 30" gas 30" gas

Color black bisque white

Market North America North America North America

Wiring Diagram 318047111 318047111 318047111

Owner's Guide 318200672 318200672 318200672

Installation Instructions 318201464 318201464 318201464

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995457073

05/12/28

(EN/SERVICE/ECL)

377

GAS COOK-TOP

RANGE

Model No.

GLGC30S9E

Publication No: 5995457073 GLGC30S9E

12/05 2

COOK TOP

GLGC30S9E Publication No: 5995457073

# Functional Parts 3 12/05

* Non-Illustrated Parts

COOK TOP

Model Index: AGLGC30S9E (GLGC30S9ESA)

BGLGC30S9E (GLGC30S9EBA)

CGLGC30S9E (GLGC30S9EQA)

POS. NO PART NO. DESCRIPTION

16 318296333 A - - Maintop, white

16 318296335 - B - Maintop, black

16 318296334 - - C Maintop, bisque

20 318221667 A - - Grate, gray, (2)

20 318221666 - B - Grate, black, (2)

20 318221668 - - C Grate, brown, (2)

22 316219901 A - - Cap, 14K burner, grey

22 316219900 - B - Cap, 14K burner, black

22 316219904 - - C Cap, 14K burner, brown

22A 316206601 A - - Cap, 5K burner, gray

22A 316206600 - B - Cap, 5K burner, black

22A 316206602 - - C Cap, 5K burner, brown

22B 316213501 A - - Cap, 9.5K burner, gray

22B 316213500 - B - Cap, 9.5K burner, black

22B 316213503 - - C Cap, 9.5K burner, brown

22C 316213601 A - - Cap, 12K burner, gray

22C 316213600 - B - Cap, 12K burner, black

22C 316213603 - - C Cap, 12K burner, brown

39 318144006 A B C Cord, service

43 318196155 A - - Knob, control, white

43 318196157 - B - Knob, control, black

43 318196156 - - C Knob, control, bisque

46 318278900 A B C Box, burner

64 5303304033 A B C Bracket, retainer

65 5303304032 A B C Seal, rubber

88 318280101 A B C Gasket, cooktop, 21.48", sides, (2)

88A 318280100 A B C Gasket, cooktop, 29.79", front/back, (2)

132 3201437 A B C Strain relief

136 318264300 A B C Support, box, (2)

137 5303285443 A B C Screw, lock bracket, 10-24 x 2.00

* 5303307980 A B C Screw, 8-32 x 0.437, (4)

Publication No: 5995457073 GLGC30S9E

12/05 4

BURNER

GLGC30S9E Publication No: 5995457073

# Functional Parts 5 12/05

* Non-Illustrated Parts

BURNER

Model Index: AGLGC30S9E (GLGC30S9ESA)

BGLGC30S9E (GLGC30S9EBA)

CGLGC30S9E (GLGC30S9EQA)

POS. NO PART NO. DESCRIPTION

1 318177006 A B C Manifold Pipe

2 # 318087315 A B C Valve, burner, 11K/14K

2A # 318087313 A B C Valve, burner, 5K

2B # 318087314 A B C Valve, burner, 9.5K

3 # 318232604 A B C Wiring Harness, w/igntr switch

8 # 316135701 A B C Module, spark

10 # 316223400 A B C Burner, sealed, 14K

10A# 316206400 A B C Burner, sealed, 5K

10B# 316212400 A B C Burner, sealed, 9.5K

10C# 316212300 A B C Burner, sealed, 12K

11 # 318221333 A B C Ignitor/orifice assy., top burner, right front, 14K, w/holder, tube

11A# 318221332 A B C Ignitor/orifice assy., top burner, right rear, 5K, w/holder, tube

11B# 318221334 A B C Ignitor/orifice assy., top burner, left rear, 9.5K, w/holder, tube

11C# 318221336 A B C Ignitor/orifice assy., top burner, left front, 12K, w/holder, tube

14 # 5308007974 A B C Regulator, pressure

35 318146301 A B C Bushing

37 316240600 A B C Screw, assy mtg, ignitor/orifice

44 316237900 A B C Orifice, top burner, 14K

44A 316237903 A B C Orifice, top burner, 5K

44B 316237902 A B C Orifice, top burner, 9.5K

44C 316237901 A B C Orifice, top burner, 12K

72 316134300 A B C Screw, 10-24, valve mounting

73 318024201 A B C Bracket, spark module

77 318192600 A B C Bracket, burner mtg, (5)

77* 5304403558 A B C Screw, 10-16 x 0.250

* # 318127425 A B C LP Conversion Kit

* 318199742 A B C Wiring Harness, ignitor

* 08011955 A B C Screw, 10-24 x 0.375, square drive

* 5303311532 A B C Screw, 6-32 x 1/4", back

Publication No: 5995457073 GLGC30S9E

12/05 6

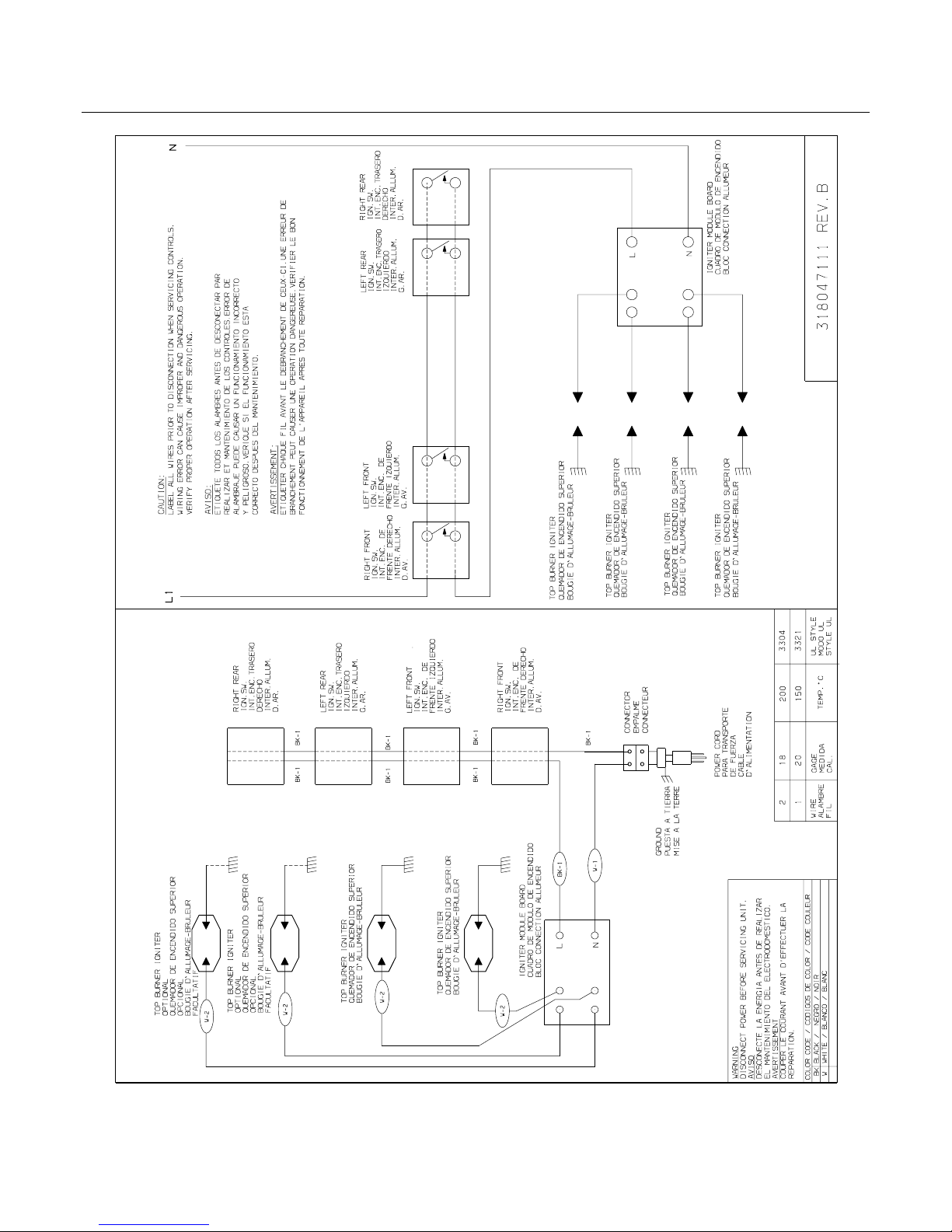

WIRING DIAGRAM
