Frigidaire GLEFS76A Manual de usuario

PRODUCT NO. BASE MODEL NO. COLOR MARKET

GLEFS76AQE GLEFS76A bisque North America

GLEFS76AQF GLEFS76A bisque North America

GLEFS76ASE GLEFS76A white North America

Publication No.

5995362588

011217

-EN/SERVICE /ECL

369

12/01 2

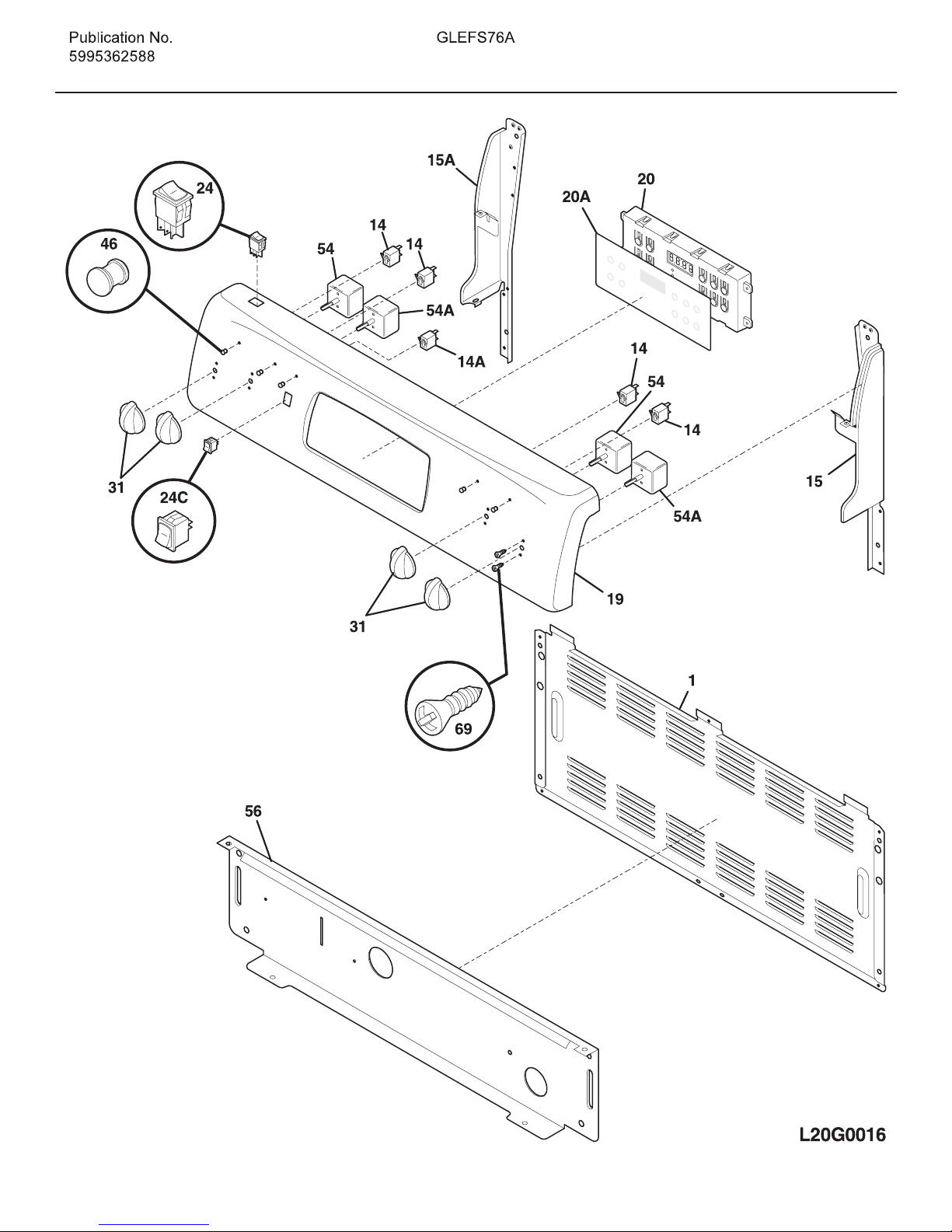

BACKGUARD

A = GLEFS76A (GLEFS76ASE)

B = GLEFS76A (GLEFS76AQE)

C = GLEFS76A (GLEFS76AQF)

POS. NO PART NO DESCRIPTION

1 316239900 A B C Shield,backguard ,rear wall

14 316022503 A B C Light/Lamp,indicator ,surface ,250 V

14A 316022500 A B C Light/Lamp,warmer,indicator ,drawer/zone,125 V

15 316220202 A - - Support,backguard ,white ,RH

15 316220208 - B C Support,backguard ,bisque ,RH

15A 316220203 A - - Support,backguard ,white ,LH

15A 316220209 - B C Support,backguard ,bisque ,LH

19 316232619 A - - Panel,backguard ,white

19 316232621 - B C Panel,backguard ,bisque

20 # 316222907 A B C Clock/Timer,electronic

20A 316220804 A - - Overlay,clock ,white

20A 316220806 - B C Overlay,clock ,bisque

24 # 316246000 A - - Switch,rocker ,white ,oven light

24 # 316246002 - B C Switch,rocker ,bisque ,oven light

24C# 316114000 A - - Switch,speed bake,white

24C# 316114004 - B C Switch,convection ,bisque

31 316223000 A - - Knob,control ,white

31 316223003 - B C Knob,control ,bisque

46 316040201 A B C Lens,indicator light ,red

54 # 316021500 A B C Switch,infinite ,small element

54A# 316021501 A B C Switch,infinite ,large element

56 316234001 A - - Shield,backguard ,white ,inner

56 316234004 - B C Shield,backguard ,bisque ,inner

69 5303288565 A B C Screw,truss sqdr ,8-32 x 3/16 ,switch mtg

* 316021108 A B C Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021109 A B C Screw,8-18 x 0.5 ,chrome

* 316021110 A B C Screw,8-18 x 0.5 ,black

BACKGUARD

12/01 4

BODY

A = GLEFS76A (GLEFS76ASE)

B = GLEFS76A (GLEFS76AQE)

C = GLEFS76A (GLEFS76AQF)

POS. NO PART NO DESCRIPTION

1 316201300 A B C Back,main

3 316230102 A - - Panel,bodyside ,white ,RH

3 316230103 A - - Panel,bodyside ,white ,LH

3 316230108 - B C Panel,bodyside ,bisque ,RH

3 316230109 - B C Panel,bodyside ,bisque ,LH

5 316129200 A B C Screw,leveling ,plastic ,with stop

6 316067902 A B C Rack,oven

6A 316214401 A B C Rack,oven sump

7 316212900 A B C Hinge,oven door ,RH

7A 316212901 A B C Hinge,oven door ,LH

8 316201501 A B C Panel,sump ,oven bottom

9 316081900 A B C Pan,broiler

10 316082000 A B C Insert,broiler pan

12 # 316027701 A B C Switch,oven light

13 316238800 A B C Rod,light switch

14 316116400 A B C Receptacle,oven light

15 5303013071 A B C Bulb/Lamp,oven light

16 08011086 A B C Lens,oven light ,glass

17 316087500 A B C Retainer,lens

18 # 316213900 A B C Latch,oven door

21 3014099 A B C Spacer,bodyside

25 3200848 A B C Shield,heat ,lower

26 316206300 A B C Support,chassis ,(2)

29 3051162 A B C Glide,drawer ,front

30 316217700 A B C Bracket,hinge ,RH ,main top

30A 316217701 A B C Bracket,hinge ,LH ,main top

37 # 316233900 A B C Probe,oven temp

41 316233400 A B C Cover,hinge cutout ,RH

41A 316233500 A B C Cover,hinge cutout ,LH

42 316206200 A B C Shield,wool ,lower

44 316246500 A B C Spacer,oven door

45 316234100 A B C Shield,wire ,vent tube

57 316081100 A B C Cover,access

58 316240300 A B C Insulation,oven bottom

58A 316047708 A B C Insulation,2" ,oven wrapper

58B 316240102 A B C Insulation,oven back

58C 316240400 A B C Insulation,oven sump

59 316208200 A B C Tube,oven vent ,lower

59A 316208300 A B C Tube,oven vent ,upper

59B 316247300 A B C Catalyst,oven vent ,ceramic

62 # 5303935061 A B C Terminal Block Kit

62* 316085600 A B C Insulator

62* 5303308427 A B C Nut,hex ,10-32

63 5301145190 A B C Plate,grounding strap

66 # 316203200 A B C Element,broil

67 # 316225000 A B C Element,bake

68 316203400 A B C Support,broil element

71 316015810 A B C Shield,rear wall ,galv steel

72 316234500 A B C Cover,rod end ,light switch

87 316081200 A B C Bracket,cable mtg

88 316203500 A B C Rod,auto latch

89 # 316135202 A B C Motor,latch/lock

89A 316245800 A B C Bracket,latch ,rear

106 316026600 A B C Bracket,motor mtg

107 316026701 A B C Cover,fan

108# 316136300 A B C Motor,fan

109 316136400 A B C Blade,fan

110 316136500 A B C Washer,fan motor

111 316136600 A B C Nut,fan retainer

BODY

12/01 6

BODY

A = GLEFS76A (GLEFS76ASE)

B = GLEFS76A (GLEFS76AQE)

C = GLEFS76A (GLEFS76AQF)

POS. NO PART NO DESCRIPTION

151 316239300 A B C Shield,bodyside

170 5303935180 A B C Anti-tip Kit,w/bracket,screw

170* 316107200 A B C Bracket,anti-tip

170* 316112500 A B C Template,anti-tip

170* 316116000 A B C Screw,concrete tpg ,1.75 inch ,anti-tip brkt

* # 316253205 A B C Wiring Harness,main

* 316231800 A B C Cover,hole ,conv. element

* 5303305324 A - - Paint,touch-up ,white

* 5304414035 - B C Paint,touch-up ,bisque

* 316021108 A B C Screw,cup pt ,8-18 x 0.375 ,chrome

* 5303271648 A B C Screw,wafer hd sq dr ,8-18AB x 0.5

* 5303280311 A B C Screw,wafer hd sq dr ,10-32 x 0.312

* 5303285179 A B C Screw,wafer head ,8-32T x 0.500 ,black

* 5308014215 A B C Screw,6-20 x 0.312

BODY

12/01 8

TOP/DRAWER

A = GLEFS76A (GLEFS76ASE)

B = GLEFS76A (GLEFS76AQE)

C = GLEFS76A (GLEFS76AQF)

POS. NO PART NO DESCRIPTION

1 316011503 A B C Drawer

2 316231500 A B C Liner,drawer

4 316231305 A - - Panel,drawer ,white

4 316231309 - B C Panel,drawer ,bisque

7 3051163 A B C Glide,drawer ,rear

15 # 316010206 A B C Element,surface ,8" ,2200 W ,radiant

15A# 316010205 A B C Element,surface ,6" ,1200 W ,radiant

15B# 316224200 A B C Element,surface ,9" ,2500W ,radiant

16 316251942 A - - Main Top Assy,glass/steel ,white

16 316251943 - B C Main Top Assy,glass/steel ,bisque

18 316235900 A B C Hinge,main top ,RH

18A 316235901 A B C Hinge,main top ,LH

26 316230200 A B C Channel,element support ,(2)

26A 316099200 A B C Bracket,chassis support ,rear

26B 316214200 A B C Bracket,chassis support ,front

52 316099400 A B C Clip,element mtg

88 316099500 A B C Pin,guide ,(2)

* # 316253513 A B C Wiring Harness,surface element

* 316112101 A B C Cleaner,cooktop

* 316021108 A B C Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021110 A B C Screw,8-18 x 0.5 ,black

* 5303280311 A B C Screw,wafer hd sq dr ,10-32 x 0.312

* 5308014215 A B C Screw,6-20 x 0.312

TOP/DRAWER

12/01 10

DOOR
