Frigidaire FGF367CG Manual de usuario

FACTORY PARTS CATALOG

GAS RANGE

P.O. Box 212378

Augusta, Georgia 30917

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FGF367CGSC FGF367CG WHITE/WHITE USA

FGF367CGSD FGF367CG WHITE/WHITE USA

FGF367CGTC FGF367CG ALMOND/ALMOND USA

FGF367CGTD FGF367CG ALMOND/ALMOND USA

Publication No.

5995323549

WIRING DIAGRAM # - 316002168

OWNER’S GUIDE # - 316000286,316000296

INSTALLATION GUIDE # - 316105808,316105822 GAS - RANGE

FGF367CG

05/98 2

Publication number

5995323549 FGF367CG

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

# - Fast Moving Parts

* - Non Illustrated Parts 3 6/98

Publication number

FGF367CG 5995323549

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

A = FGF367CG (FGF367CGSC)

B = FGF367CG (FGF367CGSD)

C = FGF367CG (FGF367CGTC)

D = FGF367CG (FGF367CGTD)

POS. NO PART NO DESCRIPTION

* 316000286 A - C - Owner’s Manual

* 316000296 - B - D Owner’s Guide

* 316021108 A B C D Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B C D Screw-8-18x1/2 Tr Sqd black

* 316105822 - B - D Installation Instr

* 316112500 A B C D Template, Anti-tip bracket

1 316028701 A B C D Shield-backguard, rear wall

2 316051600 A B C D Shield-backguard inner

2A 316053802 A B C D Shield-backguard,inner/top

11 316083722 A B - - Trim-wrapper gas white w/hole,textured

11 316083723 - - C D Trim-wrapper gas almond w/hole,almond

15 316023108 A B C D Support-backguard,RH

15A 316023109 A B C D Support-backguard,LH

19 316100525 A B - - Panel-control,metal ,painted ,white

19 316100547 - - C D Panel-control, almond

20 # 316101000 A B C D Clock/Timer,electronic

20* 316101502 A B - - Overlay-clock

20* 316101504 - - C D Overlay-clock

23 316100300 A B C D Bracket-clock mtg

24 # 316005607 A - - - Switch-rocker,oven light ,white

24 # 316005608 - - C - Switch-rocker,oven light ,almond

24# 316118101 A B - - Switch-rocker,oven light ,white

24# 316118102 - - C D Switch-rocker,oven light ,almond

36 316109503 A B - - Knob-top valve,white

36 316109504 - - C D Knob-top valve, almond

40 316009285 A B - - Panel-manifold

40 316009287 - - C D Panel-manifold

42 316055200 - - C D Trim-vent

42 316055201 A B - - Trim-vent

56 316074907 A B C D Deflector-flue, black

05/98 4

Publication number

5995323549 FGF367CG

CAUTION: Use the part number on all orders, not the position number.

BURNER

# - Fast Moving Parts

* - Non Illustrated Parts 5 05/98

Publication number

FGF367CG 5995323549

CAUTION: Use the part number on all orders, not the position number.

A = FGF367CG (FGF367CGSC)

B = FGF367CG (FGF367CGSD)

C = FGF367CG (FGF367CGTC)

D = FGF367CG (FGF367CGTD)

POS. NO PART NO DESCRIPTION

* 5303271648 A B C D Screw, wafer hd sq dr , 8-18AB x 1/2

1 316113801 A B C D Manifold-pipe

2 # 316127500 - B - D Valve-top burner

2 # 5303935130 A - C - Valve-top burner

2* 316048200 A B C D Screw-,hex washer head ,1/4-20 x 0.31 ,

w/gasket

2A # 316127502 - B - D Valve-top burner,large ,(2)

2A # 5303935132 A - C - Valve-top burner,large ,(2)

3 # 316103600 A B C D Switch-ignitor,(4)

4 # 316059612 A B C D Tube-burner,red ,RF

5 # 316059613 A B C D Tube-burner,green ,LF

6 # 316059614 A B C D Tube-burner,nat. ,RR

7 # 316059615 A B C D Tube-burner,black ,LR

8 # 5303280394 A B C D Spark Module

8* 5303289034 A B C D Harness-wiring, module/igniter

10 # 5303935025 A B C D Burner Assy-top,sealed ,small ,9000 BTU

10A 5303935075 A B C D Burner Assy-top,sealed ,large ,

11,100 BTU,(2), includes ,11,37,44,45

11 316011200 A B C D Ignitor-top burner,(4) ,w/mtg bracket

13 # 316065005 A B C D Tube,aluminum ,rgltr to manf ,

with fittings

14 # 316091706 A B C D Regulator-pressure

14* 316021104 A B C D Screw-regulator/brkt, hex , 8-18 x 3/8 ,

nick, 3

15 316091600 A B C D Bracket-regulator

16 # 316065003 A B C D Tube-valve to regulator,3/8

17 # 5303208499 A B C D Valve-safety,dual

18 # 3131290 A B C D Burner-oven

19 # 5303935066 A B C D Ignitor-oven

20 3131284 A B C D Baffle-oven burner

21 5303013272 A B C D Nut, hex head sems

22 # 316065002 A B C D Tube-valve to mixer

23 # 316087900 A B C D Burner-broiler

24 # 316070400 A B C D Mixer Elbow

25 5303210379 A B C D Baffle-broiler

26 # 5308067970 A B C D Ignitor-broiler

37 316069301 A B C D Screw-burner mtg

44 5303210090 A B C D Orifice-top burner,small

44A 316010801 A B C D Orifice-top burner large

45 316011100 A B C D Screw-ignitor mtg,self-tapping ,M3x5.8

46 316074700 A B C D Plate-burner tube

47 # 5303286386 A B C D LP Conversion Kit

BURNER

05/98 6

Publication number

5995323549 FGF367CG

CAUTION: Use the part number on all orders, not the position number.

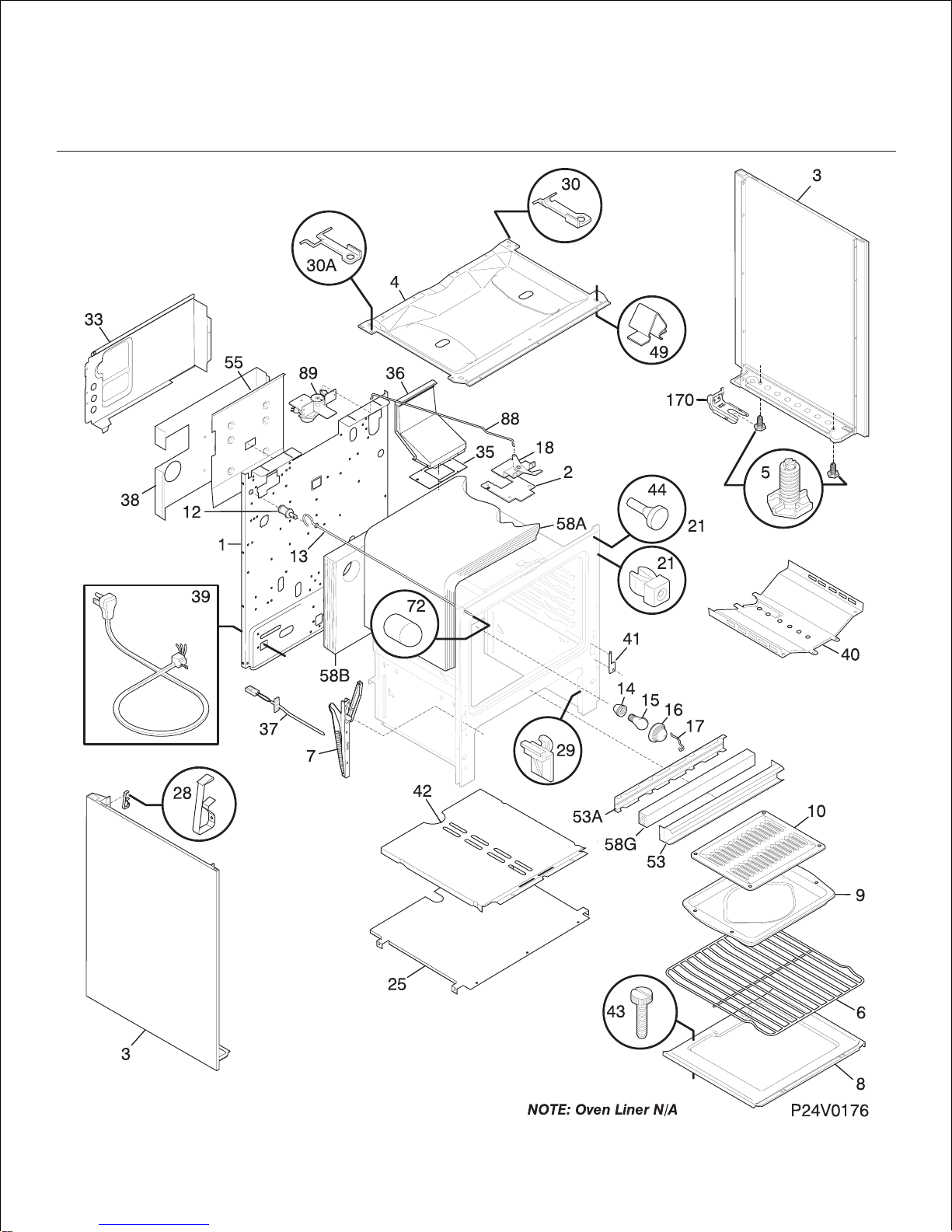

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 7 05/98

Publication number

FGF367CG 5995323549

CAUTION: Use the part number on all orders, not the position number.

BODY

A = FGF367CG (FGF367CGSC)

B = FGF367CG (FGF367CGSD)

C = FGF367CG (FGF367CGTC)

D = FGF367CG (FGF367CGTD)

POS. NO PART NO DESCRIPTION

* 08067757 A B C D Cover Plate

* 316001632 A B C D Harness-wiring,chassis

* 316021108 A B C D Screw,cup pt ,#8-18 x 3/8 ,hinge

1 316029412 A B C D Back-main

2 3131314 A B C D Shield-oven top

3 316081034 A B - - Panel-bodyside, white ,RH

3 316081035 A B - - Panel-bodyside, white , LH

3 316081036 - - C D Panel-bodyside,almond ,RH

3 316081037 - - C D Panel-bodyside,almond ,LH

4 316011912 A B C D Burner Box,black

5 316107300 A B C D Screw-leveling

6 316067902 A B C D Rack-oven

7 316007002 A B C D Hinge-oven door,(2)

8 5303212540 A B C D Panel-oven bottom

8* 316064600 A B C D Support-oven bottom

9 316073800 A B C D Pan-broiler

10 3205234 A B C D Insert-broiler pan

12 # 316027701 A B C D Switch-oven light

13 316026800 A B C D Rod-light switch /door

14 316116400 A B C D Socket-light

15 5303013071 A B C D Light Bulb/Lamp

16 08011086 A B C D Lens-light/lamp, glass , oven

17 316087500 A B C D Retainer-lens

18 # 316036300 A B C D Latch-door

21 3014099 A B C D Spacer-bodyside, (8)

25A 5303288580 A B C D Shield-heat,lower

28 3011813 A B C D Clip-wire, bodyside

29 3051162 A B C D Glide-drawer,front

30 316059200 A B C D Bracket-main top,RH

30A 316059201 A B C D Bracket-main top,LH

33 316014401 A B C D Shield,rear wall

35 316116600 A B C D Gasket-flue

36 5303272844 A B C D Flue

37 # 316111202 A B C D Probe-oven temp

38 316051700 A B C D Shield-heat

39 3202006 A B C D Cord-electric power

40 3200836 A B C D Shield-heat baffle

40* 5303288570 A B C D Screw-heat shield, hd shldr sqdr

41 3131570 A B C D Cover-hinge cutout

42 5303288578 A B C D Shield-bake burner

43 3131732 A B C D Screw-oven bottom, 8-18 x 1.438

44 3131903 A B C D Bumper-door/drawer, rubber

49 3051124 A B C D Clip-spring mtg

53 5303288579 A B C D Shield-main front

53A 08067992 A B C D Shield-insulation

55 316107800 A B C D Shield-flue

58A 316047705 A B C D Insulation,oven wrapper

58B 316054200 A B C D Insulation, 2" ,oven back

58G 08067973 A B C D Insulation,main front

72 5303285692 A B C D Cover-light/switch rod

88 316026400 A B C D Rod-latch,auto

89 # 316028101 A B C D Motor-latch/lock

170 316107200 A B C D Anti-tip bracket

170* 316116000 A B C D Screw-Anti tip, 1.75" concrete

05/98 8

Publication number

5995323549 FGF367CG

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

# - Fast Moving Parts

* - Non Illustrated Parts 9 05/98

Type your model numbers here

CAUTION: Use the Kenmore part number on all orders, not the position number.

TOP/DRAWER

A = FGF367CG (FGF367CGSC)

B = FGF367CG (FGF367CGSD)

C = FGF367CG (FGF367CGTC)

D = FGF367CG (FGF367CGTD)

POS. NO PART NO DESCRIPTION

* 316021108 A B C D Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B C D Screw-8-18x1/2 Tr Sqd black

* 316021112 A B - - Screw-8-18x1/2 Tr Sqd White

* 316021113 - - C D Screw-8-18x1/2 Tr Sqd Almond

* 316089600 A B C D Spacer-drawer,(2)

* 5303280311 A B C D Screw, waf hd sdr , 10-32 x 5/16 , (2)

1 316011501 A B C D Drawer-utility

2 3131975 A B C D Shield-panel

4 316084405 A B - - Panel-drawer,white

4 316084406 - - C D Panel-drawer,almond

4* 08067785 - - C D Screw,hex washer head ,8-18AB x 1/2

7 3051163 A B C D Glide-drawer,rear

16 5303307709 A B - - Main Top,white

16 5303307710 - - C D Main Top,almond

19 # 316011413 A B - - Pan-burner,gray ,small ,(2)

19 # 316011414 - - C D Pan-burner,almond ,small ,(2)

19A# 316011417 A B - - Pan-burner,gray ,large ,(2)

19A# 316011418 - - C D Pan-burner,almond ,large ,(2)

20 # 316085304 A B C D Grate,(4)

22 316122101 A B C D Cap-burner glossy,glossy ,gray ,(4)

22A 316098509 A B C D Cap-burner,large ,gloss gray

48 316077401 A B C D Shield-maintop,(2)

05/98 10

Publication number

5995323549 FGF367CG

CAUTION: Use the part number on all orders, not the position number.

DOOR
