Frigidaire FGF316WG Manual de usuario

FACTORY PARTS CATALOG

GAS RANGE

P.O. Box 212378

Augusta, Georgia 30917

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FGF316WGTD FGF316WG ALMOND USA

FGF316WGTE FGF316WG ALMOND USA

FGF316WGTF FGF316WG ALMOND USA

FGF316WGSD FGF316WG WHITE USA

FGF316WGSE FGF316WG WHITE USA

FGF316WGSF FGF316WG WHITE USA

Publication No.

5995322871

990511

-EN/SERVICE /SBR

369

WIRING DIAGRAM # - 316002152,316002153

OWNER’S GUIDE # - 316000646

INSTALLATION GUIDE # - 316105805 GAS - RANGE

FGF316WG

05/98 2

Publication number

5665322871 FGF316WG

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

# - Fast Moving Parts

* - Non Illustrated Parts 3 6/98

Publication number

FGF316WG 5665322871

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

A = FGF316WG (FGF316WGSD)

B = FGF316WG (FGF316WGSE)

C = FGF316WG (FGF316WGSF)

D = FGF316WG (FGF316WGTD)

E = FGF316WG (FGF316WGTE)

F = FGF316WG (FGF316WGTF)

POS. NO PART NO DESCRIPTION

* 316000646 A - - D - - Owner’s Guide

* 316001821 ------ Harness-ignitor

* 316021108 A - - D - - Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A - - D - - Screw-8-18x1/2 Tr Sqd black

* 316097602 A - - D - - Insulator

* 316105805 A - - D - - Installation Instructions

* 316112500 A - - D - - Template, Anti-tip bracket

1 3131123 A - - D - - Shield-backguard,rear wall

9 316043608 ------ Trim-splasher,white

9 316043609 ------ Trim-splasher,almond ,(3)

9 316043611 A ----- Trim-splasher,white

9 316043615 ---D-- Trim-splasher,almond

11 316083716 A ----- Trim-wrapper,white

11 316083717 ---D-- Trim-wrapper,almond

12 # 316032404 A - - D - - Thermostat

15 5303131237 A - - D - - Support-backguard,(2)

19 316034130 A ---- Panel-control Frigidaigre,metal ,white

19 316034132 ---D-- Panel-control Frigidaure,,metal ,almond

24 # 316005608 ---D-- Switch-rocker,oven light ,almond

24# 316005607 A ----- Switch-rocker,oven light ,white

24# 316118101 ------ Switch-rocker,oven light ,white

24# 316118102 ------ Switch-rocker,oven light ,almond

30A 316064300 A - - D - - Nut,nylon

32 316102303 A ----- Knob-thermostat,black

32 316102315 ---D-- Knob-thermostat

36 316009009 A ----- Knob-top valve,white ,(4)

36 316102316 ---D-- Knob-top valve,almond ,(4)

40 316086820 A ----- Panel-manifold,white

40 316086840 ---D-- Panel-manifold,almond

40 316086863 ------ Panel-manifold,white

40 316086864 ------ Panel-manifold w/rocker switch,almond

44 3131468 A - - D - - Bracket,backguard

45A 316056903 A ----- Bolt-fastener,nylon ,white

45A 316056904 ---D-- Bolt-fastener,nylon ,almond ,(2)

94 316111300 A - - D - - Stiffener-BG,metal ,zinc

05/98 4

Publication number

5665322871 FGF316WG

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

# - Fast Moving Parts

* - Non Illustrated Parts 5 05/98

Publication number

FGF316WG 5665322871

CAUTION: Use the part number on all orders, not the position number.

A = FGF316WG (FGF316WGSD)

B = FGF316WG (FGF316WGSE)

C = FGF316WG (FGF316WGSF)

D = FGF316WG (FGF316WGTD)

E = FGF316WG (FGF316WGTE)

F = FGF316WG (FGF316WGTF)

POS. NO PART NO DESCRIPTION

* 316000646 - B C - E F Owner’s Guide

* 316001821 - B C - E F Harness-ignitor

* 316021108 - B C - E F Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 - B C - E F Screw-8-18x1/2 Tr Sqd black

* 316097602 - B C - E F Insulator

* 316105805 - B C - E F Installation Instructions

* 316112500 - B C - E F Template, Anti-tip bracket

1 3131123 ------ Shield-backguard,rear wall

9 316043608 - B C - - - Trim-splasher,white

9 316043609 ----EF Trim-splasher,almond ,(3)

9 316043611 ------ Trim-splasher,white

9 316043615 ------ Trim-splasher,almond

11 316083716 ------ Trim-wrapper,white

11 316083717 ------ Trim-wrapper,almond

12 # 316032404 - B C - E F Thermostat

15 5303131237 - B C - E F Support-backguard,(2)

19 316034130 - B C - - - Panel-control Frigidaire,metal ,white

19 316034132 ----EF Panel-control Frigidaire,metal ,almond

24 # 316005608 ------ Switch-rocker,oven light ,almond

24# 316005607 ------ Switch-rocker,oven light ,white

24# 316118101 - B C - - - Switch-rocker,oven light ,white

24# 316118102 ----EF Switch-rocker,oven light ,almond

30A 316064300 - B C - E F Nut,nylon

32 316102303 - B C - - - Knob-thermostat,black

32 316102315 ----EF Knob-thermostat

36 316009009 - B C - - - Knob-top valve,white ,(4)

36 316102316 ----EF Knob-top valve,almond ,(4)

40 316086820 ------ Panel-manifold,white

40 316086840 ------ Panel-manifold,almond

40 316086863 - B C - - - Panel-manifold,white

40 316086864 ----EF Panel-manifold w/rocker switch,almond

44 3131468 - B C - E F Bracket,backguard

45A 316056903 - B C - - - Bolt-fastener,nylon ,white

45A 316056904 ----EF Bolt-fastener,nylon ,almond ,(2)

94 316111300 - B C - E F Stiffener-BG,metal ,zinc

BACKGUARD

05/98 6

Publication number

5665322871 FGF316WG

CAUTION: Use the part number on all orders, not the position number.

BURNER

# - Fast Moving Parts

* - Non Illustrated Parts 7 05/98

Publication number

FGF316WG 5665322871

CAUTION: Use the part number on all orders, not the position number.

BURNER

A = FGF316WG (FGF316WGSD)

B = FGF316WG (FGF316WGSE)

C = FGF316WG (FGF316WGSF)

D = FGF316WG (FGF316WGTD)

E = FGF316WG (FGF316WGTE)

F = FGF316WG (FGF316WGTF)

POS. NO PART NO DESCRIPTION

* 5303271648 A B C D E F Screw, wafer hd sq dr , 8-18AB x 1/2

1 316113500 A B C D E F Manifold-pipe

2 # 316098600 A B C D E F Valve-top burner,2-position ,(4)

2* 316048200 A B C D E F Screw-,hex washer head ,1/4-20 x 0.31 ,

w/gasket

3 # 316103601 A - - D - - Switch-ignitor,(4)

8 # 5303912606 A B C D E F Spark Module

10 # 316039002 A B C D E F Burner-top,front

10A# 316039003 A B C D E F Burner-top,rear

11 # 3200276 A B C D E F Igniter-top burner,base ,50"

11 # 316081700 A B C D E F Ignitor-top burner,33"

11 # 5303289336 A B C D E F Igniter-top burner,base ,33"

11A# 316081701 A B C D E F Ignitor-top burner,50"

12 3016993 A B C D E F Retainer-ignitor

14 # 316082900 A B C D E F Regulator-pressure

14* 316021104 A B C D E F Screw-regulator/brkt, hex , 8-18 x 3/8 ,

nick, 3

17 # 3203459 A B C D E F Valve-safety

18 # 316114300 A B C D E F Burner-oven

19 # 5303935066 A B C D E F Ignitor-oven

20 3203265 A B C D E F Baffle-oven burner

21 5303013272 A B C D E F Nut, hex head sems

36 316083000 A B C D E F Tubing,3/8 ,alum

48 3018603 A B C D E F Bracket-support,oven burner

49 3131438 A B C D E F Bracket,safety valve

05/98 8

Publication number

5665322871 FGF316WG

CAUTION: Use the part number on all orders, not the position number.

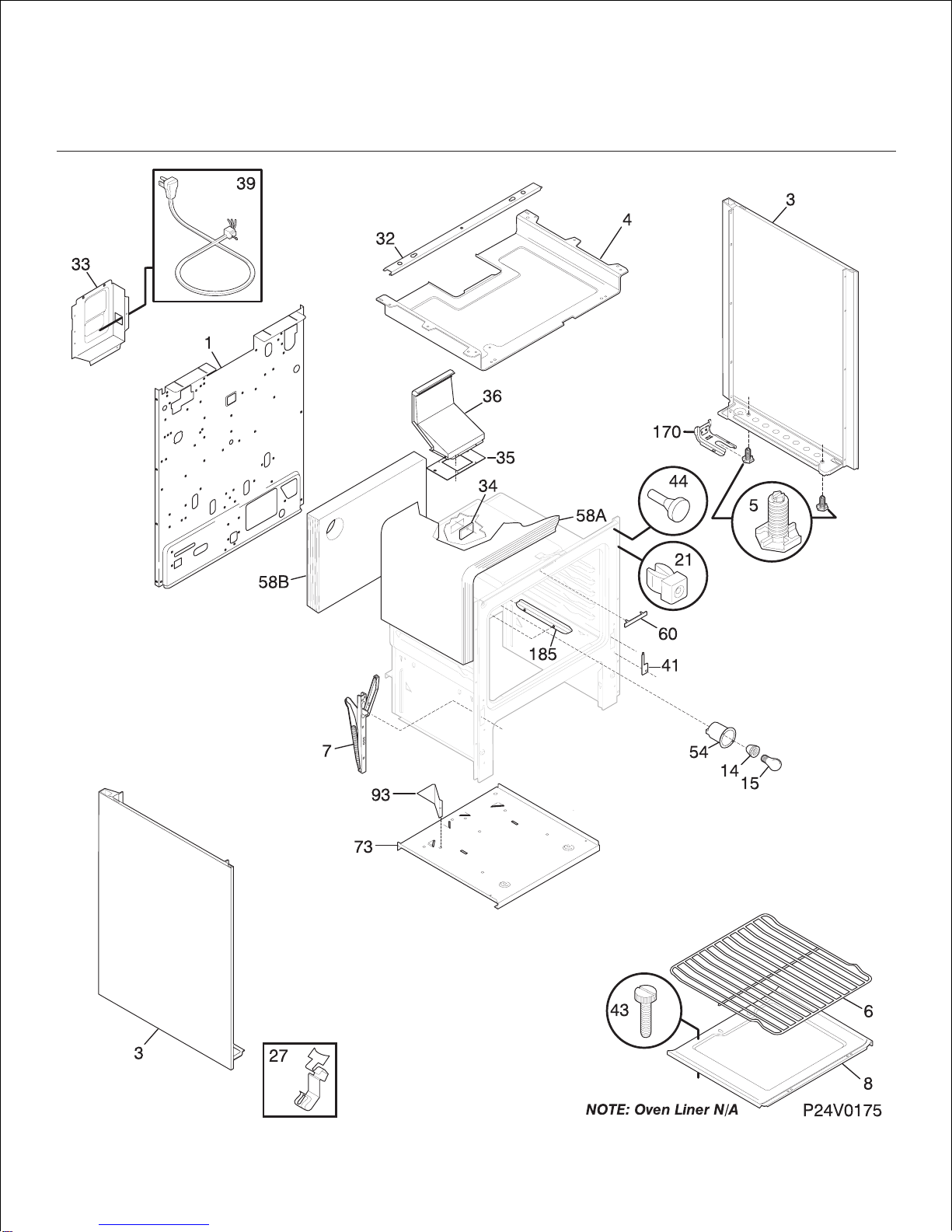

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 9 05/98

Publication number

FGF316WG 5665322871

CAUTION: Use the part number on all orders, not the position number.

BODY

A = FGF316WG (FGF316WGSD)

B = FGF316WG (FGF316WGSE)

C = FGF316WG (FGF316WGSF)

D = FGF316WG (FGF316WGTD)

E = FGF316WG (FGF316WGTE)

F = FGF316WG (FGF316WGTF)

POS. NO PART NO DESCRIPTION

* 316021108 A B C D E F Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316073400 A B C D E F Plate-weight,(3)

1 316029412 A B C D E F Back-main

3 316081034 A B C - - - Panel-bodyside, white ,RH

3 316081035 A B C - - - Panel-bodyside, white , LH

3 316081036 ---DEF Panel-bodyside,almond ,RH

3 316081037 ---DEF Panel-bodyside,almond ,LH

4 316067206 A B C D E F Burner Box

5 316107300 A B C D E F Screw-leveling

6 316067902 A B C D E F Rack-oven

7 316007003 A B C D E F Hinge-oven door,assembly

8 5303212540 A B C D E F Panel-oven bottom

8* 316064600 A B C D E F Support-oven bottom

14 316116400 A B C D E F Socket-light

15 5303013071 A B C D E F Light Bulb/Lamp

21 3014099 A B C D E F Spacer-bodyside, (8)

27 5303284616 A B C D E F Clip-thermo bulb

32 3203441 A B C D E F Channel-burner supt

32* 5303289684 A B C D E F Fastener,tanden wire ,(2)

33 316055601 A B C D E F Shield-spark module

34 3018607 A B C D E F Cover Plate

35 316116600 A B C D E F Gasket-flue

36 316103901 A B C D E F Flue,black

39 3202006 A B C D E F Cord-electric power

40* 5303288570 A B - D E - Screw-heat shield, hd shldr sqdr ,

8-18 X 1/2

41 3131570 A B C D E F Cover-hinge cutout

43 3131732 A B C D E F Screw-oven bottom, 8-18 x 1.438

44 3131903 A B C D E F Bumper-door/drawer, rubber

54A 5303271606 A B C D E F Housing-oven light

58A 3017142 A B C D E F Insulation,oven wrapper

58B 3203541 A B C D E F Insulation,oven back

60 5303015372 A B C D E F Cover-oven front

73 316109902 A B C D E F Base-low broil

93 316110000 A B C D E F Shield,metal ,galvanized ,ignitor

170 316107200 A B C D E F Anti-tip bracket

170* 316116000 A B C D E F Screw-Anti tip, 1.75" concrete

185 316112900 A B C D E F Shield-thermo bulb

05/98 10

Publication number

5665322871 FGF316WG

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER
