Frigidaire C970-4411 Manual de instrucciones

79046783900.jpg CC970-441131.eps BC970-441131.eps TC970-441131.eps DC970-

440734.eps 318550141-1.eps 318550141-2.eps

SEARS CANADA

Product No. C970-441131

37605346B00S1

Series 30" slide-in

Color stainless

Market Canada

Wiring Diagram 318550141

Owner's Guide 318205816

Installation Instructions 318201619

Service Data Sheet 318127091

Frigidaire

5855 TERRY FOX WAY

MISSISSAUGA, ONTARIO, CANADA L5V 3E4

Publication No.

5995576815

10/10/13

(EN/SERVICE/ECL)

377

30-INCH SLIDE-IN

ELECTRIC RANGE

Model No.

C970-4411

Publication No: 5995576815 C970-441131

10/10 2

BACKGUARD

C970-441131 Publication No: 5995576815

# Functional Parts 3 10/10

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

14 # 318293901 Light, indicator, 125v, (2)

16 318296602 Console, assy., black

19 318566706 Panel Assembly, control, stainless/black

19A 318289715 Panel, control mtg.

20 # 318296832 Clock/Timer, electronic, ES335, black, w/overlay

20* 318214526 Overlay, control, black, ES335

20* 5304453707 Screw, 8-18 X 1/2

35 318183100 Support, glass, black

36 318921149 Knob, control, stainless, single

36A 318921150 Knob, control, stainless, dual

42 318574701 Support, control panel, black

* 5303211311 Screw, 8-18 x 0.500

* 5304436875 Screw, 8-18 X 1/2, black, (3)

46 318228301 Lens, indicator light

54 # 318293830 Switch, infinite, (2)

54B# 318191027 Switch, infinite, dual

55 318402901 Bushing, switch

69 5303323134 Screw, 8-32 x 3/16, (8)

69A 5304480396 Screw, 8-32 x 3/8", (4)

99A 318313231 Gasket, black

* # 318228873 Harness, wiring, main, backguard

* # 318224876 Harness, wiring, timer

* # 318231880 Harness, wiring, jumper

* 318205816 Owners Manual

* 318127091 Service Data Sheet

* 318550141 Wiring Diagram

* 318201619 Instructions, installation

* 5303300265 Screw, 8-18 X 1/2, (4)

* 5303323136 Screw ground

Publication No: 5995576815 C970-441131

10/10 4

BODY

C970-441131 Publication No: 5995576815

# Functional Parts 5 10/10

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 318259220 Back, main

1A 318225110 Panel, main back, upper

* 5303324184 Screw, 8-18 x 5/16, black

2 318570500 Panel, insualtion, top

3 318225210 Panel, bodyside, upper RH

3A 318225211 Panel, bodyside, upper LH

* 318531701 Spacer, (2)

5 318175508 Screw, leveling, w/tee nut

6 318262504 Rack, oven

8 318262001 Cover, element

8A 318318600 Bracket, element, hidden bake

9 5303317977 Pan, broiler OPTIONAL ACCESS0RY

10 5303317976 Insert, broiler pan OPTIONAL ACCESS0RY

12 # 316445501 Switch, oven light, door frame

14 318224000 Receptacle, oven light

* 318368501 Seal, housing, flat washer

15 316538901 Lamp, oven light

16 318406100 Lens, oven light, glass

17 5304400195 Retainer, light cover

24 318913116 Trim, vent, black, upper

29 316517600 Spacer, oven door

37 # 318562500 Sensor, oven temp probe

39 # 318113111 Cord, electric

* 5303323136 Screw ground

54 318222400 Housing, oven light

* 5304415832 Screw, 8-18 x 0.406

57 318402800 Plate, cover

58A 318386113 Insulation, oven wrapper

58B 318133791 Insulation, oven back, back/bottom

59 318570602 Duct, cooling fan

59* 318579001 Bracket, wire

62 5303935061 Terminal Block Kit

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

66 # 318255600 Element, broil, 2750W

67 # 318254906 Element, bake, 3400W, 8 pass

68 5304403015 Support, hanger, broil element

70 318259105 Shield, insulation, sides, (2)

71 318260007 Panel, rear box

76 318056292 Front, oven

80 5303320846 Plate, oven mtg

* 318091102 Bracket, glass or wire

81 318192400 Spring, oven

* 5303323129 Screw, 8 X 0.750

82 318258765 Shield, insulation, lower

83 318261446 Liner, oven assy

86 318561100 Receptacle, hinge, (2)

86* 5304461333 Screw, 10-32 x 17/32

87 318260625 Bracket, cable mtg.

89 # 318261221 Motor, latch assy

* 5304417153 Screw, shoulder, 8-18 X 1/2, (4)

Publication No: 5995576815 C970-441131

10/10 6

BODY

C970-441131 Publication No: 5995576815

# Functional Parts 7 10/10

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

90 318296904 Panel, filler, black, RH

90A 318296905 Panel, filler, black, LH

108# 318575600 Motor, cooling fan

119# 318578506 Thermostat, cooling fan, 105 deg.

127 318317105 Adapter Assembly, vent tube, w/converter

131 318574805 Bottom, cooling duct

141# 318005229 Switch, thermal cutout

166 318298410 Bracket, base support, (2)

166A 318298403 Bracket, base support, lower, (2)

170 318335500 Anti-tip & accessories

200 318335600 Frame & Wheel Assembly, black

201 318298230 Frame, drawer, black

* # 318384492 Wiring Harness, main

* 5304400192 Retainer, wiring

* 3051050 Screw, shoulder

* 5303211311 Screw, 8-18 x 0.500

* 5303323277 Screw, 8-18 X 13/32

* 5304436875 Screw, 8-18 X 1/2, black, (3)

* 5304440988 Screw, 10-16 x 3/4

* 5304454881 Screw, #8-18 x 3/8, (10)

Publication No: 5995576815 C970-441131

10/10 8

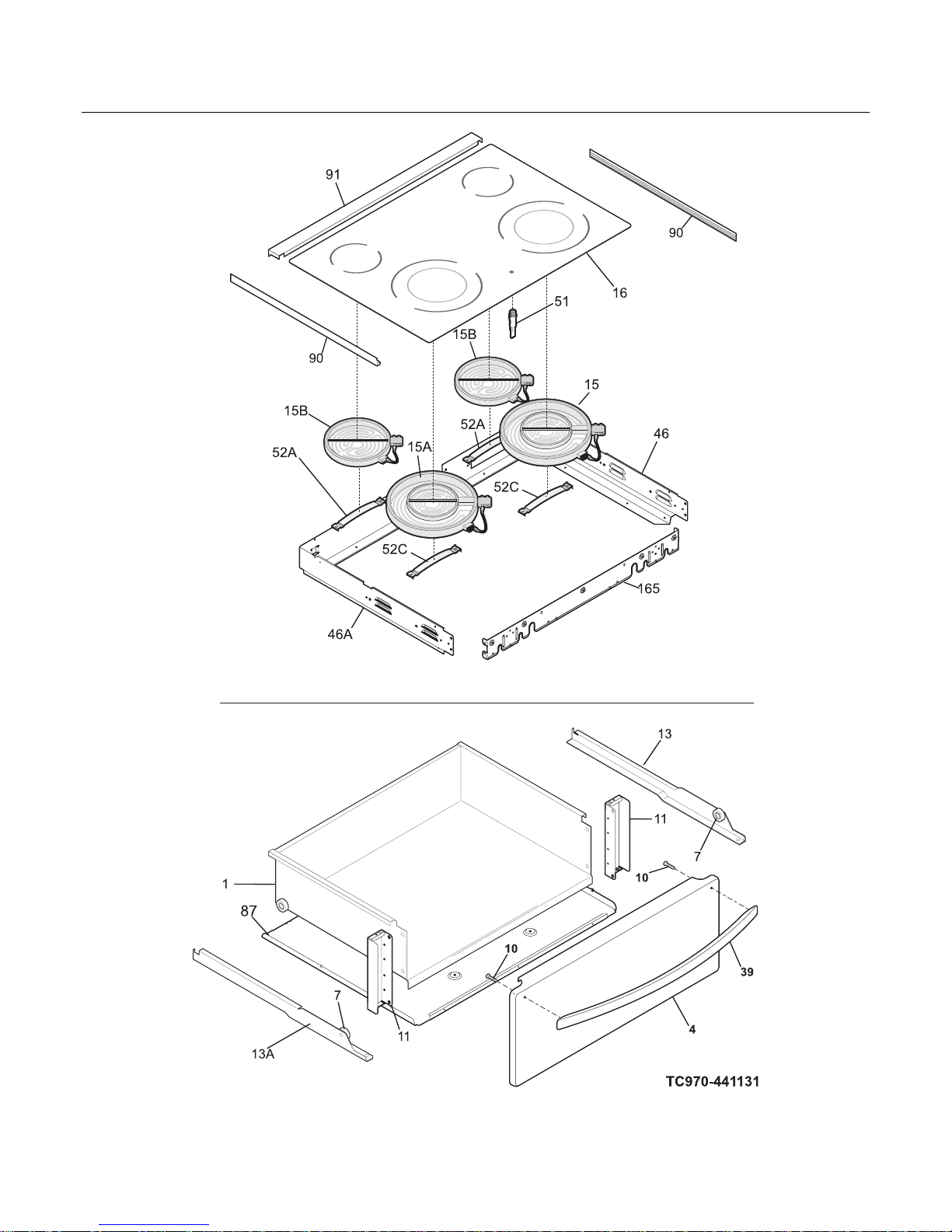

TOP/DRAWER

C970-441131 Publication No: 5995576815

# Functional Parts 9 10/10

* Non-Illustrated Parts

TOP/DRAWER

POS. NO PART NO. DESCRIPTION

1 318107105 Drawer

4 318298824 Panel, drawer, stainless, front

7 318332200 Roller, nylon

10 5303308458 Screw, 10-24, (2)

* 3201909 Washer, flat, lower

11 318298601 Bracket, drawer support, (2)

13 318018100 Channel, drawer, RH

13A 318018101 Channel, drawer, LH

15 # 316418401 Element, dual, 9"/6", surface, 1200W/2500W, radiant

15A# 316465002 Element, surface, 6"/9", 1400/3000W, radiant

15B# 318198830 Element, surface, 6", 1200W, (2), radiant

16 318223684 Main Top, glass assy., black

39 316553302 Handle, stainless

46 318568200 Box, burner, RH

46A 318568201 Box, burner, LH

51 # 318044828 Light, indicator, 125v

* # 318231876 Harness, wiring, pilot light

52A 318122006 Spring, element mtg, small

52C 318122010 Spring, element mtg, 3000W

87 318300102 Panel, warmer drawer, lower

90 318368001 Channel, glass protector, (2)

91 318304303 Trim, filler, black, rear

165 318227520 Plate, mounting

* # 318228970 Harness, wiring, cooktop

* # 318532147 Ground wire, w/terminal

* 318163602 Cleaner, stainless steel

* 316112100 Cleaner, glass

* 5303211311 Screw, 8-18 x 0.500

* 5303300265 Screw, 8-18 X 1/2, (4)

Publication No: 5995576815 C970-441131

10/10 10

DOOR
