Frigidaire FGF312B Manual de usuario

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FGF312BSA FGF312B white North America

Publication No.

5995384525

030124

-EN/SERVICE /ECL

369

GAS

RANGE

Model No.

FGF312B

FACTORY

PARTS CATALOG

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

WIRING DIAGRAM - # 316255203

OWNER’S GUIDE - # 316257501

INSTALLATION INSTRUCTIONS -# 316259312

01/03 2

Publication No. FGF312BSA

5995384525

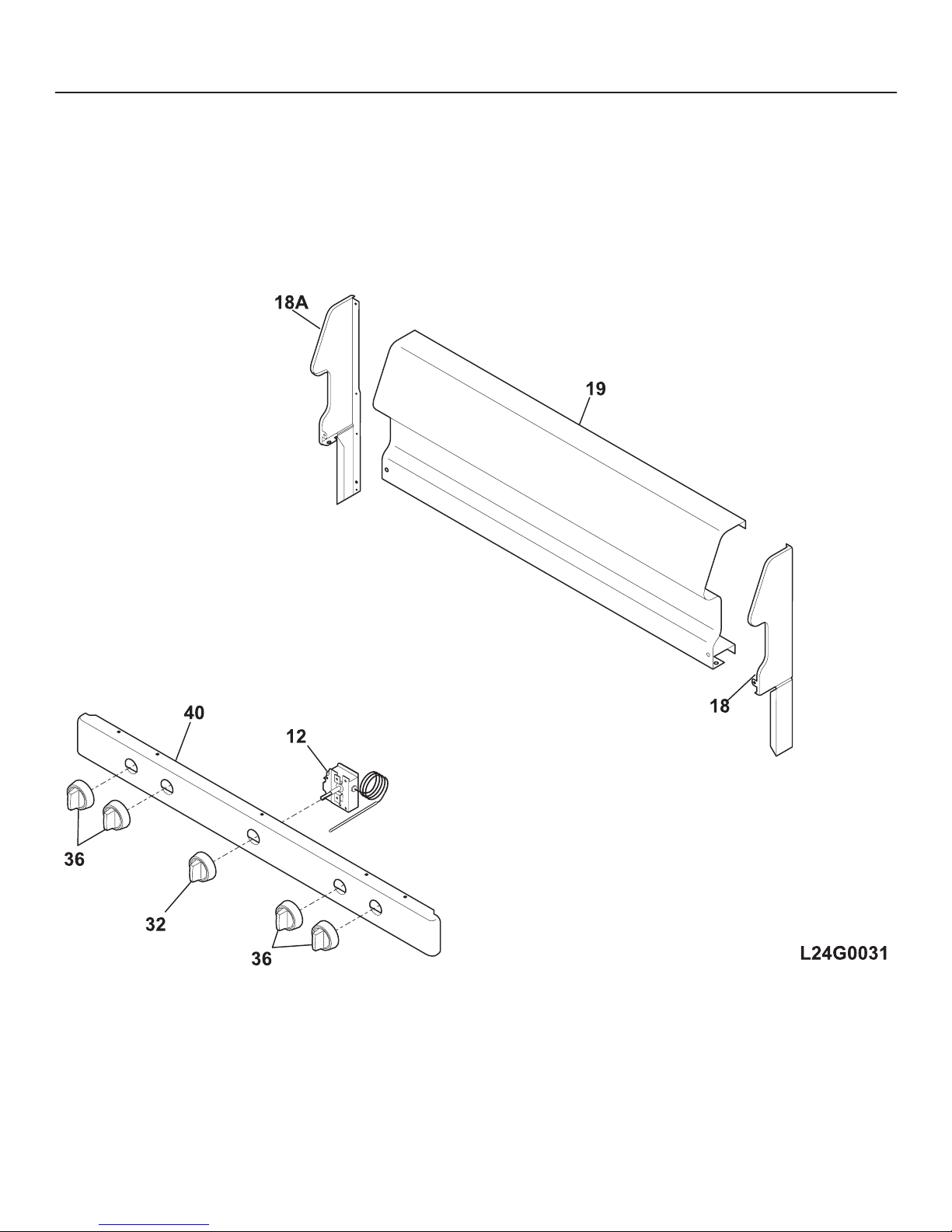

BACKGUARD

# = Fast-moving Parts 3 01/03

* = Non-Illustrated Parts

FGF312BSA Publication No.

5995384525

BACKGUARD

POS. NO PART NO DESCRIPTION

12 # 316032404 Thermostat

12* 316097602 Insulator

18 316263404 End Cap,white ,RH

18A 316263405 End Cap,white ,LH

19 316263301 Panel,backguard ,white

32 316102303 Knob,thermostat ,white

36 316009009 Knob,top valve ,white ,(4)

40 316201805 Panel,manifold ,white

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021109 Screw,8-18 x 0.5 ,chrome

* 316021110 Screw,8-18 x 0.5 ,black

01/03 4

Publication No. FGF312BSA

5995384525

BURNER

# = Fast-moving Parts 5 01/03

* = Non-Illustrated Parts

FGF312BSA Publication No.

5995384525

BURNER

POS. NO PART NO DESCRIPTION

1 # 316134400 Pipe,manifold

2 # 5303935189 Valve,top burner ,2 position ,w/mtg screw

* 316134300 Screw,10-24 ,valve mounting

3 316001828 Wiring Harness,ignitor ,with switches

8 # 316135700 Module,spark

10 # 316103800 Burner,top ,front ,venturi ring

10A# 316103801 Burner,top ,rear ,venturi ring

11A# 316081705 Ignitor,top burner ,50"

12 3016993 Retainer,ignitor

14 # 316091705 Regulator,pressure

14* 316021104 Screw,hex ,8-18 x 3/8 ,nick ,(3) ,regulator brkt

17 # 3203459 Valve,safety

18 # 316114300 Burner,oven

19 # 5303935066 Ignitor,oven kit ,w/nut & instr

20 3203265 Baffle,oven burner

21 5303013272 Nut,hex head sems

36 316065004 Tubing,3/8 ,alum

48 3018603 Bracket,support ,oven burner

49 3131438 Bracket,safety valve

* 5303271648 Screw,wafer hd sq dr ,8-18AB x 0.5

01/03 6

Publication No. FGF312BSA

5995384525

BODY

# = Fast-moving Parts 7 01/03

* = Non-Illustrated Parts

FGF312BSA Publication No.

5995384525

BODY

POS. NO PART NO DESCRIPTION

1 316029416 Panel,main back

3 316230114 Panel,bodyside ,white ,RH

3 316230115 Panel,bodyside ,white ,LH

3* 316021131 Screw,bodyside ,8-18 X 11/16 ,white

4 316067210 Burner Box

5 316129200 Screw,leveling ,plastic ,with stop

6 316067902 Rack,oven

7 316216502 Hinge,oven door ,RH

7A 316216503 Hinge,oven door ,LH

8 5303300701 Panel,oven bottom

8* 316064600 Support,oven bottom

21 3014099 Spacer,bodyside

27 5303284616 Clip,thermo bulb mtg

32 316107501 Channel,burner support

32* 5303289684 Fastener,tanden wire ,(2)

33 316055600 Shield,spark module ,galv steel

34 3018607 Plate,cover

35 316116600 Gasket,flue

36 316204401 Flue,black

39 3202006 Cord,electric power

41 316233400 Cover,hinge cutout ,RH

41A 316233500 Cover,hinge cutout ,LH

43 3131732 Screw,8-18 x 1.438 ,oven bottom

58A 3017142 Insulation,oven wrapper

58B 316054202 Insulation,1" ,oven back

69 3051218 Plate,oven light

73 316109902 Base,low broil

93 316110000 Shield,ignitor ,metal

170 5303935180 Anti-tip Kit,w/bracket,screw

170* 316107200 Bracket,anti-tip

170* 316112500 Template,anti-tip

170* 316116000 Screw,concrete ,1.75" ,anti-tip brkt

185 316112900 Shield,thermo bulb

* # 316001208 Wiring Harness,main

* 316210800 Plug,button ,oven light

* 316246400 Plug,button ,oven probe

* 316249200 Plate,weight

* 5303305324 Paint,touch-up ,white

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 5303271648 Screw,wafer hd sq dr ,8-18AB x 0.5

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

* 5303285179 Screw,wafer head ,8-32T x 0.500 ,black

01/03 8

Publication No. FGF312BSA

5995384525

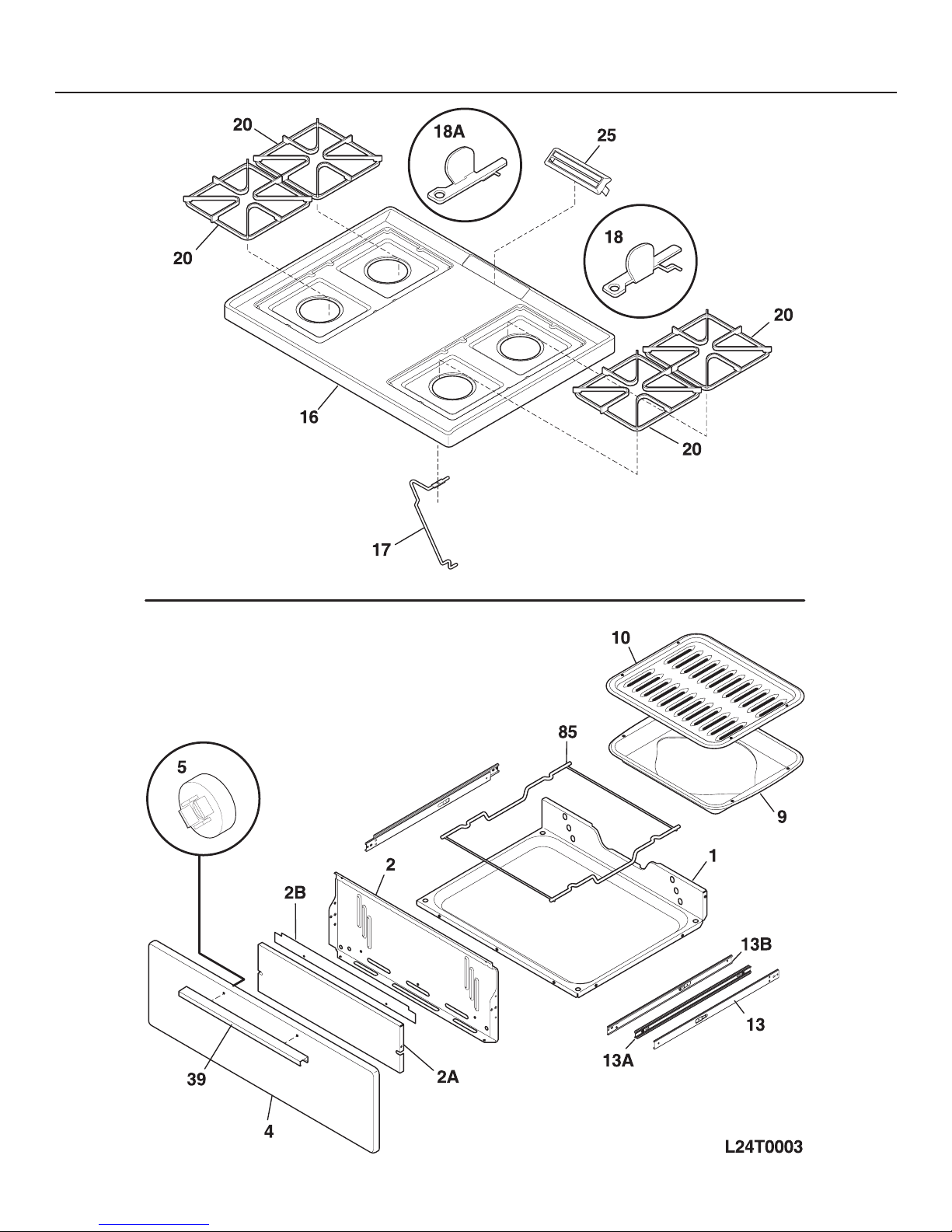

TOP/DRAWER

# = Fast-moving Parts 9 01/03

* = Non-Illustrated Parts

FGF312BSA Publication No.

5995384525

TOP/DRAWER

POS. NO PART NO DESCRIPTION

1 316110201 Carriage,low broil

2 316236401 Liner,low broil

2A 316110800 Shield,broiler

2B 316237600 Shield,low broil ,top

4 316231211 Panel,drawer ,white

5 316129100 Fastener,push-in nut ,nylon ,spacer

9 316081900 Pan,broiler

10 316082000 Insert,broiler pan

13 316111502 Glide,low broil ,chassis

13A 316111600 Glide,low broil ,inner

13B 316111501 Glide,low broil ,outer

16 316104401 Main Top,white

17 316066900 Rod,maintop support

18 08067747 Bracket,hinge ,main top RH

18A 08067746 Bracket,hinge ,main top LH

20 # 316088900 Grate,black ,(4)

25 316104500 Cover,vent ,chrome

39 316019511 Handle,drawer ,white

85 316115600 Rack,low broil

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021109 Screw,8-18 x 0.5 ,chrome

* 316021110 Screw,8-18 x 0.5 ,black

* 316021120 Screw,shoulder head ,8-18 x 5/8 ,(2) ,square drive

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

01/03 10

Publication No. FGF312BSA

5995384525

DOOR
