Frigidaire FEFB89E Manual de usuario

Product No. FEFB89ECA

Series 30' f/s elec

Color stainless

Market North America

Wiring Diagram 316441401

Owner's Guide 316417015

Installation Instructions 316259206

Service Data Sheet 316441401

GLEFS79DC.eps T20G5630.eps T20V0052.eps T20T0038.eps T20D0017.eps

316441401d.eps 316441401S.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378

Augusta, GA 30917

Publication No.

5995432589

05/03/28

(EN/SERVICE/BJH)

369

30-INCH FREE-

STANDING ELECTRIC

RANGE

Model No.

FEFB89E

Publication No: 5995432589 FEFB89ECA

03/05 2

BACKGUARD

13A

8.8.

24C

54B

141414

T20G 3056

15A

20A

FEFB89ECA Publication No: 5995432589

# Functional Parts 3 03/05

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

1 316416100 Shield, backguard, rear wall

13A 316095500 Switch, infinite, warmer

14 316022500 Light/Lamp, indicator, 125 V

15 316411405 Support, backguard, black, RH

15A 316411404 Support, backguard, black, LH

19 316436210 Panel, control, stainless

20 # 316418305 Clock/Timer, electronic, ES340

20A 316419303 Overlay, clock, black, ES340

24C# 316114002 Switch, speed bake, black

31 316223002 Knob, control, black

46 316040201 Lens, indicator light, red

54 # 316021500 Switch, infinite, small element

54B# 316238200 Switch, infinite, dual element

56 316234013 Shield, backguard, black, inner

69 5303288565 Screw, truss sqdr, 8-32 x 3/16, switch mtg

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021109 Screw, 8-18 x 0.5, chrome

* 316021110 Screw, 8-18 x 0.5, black

Publication No: 5995432589 FEFB89ECA

03/05 4

BODY

5A 5

ANTI-TIP

BRACKET

ANTI-TIP

BRACKET

NOTE: Oven Liner N/A

Ass. du four N/A

170

151

58A

58B

1716

107

170

151

T20V0052

59B

59A

110

109

111

106

108

FEFB89ECA Publication No: 5995432589

# Functional Parts 5 03/05

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

* 5308014215 Screw, 6-20 x 0.312

1 316401800 Panel, main back

3 316400104 Panel, bodyside, black, RH

3 316400105 Panel, bodyside, black, LH

5 316272900 Screw, leveling, plastic, rear, (2)

5A 316407200 Leveling Leg Assy, metal, front, (2), bracket & leg

6 316404500 Rack, oven

6B 316425400 Rack, oven

8A 316411102 Base, bake element

12 # 316407100 Switch, oven light/door

14 316116400 Receptacle, oven light

15 5303013071 Bulb/Lamp, oven light

16 08011086 Lens, oven light, glass

17 316087500 Retainer, lens

18 # 316405800 Latch Assembly, oven door

21 316408000 Clip, bodyside

25 5303289914 Shield-heat lower

29 316407301 Glide, drawer, front

37 # 316217001 Probe, oven temp

42 316407700 Shield, wool, lower

44 316246501 Spacer, oven door

45 316234100 Shield, wire, vent tube

57 316422400 Cover, access

58 316403801 Insulation, oven sump

58A 316406600 Insulation, oven wrapper

58B 316406500 Insulation, oven back

59 316208200 Tube, oven vent, lower

59A 316208304 Tube, oven vent, upper

59B 316247300 Catalyst, oven vent, ceramic

62 5303935238 Terminal Block Kit, w/ground plate

62* 316085600 Insulator

62* 316205500 Nut, hex flange, 3/8 10-32

63 316278800 Plate, grounding strap

66 # 316430900 Element, broil, 4000W

67 316415900 Element, bake, 3500W, 6 pass

68 316429100 Support, element, broil

71 316422300 Shield, rear wall

86 316441300 Receptacle, hinge

86* 316418901 Screw, trilobe, 10-32 x 5/16"

87 316081200 Bracket, cable mtg

88 316203500 Rod, auto latch

89 # 316415400 Motor, latch/lock

106 316404100 Bracket, motor mtg.

107 316026701 Cover, fan

108# 316415800 Motor, fan

109 316136400 Blade, fan

110 316136500 Washer, fan motor

111 316136600 Nut, fan retainer

151 316404600 Shield, bodyside

170 5303935180 Anti-tip Kit, w/bracket, screw

170* 316107200 Bracket, anti-tip

Publication No: 5995432589 FEFB89ECA

03/05 6

BODY

5A 5

ANTI-TIP

BRACKET

ANTI-TIP

BRACKET

NOTE: Oven Liner N/A

Ass. du four N/A

170

151

58A

58B

1716

107

170

151

T20V0052

59B

59A

110

109

111

106

108

FEFB89ECA Publication No: 5995432589

# Functional Parts 7 03/05

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

170* 316112500 Template, anti-tip

170* 316116000 Screw, concrete, 1.75", anti-tip brkt

* # 316416443 Harness, wiring, main

* 316231800 Cover, hole, conv. element

* 5303305345 Paint, touch-up, black

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021110 Screw, 8-18 x 0.5, black

* 316021132 Screw, 8-18 X 11/16, black

* 316089500 Screw, 10-16 x .486

* 5303271648 Screw, wafer hd sq dr, 8-18AB x 0.5

* 5303285179 Screw, wafer head, 8-32T x 0.500, black

Publication No: 5995432589 FEFB89ECA

03/05 8

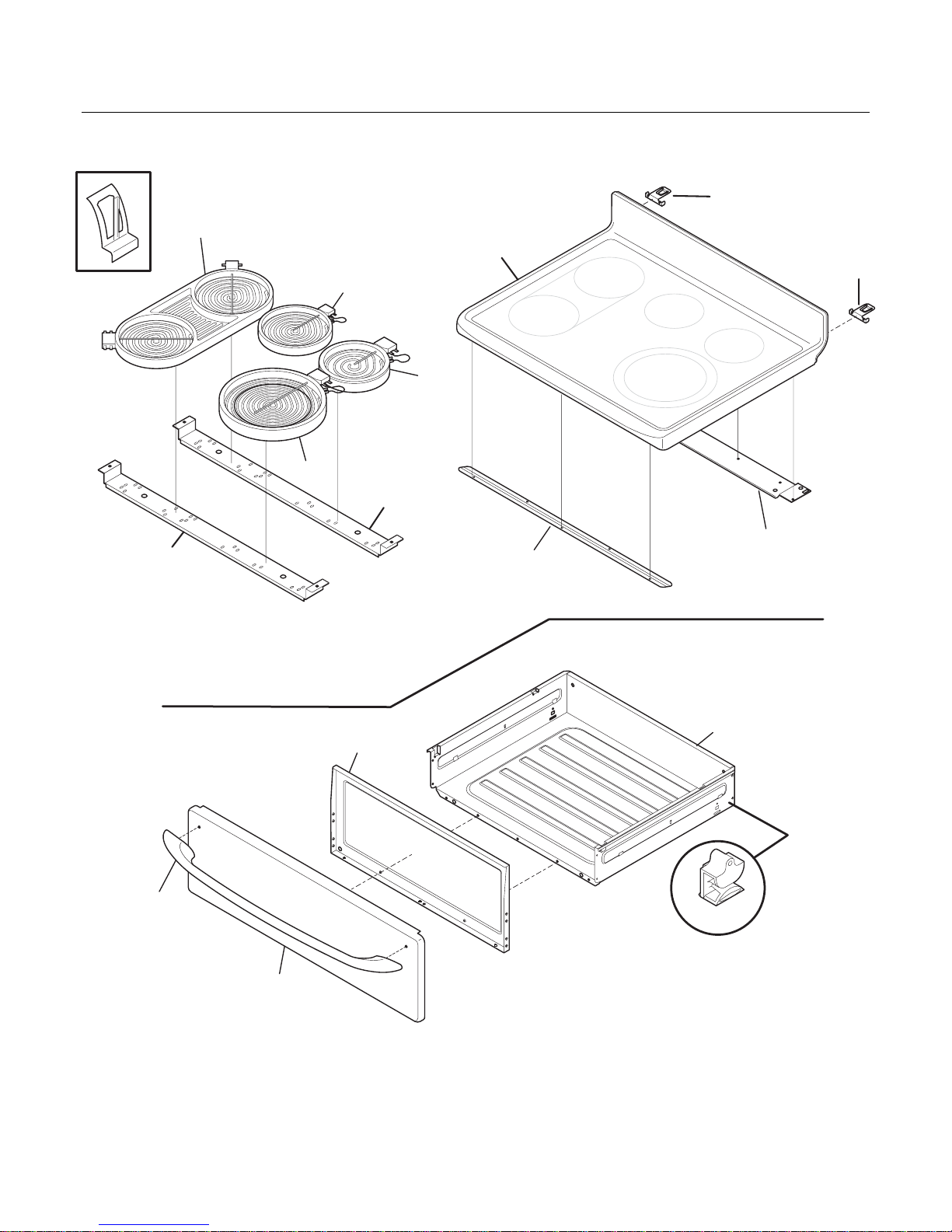

TOP/DRAWER

T20T0038

26B

26A

15B

15C

15A

FEFB89ECA Publication No: 5995432589

# Functional Parts 9 03/05

* Non-Illustrated Parts

TOP/DRAWER

POS. NO PART NO. DESCRIPTION

1 316408701 Drawer, utility

2 316403300 Liner, drawer

4 316409403 Panel, drawer front, stainless

7 316407400 Glide, drawer, rear

15 # 316010205 Element, surface, 6", 1200 W, radiant

15A# 318198816 Element, surface, warmer, 100 W

15B# 316216600 Element, surface, dual, 1700W/2700W

15C# 316280700 Element, double 6", surface, 4400W, w/bridge

16 316421263 Maintop, frame/glass, black

18 316436600 Hinge Bracket, maintop, (2)

26 316427600 Channel, element support, (2)

26A 316099202 Bracket, chassis support, rear

26B 316214200 Bracket, chassis support, front

39 316246100 Handle, door/drawer, stainless

52 316278300 Clip, element mtg

* # 316416836 Harness, wiring, surface

* 316264000 Cleaner, cooktop

* 316279700 Cleaner, stainless steel

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021109 Screw, 8-18 x 0.5, chrome

* 316021110 Screw, 8-18 x 0.5, black

* 5308014215 Screw, 6-20 x 0.312

Publication No: 5995432589 FEFB89ECA

03/05 10

DOOR

60B

10B

T20D0017

14A
