Frigidaire GLGS389F Manual

GLGS389F.tif LA20BG0058.eps LA20BR0028.eps BGLGS389ESB.eps

LA20CT0095.eps DGLCS389FSA.eps 318271932.eps

Product No. GLGS389FBA GLGS389FQA GLGS389FSA

39356391G6361 39356391G6341 39356391G6311

Series 30" slide-in 30" slide-in 30" slide-in

Color black bisque white

Market North America North America North America

Wiring Diagram 318271932 318271932 318271932

Owner's Guide 318203854 318203854 318203854

Installation Instructions 318201673 318201673 318201673

Service Data Sheet 318127021 318127021 318127021

Timer Guide 318200194 318200194 318200194

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995470951

06/07/27

(EN/SERVICE/ECL)

377

30-INCH SLIDE-IN GAS

RANGE

Model No.

GLGS389F

Publication No: 5995470951 GLGS389F

07/06 2

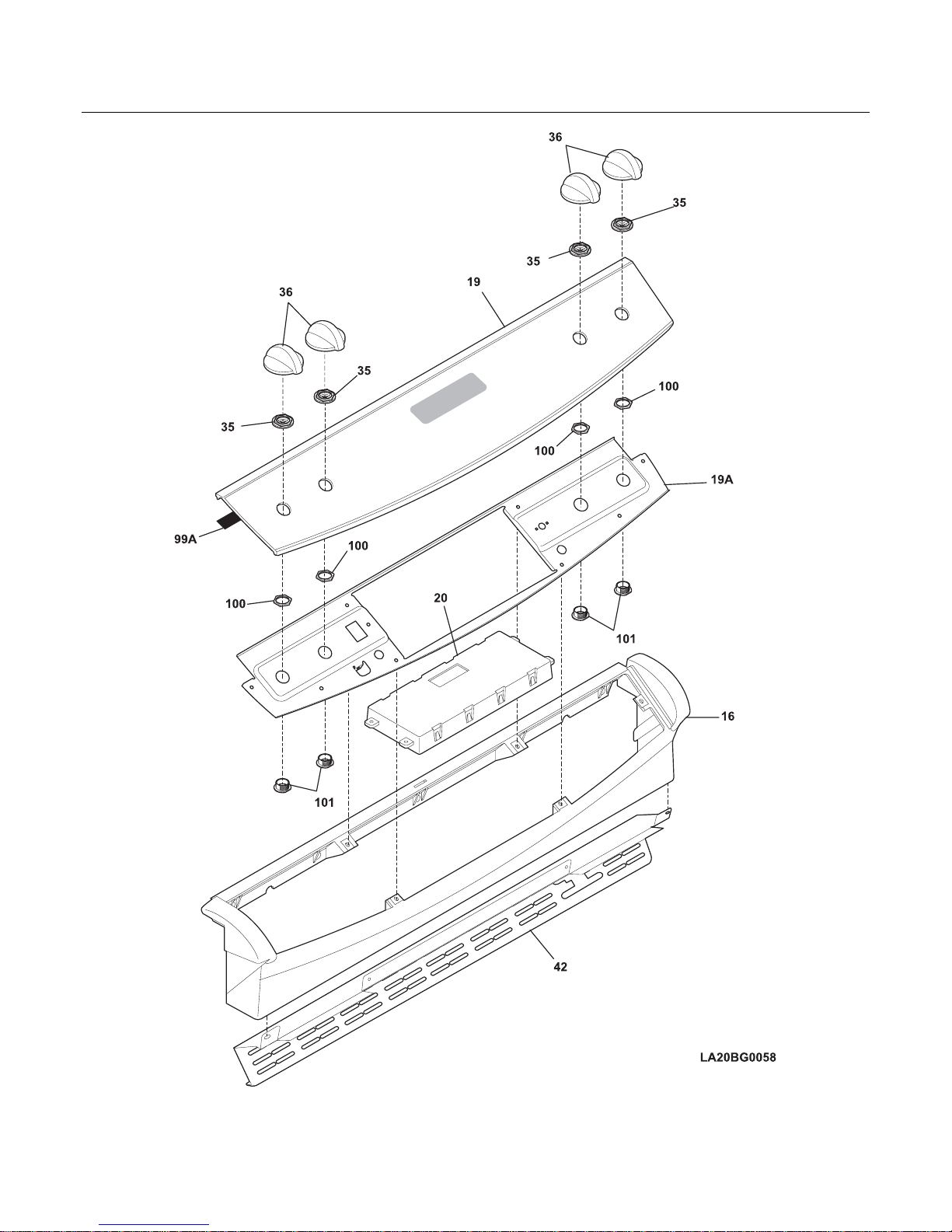

BACKGUARD

GLGS389F Publication No: 5995470951

# Functional Parts 3 07/06

* Non-Illustrated Parts

BACKGUARD

Model Index: AGLGS389F (GLGS389FSA)

BGLGS389F (GLGS389FBA)

CGLGS389F (GLGS389FQA)

POS. NO PART NO. DESCRIPTION

16 318299100 A - - Console, assy., white

16 318299102 - B - Console, assy., black

16 318299101 - - C Console, assy., bisque

19 318312210 A - - Control Panel Assembly, w/membrane, white

19 318312212 - B - Control Panel Assembly, w/membrane, black

19 318312211 - - C Control Panel Assembly, w/membrane, bisque

19A 318224404 A B C Panel, control mtg.

20 # 316418732 A B C Clock/Timer, electronic, ES510

20* 5304453707 A B C Screw, control mtg.

35 318233721 A - - Retainer, control panel, white

35 318233720 - B - Retainer, control panel, black

35 318233722 - - C Retainer, control panel, bisque

36 316223025 A - - Knob, control, white

36 316223024 - B - Knob, control, black

36 316223026 - - C Knob, control, bisque

42 318298011 A B C Trim, vent, black, upper

99A 318223900 A B C Gasket, dark grey

100 318233800 A B C Nut, hex

101 318233400 A B C Bushing, retainer

* 08016432 A B C Screw, truss head, 8-18 x 0.375

* 5303300265 A B C Screw, 8-18 X 1/2, (2)

* 5303311333 A B C Screw, 8-32 x 3/8

Publication No: 5995470951 GLGS389F

07/06 4

BURNER

GLGS389F Publication No: 5995470951

# Functional Parts 5 07/06

* Non-Illustrated Parts

BURNER

Model Index: AGLGS389F (GLGS389FSA)

BGLGS389F (GLGS389FBA)

CGLGS389F (GLGS389FQA)

POS. NO PART NO. DESCRIPTION

1 318305600 A B C Manifold, right side

1A 318305601 A B C Manifold, left side

1B 318305410 A B C Tube, manifold, 3/8, interconnect

2 # 318233930 A B C Valve, top burner, 14000 BTU

2A # 318233940 A B C Valve, top burner, 16/17K

2B # 318233900 A B C Valve, top burner, 5000 BTU

2C # 318233910 A B C Valve, top burner, 9500 BTU

3 # 318232600 A B C Wiring Harness, w/igntr switch

10 # 316223400 A B C Burner, sealed, 14K

10A# 316223300 A B C Burner, sealed, 16/17K

10B# 316206400 A B C Burner, sealed, 5K

10C# 316212400 A B C Burner, sealed, 9.5K

11 318306106 A B C Ignitor Assembly, 14K, left rear, w/tube & holder

11A 318306107 A B C Ignitor Assembly, 16K, right front, w/tube & holder

11B 318306108 A B C Ignitor Assembly, 5K, right rear, w/tube & holder

11C 318306104 A B C Ignitor Assembly, 9.5K, left front, w/tube & holder

12 318369902 A B C Bracket, support, (2)

13 318305110 A B C Tube, regulator, to manifold

14 # 316091706 A B C Regulator, pressure

14* 5303311306 A B C Screw, 8-18 x 0.375, (3)

15 318262810 A B C Bracket, regulator

16 318289500 A B C Tube, regulator valve

17 # 316404900 A B C Valve, safety

17* 318268600 A B C Harness, wiring, valve

18 # 318292200 A B C Burner, oven, 18000

20 318290400 A B C Baffle, bake burner

21 3201885 A B C Nut, Keps, 10-24

22 318305200 A B C Tube, broil supply

23 318292300 A B C Burner, broil, 14000

24 # 318267801 A B C Mixer Elbow, broiler

* 5303323133 A B C Screw, 8-18 x 0.500

25 316401301 A B C Baffle, broil burner

26 # 316428600 A B C Ignitor, burner

* 5303300195 A B C Screw, 10-32 x 0.375, terminal block, (2)

37 5303307980 A B C Screw, 8-32 x 0.437, (4)

44 316237900 A B C Orifice, top burner, 14K

44A 316237912 A B C Orifice, top burner, 16K

44B 316237903 A B C Orifice, top burner, 5K

44C 316237902 A B C Orifice, top burner, 9.5K

72 316215600 A B C Screw, valve mtg., 1/4 - 20

77 318192606 A B C Bracket, burner mtg, (4)

263 316136500 A B C Washer, flat

* 318186909 A B C LP Conversion Kit

* 318199725 A B C Wiring Harness, ignitor

* 08011955 A B C Screw, 10-24 x 0.375, square drive

* 5303211311 A B C Screw, 8 x 0.500

Publication No: 5995470951 GLGS389F

07/06 6

BODY

200

201

166A

166

166A

166

170

272

107

161

111

109

263

125

108

58C

285

163

58A

102

58B

BGLGS389ESB

163

90A

219

219A

108A

GLGS389F Publication No: 5995470951

# Functional Parts 7 07/06

* Non-Illustrated Parts

BODY

Model Index: AGLGS389F (GLGS389FSA)

BGLGS389F (GLGS389FBA)

CGLGS389F (GLGS389FQA)

POS. NO PART NO. DESCRIPTION

1 318259204 A B C Back, main

1A 318225110 A B C Panel, main back, upper

2 318258902 A B C Shield, insulation, upper

3 318225210 A B C Panel, bodyside, upper RH

3A 318225211 A B C Panel, bodyside, upper LH

5 318175503 A B C Screw, leveling

6 318345208 A B C Rack, oven

6A 318219500 A B C Rack, broiler pan

8 318290501 A B C Panel, oven, bottom

8A 318367401 A B C Bracket, retainer, (2)

9 5303317977 A B C Pan, broiler

10 5303317976 A B C Insert, broiler pan

12 # 318089916 A B C Switch, light

14 318224000 A B C Receptacle, oven light

15 5303013071 A B C Bulb/Lamp, light

16 08011086 A B C Lens, oven light, glass

17 5304400195 A B C Retainer, light cover

25 318291900 A B C Bracket, shield, lower

29 318147411 A B C Bumper, (2)

33 318287800 A B C Panel, valve mtg.

34 318289400 A B C Panel, valve filler

35 318291300 A B C Seal, flue cavity

36 318288801 A B C Box, flue assy.

37 # 316217002 A B C Probe, oven temp

39 318144008 A B C Cord, service

40 318291800 A B C Box, oven burner

41 5303310526 A B C Cover, hinge cutout

42 318288700 A B C Bracket, body, middle

54 318222400 A B C Housing, oven light

57 318268300 A B C Cover, burner opening

58A 318285084 A B C Insulation, oven wrapper

58B 318285085 A B C Insulation, oven back

58C 318285097 A B C Insulation, flue

70 318259100 A B C Shield, insulation, sides, (2)

71 318260007 A B C Panel, rear box

76 318056217 A B C Front, oven

80 5303320846 A B C Plate, oven mtg

81 318192400 A B C Spring, oven

* 5303323129 A B C Screw, 8 X 0.750

83 318327007 A B C Liner, oven

86 5303310524 A B C Receptacle, hinge

87 318260604 A B C Bracket, cable mtg.

89 # 318261209 A B C Motor, latch assy

* 5304436875 A B C Screw, 8-18 X 1/2, black

90 318296902 A - - Panel, filler, white, RH

90 318296904 - B - Panel, filler, black, RH

90 318296906 - - C Panel, filler, bisque, RH

90A 318296903 A - - Panel, filler, white, LH

Publication No: 5995470951 GLGS389F

07/06 8

BODY

200

201

166A

166

166A

166

170

272

107

161

111

109

263

125

108

58C

285

163

58A

102

58B

BGLGS389ESB

163

90A

219

219A

108A

GLGS389F Publication No: 5995470951

# Functional Parts 9 07/06

* Non-Illustrated Parts

BODY

Model Index: AGLGS389F (GLGS389FSA)

BGLGS389F (GLGS389FBA)

CGLGS389F (GLGS389FQA)

POS. NO PART NO. DESCRIPTION

90A 318296905 - B - Panel, filler, black, LH

90A 318296907 - - C Panel, filler, bisque, LH

102 318327500 A B C Panel, reinforcement

107 318219401 A B C Cover, fan

108# 318073018 A B C Motor, blower

108A 318251300 A B C Bracket, fan support

109 316136400 A B C Blade, fan

111 316136600 A B C Nut, fan retainer

125# 316415800 A B C Motor, fan

161# 318255503 A B C Element, convection, 350 W

163 318014110 A B C Spacer, (6)

166 318298410 A B C Bracket, base support, (2)

166A 318298403 A B C Bracket, base support, lower, (2)

170 318335500 A B C Anti-tip & accessories

200 318298201 A B C Frame, drawer, black, front

201 318298210 A B C Frame, drawer

219# 318003614 A B C Thermostat, safety

219A 318003613 A B C Thermostat, safety, 1.375" mtg, 105/120

263 316136500 A B C Washer, flat

272 318249401 A B C Tube, protector

285 318236201 A B C Shield, hidden wires

* # 318306623 A B C Harness, wiring, main

* 318165800 A B C Spacer

* 3051050 A B C Screw, shoulder

* 08016432 A B C Screw, truss head, 8-18 x 0.375

* 5303211311 A B C Screw, 8 x 0.500

* 5303307980 A B C Screw, 8-32 x 0.437, (4)

* 5304415832 A B C Screw, 8-18 x 0.406

Publication No: 5995470951 GLGS389F

07/06 10

TOP
