Frigidaire FPES3085KF - 30" Slide-In Smoothtop Electric... Manual de usuario

FPES3085KF.jpg CFPES3085KFA.eps BFPES3085KFB.eps TFPES3085KFB.eps

DFPGS3085KFA.eps 318550103-1.eps 318550103-2.eps

Product No. FPES3085KFB

37957376L95S2

Series 30" slide-in

Color stainless

Market North America

Wiring Diagram 318550103

Owner's Guide 318205803

Installation Instructions 318201616

Service Data Sheet 318127057

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995560231

10/02/25

(EN/SERVICE/ECL)

377

30-INCH SLIDE-IN

ELECTRIC RANGE

Model No.

FPES3085K

Publication No: 5995560231 FPES3085KFB

02/10 2

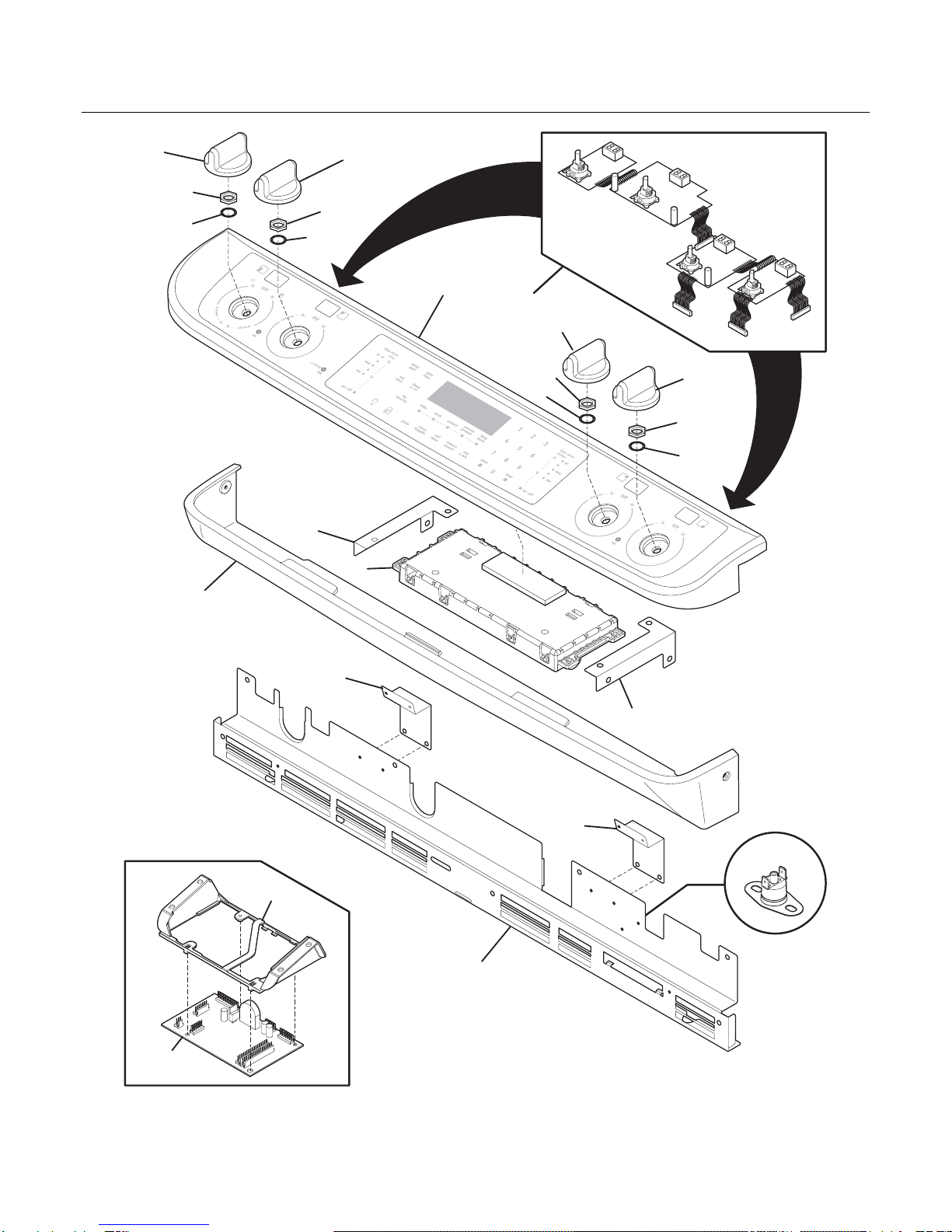

BACKGUARD

55A

141

CFPES3085KFA

97A

FPES3085KFB Publication No: 5995560231

# Functional Parts 3 02/10

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

19 # 318922144 Panel Assembly, control, stainless, w/overlay-trim

19* 5304447071 Clip, console, (2)

20 # 316560143 Controller, electronic, ES530W3

23 318921300 Bracket, control mtg, (2)

24 318913101 Trim, vent, black, upper

30 318928500 Bracket, control panel, rear, (2)

31 316564406 Knob, control, stainless

40 318912907 Panel, service, silver

50 318917700 Chassis, UIB mounting

55 316247700 Nut, mounting

55A 316247800 Washer, lock, mtg

96 # 318411401 Control Assembly, complete, rotary, w/4 controls

97A# 316442062 Board, power, UIB

141# 318005228 Switch, thermal cutout

* # 318402353 Harness, wiring, communication

* # 318224861 Harness, wiring, timer

* 08016432 Screw, truss head, 8-18 x 0.375

* 5304436875 Screw, 8-18 X 1/2, black

* 5304453707 Screw, 8-18 X 1/2

* 5304454881 Screw, #8-18 x 3/8

Publication No: 5995560231 FPES3085KFB

02/10 4

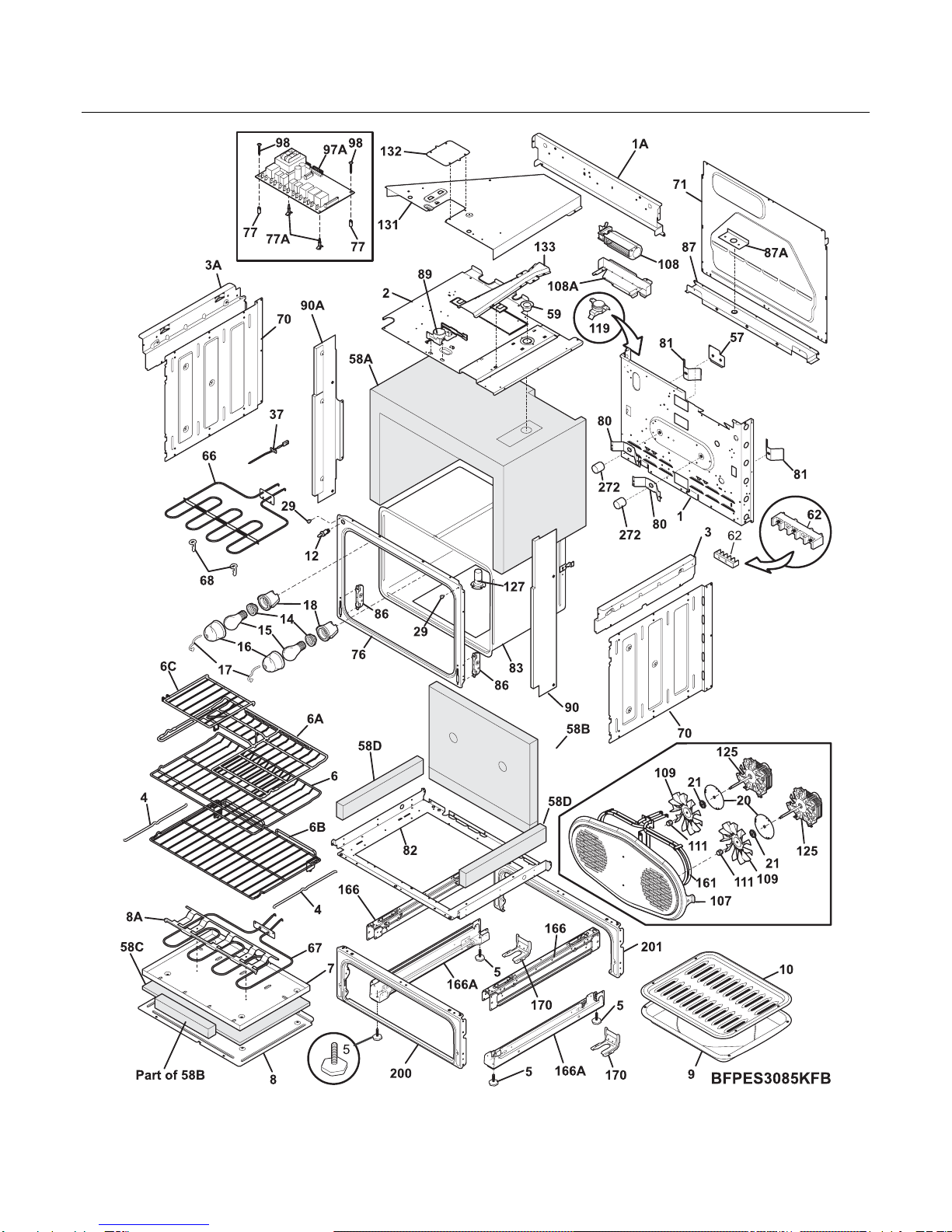

BODY

FPES3085KFB Publication No: 5995560231

# Functional Parts 5 02/10

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 318259224 Back, main

1A 318225110 Panel, main back, upper

* 5303324184 Screw, 8-18 x 5/16, black, (4)

2 318258957 Shield, insulation, upper

3 318225210 Panel, bodyside, upper RH

3A 318225211 Panel, bodyside, upper LH

4 318927600 Support, auto rack, (2)

5 318175508 Screw, leveling, w/tee nut

6 318922301 Rack, oven

6A 318926803 Rack, half, oven

6B 318921600 Rack, oven, auto

6C 318929702 Insert, half rack

7 318297303 Box, bake element

8 318359500 Panel, service

8A 318313601 Bracket, bake element

9 316081900 Pan, broiler, OPTIONAL ACCESS0RY

10 316082000 Insert, broiler pan, OPTIONAL ACCESS0RY

12 316445501 Switch, oven light, door frame

14 318224000 Receptacle, oven light

15 5303013071 Bulb/Lamp, light

16 318406100 Lens, oven light, glass

17 5304400195 Retainer, light cover

18 318222400 Housing, oven light

18* 318368501 Seal, housing, flat washer

20 318389400 Plate, retainer

21 318389000 Seal, ring

29 316517600 Spacer, oven door

37 # 316217002 Probe, oven temp

58A 318536600 Insulation, wrapper, top and sides

58B 318405900 Insulation, oven, back

58C 318294912 Insullation, bake element

58D 318372001 Insulation, door, 20.5 x 2.375, (2)

59 318072577 Duct, oven vent

62 5303935061 Terminal Block Kit

62* 318264200 Plate, grounding strap

62* 5303323136 Screw ground

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

66 # 318255800 Element, broil, 4000W

67 # 318254911 Element, bake, 2500W, 8 pass

68 5304403015 Support, hanger, broil element

70 318259105 Shield, insulation, sides, (2)

71 318260007 Panel, rear box

76 318056292 Front, oven

77 318293702 Spacer, control, (4)

77A 316114100 Spacer

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

* 5303323129 Screw, 8 X 0.750

82 318258770 Shield, insulation, lower

83 318261438 Liner, oven assy

Publication No: 5995560231 FPES3085KFB

02/10 6

BODY

FPES3085KFB Publication No: 5995560231

# Functional Parts 7 02/10

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

86 318561100 Receptacle, hinge, (2)

86* 5304461333 Screw, 10-32 x 17/32

87 318260627 Bracket, cable mtg.

87A 318111806 Plate, cord set mtg

89 # 318261221 Motor, latch assy

90 318296904 Panel, filler, black, RH

90A 318296905 Panel, filler, black, LH

97A# 316442119 Board, power, 7 relay

98 5304401490 Screw, 6-18 x 1, (2)

107 318550200 Cover, fan, dual

108# 318073028 Motor, blower

108A 318251300 Bracket, fan support

109 318398300 Fan Blade

111 316136600 Nut, fan retainer

119# 318004902 Switch, thermal

125# 318398201 Motor, fan

127 318357001 Adapter Assembly, w/vent tube, and catalyst

131 318272901 Box, vent

132 318003000 Plate, shield

133 318347800 Chimney

161# 318535300 Element, convection, duo

166 318298410 Bracket, base support, (2)

166A 318298403 Bracket, base support, lower, (2)

170 318335500 Anti-tip & accessories

200 318298226 Frame, drawer, front

201 318298230 Frame, drawer, black

* 318531701 Spacer, (2)

272 318249409 Tube, protector

* # 318384470 Wiring Harness, main

* 318235300 Connector assy., w/3 lugs, & instructions

* 5304400192 Retainer, wiring

* 318165800 Spacer

* 3051050 Screw, shoulder

* 08002868 Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box

* 5303211311 Screw, 8-18 x 0.500

* 5303323277 Screw, 8-18 X 13/32

* 5304415832 Screw, 8-18 x 0.406

* 5304436875 Screw, 8-18 X 1/2, black

* 5304440988 Screw, 10-16 x 3/4

Publication No: 5995560231 FPES3085KFB

02/10 8

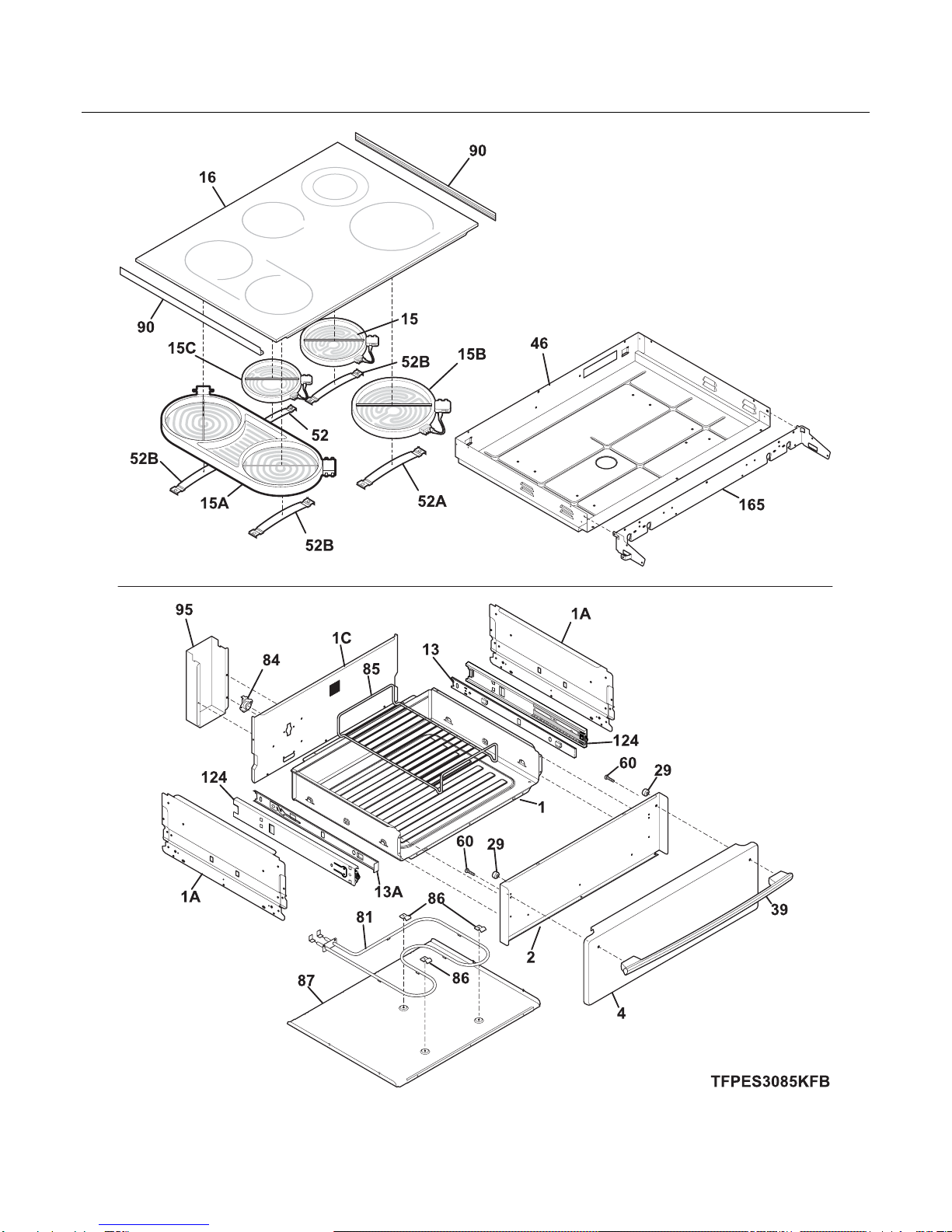

TOP/DRAWER

FPES3085KFB Publication No: 5995560231

# Functional Parts 9 02/10

* Non-Illustrated Parts

TOP/DRAWER

POS. NO PART NO. DESCRIPTION

1 318304404 Drawer, body assembly

1A 318300003 Panel, warmer drawer, side, (2)

1C 318300301 Panel, warmer drawer, rear

2 318303907 Panel, drawer, black, inner

4 318298825 Panel, drawer, stainless, front

13 318259509 Glide, warmer, inner RH

13A 318259508 Glide, warmer, inner LH

* 5304476994 Screw, 8-18 x 1/4, (2), inner glide mtg

15 # 318198936 Element, surface, 750/1800W, dual radiant

15A# 318258203 Element, bridge, 1800/2600

15B# 316530000 Element, surface, 9", Turbo, 3200W, radiant

15C# 318198843 Element, surface, warm zone, 100W, radiant

16 318916901 Smooth Top, assembly, glass/steel, black

29 318147430 Bumper, (2)

39 316551500 Handle, door/drawer, stainless

46 318921402 Box, burner

52 318122006 Spring, element mtg, small

52A 318122010 Spring, element mtg, 3000W

52B 318122008 Spring, element mtg, 1800W/3000W

60 5304472906 Screw, handle mtg, #10-24 x 1.5, (2)

* 3201909 Washer, flat, (2)

81 # 318255301 Element, warmer drawer

84 # 318005108 Thermostat

85 318345601 Rack, warmer drawer

86 316095800 Clip, hold down, warmer element

87 318300102 Panel, warmer drawer, lower

90 318368001 Channel, glass protector, (2)

95 318303800 Shield, wire

124 316105501 Glide, outer/RH & LH, (2)

165 318913300 Deflector, box, front

* # 318228950 Harness, wiring, cooktop

* 5303211311 Screw, 8-18 x 0.500

* 5303300265 Screw, 8-18 X 1/2, (4)

* 5303307980 Screw, 8-32 x 0.437, (8)

* 5304454881 Screw, #8-18 x 3/8

Publication No: 5995560231 FPES3085KFB

02/10 10

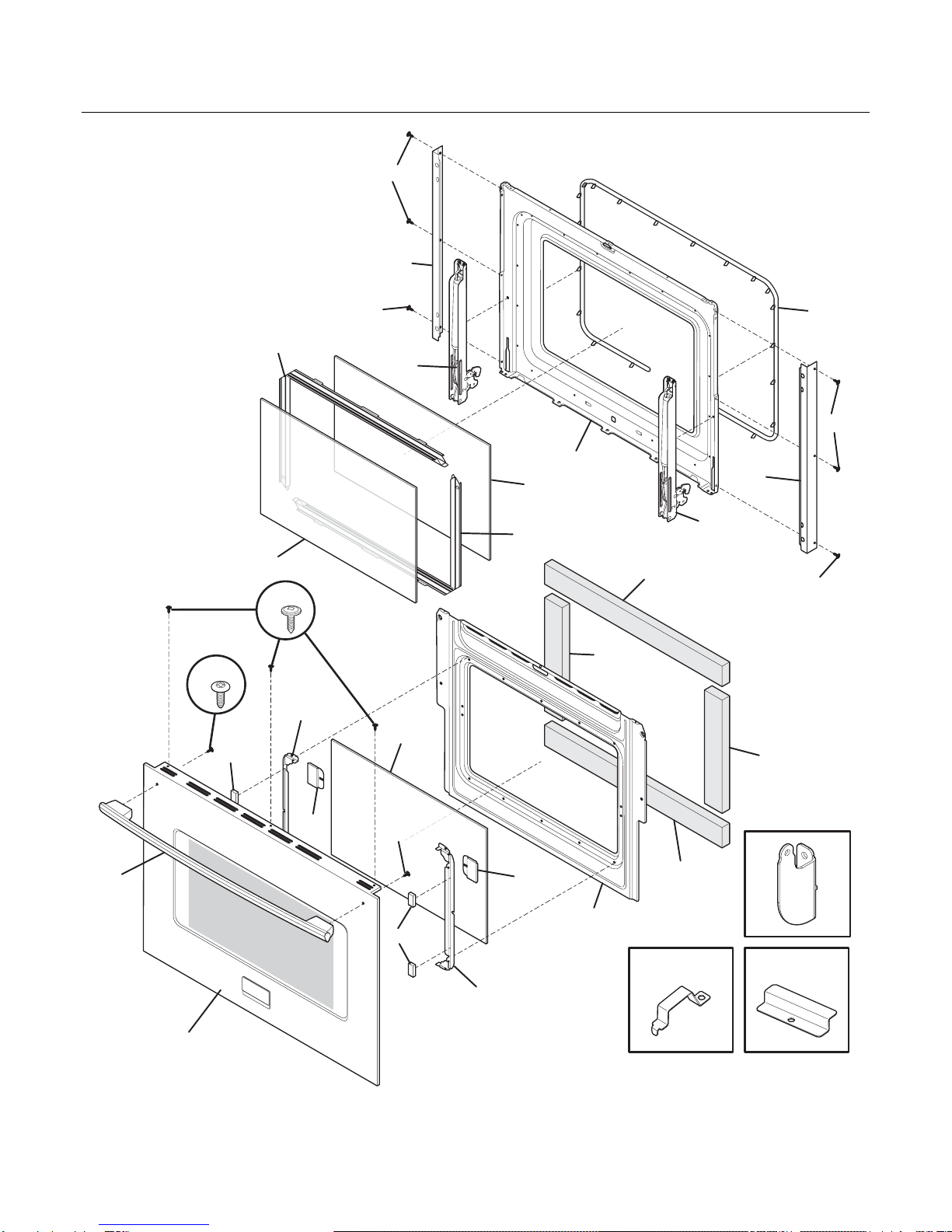

DOOR

4142

DFPGS3085KFA
