Frigidaire FEFB68CJ Manual de usuario

PRODUCT NO. FACTORY NO. COLOR MARKET

FEFB68CJSA 38354386C0011 WHITE U.S.A.

ELECTRIC - RANGE

Model No.

FEFB68CJ

FACTORY PARTS CATALOG

ELECTRIC RANGE

WIRING DIAGRAM # -318045277

OWNERS GUIDE #-318200408

INSTALLATION INSTRUCTION #-318154300

TIMER INSTRUCTION GUIDE #-318092103

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA L5T1K6

TEL :(905) 565-9200

Publication No.

5995331633

000110

-EN/SERVICE/MG

377

01/00 2

Publication No. FEFB68CJ

5995331633 BACKGUARD

46 46

18A

LA00BG83386-1

# = Functional Part 301/00

* = Non-Illustrated Part

FEFB68CJ Publication No.

5995331633

POS. NO PART NO. DESCRIPTION

14 3200297 ALight-indicator

16 318117433 APlate, instrument mtg

18 318118300 AEnd Cap black,RH

18A 318118301 AEnd Cap black,LH

19 318117190 APanel-control black

20 # 318185809 AElectronic timer

21 318118000 ATrim-canopy

24# 316005607 ASwitch-oven light, rocker type

36 318017110 AKnob-control

46 5303297274 ALens-light

54 # 318120500 ASwitch-surface unit

64 318112200 ASpacer rocker switch

69 5303323134 AScrew, 8-32 X 3/16

86 318111201 APlate-connecting

98 318092410 A Wiring harness

*08016432 AScrew truss head, 8-18 x 3/8

*5303310510 AScrew 10-24 x 5/8

*5303320848 A Screw, 6-20 X 1/4

*3201885 ANut (10-24)

BACKGUARD

A= FEFB68CJ (FEFB68CJSA)

01/00 4

Publication No. FEFB68CJ

5995331633 BODY

170

170A

183

178

177 166

166

54 15

107

166

165

182

86 86

58A

58B

127

LA00B83386-1

141

171

184

162

163 12

129

128

112

222

# = Functional Part 501/00

* = Non-Illustrated Part

FEFB68CJ Publication No.

5995331633

POS. NO PART NO DESCRIPTION

1 318108101 ABack-main

3 318025601 APanel-bodyside,white

5 318175503 AScrew leveling

6 5303310522 ARack-oven

9 318138800 APan-broiler

10 318126400 AInsert-broiler pan

11 318086100 ABracket-light switch

12 # 318089800 ASwitch-door

14 5308011085 ASocket-light/lamp

15 3201908 ALamp-oven light

16 3201911 AGlass-oven light lens

17 5304400195 ARetainer lens

25 318108700 AShield-heat lower

30 318110800 ABracket-hinge, main top

37 # 316111203 AProbe-oven temp

54 5303310514 AHousing-oven light

57 318036500 ACover-access

58A 5303310539 AInsulation,oven wrapper

58B 5303310538 AInsulation,oven back

59 318072522 ATube oven vent

62 # 5303310518 ATerminal Block

63 5303310517 APlate-ground strap

66 # 5303310513 AElement-broil

67 # 5303310512 AElement-bake

68 5304403015 ASupport-element

71 318086600 AShield wire

74 318141900 ABodyside

76 318108502 AFrame-front, wheels incl

80 5303320846 ABracket-oven

83 318109403 ALiner-oven assy

86 5303310524 AChannel-hinge

88 318118902 ARod-latch

89 # 318095920 AMotor-latch assy

89* 318120710 ASwitch latch

89* 318120704 ASwitch latch

99 318126101 ASupport side

107 318119600 ACover-fan

109 5303311203 AFan-blade

111 5303311205 ANut-fan

112 318112700 ARelay

125 5303311202 AMotor-convection

127 5303310542 AAdapter assy

128 5303311163 ABushing

129 5303311164 ASpring

141# 5303302280 AThermostat-safety

162 318096401 AConnection box

163 318135802 ACover connection box

165 318003100 AShield-plate

166 318111000 ABracket

170 318175700 AAnti-tip bracket

170A 318175701 AAnti-tip bracket

171 318111202 APlate-connecting

177 318053800 AGasket vent

178 318125701 ABracket vent

182 316042300 APlate-warning

183 5303323140 AScrew ground

184 5303323144 ANut (10-32)

222 318080000 APlate-element

263 5303322885 ASpacer

*5303211311 AScrew, #8 x ½

*5303307980 AScrew, 8-32 x 7/16

* 5303131801 AScrew,10 x 3/8

*5303308449 A Fastener

*5303311528 AScrew, 6-20 x 5/8

*5303323129 AScrew, 8 X ¾

*5303323133 AScrew, 8-18 X ½

*5303323139 AScrew, 10-24 X 29/32

*5303325980 AScrew, 10-32 X 0.437

*5304400427 AScrew, 6-20 X ½

*5303311207 ATube, protector

BODY

A= FEFB68CJ (FEFB68CJSA)

01/00 6

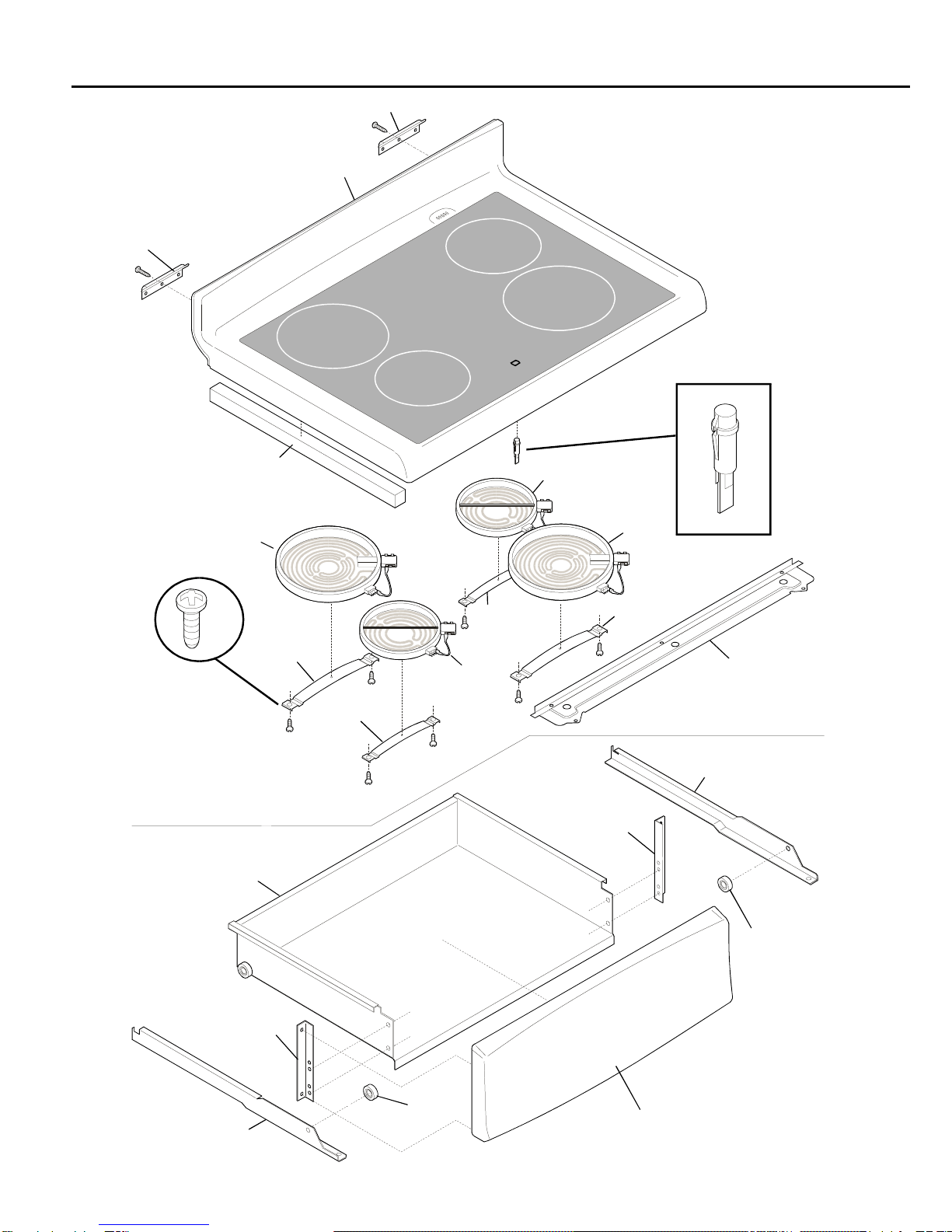

Publication No. FEFB68CJ

5995331633 TOP/DRAWER

52A

LA23CT029G

13A

52A

15A

# = Functional Part 701/00

* = Non-Illustrated Part

FEFB68CJ Publication No.

5995331633

POS. NO PART NO DESCRIPTION

1 318107103 ADrawer-utility

3 318144321 ASupport,main top

4 318044301 APanel-drawer,white

7318014800 ASpacer

11 318107500 ABracket-support,drawer

13 318018100 AChannel-drawer,RH

13A 318018101 AChannel-drawer,LH

15 # 318178101 AElement-surface,2400W

15A# 318178100 AElement-surface, 1500W

16 318043879 AMaintop, white

18 318074400 AHinge-main top,

51# 5303297484 ALight-indicator

52 318122007 ASpring element mtg

52A 318122006 ASpring element mtg

56 5304400427 AScrew, 6-20 X ½

94 318132608 AInsulation top

*5303211311 AScrew, #8 X 1/2

*5304400428 AScrew, 8-15 X 1/8

*3131048 AScrew, 8 X 5/8

TOP/DRAWER

A= FEFB68CJ (FEFB68CJSA)

01/00 8

Publication No. FEFB68CJ

5995331633 DOOR

LAP23CD015

# = Functional Part 901/00

* = Non-Illustrated Part

FEFB68CJ Publication No.

5995331633

POS. NO PART NO DESCRIPTION

1 318043100 ABracket-trim, handle

3 318049206 ATrim-oven, black

3A 318028900 ATrim-oven door,upper

3B 318049020 ATrim-oven door,black ,upper

4318041130 AGlass-oven door,black outer

6 318056802 AShield-wool

7 318106001 AInsulation-door

9 318048802 ALiner-oven door

10 5303324305 AScrew,10-24 x 5/8

12 318053103 ASeal-oven door

16 318041603 AGlass-oven door, heat barrier

17 318042102 ASpacer-glass

18 318053001 ASeal-rope

20 318014301 ASpacer-handle, black

23 5303311215 AHinge

29 5303310535 ABumper door

31 5303310536 ALatch-door

39 316091119 AHandle-door, black

42 5303311194 ATrim-oven door, black, lower

54 5303308456 AScrew,8-18 X 17/32

* 5303211311 AScrew,#8 x 1/2

* 5303307980 AScrew,8-32 x 7/16

*08016432 AScrew truss head 8-18 x 3/8

*3201899 AWasher hinge assy

DOOR

A= FEFB68CJ (FEFB68CJSA)

01/00 10

Publication No. FEFB68CJ

5995331633 WIRING DIAGRAM
