Frigidaire ELECTROLUX FGF348KSB Manual de usuario

Product No. FGF348KSB

Series 30" f/s gas

Color white

Market North America

Owner's Guide 316417139

Installation Instructions 316259343

Service Data Sheet 316441758

FGF348KS.eps T24G0071.eps S24B0032B.eps T24V0112E.eps T24T0109C.eps

T24D0075.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995540712

09/05/19

(EN/SERVICE/KHB)

369

30-INCH FREE-

STANDING GAS

RANGE

Model No.

FGF348K

Publication No: 5995540712 FGF348KSB

05/09 2

BACKGUARD

8.8.

T24G0071

15A

36 40

20A

FGF348KSB Publication No: 5995540712

# Functional Parts 3 05/09

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

1 316416100 Shield, backguard, rear wall

15 316411403 Support, backguard, white, RH

15A 316411402 Support, backguard, white, LH

19 316445219 Panel, backguard, white

20 # 316455410 Clock/Timer, electronic, ES100

20A 316220700 Overlay, clock, white

23 316441600 Bracket-clock mtg, black

24 # 316448701 Switch, rocker, white, oven light

36 316220008 Knob, top valve, white, (4)

40 316447398 Panel, manifold, white

42 316270601 Trim, extrusion, grey

56 316230701 Shield, backguard, inner

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021109 Screw, 8-18 x 0.5, chrome

* 316021110 Screw, 8-18 x 0.5, black

Publication No: 5995540712 FGF348KSB

05/09 4

BURNER

FGF348KSB Publication No: 5995540712

# Functional Parts 5 05/09

* Non-Illustrated Parts

BURNER

POS. NO PART NO. DESCRIPTION

1 # 316551202 Manifold, pipe

2 # 5303935307 Valve, 14K top burner, w/mtg screw

2A # 5303935308 Valve, 5K top burner, w/mtg screw

2C # 5303935305 Valve, 9.5K burner, w/mtg screw

2D # 5303935309 Valve-top burner, tortilla

* 316215600 Screw, valve mtg., 1/4 - 20

3 # 316219025 Wiring Harness, w/igntr switch

8 318079001 Module, spark

* 316443200 Bracket-support

* 316021109 Screw, 8-18 x 0.5, chrome

10 316438600 Burner, sealed, 14K

10A# 316438200 Burner, sealed, 5K

10C# 316527400 Burner, sealed, 9.5K

10D# 316532001 Burner, sealed, oval, 9.5K

11 # 316548100 Ignitor/orifice assy., top burner, front

11A# 316449500 Ignitor/orifice assy.,, top burner, right rear, 5K, w/holder, tube

11B# 316449300 Ignitor/orifice assy.,, top burner, LR, 9.5K, w/tube & holder

11C# 316449302 Ignitor/orifice assy.,, top burner, left front, 9.5K, w/tube & holder

11D# 316532601 Ignitor/orifice assy., top burner, center, 9.5K, w/holder-tube

12 316529700 Screw, burner head, mtg., (8)

13 # 316207000 Tube, 3/8, aluminum, rgltr to manf, with fittings

14 # 316091706 Regulator, pressure

14* 316021104 Screw, hex, 8-18 x 3/8, nick, (3), regulator brkt

15 316091600 Bracket, regulator

16 # 316436500 Tube-valve to rgltr, 3/8

17 # 3203459 Valve, safety

18 # 316114300 Burner, oven

19 # 316489402 Ignitor, oven kit, w/nut & instr

20 316496001 Baffle, oven burner

21 5303013272 Nut, hex head sems

37 316240600 Screw, assy mtg,(8), ignitor/orifice

44 316527511 Orifice, top burner, 14K

44A 316527504 Orifice, top burner, 5K

44C 316527500 Orifice, top burner, 9.5K

44D 316237902 Orifice, top burner, center, 9.5K

47 GRLP3 LP Conversion Kit, w/instructions

47* 316417518 Instructions, LP conversion

48 3018603 Bracket, support, oven burner

49 316416300 Bracket, safety valve

* # 316253702 Wiring Harness, ignitor module

* # 316064103 Wire, ground assembly

* 316001003 Screw, ground wire

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

Publication No: 5995540712 FGF348KSB

05/09 6

BODY

26A

41A

58A 58B

NOTE: Oven Liner N/A

Ass. du four N/A T24V0112E

ANTI-TIP

BRACKET

170

ANTI-TIP

BRACKET

170

FGF348KSB Publication No: 5995540712

# Functional Parts 7 05/09

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 316029415 Panel, main back

* 316021109 Screw, 8-18 x 0.5, chrome

3 316400116 Panel, bodyside, white, RH

3 316400117 Panel, bodyside, white, LH

4A 316446900 Bracket, chassis, front, (2)

5 316272900 Screw, leveling, plastic, rear, (2)

5A 316498900 Leveling Leg Assy, metal, front, (2), bracket & leg

6 316067902 Rack, oven, (2)

7 316566210 Hinge, oven door, RH

7A 316566211 Hinge, oven door, LH

8 316495901 Panel,, oven bottom

8* 316064600 Support, oven bottom

14 316116400 Receptacle, oven light

15 316538901 Lamp, oven light

26A 316498200 Bracket-support, chassis, aluminum

33 316055600 Shield, spark module, galv steel

35 316542100 Gasket-flue

36 316208902 Flue, black

37 # 316233902 Probe, oven temp

39 3202006 Cord, electric power

41 316233400 Cover, hinge cutout, RH

41A 316233500 Cover, hinge cutout, LH

43 3131732 Screw, 8-18 x 1.438, oven bottom

49 316260000 Clip, maintop mtg, (2)

54 5303271606 Housing, oven light

58A 3017142 Insulation, oven wrapper

58B 316054202 Insulation, 1", oven back

73 316109902 Base, low broil

93 316110000 Shield, ignitor, metal

170 316112004 Anti Tip Kit, assembly

170* 316107200 Bracket, anti-tip

170* 316116000 Screw, concrete, 1.75", anti-tip brkt

170* 316541700 Template, anti-tip

* # 316528104 Harness-wiring, main

* 316021110 Screw, 8-18 x 0.5, black

* 316089500 Screw, 10-16 x .486

* 316418901 Screw, trilobe, 10-32 x 5/16", (4)

* 316435800 Plate, weight, (3)

* 316539800 Retainer, wire

* 5303271648 Screw, wafer hd sq dr, 8-18AB x 0.5

* 5303285179 Screw, wafer head, 8-32T x 0.500, black

Publication No: 5995540712 FGF348KSB

05/09 8

TOP/DRAWER

FGF348KSB Publication No: 5995540712

# Functional Parts 9 05/09

* Non-Illustrated Parts

TOP/DRAWER

POS. NO PART NO. DESCRIPTION

1 316110201 Carriage, low broil

* 316021110 Screw, 8-18 x 0.5, black

2 316236401 Liner, low broil

2A 316541500 Shield, broiler

4 316231211 Panel, drawer, white

5 316129100 Fastener, push-in nut, nylon, spacer

9 316081902 Pan, broiler, slate blue

10 316082002 Insert, broiler pan, slate blue

13A 316534200 Glide-Low Broil, Inner

16 316469646 Maintop panel, white

20 316499502 Grate, black, (2)

20A 316499602 Grate, black, center

22 316438704 Cap, 14K burner, black

22A 316438304 Cap, 5K burner, black

22C 316527704 Cap, 9.5K burner, black, medium

22D 316532103 Cap, 9.5K burner, oval, black, center

39 316019511 Handle, drawer, white

85 316115600 Rack, low broil

88 316099500 Pin, guide, (2)

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021109 Screw, 8-18 x 0.5, chrome

* 316021120 Screw, shoulder head, 8-18 x 5/8, (2), square drive

Publication No: 5995540712 FGF348KSB

05/09 10

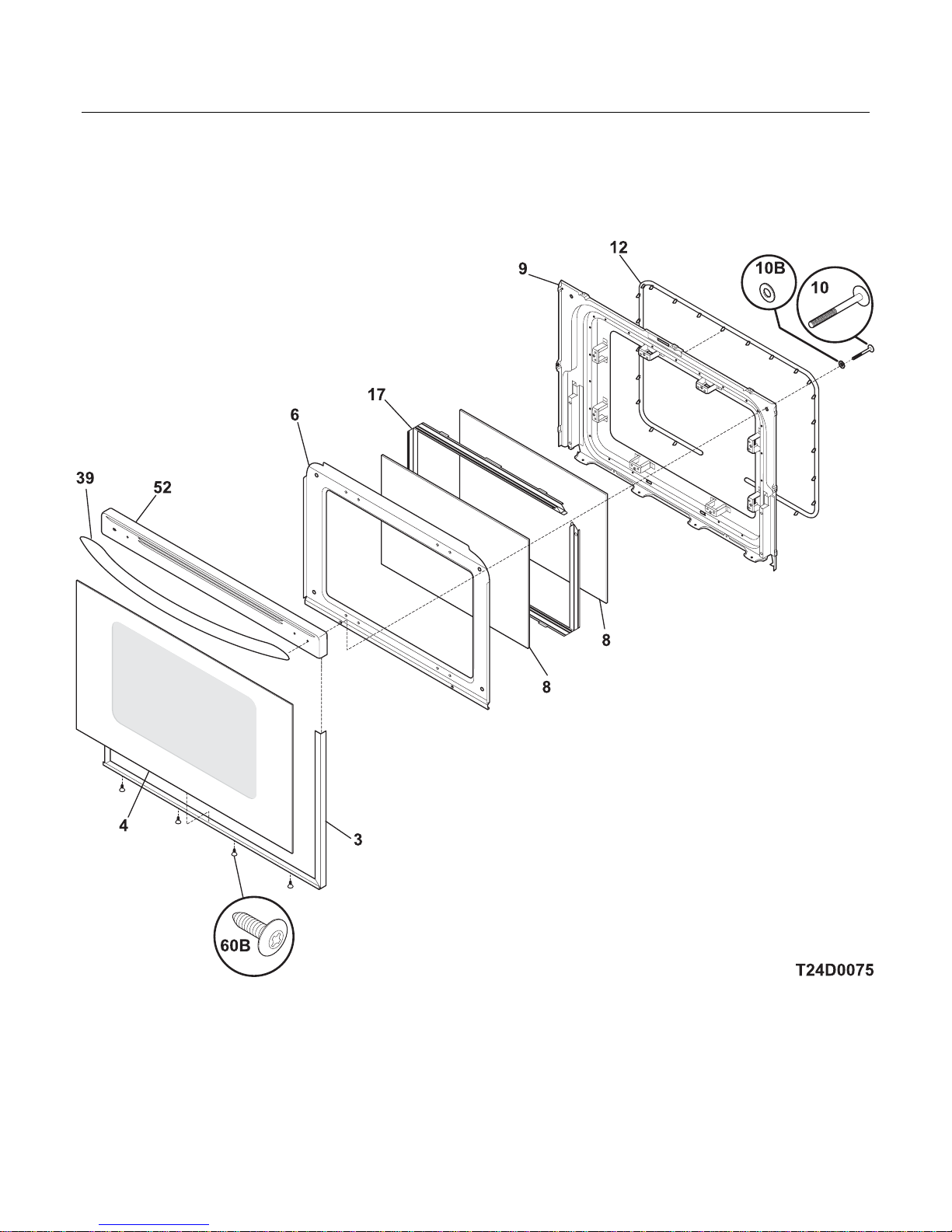

DOOR
