Frigidaire FFEF4017L B Guía de instalación

frigidaire.com

Drop-In Cooktop

FPEC3085K S

30" Electric

Signature Features

Product Dimensions

Height (Max.) 47-1/4"

Width 40-1/8"

Depth (Including Handle) 27-3/4"

More Easy-To-Use Features

Center Grill with Nonstick Finish

and Cover

Store-More™ Storage Drawer

Our convenient drawer gives you extra

storage space in your kitchen.

Color-Coordinated Oven Door

with Large Window

Stylish look with a large window

makes it easy to check on what’s

cooking without opening the door.

Delay Start Baking Option

Hi /Lo Broil Option

Offers two-position broiling and

variable temperature control for

more control.

Auto Shut-O

As an extra safety measure, the oven

will automatically shut off after 12 hours.

Timed Cook Option

Electronic Kitchen Timer

Bright Lighting

Our bright lighting makes it easy

to see what’s inside.

Chrome Drip Bowls

Available in:

Fits-More™ Side Oven

This range features an extra 1.7 Cu.Ft.

Fits-More™ side oven that gives you

more space to cook multiple dishes

at the same time.

Ready-Select® Controls

Select options or control cooking

temperature with our easy-to-use

controls.

One-Touch Self Clean

Start the self-cleaning cycle with

just the touch of a button.

Even Baking Technology

Our latest technology ensures

even baking every time.

Freestanding Range

FFEF4017L B

40" Electric

Elements

Right Front

Right Rear

Left Front

Left Rear

Center

Watts

2,600

1,500

2,600

950

Size

Grill

Black

(B)

Specifications

subject to change.

Accessories information available

on the web at frigidaire.com

NOTE: For planning purposes only. Always consult local and national electric codes.

Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

Features

Primary Oven Control /

Timing System

Surface Type

Window

Exterior Door Finish

Handle Design

Exterior Finish (Side Panels)

Convection System

Primary Oven Cleaning System

Side Compartment /

Drawer Functionality

Primary Oven Controls

Bake

Broil

Add-a-Minute

Delay Bake

Self-Clean

Quick Clean Option

Delay Clean

Kitchen Timer

Timed Cook Option

Auto Oven Shut-O

Cooktop Features

Right Front Element (Watts)

Right Rear Element (Watts)

Left Front Element (Watts)

Left Rear Element (Watts)

Center Element (Watts)

Hot Surface Indicator Light

Coil Cooktop / Drip Bowls

Primary Oven Features

Capacity (Cu. Ft.)

Oven Light

Hidden Bake Element

Rack Conﬁguration

Even Baking System

Broiling System

Bake Element / Broil Element (Watts)

Auxiliary Oven Features

Capacity (Cu. Ft.)

Oven Control

Oven Cleaning System

Oven Light

Rack Conﬁguration

Bake Element / Broil Element (Watts)

Speciﬁcations

Primary Oven Interior ( H x W x D )

Auxiliary Oven Interior ( H x W x D )

Power Supply Connection Location

Voltage Rating

Connected Load

(kW Rating) @ 240 / 208 Volts

Amps @ 240 / 208 Volts

Minimum Circuit Required (Amps)

Shipping Weight (Approx.)

Ready-Select® Controls

Chrome

Large

Color-Coordinated

Black

Color-Coordinated

Self Clean

Fits-More™ Side Oven /

Storage

Yes

Low and High

Yes

12 Hours

8" – 2,600

6" – 1,500

8" – 2,600

Grill – 950

Yes / Chrome

3.7

2 Standard

Yes

Vari-Broil™ Hi / Lo

3,000 / 2,750

1.7

Mechanical

Manual Clean

Yes

1 Standard

1,500 / 1,500

15-3/4" x 22-5/8" x 17-3/4"

16" x 9-9/16" x 19-1/2"

Middle Bottom Rear

240V / 208V / 60Hz

14.6 / 11.0

61.0 / 53.0

242 Lbs.

40" Electric Freestanding Ranges

Frigidaire Baseline

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Freestanding Range

FFEF4017L B 40" Electric

Product Dimensions

A - Height (Max.)

B - Width

C - Depth (Including Handle)

Depth with Door Open 90˚

47-1/4"

40-1/8"

27-3/4"

43-3/4"

Cutout Dimensions

Height (Standard)

Width (Min.)

Depth (Min.)

36"

40-1/4"

24"

Specifications

subject to change.

Freestanding Range Specifications

•Product Shipping Weight (approx.) – 242 Lbs.

•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt,

60 Hertz, fused on both sides of line with ground. (If local code

permits, range may be connected by hard-wiring or by means

of power supply cord kit.)

•Connected Load (kW Rating) @ 240 / 208 Volts = 14.6 / 11.0 kW

•Amps @ 240 / 208 Volts = 61.0 / 53.0 Amps

•Recommended Circuit Breaker – 50 Amps (40 Amps minimum)

•Always consult local and national electric codes.

•Make sure wall coverings around range can withstand heat generated

by range.

•Linoleum or any other synthetic floor covering located beneath range,

must be capable of withstanding minimum heat of 90° F above room

temperature without shrinking, warping or discoloring. Insulating pad

or 1/4"-thick plywood required between range and a carpeted floor.

•Absolute minimum horizontal distance between overhead cabinets

installed to either side of appliance must be no less than maximum

width of appliance.

•Allow 24" minimum clearance between rangetop and bottom of cabinet

when bottom of wood or metal cabinet is protected by not less than

1/4" flame-retardant millboard covered with not less than No. 28 MSG

sheet steel, 0.015" stainless steel, 0.024" aluminum or 0.020" copper.

Allow 30" minimum clearance when cabinet is unprotected.

•To reduce risk of fire when using overhead cabinetry, install

range hood that projects horizontally a recommended minimum

of 5" beyond bottom of cabinets.

•0" clearance required (minimum 2" recommended) from edge

of rangetop to nearest combustible wall on either side of range

above 36" height.

•Range can be installed flush to wall with 0" minimum rear clearance.

•For installation against left side wall that extends to or beyond

range's side panel, allow 2-3/4" minimum clearance to allow

auxiliary oven door to open.

•Follow all dimension requirements provided to prevent property

damage, potential fire hazard, and incorrect countertop and

cabinet cuts.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at frigidaire.com for detailed instructions.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Freestanding Range

FFEF4017L B 40" Electric

40" Electric Freestanding Ranges

Frig Baseline

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

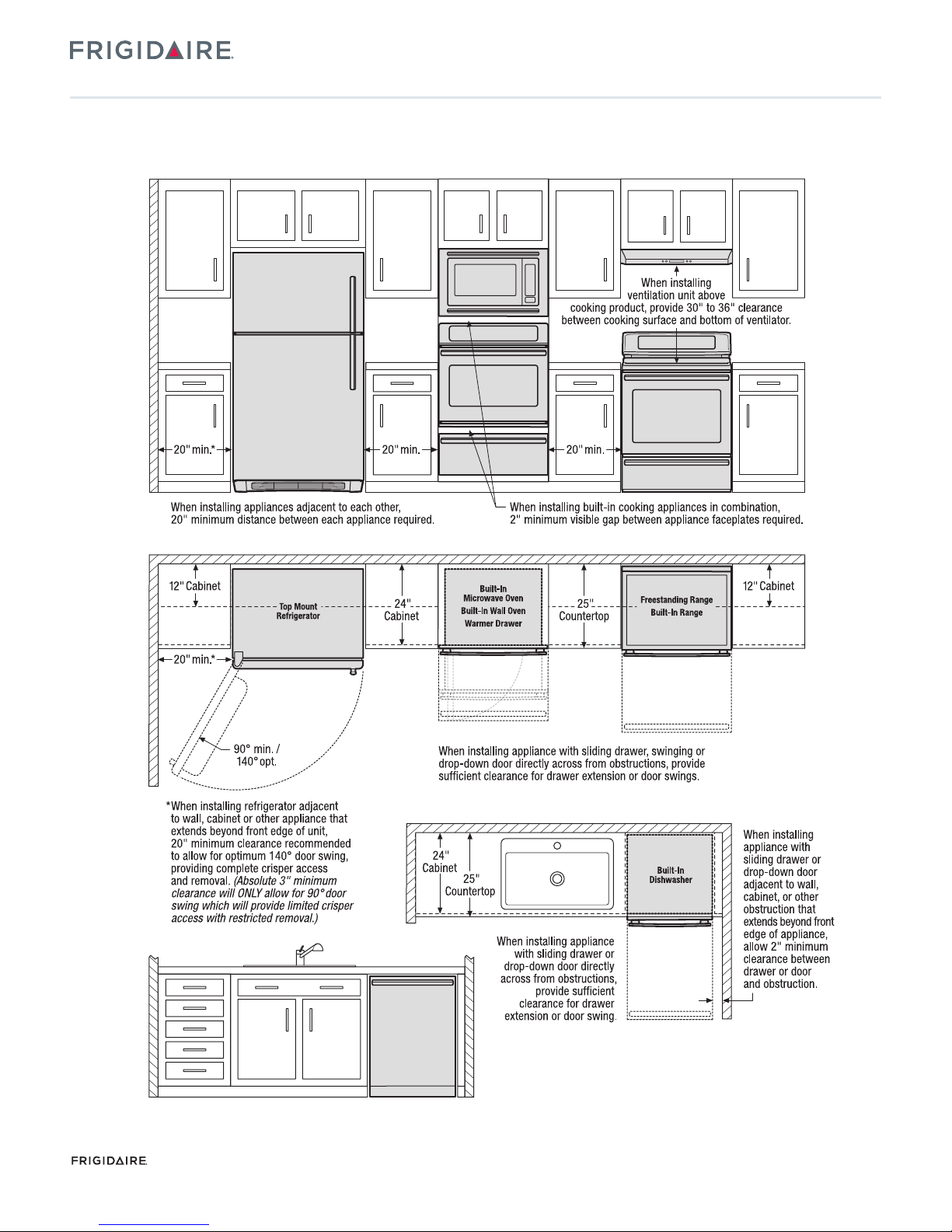

General Installation Guidelines

with Side-by-Side Refrigerator

Top

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Top

General Installation Guidelines

with Top Mount Refrigerator
