Frigidaire FGF379WXA Manual de usuario

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FGF379WXACA FGF379WXA stainless North America

Publication No.

5995374328

020613

-EN/SERVICE /ECL

369

06/02 2

BACKGUARD

POS. NO PART NO DESCRIPTION

1 316028700 Shield,backguard ,galv ,rear wall

13A# 316095500 Switch,infinite ,drawer/zone ,warmer

14A 3131963 Light,indicator ,warmer drw/zone

15 316023108 Support,backguard ,RH

15A 316023109 Support,backguard ,LH

16 316042612 Plate,instrument

18 316021800 End Cap,black ,RH

18A 316021801 End Cap,black ,LH

19 316028381 Panel,control assy ,glass ,stainless ,black

19* 5303272836 Clip,backguard

20 # 316080102 Clock/Timer,EOC

21 316039201 Trim,canopy

24 # 316083101 Switch,rocker ,black ,oven light

28 316015102 Push Button,clock/timer/EOC ,black

28A 316080600 Shaft,push button ,black ,clock/timer/EOC

31A 316095700 Knob,warmer ,black ,(2)

36 316085000 Knob,top valve ,black ,(4)

40 316086824 Panel,manifold ,stainless

42 5303272839 Trim,vent ,black

44 5303272831 Bracket,backguard ,(2)

51 316082300 Nameplate,black

56 316074907 Deflector,flue ,black

69 5303288565 Screw,truss sqdr ,8-32 x 3/16 ,switch mtg

* 316001435 Wiring Harness,backguard

* 218490900 Cleaner,stainless steel

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021109 Screw,8-18 x 0.5 ,chrome

* 316021110 Screw,8-18 x 0.5 ,black

BACKGUARD

06/02 4

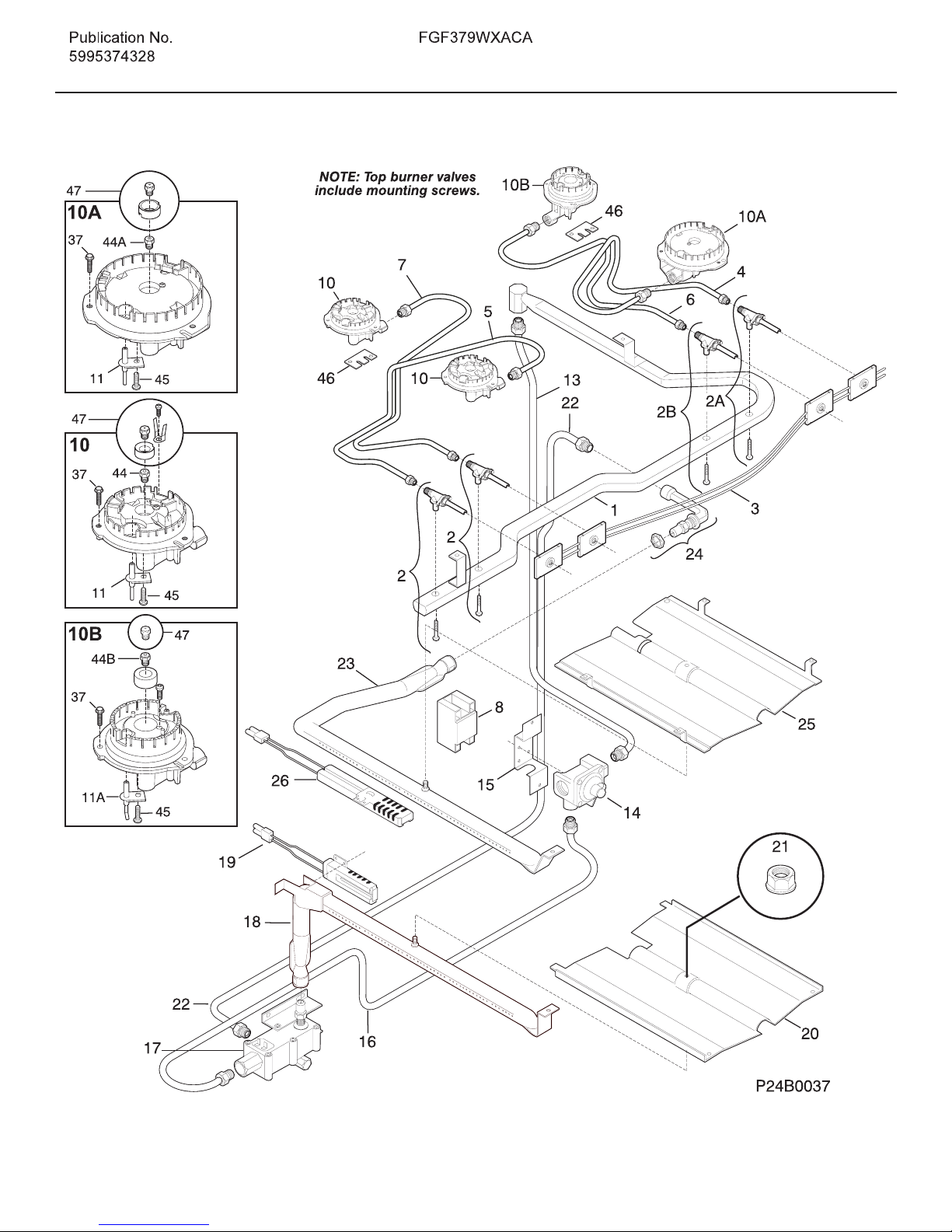

BURNER

POS. NO PART NO DESCRIPTION

1 316134501 Manifold Pipe,1

2 # 5303935184 Valve,top buner ,9K ,with mtg screws

2A # 5303935185 Valve-top burner,11K ,with mtg screws

2B # 5303935186 Valve-top burner,5K ,with mtg screws

* 316134300 Screw,10-24 ,valve mounting

3 316001826 Harness-ignitor,3

4 # 316059612 Tube,burner ,red ,RF

5 # 316059613 Tube,burner ,green ,LF

6 # 316059614 Tube,burner ,natural ,RR

7 # 316059615 Tube,burner ,black ,LR

8 # 316135701 Module,spark

8* 5303289034 Wiring Harness,module/igniter

10 # 5303935025 Burner Assy,sealed ,small ,9K

10A# 5303935098 Burner Assy,sealed ,large ,11,100 BTU ,(2), includes,11,37,44A,45

10B# 316010605 Burner Assy,sealed ,small ,5K

11 316011200 Ignitor,top burner ,(4) ,w/mtg bracket

13 # 316065005 Tube,3/8 ,aluminum ,rgltr to manf ,with fittings

14 # 316091706 Regulator,pressure

14* 316021104 Screw,hex ,8-18 x 3/8 ,nick ,(3) ,regulator brkt

15 316091600 Bracket,regulator

16 # 316065003 Tube,valve to regul. ,3/8

17 # 5303208499 Valve,safety ,dual

18 # 3131290 Burner,oven

19 # 5303935066 Ignitor,oven kit ,w/nut & instr

20 3131284 Baffle,oven burner

21 5303013272 Nut,hex head sems

22 # 316065002 Tube,valve to mixer

23 # 08067935 Burner,broiler

24 # 316070400 Elbow,mixer

24* 316113400 Spacer,mixer elbow

25 5303210379 Baffle,broiler

26 # 316119302 Ignitor,broiler

37 316069301 Screw,burner mtg

44 5303210090 Orifice,top burner ,9K

44A 316010804 Orifice,top burner ,large ,11K

44B 316010809 Orifice,top burner ,5K

45 316011100 Screw,self-tapping ,M3x5.8 ,ignitor mtg

46 316074700 Plate,burner tube

47 # 316039616 LP Conversion Kit,orange

* 5303271648 Screw,wafer hd sq dr ,8-18AB x 0.5

BURNER

06/02 6

BODY

POS. NO PART NO DESCRIPTION

1 316029416 Panel,main back

2 3131314 Shield,oven top

3 316081038 Panel,bodyside ,black

3 316081039 Panel,bodyside ,black

4 316011918 Burner Box,4 ,solid

5 316129200 Screw,leveling ,plastic ,with stop

6 316083800 Rack,oven

7 316007005 Hinge,oven door , (2)

8 5303300701 Panel,oven bottom

8* 316064600 Support,oven bottom

9 316081900 Pan,broiler

10 316082000 Insert,broiler pan

12 # 316027701 Switch,oven light

13 316026800 Rod,light switch

14 # 316116400 Receptacle,oven light

15 5303013071 Bulb/Lamp,oven light

16 08011086 Lens,oven light ,glass

17 316087500 Retainer,lens

18 # 316036300 Latch,door

21 3014099 Spacer,bodyside

25A 316092300 Shield,warmer drawer ,upper

28 3011813 Clip,wire ,bodyside

30 316059200 Bracket,main top ,RH

30A 316059201 Bracket,main top ,LH

33 5303288495 Shield,rear wall

35 316116600 Gasket,flue

36 316133002 Flue

37 # 316134900 Probe,oven temp

38 316051700 Shield,heat

38A 316097100 Insulator,shield

39 # 3131425 Cord,electric power

40 3200836 Shield,heat baffle

40* 5303288570 Screw,hd shldr sqdr ,8-18 X 1/2 ,heat shield

41 3131570 Cover,hinge cut-out

42 5303288578 Shield,bake burner

43 3131732 Screw,8-18 x 1.438 ,oven bottom

44 3131903 Bumper,door/drawer , rubber

49 3051124 Clip,spring mtg

53 5303288579 Shield,main front

53A 08067992 Shield,insulation ,front frame

55 316107800 Shield,flue

58A 316047708 Insulation,2" ,oven wrapper

58B 316218303 Insulation,oven back

58G 08067973 Insulation,main front

72 5303285692 Cover,rod end ,lt switch rod

77 316105500 Glide,warmer drawer ,outer/RH & LH ,(2)

88 316026400 Rod,auto latch

89 # 316028107 Motor-latch/lock

155 316095201 Shield,warmer drawer ,front

170 5303935180 Anti-tip Kit,w/bracket,screw

170* 316107200 Bracket,anti-tip

170* 316112500 Template,anti-tip

170* 316116000 Screw,concrete tpg ,1.75 inch ,anti-tip brkt

* 316001640 Wiring Harness,* ,main

* 316246400 Plug,button ,oven probe

* 5303305345 Paint,touch-up ,black

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 5303271648 Screw,wafer hd sq dr ,8-18AB x 0.5

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

* 5303285179 Screw,wafer head ,8-32T x 0.500 ,black

BODY

06/02 8

TOP/DRAWER

POS. NO PART NO DESCRIPTION

1 316115901 Drawer,warmer

2 316092902 Liner panel,4

4 316079401 Panel,drawer ,stainless

13 316105602 Glide,warmer ,inner RH

13A 316105601 Glide,warmer ,inner LH

16 316114803 Maintop,black

20 316084503 Grate,black ,(4)

20A 316084604 Grate,black ,center ,(2)

21 316011300 Trim ring,burner ,black ,small

21A 316011304 Trim ring,burner ,black ,large

22 316122100 Cap,burner ,small ,black ,(4)

22A 316098505 Cap,burner ,black ,large

22B# 316118800 Cap,simmer burner ,gloss black

39 316248300 Handle,oven door ,black

39* 316248400 Spacer,handle ,black ,(2)

44 3131903 Bumper,door/drawer , rubber

48 316077401 Shield,deflector ,main top panel ,(2)

60 316021109 Screw,8-18 x 0.5 ,chrome

80 316109700 Seal,door , warmer drawer

81# 316093100 Element, warmer drawer

82 316093200 Bracket,element mtg

83 316093300 Shield,terminal ,warmer drawer

84 316093500 Thermo disc,warmer drawer

85 316093600 Rack,warmer drawer

86 316095800 Clip,hold down ,warmer element

87 316091900 Base,warmer drawer

* 316001917 Harness,warmer drawer

* 218490900 Cleaner,stainless steel

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021110 Screw,8-18 x 0.5 ,black

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

TOP/DRAWER

06/02 10

DOOR
