Frigidaire GLEB30T8D Manual de usuario

Product No. GLEB30T8DQA

37056391G4041

Series 30" double

Color bisque

Market North America

Wiring Diagram 318046110

Owner's Guide 318200919

Installation Instructions 318201509

Timer Guide 318200130

GLEB30T8D.eps LA00CP70391-1.eps LA00B69391-1C.eps LA00B70391-2A.eps

LA00D71391-1C.eps 318046110.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995403010

04/02/02

(EN/SERVICE/ECL)

377

DOUBLE ELECTRIC

WALL OVEN

Model No.

GLEB30T8D

Publication No: 5995403010 GLEB30T8DQA

02/04 2

CONTROL PANEL

GLEB30T8DQA Publication No: 5995403010

# Functional Parts 3 02/04

* Non-Ilustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

19 318030150 Panel, control, bisque

20 # 318010501 Clock/Timer, EOC

23 318015110 Bracket, clock mtg

42 318027412 Trim, vent, bisque

80 # 318022001 Relay Board

81 # 318022002 Relay Board, w/transformer

82A 5303317199 Support, snap-in, (3)

* 3201861 Screw, 6 x 0.375, (4)

Publication No: 5995403010 GLEB30T8DQA

02/04 4

UPPER OVEN

108

131

132

132A

125

111

109

LA00B69391-1C

66 68

58B

58A

119

127

129

128

185

107

222

177

263

UPPER BODY PARTS ONLY

GLEB30T8DQA Publication No: 5995403010

# Functional Parts 5 02/04

* Non-Ilustrated Parts

UPPER OVEN

POS. NO PART NO. DESCRIPTION

1 318066402 Panel, main back

2 318102101 Shield, oven top

2A 318071705 Shield, oven top

6 318025308 Rack, oven

6A 318219500 Rack, broiler pan

9 5303317977 Pan, broiler

10 5303317976 Insert, broiler pan

12 # 318089913 Switch, light

14 318224000 Receptacle, oven light

15 5303013071 Bulb/Lamp, oven light

16 3201911 Cover, oven light, glass

17 5304400195 Retainer, light cover

37 # 316217002 Probe, oven temp

41 5303310526 Cover, hinge cutout

54 318222400 Housing, oven light

58A 318133783 Insulation, oven wrapper

58B 318133785 Insulation, oven back

59 318072506 Tube, oven vent

62 5303935061 Terminal Block Kit

62* 5303323136 Screw ground

62* 5303323144 Nut, 10-32

66 # 5303310513 Element, broil, 2750 W

67 # 5303310512 Element, bake, 3000 W

68 5304403015 Support, element hanger

70 5303300142 Shield, insulation

76 318056202 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

82 318072301 Shield, oven bottom

83 318089616 Liner, oven complete

86 5303310524 Receptacle, hinge

88 5303311222 Rod, latch

89 # 318095936 Motor, latch assy, w/brkt & switch

89* 318120711 Switch

107 318219401 Cover, fan

108# 318073012 Motor, blower

109 5303311203 Blade, fan

111 316136600 Nut, fan retainer

119# 318004900 Switch, thermal

125# 5303311202 Motor, convection

127 5303310542 Adapter, vent tube, with converter

128 5303311163 Bushing

129 5303311164 Spring

131 318102302 Cover, control housing

132 318101704 End, cover, RH, control housing

132A 318101705 End, cover, LH, control housing

177 318053810 Gasket, vent

185 318014700 Spacer, oven shield

222 318080000 Plate, oven temp probe

263 316136500 Washer, fan motor

* # 318078530 Box & wires assy

* 5303311207 Tube, protector

* 08002868 Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box

* 5303211311 Screw, 8 x 0.500

* 5303311528 Screw, oval hd sq dr, 6-20AB x 0.625, black

* 5303323139 Screw, 10-24 x 0.906

Publication No: 5995403010 GLEB30T8DQA

02/04 6

LOWER OVEN

GLEB30T8DQA Publication No: 5995403010

# Functional Parts 7 02/04

* Non-Ilustrated Parts

LOWER OVEN

POS. NO PART NO. DESCRIPTION

1 318066402 Panel, main back

2A 318071704 Shield, oven top

6 318025308 Rack, oven

12 # 318089913 Switch, light

14 318224000 Receptacle, oven light

15 5303013071 Bulb/Lamp, oven light

16 3201911 Cover, oven light, glass

17 5304400195 Retainer, light cover

37 # 316217002 Probe, oven temp

41 5303310526 Cover, hinge cutout

54 318222400 Housing, oven light

56 318034413 Trim, bodyside, bisque, w/ends

56A 318083509 Trim, top & bottom, bisque

58A 318133783 Insulation, oven wrapper

58B 318133785 Insulation, oven back

58C 318133755 Insulation

58D 318133757 Insulation

59 318072504 Tube, oven vent

59A 5303320844 Tube, oven vent

66 # 5303310513 Element, broil, 2750 W

67 # 5303310512 Element, bake, 3000 W

68 5304403015 Support, element hanger

70 5303300142 Shield, insulation

71 318071211 Shield, wire

76 318056202 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

82 318072302 Shield, oven bottom

83 318089615 Liner, oven complete

86 5303310524 Receptacle, hinge

88 5303311222 Rod, latch

89 # 318095936 Motor, latch assy, w/brkt & switch

89* 318120711 Switch

96 5303317197 Duct, oven vent, assy

96A 3016325 Duct, oven vent, center

98 318029211 Trim-bodyside, black, RH

98A 318029213 Trim-bodyside, black, LH

99 318055410 Support, adjustable, (2)

102 318090900 Support, oven front, (2)

103 318028504 Trim, base, bisque

107 318219401 Cover, fan

109 5303311203 Blade, fan

111 316136600 Nut, fan retainer

119# 318004900 Switch, thermal

124 318076903 Box, vent

125# 5303311202 Motor, convection

125* 318142100 Washer, motor, RH, convection

127 5303310542 Adapter, vent tube, with converter

128 5303311163 Bushing

129 5303311164 Spring

130 318070806 End Cap, trim, bisque

Publication No: 5995403010 GLEB30T8DQA

02/04 8

LOWER OVEN

GLEB30T8DQA Publication No: 5995403010

# Functional Parts 9 02/04

* Non-Ilustrated Parts

LOWER OVEN

POS. NO PART NO. DESCRIPTION

150 318072205 Bracket, support, LH

150A 318072204 Bracket, support, RH

156 5303317198 Bracket, oven vent

177 318053810 Gasket, vent

185 318014700 Spacer, oven shield

188 318014110 Spacer

209 318086200 Plate, retainer

222 318080000 Plate, oven temp probe

263 316136500 Washer, fan motor

* 5303311207 Tube, protector

* 08002868 Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box

* 5303211311 Screw, 8 x 0.500

Publication No: 5995403010 GLEB30T8DQA

02/04 10

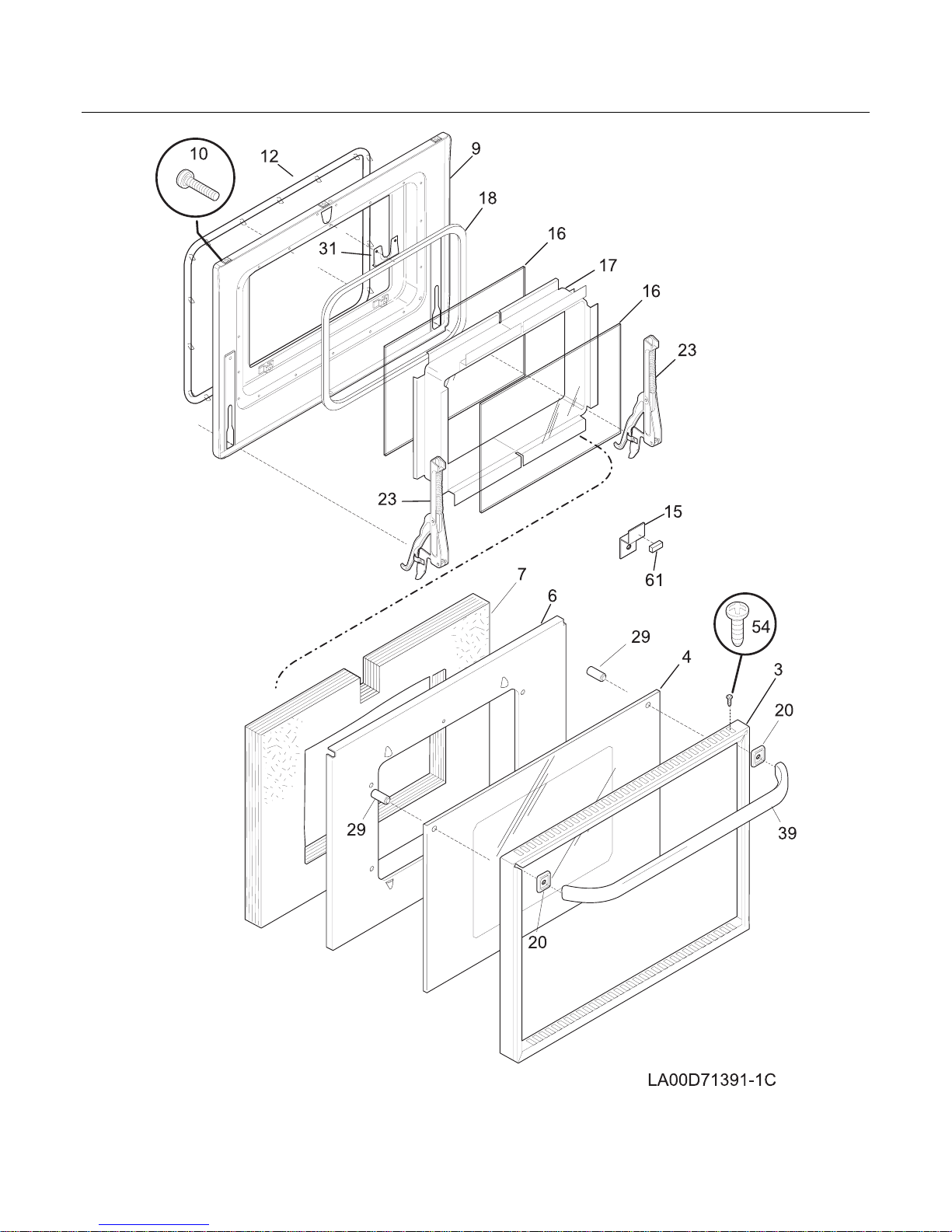

DOOR
