USER MANUAL

ICE MAKER

20 KGS

44 LBS

EFIC235

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS……………………………………………….….........................................

PREPARING YOUR ICE MAKER FOR USE

……………………………………………………………...........................................3

……………………………………………...........................................3

GETTING TO KNOW YOUR UNIT ……………………………………………………….............................................4

OPERATING PROCEDURES & MAINTENANCE

…………

………….

.…………………………………………..............................................5

……………………………………..............................................5

………

……….

.………

……….

.………………………………...…...........................................5

………………………………..............................................5

USING YOUR ICE MAKER ……………….……..……………………………………….............................................6

PRODUCT SPECIFICATIONS …………………………………………………………………………………………...9

WARRANTY CARD ………………………………………………………………………………………………………..10

………………………

……………………….

.……………………………………………...........................................9

is a pending or registered trademark used under license from

Electrolux Home Products, Inc.

Made In China

For service assistance and product information, please call: 1-800-968-9853.

Curtis International Ltd.

7045 BECKETT DRIVE, UNIT 15, MISSISSAUGA, ON, L5S 2A3 www.curtisint.com

IMPORTANT SAFETY TIPS …

UNPACKING YOUR ICE MAKER …

TROUBLESHOOTING

CONNECTING YOUR ICE MAKER

CLEANING AND MAINTAINING YOUR ICE MAKER

DANGER

WARNING

We have provided many important safety messages manual and your appliance.

Always read and obey all safety messages.

This is the safety alert symbol:

All safety messages will follow the safety alert symbol and the word “DANGER” or “WARNING”.

These words mean:

You can be killed or seriously injured if you don’t immediate follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury,

and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should be followed to reduce the risk of fire,

electric shock, and injury to persons or property. Read all instructions before using any appliance.

Do not operate this，or any other appliance with a damaged cord.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a

similarly qualified person in order to avoid a hazard.

This ice-maker must be positioned so that the plug is accessible.

Connect to properly grounded outlets only. No other appliance should be plugged into the same

outlet. Be sure that the plug is fully inserted into the receptacle.

Do not run the power cord over carpeting or other heat insulators. Do not cover the cord. Keep cord

away from traffic areas, and do not submerge in water.

We do not recommend the use of an extension cord, as it may overheat and become a risk of fire. If

you must use an extension cord, use No.14AWG minimum size and rated no less than 1875 watts.

Unplug the ice maker before cleaning or making any repairs or servicing.

Exercise caution and use reasonable supervision when appliance is used near children.

Do not use your ice-maker outdoors. Place the ice-maker away from direct sunlight and make sure

that there is at least 6 inches of space between the back of your unit and wall. Keep a minimum

distance of 6 inches on each side of your unit free.

Do not use other liquid to make the ice-cube other than water.

Do not clean your ice maker with flammable fluids. The fumes can create a fire hazard or explosion.

Do not tip over.

If the ice maker is brought in from outside in wintertime, give it a few hours to warm up to room

temperature before plugging it in.

WARNING: This appliance must be earthed; UV-light can cause damage to human skin, don’t remove

the UV-light from the appliance and light it. Do not look directly at the UV light.

IMPORTANT:

The wires in this mains lead are colored in accordance with the following code:

Green or Green with a strip yellow: Grounding

White: Neutral

Black: Live

To avoid a hazard due to instability of the appliance, it must be placed at an even or flat surface.

PREPARING YOUR ICE MAKER FOR USEPREPARING YOUR ICE MAKER FOR USE

IMPORTANT SAFETY TIPS

GETTING TO KNOW YOUR UNIT

1. Metal shell

2. Drawer

3. Observation window: See how much ice has been stored in the drawer.

4. Handle for drawer.

5. Control Panel:

Indicator light: Lack of water in reservoir, Power, UV Light, Ice full

Button: ICE, CLEAN, UV, LIGHT

6. Water reservoir

7. Handle for water reservoir

8. Hot Air outlet

9. Drip tray

10. Water drain cap: After cleaning procedure, remove drain cap from the back of the appliance, pull

out the cap from the drainpipe, empty the tank under the drawer, then reinsert the cap and put it back

again.

11. Drainpipe: After cleaning procedure, you can collect dirty water from the drainpipe (there are two

pipes: one connects to the evaporator, the other one connects to the water tank under the drawer).

12. Power cord

DANGER

1. Remove the exterior and interior packaging, and then check all the accessories are included. If any

parts are missing, please contact our customer service.

2. Remove all the tapes on the unit; take out the accessory parts inside.

3. Clean the interior with lukewarm water and a soft cloth.

4. Locating your ice maker on a level counter table far from direct sunlight and other sources of heat

(i.e.: stove, furnace, and radiator). Make sure that there is at least 6 inches between the back and

sides of your ice maker with the wall.

5. Allow one hour for the refrigerant fluid to settle down before plugging your ice maker in.

6. The power plug must be accessible directly.

WARNING: fill with potable water only. Only use drinking water.

*Improper use of the grounded plug can result in the risk of electrical shock. If the power cord

is damaged please call our customer service.

1. This unit should be properly grounded for your safety. The power cord of this appliance is equipped

with a grounding plug which mates with standard grounding wall outlets to minimize the possibility of

electric shock.

2. Plug your appliance into an exclusive, properly installed, grounding wall outlet. Do not under any

circumstances; damage the grounding means of the plug. Any questions concerning power and/or

grounding should be directed toward a certified electrician.

3. This appliance requires a standard 110-120Volt, 60Hz electrical outlet with good grounding means.

Before using your ice maker, it is strongly recommended to clean it thoroughly.

Unplug the unit before cleaning or making any maintenance.

1. Take out the drawer and water reservoir on the top.

2. Clean the interior with diluted detergent, warm water and a soft cloth. First pour the warm water with

diluted detergent into the internal water reservoir, and then use the soft cloth to wipe the surface.

3. Again use the water to rinse the inside parts, and drain out the water by unplugging the drain cap on

the back.

4. The outside of the ice maker should be cleaned regularly with a mild detergent solution and warm

water.

5. Dry the interior and exterior with a soft cloth.

6. When the appliance is not in use for a long time, open water drain cap to drain out water completely

from water reservoir.

OPERATING PROCEDURES & MAINTENANCE

UNPACKING YOUR ICE MAKER

CONNECTING YOUR ICE MAKER

CLEANING AND MAINTAINING YOUR ICE MAKER

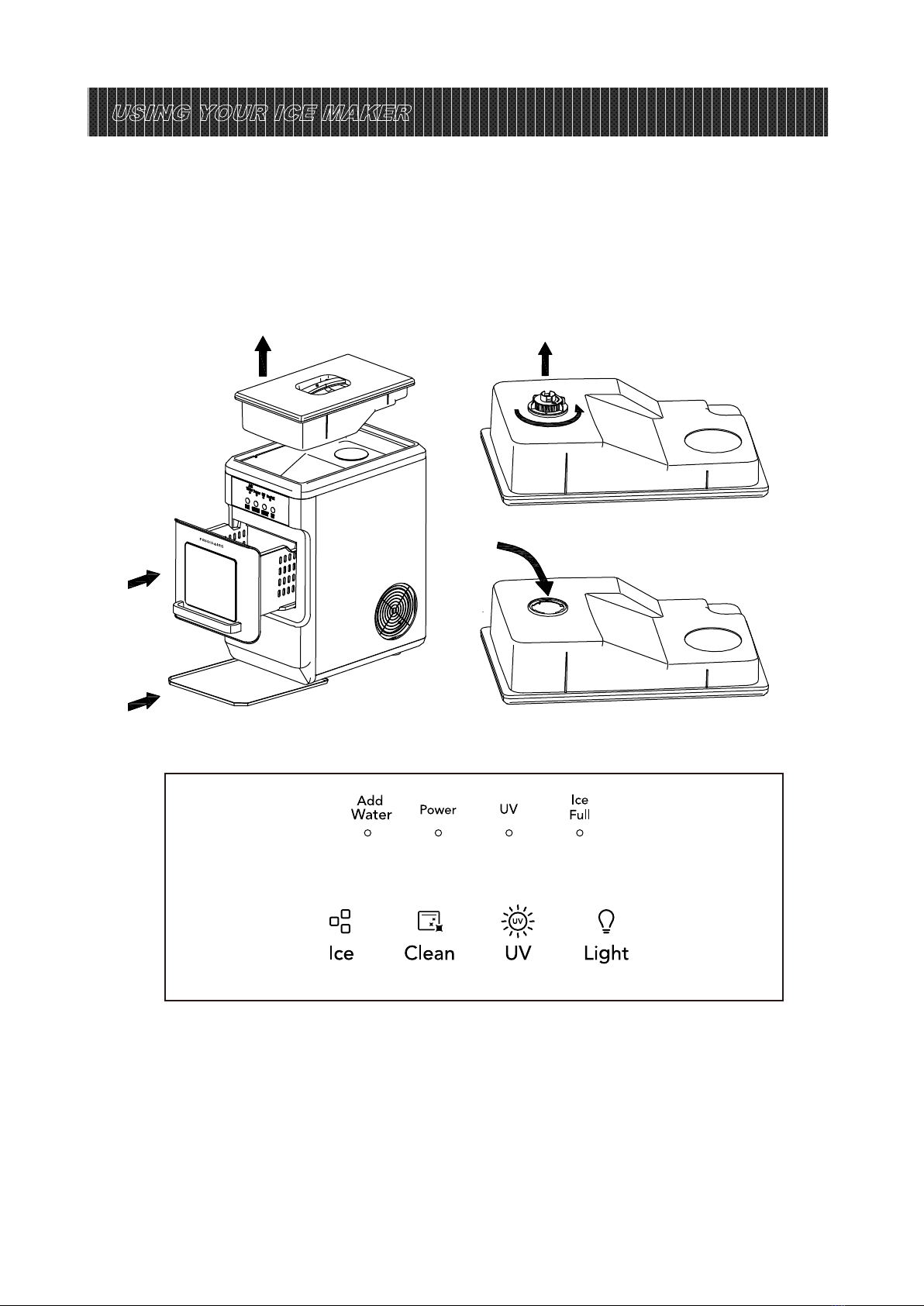

How to start the unit

1. Take out the water reservoir on the top, place the bottom up, open the cap, pour potable water into

water reservoir, 0.97 gallon (3.7 liters) water at most at one time. Screw the cap on to the reservoir,

and put it back on the top of the appliance again.

2. Before you put back the drawer, please make sure the water tank under the drawer is empty，if is not,

unplug water drain cap to drain out water completely.

Put the drip tray in position.

Add water, screw the cap

and put it back.

Open the cap

Operation and display areas

Plug in the power cord, the power indicator is on: you can operate this appliance by touch the

button on panel as shown above, the main function includes: ice, clean, UV and light.

CLEAN

For the first time, or the clean procedure has not been ran for a long time, it is highly recommended

Before starting the cleaning process, please check the drain pipe and drain pipe plug on the back of the

machine. Be sure to plug the drain pipe with a drain pipe plug and hang it on the back of the machine.

o run this procedure at first.

USING YOUR ICE MAKER

5. Press“CLEAN”button“ ”，the icon lights up , 5 seconds later, this icon flashes, it will run cleaning

procedure for at least 20 minutes, then the icon goes out. Press this button again, it will stop

cleaning.

6. After cleaning procedure, move the appliance to the edge of the desktop, make sure that the

appliance is placed steady ,place a water container under the appliance, remove drain plug from the

back, unscrew the tie on the pipe, pull out the plug from the drainpipe, water in the tank under the drawer

and the evaporator will drain into the water container , then reinsert the plug and put it back again.

Change water in the water reservoir every 24 hours to ensure a reasonable hygiene level. If the unit

isn’t to be used, drain all water & dry the water reservoir.

How to obtain the ice-cube

8. P

7. Before starting the ice making process, please check the drain pipe and drain pipe plug on the back

of the machine. Be sure to plug the drain pipe with a drain pipe plug and hang it on the back of the

machine.

ress the “ICE” button “ ”, the icon lights up , 5 seconds later, this icon flashes, it begin to work,

Press this button again, it will stop making ice. During ice making procedure, you can see how much

ice has been stored in the drawer through the observation window.

9. For the first time, or if the appliance has not been used for a long time, it is recommended to clean

this appliance before you start to make ice.

10. While the ice-maker is on, verify water level periodically. If water pump can’t pump out water, the ice

maker will stop automatically, and the “Add water” indicator will on. Need to pour water into the water

reservoir inside.

We suggest you should press “ICE” button to turn off the unit first, then fill water up, again press

“ICE” button to restart the unit. Allow the refrigerant liquid inside the compressor at least 3 minutes to

settle before restarting.

Light on/off

11. Press the “LIGHT”button“ ”,the light inside the appliance is on，press this button again，the

light is off。

When Ice Full indicator is on

12. The ice maker automatically stops working when the ice-cube is full inside and the “ ice full” Indicator

is on。

Open the drawer

13. Hold the drawer handle gently and pull it out along the horizontal direction, until the back of the

drawer contacts the front panel and then gently put it down, the drawer will have a certain angle

hanging in the front panel. Instead, when you need to close the drawer, hold the drawer handle and

place the drawer horizontally,then gently push it into full closure.

Take out the drawer

15. UV light inside the water tank, touch button which can turn on or turn off the UV light.

4. Hold the drawer handle gently and pull it out along the horizontal direction, until the back of the

drawer contacts the front panel, and then gently lifted it up at a certain angle and pulled it out.

Instead, when you need to reload the drawer, you tilt the drawer in the same direction at a certain

angle. First, you put the back side of the drawer into the front panel, slowly flatten the drawer, and

then gently push it into full closure.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION

“Add Water”

indicator lights up Lack of Water.

Stop the ice maker, fill water, and

press “ICE”/“CLEAN” button again

to restart the unit.

“Ice-Full” indicator

lights up

There is too much ice. Suggest you to obtain the ice-cube.

(No ice cube inside).

Remove the probable obstacle

inside or clean the inside wall of

the ice storage.

“Power” indicator

and ICE icon

flashing

Ambient temperature or water

temperature in inner tank is too high.

Please run the ice maker below

90 Fahrenheit degree ambient

and pour colder water into tank.

Refrigerant liquid leakage. Press the ICE button twice, restart

ice making program, wait for 50

minutes, if this problem show up

again, verify by a qualified

technician.

Cover motor is broken.

Pipe in the cooling system is blocked.

Making Ice too

slowly

Hot Air outlet has been blocked by

something.

Hot Air outlet must be guaranteed

to have more than 15 CM of

ventilation distance.

Water temperature in inner tank is

too high.

Water temperature requirement

between 44.6℉-89.6℉.

Refrigeration system malfunctions. Verify by a qualified technician.

Water leakage

Drain plug not in place. Put the drain plug in place.

Pipe Joint in the appliance may

Loose. Verify by a qualified technician.

The seal has reached service life Verify by a qualified technician.

PRODUCT SPECIFICATIONS：

INPUT VOLTAGE: 115V 60HZ

POWER CONSUMPTION: 200 W

DAILY ICE OUTPUT: 20 KGS/24H

REFRIGERANT: R600A

DIMENSIONS



PRODUCT DEPTH (IN.) 16.9



PRODUCT HEIGHT (IN.) 19



PRODUCT WIDTH (IN.) 9.8

Tabla de contenidos

Idiomas:

Otros manuales de Máquina de hielo de Frigidaire

Frigidaire

Frigidaire EFIC237 Manual del propietario

Frigidaire

Frigidaire EFIC120-SS-SC Manual de usuario

Frigidaire

Frigidaire EFIC101 Manual de usuario

Frigidaire

Frigidaire EFIC128-BLACK-6COM Manual del propietario

Frigidaire

Frigidaire EFIC229-VCM Instrucciones de funcionamiento

Frigidaire

Frigidaire FGHS2655PF6B Manual de usuario

Frigidaire

Frigidaire FFU20B6BW1 Manual de usuario

Frigidaire

Frigidaire FXIC151-SS Manual del propietario

Frigidaire

Frigidaire EFIC235-AMZ Manual de usuario

Frigidaire

Frigidaire EFIC108-C Manual de usuario

Frigidaire

Frigidaire 242102400 Manual de usuario

Frigidaire

Frigidaire EFIC450 Manual de usuario

Frigidaire

Frigidaire EFIC108 Manual de usuario

Frigidaire

Frigidaire EFIC255-GREY Manual del propietario

Frigidaire

Frigidaire EFIC206-B-TG-SILVER Manual del propietario

Frigidaire

Frigidaire EFIC111-B-SILVER Manual del propietario

Frigidaire

Frigidaire EFIC157-BLACK Manual del propietario

Frigidaire

Frigidaire EFIC452-SS Manual de usuario

Frigidaire

Frigidaire EFIC121-B-SS Manual del propietario

Frigidaire

Frigidaire EFIC239 Manual del propietario

Frigidaire

Frigidaire EFIC117-SSCOPPER-B-COM Manual de usuario

Frigidaire

Frigidaire EFIC121-SS Manual de usuario

Frigidaire

Frigidaire EFIC103-AMZ-SC Manual del propietario

Frigidaire

Frigidaire EFIC123-SS Manual de usuario

Manuales populares de Máquina de hielo de otras marcas

Hoshizaki

Hoshizaki KMD-460MWJ Manual de usuario

Sub-Zero

Sub-Zero 315I Instrucciones de uso

Unold

Unold 48945 Manual de usuario

Kenmore

Kenmore 2217402A Manual de usuario

Cornelius

Cornelius WM600 Instrucciones de funcionamiento

GE XPIO43SCSS Manual de usuario

Hoshizaki

Hoshizaki KMD-901MAH Manual de usuario

Whynter

Whynter FIM-450HA Manual de usuario

U-Line

U-Line UMCR014-SC01A Manual de instalación

Andrew James

Andrew James AJ000522 Manual de usuario

Scotsman

Scotsman CME1356 Manual de usuario

Scotsman

Scotsman ACM 25 Manual de usuario

Kärcher

Kärcher IP 120 Manual de usuario

U-Line

U-Line SS1095 Manual de usuario

Maytag

Maytag MIM1554WRS - Ice Maker Manual de usuario

Hoshizaki

Hoshizaki KM-630MAH Manual de usuario

Princess

Princess Yonanas Manual de usuario

Unold

Unold 48946 Manual de usuario
