Frigidaire FFU21G3AW1 Manual de usuario

FREEZER

Model number

FFU21G3AW1

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216803200

SERVICE DATA SHEET - # 216803200

ENERGY GUIDE - # 216795105 OWNERS GUIDE - # 216802800

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFU21G3AW1 FFU21G3AW 134A white 115

MARKET

North America

Publication No.

5995367835

020319

-EN/SERVICE /BLT

365

ELECTROLUX HOME PRODUCTS, INC.

P.O BOX 212378, AUGUSTA , GA 30917

03/02 2

Publication No FFU21G3AW1

5995367835

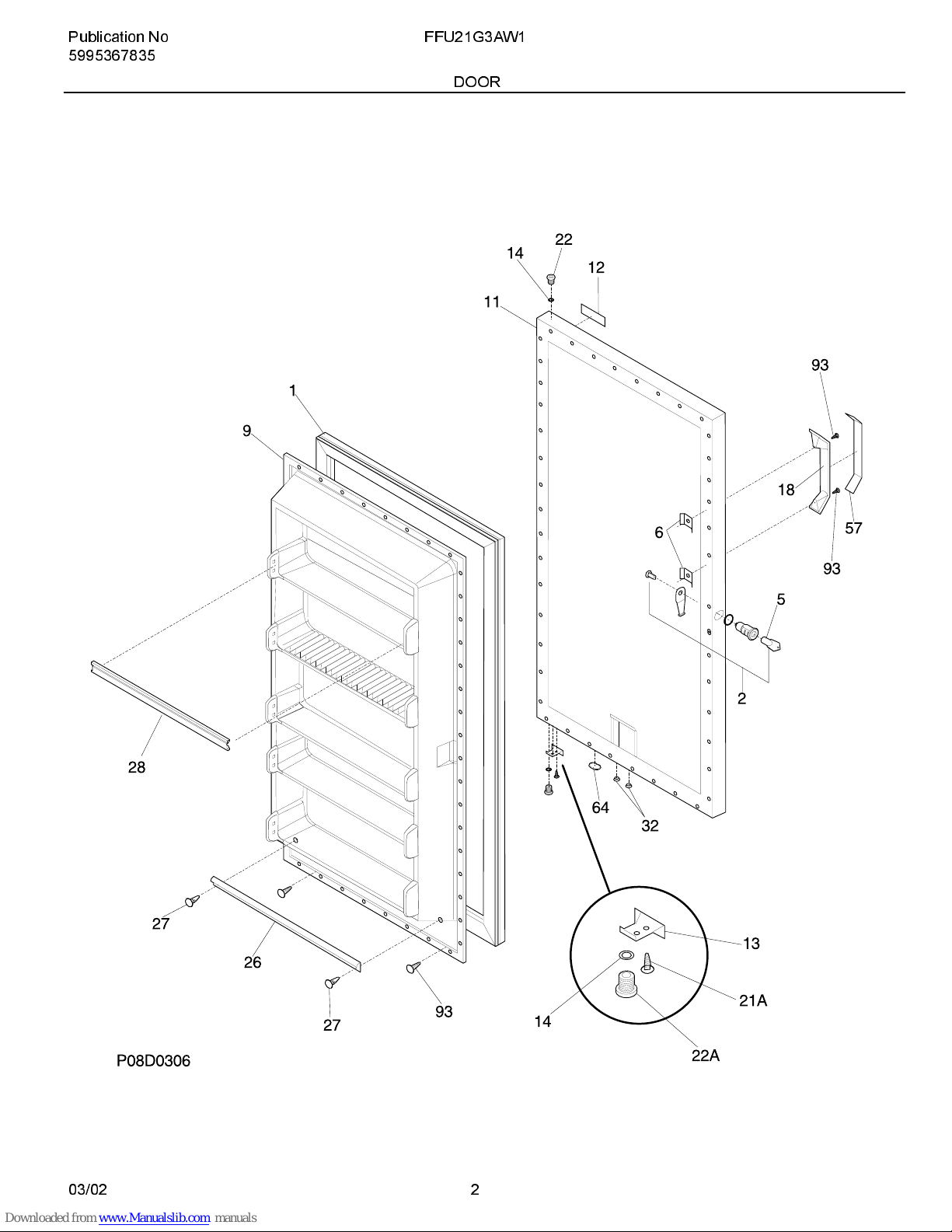

DOOR

# = Fast-moving Parts 3 03/02

* = Non-Illustrated Parts

FFU21G3AW1 Publication No.

5995367835

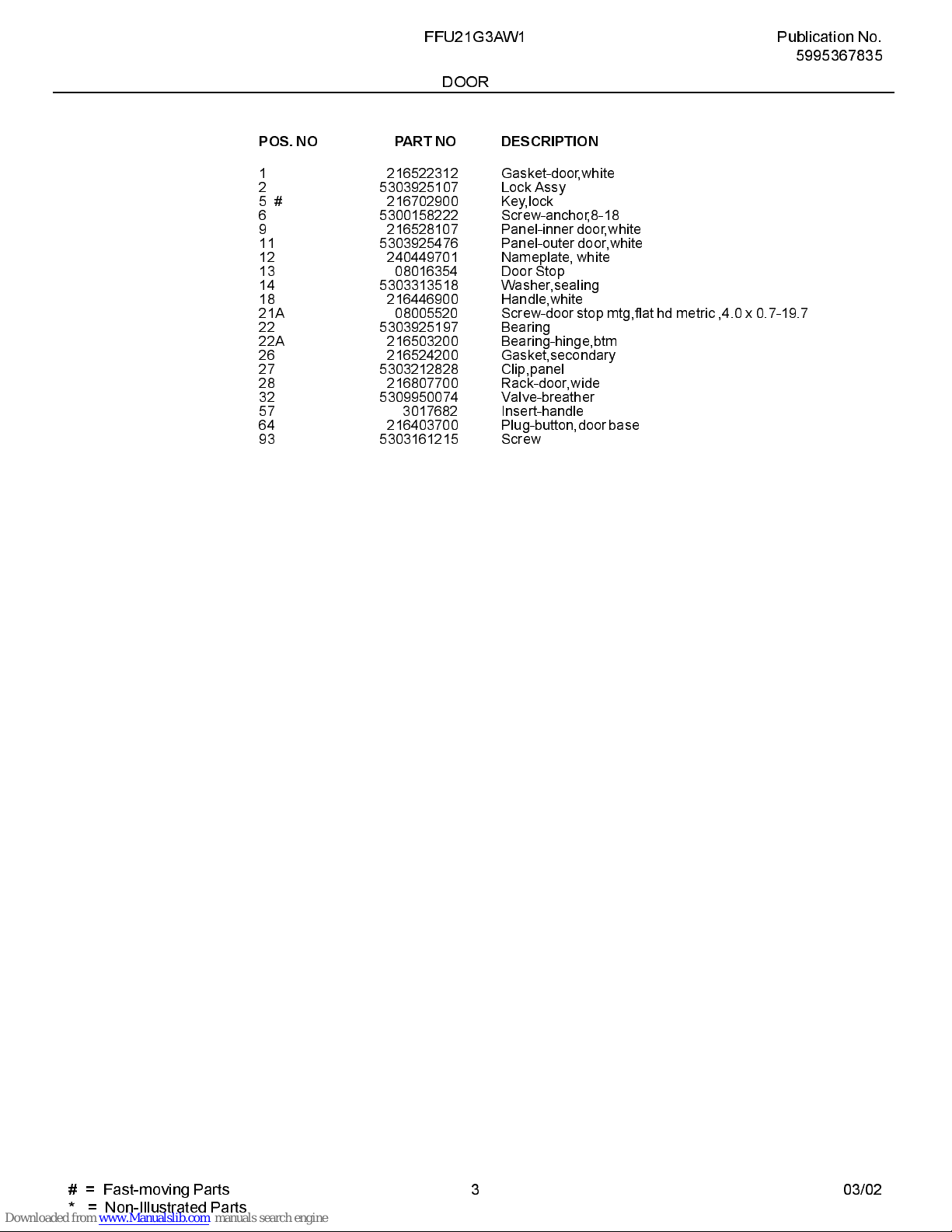

DOOR

POS. NO PART NO DESCRIPTION

1 216522312 Gasket-door,white

2 5303925107 Lock Assy

5 # 216702900 Key,lock

6 5300158222 Screw-anchor,8-18

9 216528107 Panel-inner door,white

11 5303925476 Panel-outer door,white

12 240449701 Nameplate, white

13 08016354 Door Stop

14 5303313518 Washer,sealing

18 216446900 Handle,white

21A 08005520 Screw-door stop mtg,flat hd metric ,4.0 x 0.7-19.7

22 5303925197 Bearing

22A 216503200 Bearing-hinge,btm

26 216524200 Gasket,secondary

27 5303212828 Clip,panel

28 216807700 Rack-door,wide

32 5309950074 Valve-breather

57 3017682 Insert-handle

64 216403700 Plug-button,door base

93 5303161215 Screw

03/02 4

Publication No FFU21G3AW1

5995367835

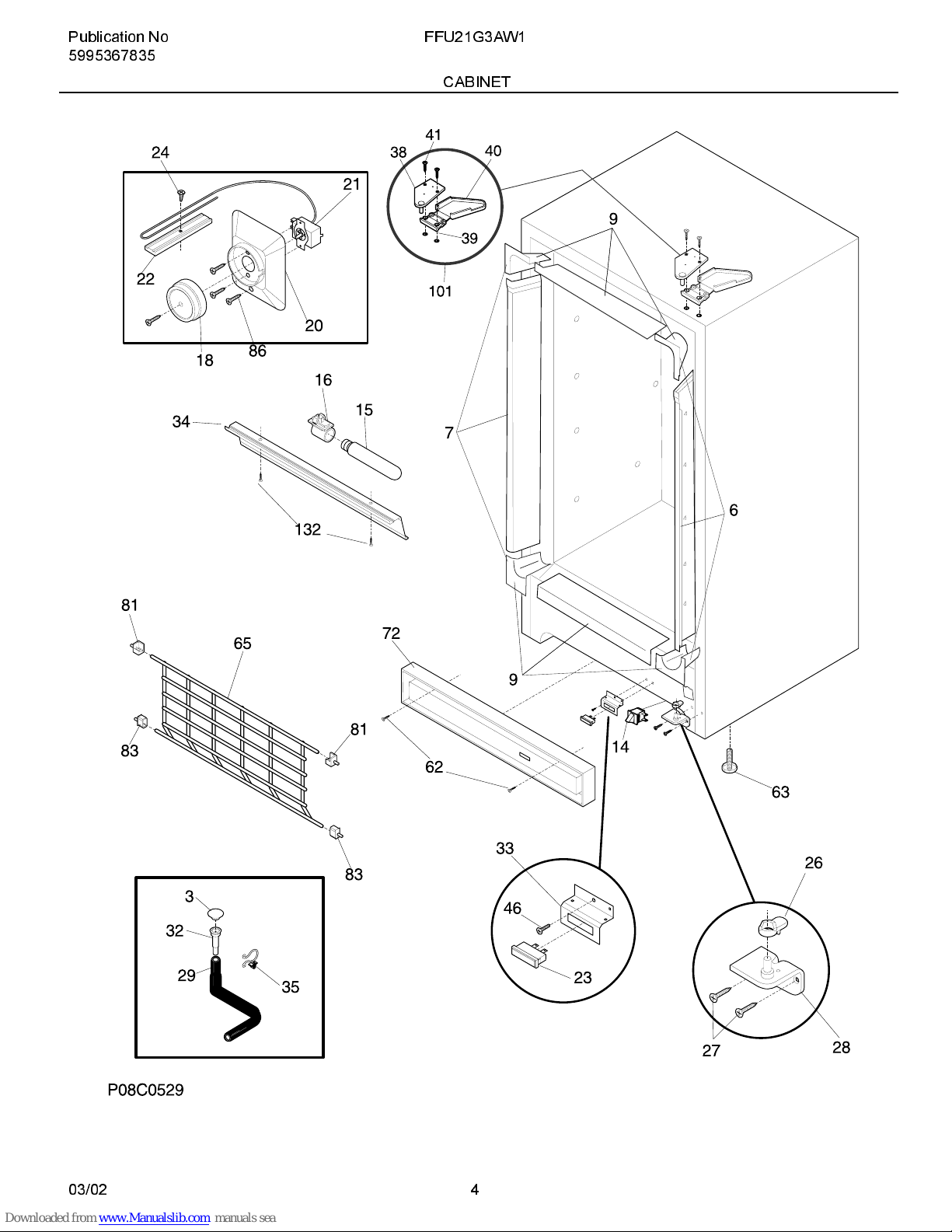

CABINET

# = Fast-moving Parts 5 03/02

* = Non-Illustrated Parts

FFU21G3AW1 Publication No.

5995367835

POS. NO PART NO DESCRIPTION

3 216502600 Plug-drain,interior ,interior

6 216604100 Breaker Kit w/corners

7 216603600 Breaker Kit w/corners,lock catch

9 216603300 Breaker Kit w/corners,32" ,top or bottom

14 216822900 Light/lamp,ramp

15 216846400 Light bulb/lamp

16 216817600 Light/lamp,indicator

18 216707200 Knob-control cold

20 216707300 Cover-control housing

21 # 216788100 Control-temperature

22 216823500 Clamp,cap tube ,cold control

23 06594648 Light-signal,amber

24 5300052943 Screw-clamp,truss hd cr ,control

26 216503300 Ramp,closer ,door

27 5303205738 Screw-hinge,cr ,1/4-20 x 1.000 ,btm

28 216247400 Hinge-bottom

29 216313502 Hose-drain

32 5308005500 Drain

33 216252001 Bracket,signal light

35 216273000 Clip,drain hose

38 216808900 Hinge-upper

39 5303294372 Nut-insert,hinge

40 216809000 Cover-hinge

41 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875

46 08037851 Screw,PH type AB ,8-32x1/2 ,wiring harness

62 131420300 Screw,cr truss head ,8-18AB x 0.750

63 216396900 Foot-adjustable

65 216443500 Drop front

72 216591110 Grille/Kickplate

81 216571000 Support-drop front,top

83 216571100 Support-drop front,btm

86 216036600 Screw,rwhd (gx-ca) ,8-32 x 1/2

101 216835200 Kit-top hinge

132 5303305324 Screw,6-20AB x 3/8

* 09948773 Insulation,drain tube

* 216802800 Owners guide

* 5303305324 Paint,touch-up ,white

CABINET

03/02 6

Publication No FFU21G3AW1

5995367835

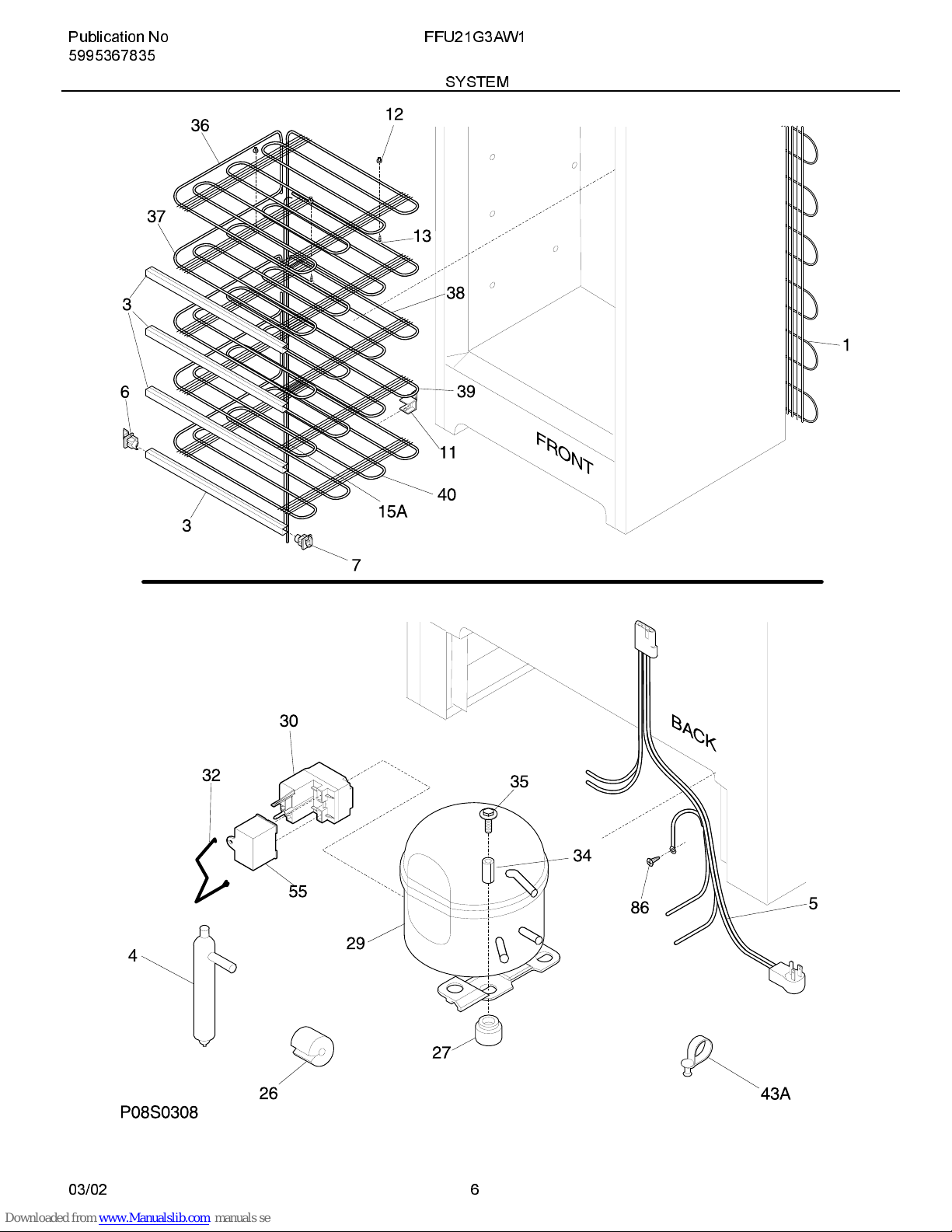

SYSTEM

FFU21G3AW1 Publication No.

5995367835

# = Fast-moving Parts 7 02/02

* = Non-Illustrated Parts

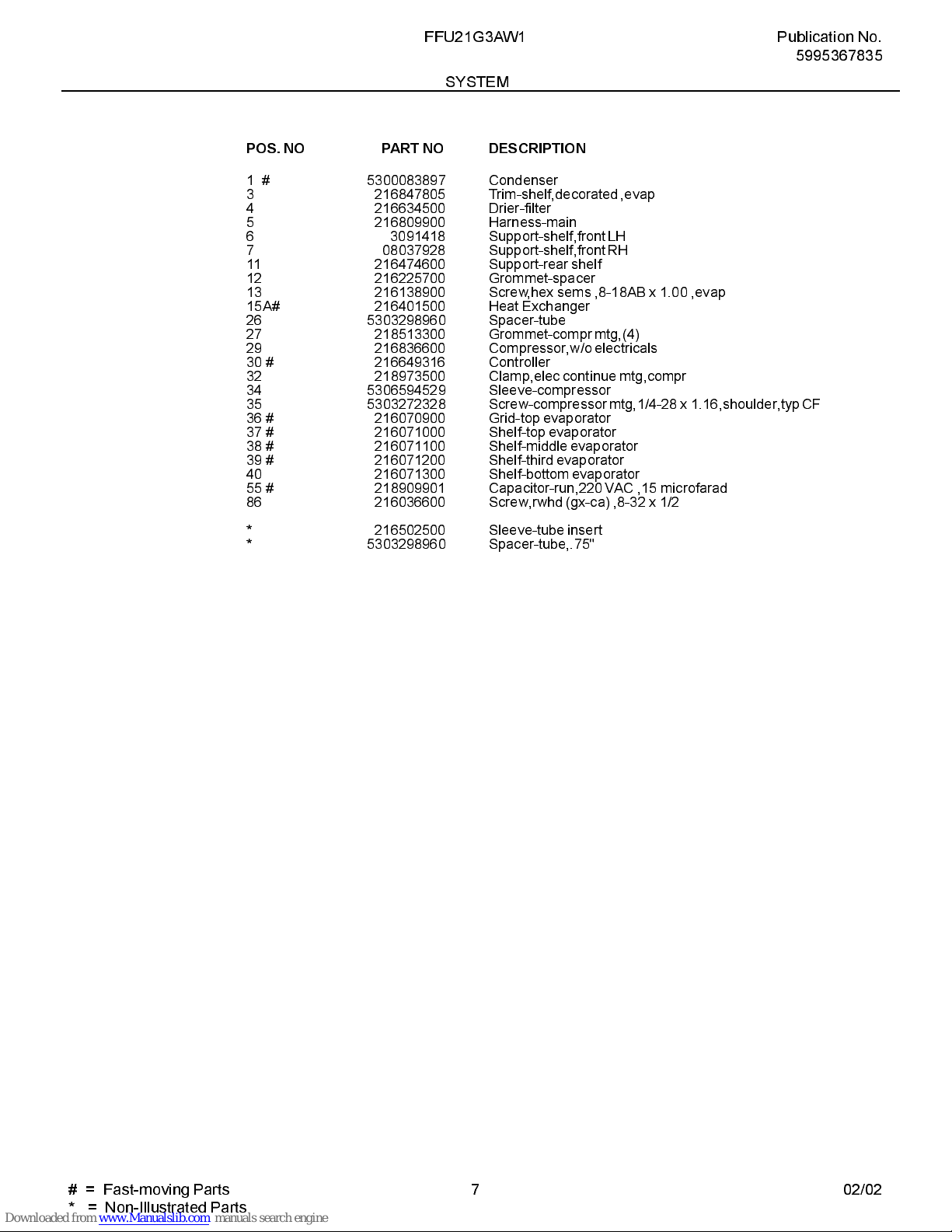

SYSTEM

POS. NO PART NO DESCRIPTION

1 # 5300083897 Condenser

3 216847805 Trim-shelf,decorated ,evap

4 216634500 Drier-filter

5 216809900 Harness-main

6 3091418 Support-shelf,front LH

7 08037928 Support-shelf,front RH

11 216474600 Support-rear shelf

12 216225700 Grommet-spacer

13 216138900 Screw,hex sems ,8-18AB x 1.00 ,evap

15A# 216401500 Heat Exchanger

26 5303298960 Spacer-tube

27 218513300 Grommet-compr mtg,(4)

29 216836600 Compressor,w/o electricals

30 # 216649316 Controller

32 218973500 Clamp,elec continue mtg,compr

34 5306594529 Sleeve-compressor

35 5303272328 Screw-compressor mtg,1/4-28 x 1.16,shoulder,typ CF

36 # 216070900 Grid-top evaporator

37 # 216071000 Shelf-top evaporator

38 # 216071100 Shelf-middle evaporator

39 # 216071200 Shelf-third evaporator

40 216071300 Shelf-bottom evaporator

55 # 218909901 Capacitor-run,220 VAC ,15 microfarad

86 216036600 Screw,rwhd (gx-ca) ,8-32 x 1/2

* 216502500 Sleeve-tube insert

* 5303298960 Spacer-tube,.75"
