Frigidaire Gallery GLD2250RD S Manual de usuario

P30L0065.eps P30C0149.eps P30B0037.eps P30U0021.eps P30M0037.eps P30F0022.eps

P30R0081.eps

Product No. GLD2250RDB0 GLD2250RDC0 GLD2250RDQ0 GLD2250RDS0

Series Built-in 24" Built-in 24" Built-in 24" Built-in 24"

Color black stainless bisque white

Owner's Guide 154493801 154493801 154493801 154493801

Service Data Sheet 154526501 154526501 154526501 154526501

Energy Guide 154494101 154494101 154494101 154494101

Installation Instructions 154427301 154427301 154427301 154427301

Market North America North America North America North America

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995417614

04/10/01

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

GLD2250RD

Publication No: 5995417614 GLD2250RD

10/04 2

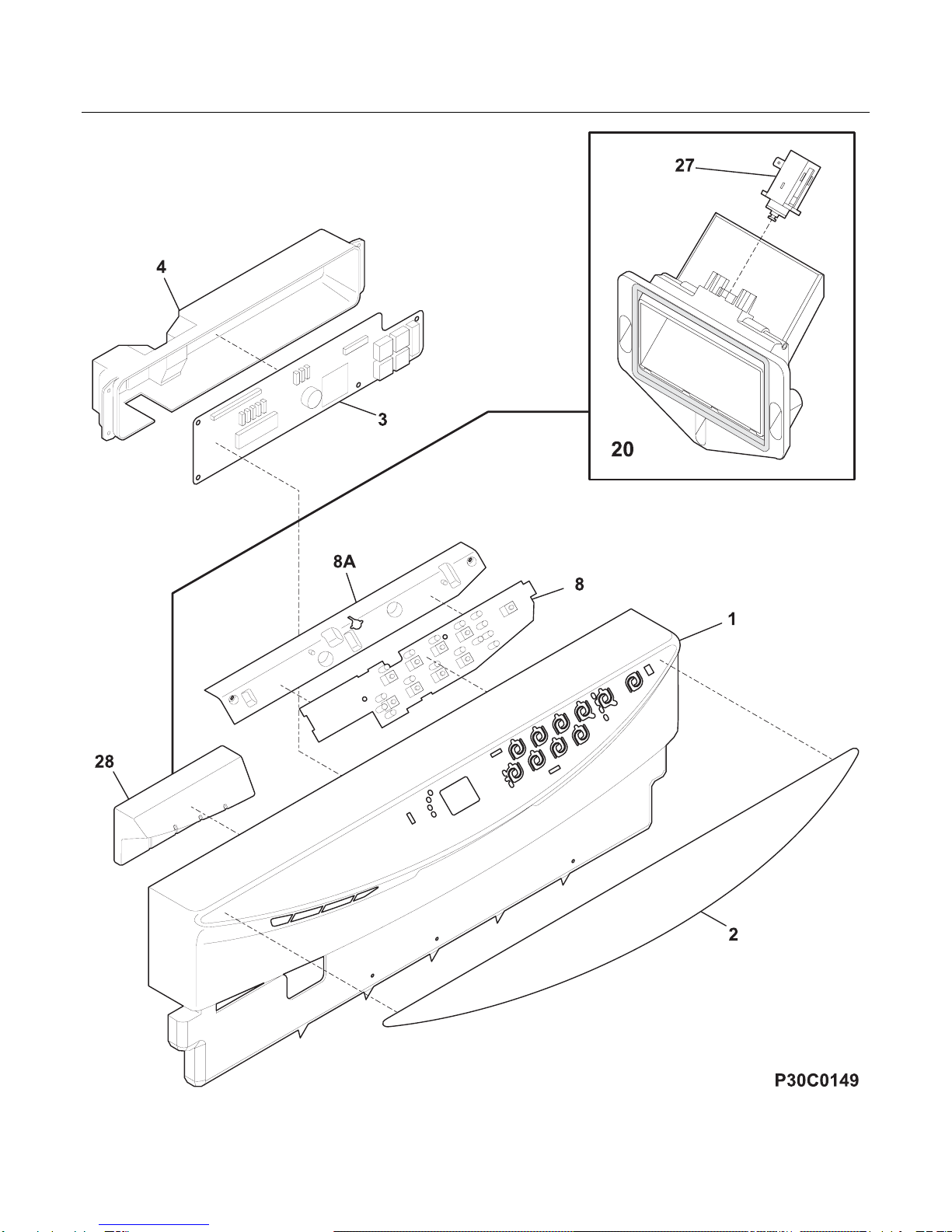

CONTROL PANEL

GLD2250RD Publication No: 5995417614

# Functional Parts 3 10/04

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AGLD2250RD (GLD2250RDB0)

BGLD2250RD (GLD2250RDC0)

CGLD2250RD (GLD2250RDQ0)

DGLD2250RD (GLD2250RDS0)

POS. NO PART NO. DESCRIPTION

1 154486003 A B - - Panel, control, black

1 154486004 - - C - Panel, control, bisque

1 154486001 - - - D Panel, control, white

2 154524303 A B - - Insert, control panel, black

2 154524304 - - C - Insert, control panel, bisque

2 154524301 - - - D Insert, control panel, white

3 154522801 A B C D Board, control

3* 154200401 A B C D Screw, 6-10 x 3/8, pan plask

4 154460601 A B C D Cover, control

4* 154478901 A B C D Gasket, cover

8 # 154474701 A B C D Switch, selector, 9 pad

8* 5303318719 A B C D Screw, mtg.

8A 154486201 A B C D Shield, tactile switch

20 154423601 A B C D Vent assy, active dry, w/actuator

20* 154436201 A B C D Screw, dry duct, (3)

27 154433501 A B C D Actuator, active dry vent

28 154474401 A B C D Adapter, vent

* 154527001 A B C D Wiring Harness, main

* 154227501 A B C D Thermistor

* 154494101 A B C D Energy guide label

Publication No: 5995417614 GLD2250RD

10/04 4

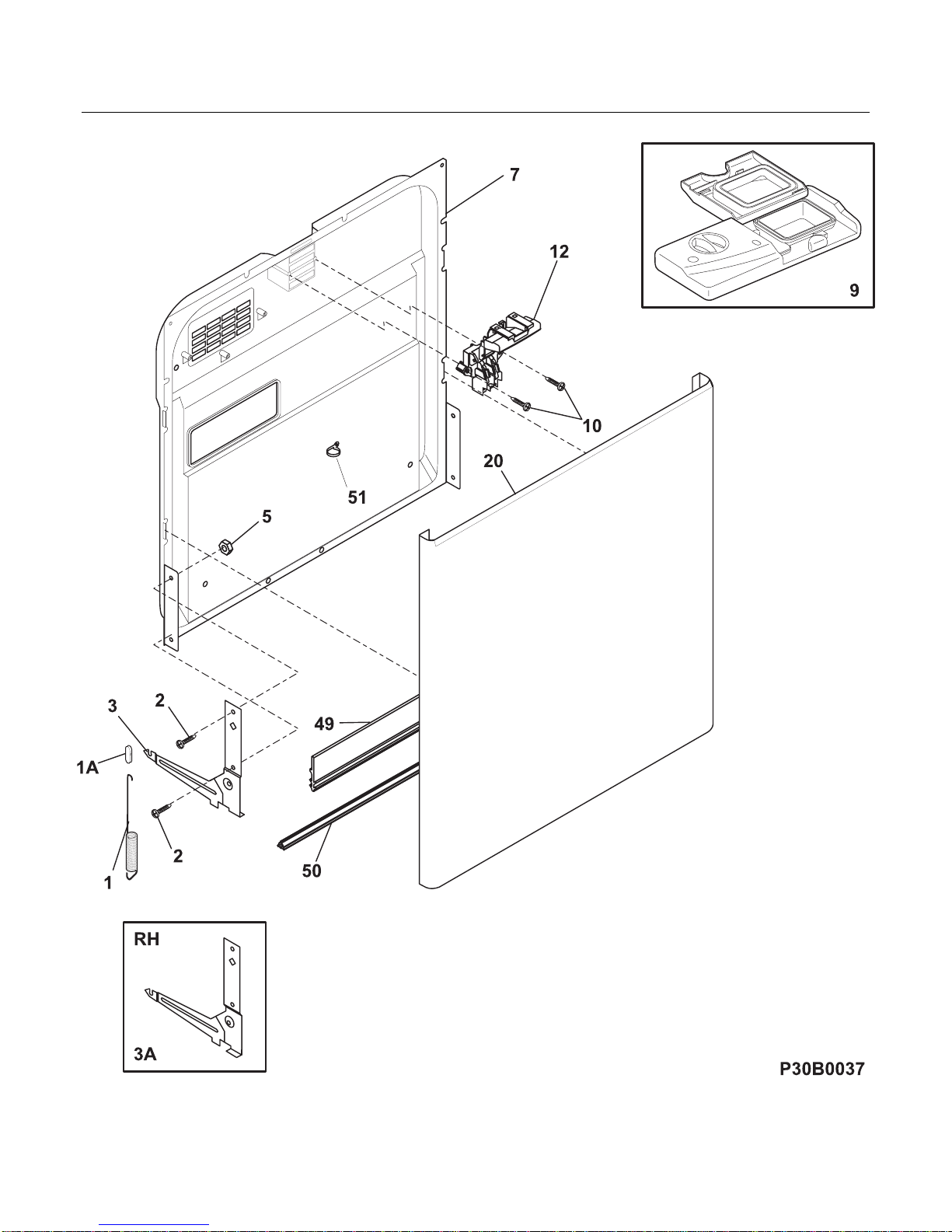

DOOR

GLD2250RD Publication No: 5995417614

# Functional Parts 5 10/04

* Non-Illustrated Parts

DOOR

Model Index: AGLD2250RD (GLD2250RDB0)

BGLD2250RD (GLD2250RDC0)

CGLD2250RD (GLD2250RDQ0)

DGLD2250RD (GLD2250RDS0)

POS. NO PART NO. DESCRIPTION

1 154430501 A B C D Spring, door, (2)

1A 154325201 A B C D Linkage, door spring, (2)

2 154093301 A B C D Screw, arm assy, (4)

3 154325302 A B C D Arm Assy, LH

3A 154325301 A B C D Arm Assy, RH

* 154400601 A B C D Pin, arm assy

5 154079601 A B C D Nut, arm assy, and handle mtg.

7 154494601 A B C D Liner, door assy.

9 154452703 A B C D Dispenser, det/rinse aid, w/o reed

9* 154294701 A B C D Screw, #7 plas .375, (6), disp. assy.

10 154103702 A B C D Screw, latch mtg, (2)

12 # 154475103 A B - - Latchassy, black

12 # 154529404 - - C - Latchassy, bisque

12 # 154475101 - - - D Latch assy, white

20 154524903 A - - - Door Assy, black, outer

20 154524905 - B - - Door Assy, stainless, outer

20 154436804 - - C - Door Assy, bisque, outer

20 154524901 - - - D Door Assy, white, outer

20* 154253201 A B C D Insulation, door

20* 5304428306 A B C D Screw, door mtg., (2)

49 154297603 A B C D Gasket, door, bottom

50 154211401 A B C D Support, door hinge

51 154320301 A B C D Clamp, drip loop, wire

* 316279700 - B - - Cleaner, stainless steel

* 154200601 A B C D Screw, #10-16 x 3/8

Publication No: 5995417614 GLD2250RD

10/04 6

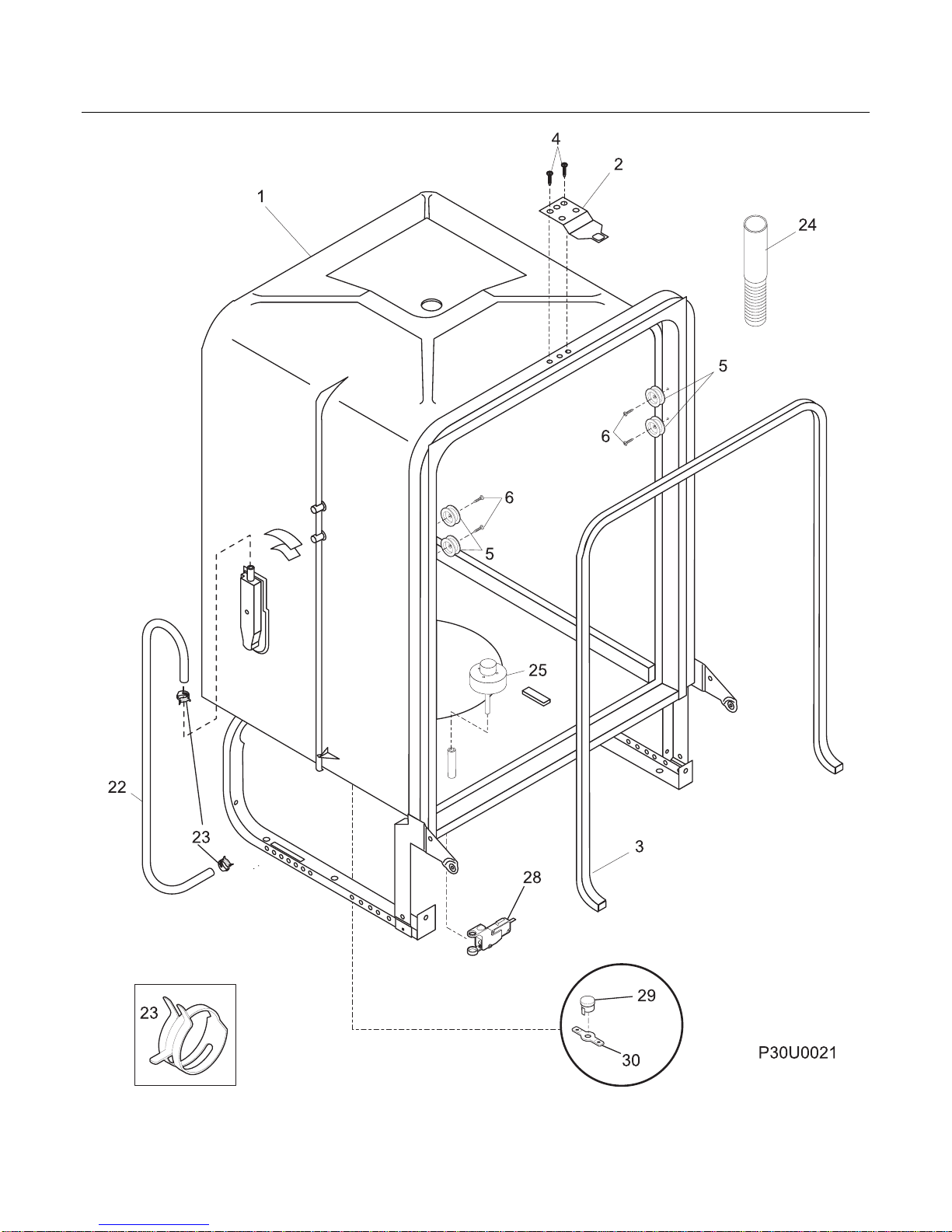

TUB

GLD2250RD Publication No: 5995417614

# Functional Parts 7 10/04

* Non-Illustrated Parts

TUB

Model Index: AGLD2250RD (GLD2250RDB0)

BGLD2250RD (GLD2250RDC0)

CGLD2250RD (GLD2250RDQ0)

DGLD2250RD (GLD2250RDS0)

POS. NO PART NO. DESCRIPTION

1 # 154534701 A B C D Tub assy, w/frame parts

2 154429101 A B C D Strike, door

3 # 154211801 A B C D Gasket, tub

4 154200602 A B C D Screw, 10-16 x 3/8, hex

5 154333902 A B C D Roller, tub

6 5303943103 A B C D Screw, w/washer, (8)

22 154446002 A B C D Tubing, water inlet

23 5303318539 A B C D Clamp, tubing, (2)

24 # 154411003 A B C D Hose, drain

25 # 154209701 A B C D Float

28 154408701 A B C D Switch Assy, float

29 # 154290204 A B C D Thermostat, re-settable

30 154241101 A B C D Retainer, thermostat

30* 154297701 A B C D Screw, retainer-thermo

* 154447102 A B C D Insulation,blanket

* 154041001 A B C D Screw, plask #1, 10-10 x 9/16

* 5300807270 A B C D Screw, (2), countertop mtg.

Publication No: 5995417614 GLD2250RD

10/04 8

MOTOR & PUMP

GLD2250RD Publication No: 5995417614

# Functional Parts 9 10/04

* Non-Illustrated Parts

MOTOR & PUMP

Model Index: AGLD2250RD (GLD2250RDB0)

BGLD2250RD (GLD2250RDC0)

CGLD2250RD (GLD2250RDQ0)

DGLD2250RD (GLD2250RDS0)

POS. NO PART NO. DESCRIPTION

1 # 154482901 A B C D Heater, round

1* 154106201 A B C D Nut, heater, (2)

1* 154289801 A B C D Shield, heater terminal

2 154465101 A B C D Bracket, heater, (2)

10 154245501 A B C D Cover, volute

13 154246801 A B C D Gasket, sump

14 154461901 A B C D Housing, sump

16 154246502 A B C D Retainer, sump

16* 5304404947 A B C D Screw, retainer

24 154414102 A B C D Spray arm, lower, w/heat shield

24A 154468502 A B C D Spray arm, grey, center

24B 154520601 A B C D Nozzle, shower, assembly

32 154464101 A B C D Tube, delivery

32* 154491101 A B C D Screw, delivery tube

32A 154406401 A B C D Gasket, delivery tube

40 154348401 A B C D Clamp, red, pump

40 154348502 A B C D Clamp, red, pump

40* 154106801 A B C D Clamp, hose, (2)

40* 154380601 A B C D Clamp, hose, (1)

54 154234401 A B C D Hose, connector

55 154362301 A B C D Bracket, motor, askoll

55* 5303316032 A B C D Screw, truss ss, 8 .625

58 154246402 A B C D Check ball

59 154246901 A B C D O-ring, rear

59A 154247001 A B C D O-ring, front

60 154491301 A B C D Pump, drain

60* 5303318719 A B C D Screw, mtg.

61 154463402 A B C D Grommet, delivery tube

62 154294102 A B C D Support, spray arm, grey, lower

63 154252201 A B C D Base, soil director

64 154252302 A B C D Filter, soil director, grey

65 154283005 A B C D Filter Assy, grey

66 154252702 A B C D Trap, glass, grey

70 154523501 A B C D Motor & Pump Assy

* 154200601 A B C D Screw, #10-16 x 3/8

Publication No: 5995417614 GLD2250RD

10/04 10

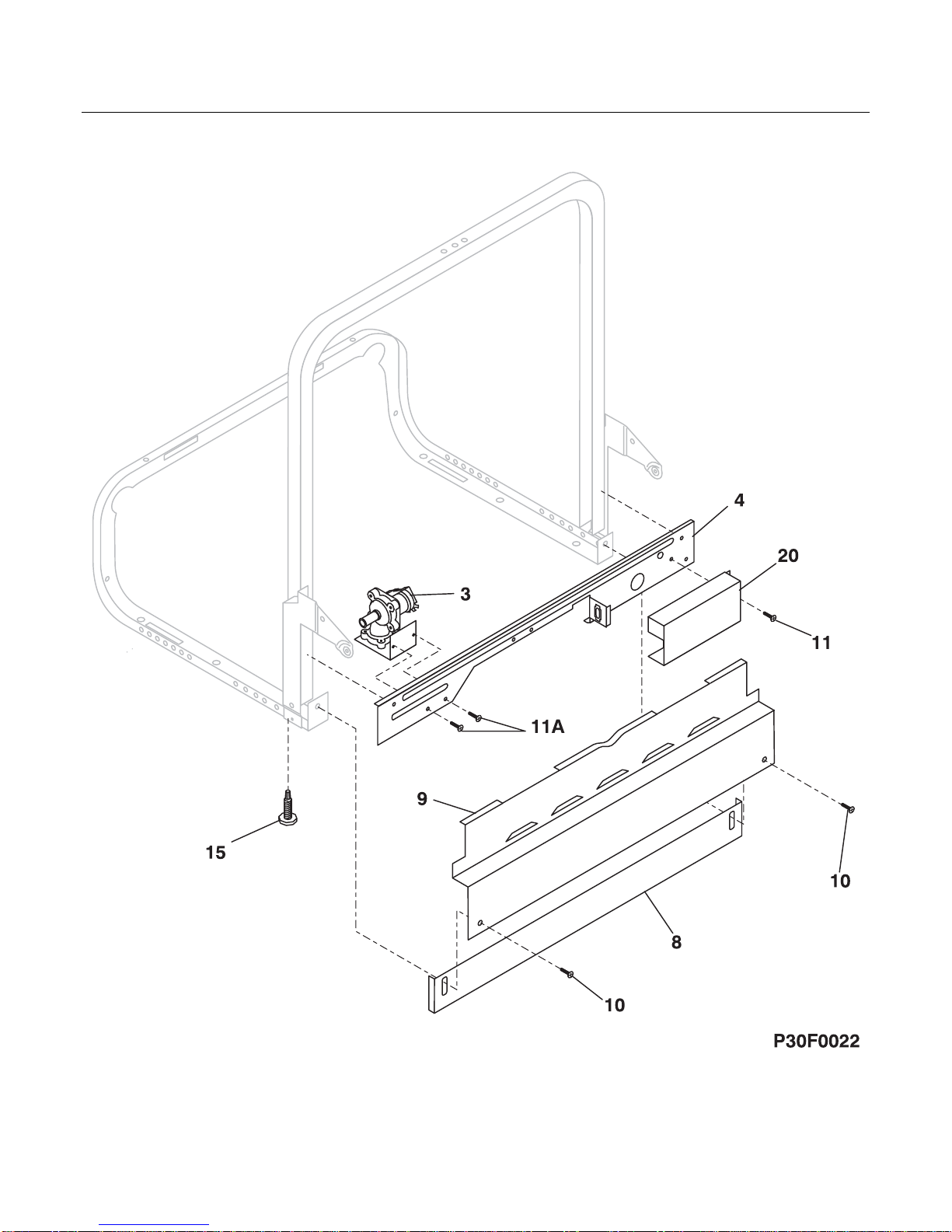

FRAME
