Frigidaire FDB955SD Manual de usuario

P30L0032.EPS P30C0137.eps P30B0032.eps P30U0018.eps P30M0033.eps

P30F0022.eps P30R0080.eps

Product No. FDB955SDC1

Series Built-in 24"

Color stainless

Owner's Guide 154448401

Service Data Sheet 154459001

Energy Guide 154540014

Installation Instructions 154427401

Market North America

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995424354

04/12/14

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

FDB955SD

Publication No: 5995424354 FDB955SDC1

12/04 2

CONTROL PANEL

FDB955SDC1 Publication No: 5995424354

# Functional Parts 3 12/04

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

1 154370303 Panel, control, black

2 154445003 Insert, control panel, black

3 # 154445801 Control, electronic

3* 154200401 Screw, 6-10 x 3/8, pan plask

4 154287901 Cover, control

18 154422303 Nameplate, black

20 154433001 Vent assy, static dry

20* 154436201 Screw, dry duct, (3)

34 # 154442101 Keypad, 9pad

* # 154460001 Wiring Harness, main

* 154227501 Thermistor

* 154540014 Energy guide label

Publication No: 5995424354 FDB955SDC1

12/04 4

DOOR

FDB955SDC1 Publication No: 5995424354

# Functional Parts 5 12/04

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 154430501 Spring, door, (2)

1A 154325201 Linkage, door spring, (2)

2 154093301 Screw, armassy, (4)

3 154325302 Arm Assy, LH

3A 154325301 Arm Assy, RH

* 154400601 Pin, arm assy

5 154079601 Nut, arm assy, and handle mtg.

7 154299004 Door, inner assy

9 154230103 Dispenser, det/rinse aid, includes #22

9* 154294701 Screw, #7 plas .375, (6), disp. assy.

10 154103702 Screw, latch mtg, (2)

12 # 154537303 Latch assy, black

20 154533501 Door, stainless

20* 5304428306 Screw, door mtg., (2)

22 154388801 Cap, Rinse aid

49 154297603 Gasket, door, bottom

50 154211401 Support, door hinge

51 154320301 Clamp, drip loop, wire

* 154200601 Screw, #10-16 x 3/8

Publication No: 5995424354 FDB955SDC1

12/04 6

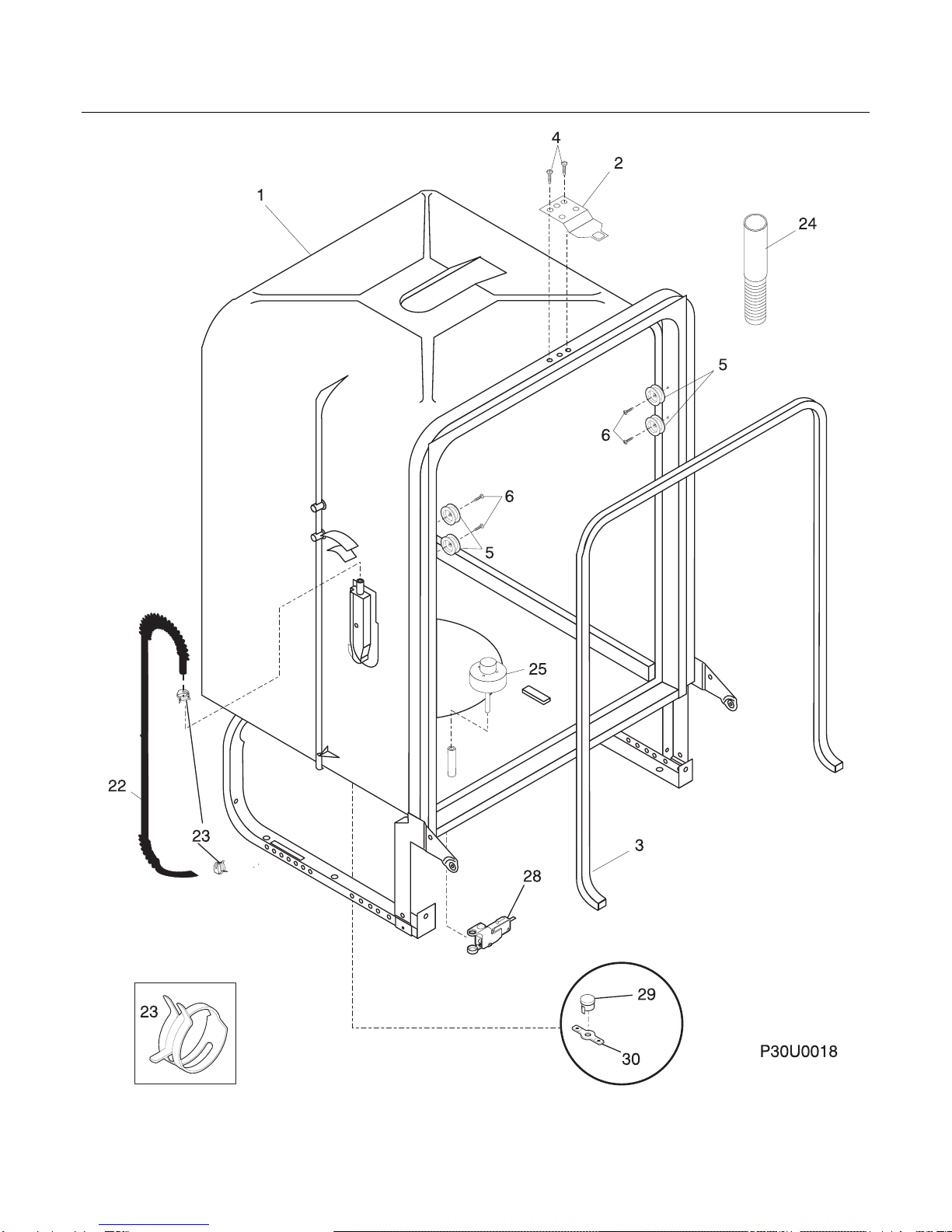

TUB

FDB955SDC1 Publication No: 5995424354

# Functional Parts 7 12/04

* Non-Illustrated Parts

TUB

POS. NO PART NO. DESCRIPTION

1 # 154209301 Tub assy, w/frame parts

2 154429101 Strike, door

3 # 154211801 Gasket, tub

4 154200602 Screw, 10-16 x 3/8, hex

5 154333902 Roller, tub

6 5303943103 Screw, w/washer, (8)

22 154446001 Tubing, water inlet

23 5303318539 Clamp, tubing, (2)

24 # 154525301 Hose, drain

25 # 154209701 Float

28 154408701 Switch Assy, float

29 # 154290204 Thermostat, re-settable

30 154241101 Retainer, thermostat

30* 154297701 Screw, retainer-thermo

* 154447102 Insulation, blanket

* 154041001 Screw, plask #1, 10-10 x 9/16

* 5300807270 Screw, (2), countertop mtg.

Publication No: 5995424354 FDB955SDC1

12/04 8

MOTOR & PUMP

FDB955SDC1 Publication No: 5995424354

# Functional Parts 9 12/04

* Non-Illustrated Parts

MOTOR & PUMP

POS. NO PART NO. DESCRIPTION

1 154247601 Heater

1* 154106201 Nut, heater, (2)

1* 154289801 Shield, heater terminal

2 154479601 Bracket, heater, (2)

10 154245501 Cover, volute

13 154246801 Gasket, sump

14 154365902 Housing, sump

16 154246502 Retainer, sump

24 154414101 Spray arm, lower, w/heat shield

24A 154313601 Spray arm, center

24A* 154252001 Nut, spray arm, center

32 154406601 Tube, delivery

32A 154406401 Gasket, delivery tube

40 154348401 Clamp, red, pump

40 154348502 Clamp, red, pump

40* 154106801 Clamp, hose, (2)

40* 154380601 Clamp, hose, (1)

54 154234401 Hose, connector

55 154362301 Bracket, motor, askoll

55* 5303316032 Screw, truss ss, 8 .625

58 154246402 Check ball

59 154246901 O-ring, rear

59A 154247001 O-ring, front

60 154474101 Drain Pump Assy

60* 154426201 Bracket, motor, drain

61 154406501 Nozzle, 3rd level, spray arm

62 154294101 Support, spray arm, lower

63 154252201 Base, soil director

64 154252301 Filter, soil director

65 154252401 Filter, polypro

66 154252701 Trap, glass

70 154523501 Motor & Pump Assy

* 154200601 Screw, #10-16 x 3/8

Publication No: 5995424354 FDB955SDC1

12/04 10

FRAME
