Frigidaire FAK124Q1 Manual de usuario

M40L0006.eps MSC06PARTS01.eps 2202159006_WD.tif

Product No. FAK124Q1V1 FAK124Q1V2

Series SLIDER CASEMENT SLIDER CASEMENT

Volts 115 115

BTU-Cooling 12000 12000

Owner's Guide 220214a054en 220214a054en

Installation Instructions 220215a055en 220215a055en

Market North America North America

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995463543

06/03/17

(EN/SERVICE/WC)

099

ROOM AIR

CONDITIONER

Model No.

FAK124Q1

Publication No: 5995463543 FAK124Q1

03/06 2

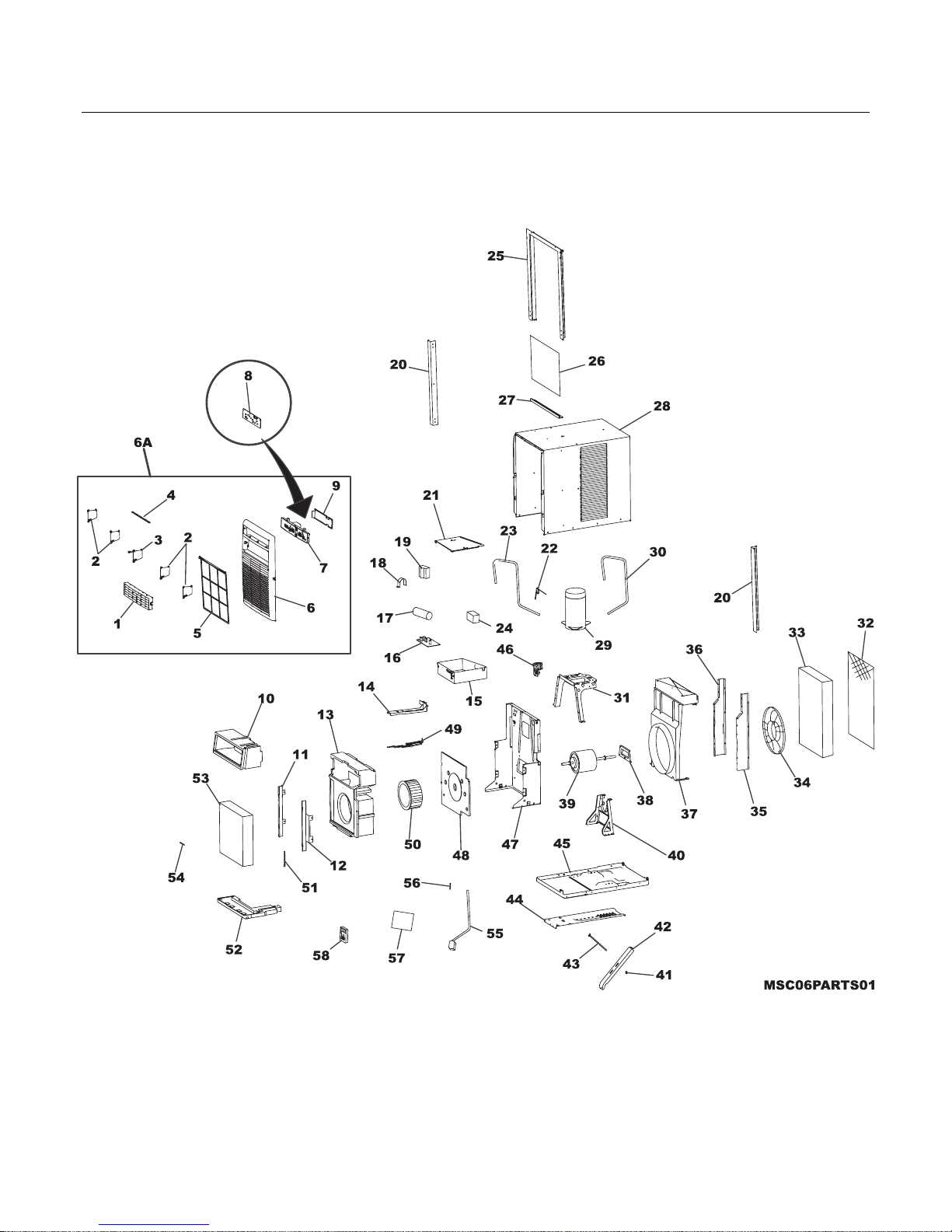

RECOMMENDED SPARE PARTS

FAK124Q1 Publication No: 5995463543

# Functional Parts 3 03/06

* Non-Illustrated Parts

RECOMMENDED SPARE PARTS

Model Index: AFAK124Q1 (FAK124Q1V1)

BFAK124Q1 (FAK124Q1V2)

POS. NO PART NO. DESCRIPTION

1 5304455176 A B Louver, horizontal

2 5304455177 A B Louver, vertical, (4)

3 5304455178 A B Louver, horizontal

4 5304455179 A B Link, vertical louver

5 5304455180 A B Filter, air, molded plastic

6 5304455181 A B Panel, front grille

6A 5304455380 A B Front Assembly, cabinet incl., 1, 2, 3, 4, 5, 6, 7, 9

7 5304455182 A B Panel, control

7* 5304455381 A B Overlay, control display

8 # 5304455183 A B PC Board, input/display

9 5304455184 A B Cover, control panel

10 5304455185 A B Scroll, fan up, top

11 5304455186 A B Bracket, condenser mount, left hand

12 5304455187 A B Bracket, condenser mount, right hand

13 5304455188 A B Scroll, blower housing

14 5304455189 A B Bracket, vent door

15 5304455190 A B Box, electronic mtg

16 # 5304455191 A B PC Board, control/power

17 # 5304447350 A B Capacitor, compressor

18 5304447282 A B Strap, capacitor mtg.

19 # 5304447369 A B Capacitor, motor

20 5304455194 A B Channel, slide, side mount

21 5304455199 A B Cover, control box

22 # 5304455241 A B Capillary Tube

23 # 5304455242 A B Discharge Tube

24 # 5304447375 A B Transformer

25 5304455202 A B Retainer, window panel, top

26 5304455203 A B Panel, window filler, plastic

27 5304455204 A B Retainer, window panel, lower

28 5304455205 A B Cabinet, wrapper/sleeve

29 # 5304455243 A B Compressor

30 # 5304455238 A B Suction Tube

31 5304455208 A B Bracket, mounting, compressor

32 5304455209 A B Screen, grille, rear

33 # 5304455244 A B Condenser

34 # 5304455211 A B Fan Blade, axial flow

35 5304455387 A B Bracket, condenser mtg., left

36 5304455388 A B Bracket, condenser mtg., right

37 5304455214 A B Bulkhead, air system

38 5304455215 A B Cover, motor

39 # 5304455239 A - Motor, fan

39 # 5304455240 - B Motor, fan

40 5304455217 A B Base, unit chassis

41 5304455218 A B Nut, flange locking

42 5304455219 A B Bracket, mounting

43 5304455220 A B Screw, cross

44 5304455221 A B Bracket, mounting

45 5304455222 A B Bracket, motor mounting

46 5304455223 A B Door, vent

Publication No: 5995463543 FAK124Q1

03/06 4

RECOMMENDED SPARE PARTS

FAK124Q1 Publication No: 5995463543

# Functional Parts 5 03/06

* Non-Illustrated Parts

RECOMMENDED SPARE PARTS

Model Index: AFAK124Q1 (FAK124Q1V1)

BFAK124Q1 (FAK124Q1V2)

POS. NO PART NO. DESCRIPTION

47 5304455224 A B Bulkhead, partition, front

48 5304455225 A B Cover, scroll, rear

49 5304455226 A B Link, lever/vent door

50 # 5304455227 A B Wheel-blower

51 # 5304455228 A B Thermistor, temp sensor, evaporator

52 5304455229 A B Tray, drain pan

53 # 5304455230 A B Evaporator

54 # 5304455231 A B Thermistor, temp sensor, indoor

55 # 5304455376 A B Power Cord, LCDI, test/reset

56 5304455232 A B Terminal Block, main

57 5304455233 A B Cover, electrical, terminal

58 # 5304455377 A B Remote Control, transmitter

* 5304457796 A B Hardware Kit, installation

Publication No: 5995463543 FAK124Q1

03/06 6

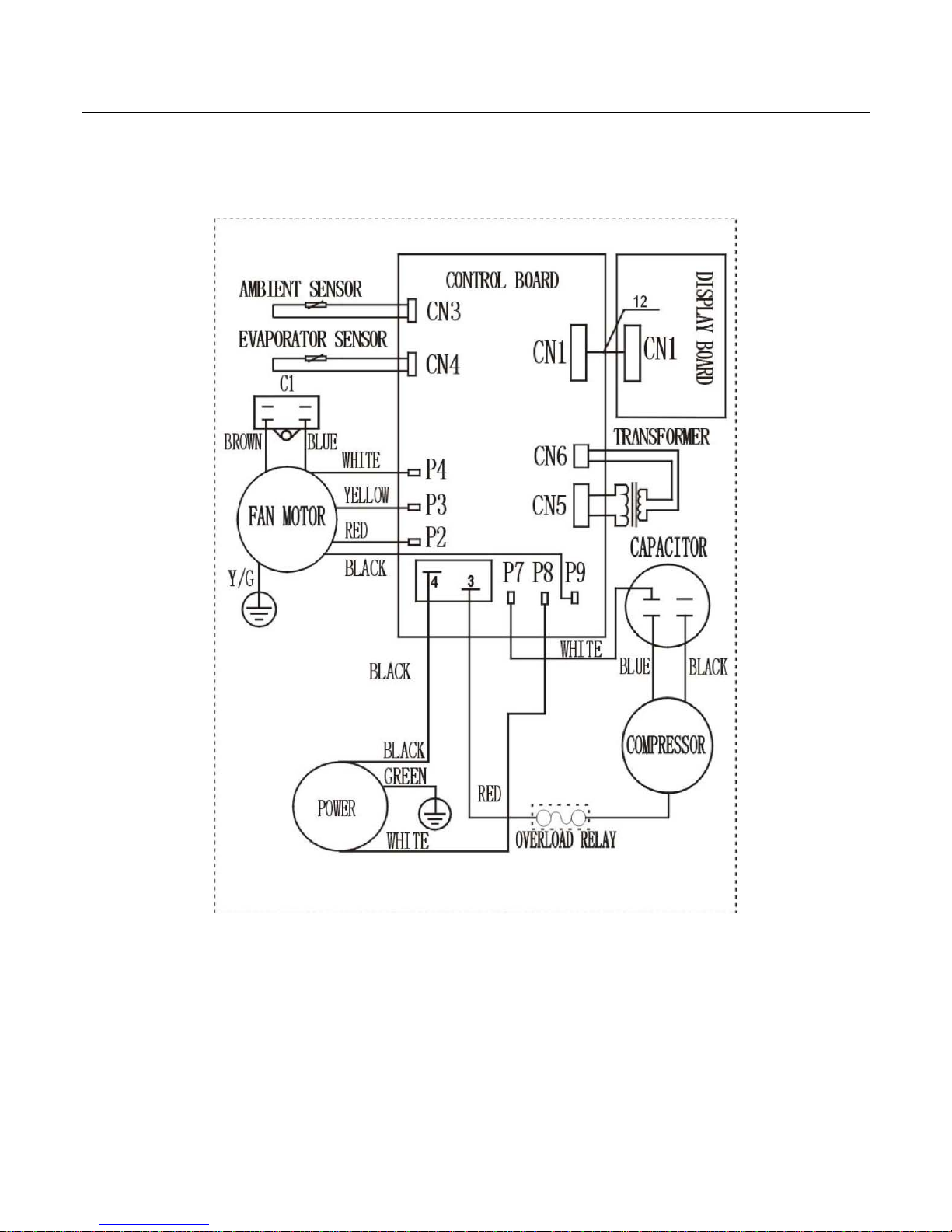

WIRING DIAGRAM
