Frigidaire FAC053J7A1 Manual de usuario

PRODUCT NO. BASE MODEL NO. VOLTS BTU-COOLING

FAC053J7A1 FAC053J7A 115 5200

P.O. Box 212378

Augusta, GA 30917

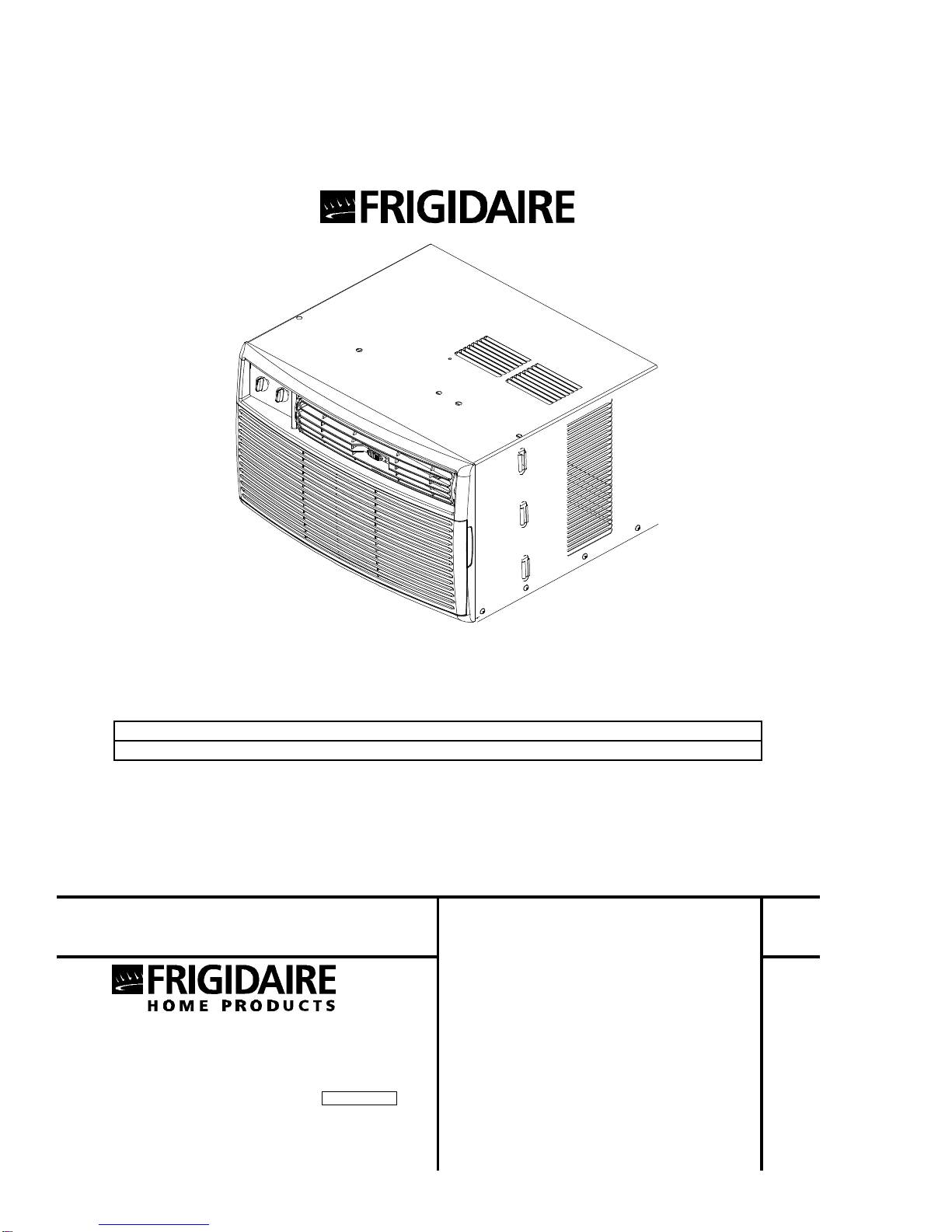

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

Model No.

FAC053J7A1

WIRING DIAGRAM # - 309103901

OWNERS GUIDE # - 309000823

Publication No.

000413

-EN/SERVICE /REP

345

5995339503

FAC053J7A1

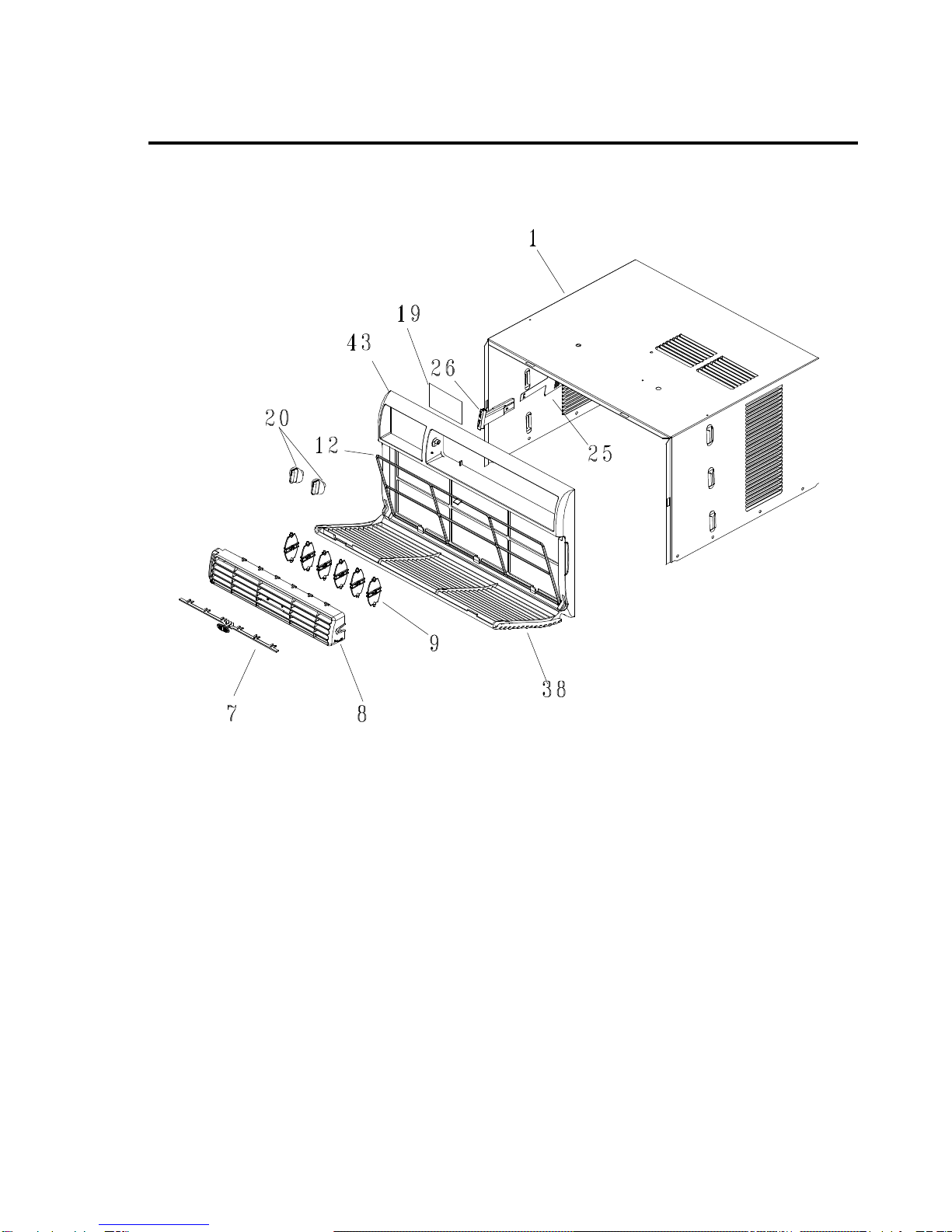

CABINET FRONT AND WRAPPER

4/00 1

FAC052J7A1

15304413783 Cabinet

7309638001 Link / handle

8309639301 Louver-horizontal

9309342001 Louver, Vertical, (6)

12 3096343501 Filter-Mesh

17 309640102 Front, cabinet, complete

19 309342904 Plate-Dial

20 309306810 Knob-control

25 309328601 Door-Vent Actuator

26 309639401 Handle-Vent

26A* 309330201 Vent-Detent

38 309639201 Panel-front

43 309639101 Frame- front

*5303001775 Spacer-Dial Plate

*309640202 Louver assy-includes 7, 8 & 9

# = Functional Parts

* = Non-illustrated Parts

CABINET FRONT AND WRAPPER

POS. NO. PART NO. DESCRIPTION

4/00 2

FAC053J7A1

CONTROL PARTS

4/00 3

FAC053J7A1

7309602502 Box-Control

8# 5303323284 Switch-selector

9# 5303302838 Control-temperature

10 309602403 Bulkhead

12 309101202 Clip-control bulb (2)

13# 5303316594 Capacitor, 370V, 35 + 7.5 mfd

14 5303303691 Screw, 8-18AB x .47

15 5303303086 Strap-capacitor

17# 309343101 Cord-power 115v

18 5303007754 Screw, .138-32 x 0.188

19 5303302855 Cover, capacitor

20 5303002600 Sleeve, control

CONTROL PARTS

# = Functional Parts

* = Non-illustrated Parts

POS. NO. PART NO. DESCRIPTION

4/00 4

FAC053J7A1

AIR HANDLING PARTS

4/00 5

FAC052J7A1

1# 309624502 Fan Blade, with clamp

23202975 Screw,10-16 x 0.72 square drive

3309624201 Housing-fan

45303270043 Seal, condenser

608016225 Grommet-Motor

8# 309615302 Motor-Fan

10 309602403 Bulkhead

11 309617101 Blower Wheel

12 5303012110 Clamp-blower

15 5304407653 Housing-blower

16 309100201 Clip

17 5308011040 Clamp-part of fan blade ass'y

18 NOT SEPARATE Deflector-housing (part of housing)

20 5304407654 Plate-Scroll

# = Functional Parts

* = Non-illustrated Parts

AIR HANDLING PARTS

POS. NO. PART NO. DESCRIPTION

4/00 6

FAC053J7A1

COMPRESSOR PARTS

4/00 7

FAC053J7A1

1# 5304413777 Compressor

25303283877 Grommet-compressor,3

35308006948 Nut, compressor, 3

65303002035 Gasket-cover

75303211011 Cover,terminal

8# 5304413778 Overload protector

95303301734 Nut, cover

10 5303317601 Start Assist Kit, compressor

11# 309637501 Evap-Assy

12# 309637601 Condenser

13 5303302849 Tray-Evap

14 5304413780 Base/Compressor-Stud Assy

16# 5304417585 Capillary Tube

17 5304413857 Tube-process

19 5303002664 Washer,compressor

20 5303002036 Spring-overload

21 5303295510 Washer,cover

# = Functional Parts

* = Non-illustrated Parts

COMPRESSOR PARTS

POS. NO. PART NO. DESCRIPTION

4/00 8

FAC053J7A1

15304407729 Seal, frame, top

25303211056 Bracket

45304413847 Frame,LH

50806226 Seal-top rail

6Not Used Retainers are part of cabinet

14 5304413848 Frame,RH

15 309626504 Accordian

16 5304413784 Rail,top

17 3002803 Screw-wood

18 5303303691 Screw, 8-18AB x .38

20 5303295750 Screw, 8-18 x .75

22 5304403252 Retainer, bottom

23 3001806 Screw

24 530802974 Screw

# = Functional Parts

* = Non-illustrated Parts

WINDOW MOUNTING PARTS

POS. NO. PART NO. DESCRIPTION

4/00 9
