Frigidaire FAC084J7A1 Manual de usuario

PRODUCT NO.

BASE MODEL NO.

VOLTS

BTU-COOLING

FAC084J7A1 FAC084J7A 115 8000

P.O. Box 212378

Augusta, GA 30917

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

Model No.

FAC084J7A1

WIRING DIAGRAM # - 309341601

OWNERS GUIDE # - 309000825

Publication No.

000307

-EN/SERVICE /REP

345

5995339594

FAC084J7A1

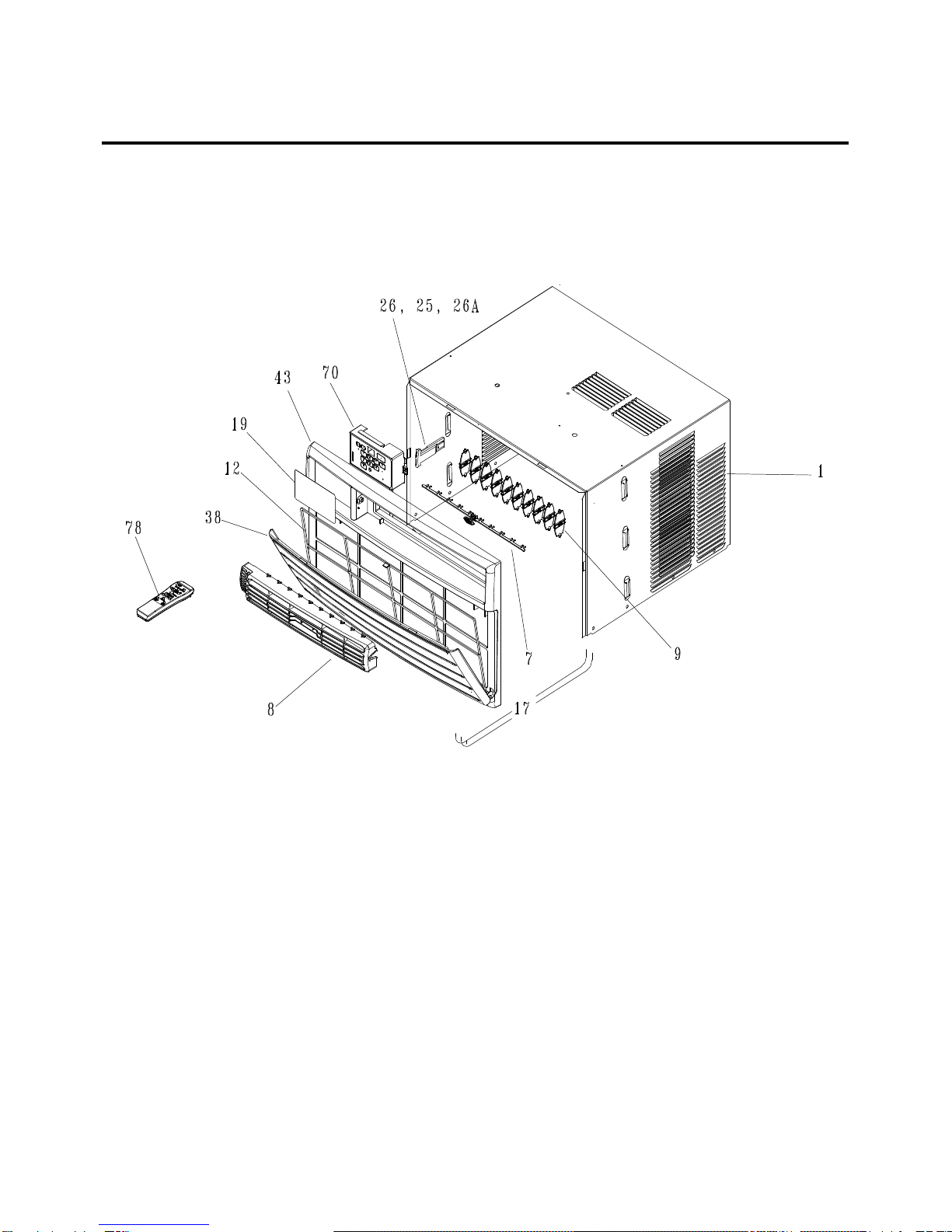

CABINET FRONT AND WRAPPER

3/00 1

FAC084J7A1

15304413783 Cabinet

7309638001 Link / handle

8309639301 Louver-horizontal

9309342001 Louver, Vertical, (6)

12 3096343501 Filter-Mesh

17 309640102 Front, cabinet, complete

19 309340803 Overlay-Electronic control

25 309328601 Door-Vent Actuator HDTC

26 309639401 Handle-Vent

26A* 309330201 Vent-Detent

38 309639201 Panel-front

43 309639101 Frame- front

70 309342201 Enclosure

78 309342604 Remote Control

*309640202 Louver assy-includes 7, 8 & 9

# = Functional Parts

* = Non-illustrated Parts

CABINET FRONT AND WRAPPER

POS. NO. PART NO. DESCRIPTION

3/00 2

FAC084J7A1

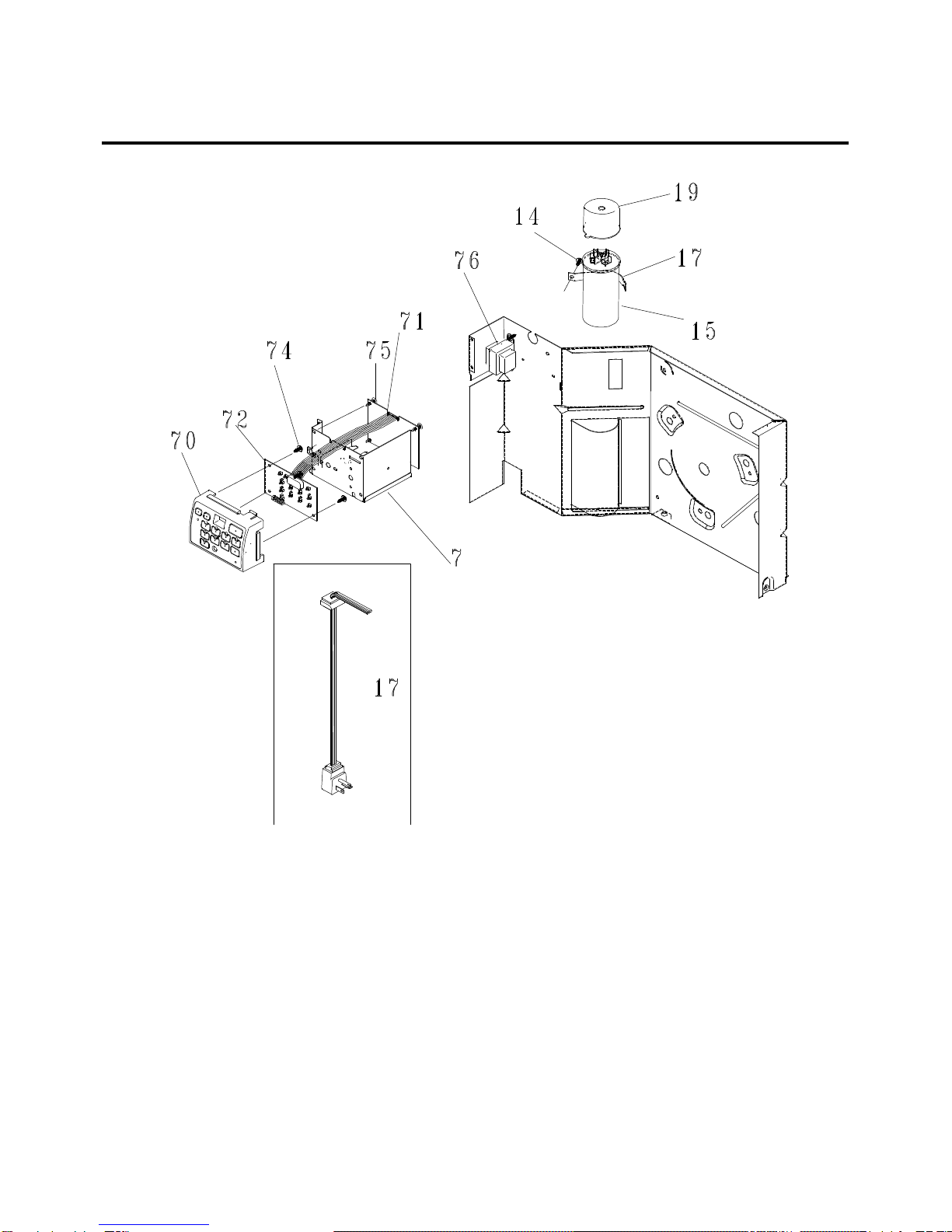

CONTROL PARTS

3/00 3

FAC084J7A1

7309340402 Box-Control

10 309602403 Bulkhead

12 * 5304413782 Clip-thermister holder

13# 5303303576 Capacitor, 370V, 35+10 mfd

14 5303303691 Screw, truss head, 8-18AB x 0.38

15 5303303086 Strap-capacitor

17# 309343101 Cord-power 115v

19 5303302855 Cover, capacitor

70 # 309342201 Enclosure

71 # 309340503 Power board

72 # 309340505 Input board

74 5303301590 Screw, (2)

75 5304413781 Hardware, (4)

76 # 309111601 Transformer

POS. NO. PART NO. DESCRIPTION

CONTROL PARTS

# = Functional Parts

* = Non-illustrated Parts

3/00 4

FAC084J7A1

AIR HANDLING PARTS

3/00 5

FAC084J7A1

1# 309624502 Fan Blade, with clamp

23202975 Screw,10-16 x 0.72

2A 08007481 Nut, motor mtg

3309624201 Housing-fan

45303270043 Seal, condenser

608016225 Grommet-motor mounting

8# 309627301 Motor-Fan RAIDER 3SP

10 309602403 Bulkhead

11 309603301 Blower Wheel

12 5303012110 Clamp-blower

15 5304407653 Housing-blower

16 309100201 Clip

17 5308011040 Clamp (part of fan blade assy)

18 Not Separate Deflector-housing (part of housing)

20 5304407654 Plate-Scroll

# = Functional Parts

* = Non-illustrated Parts

AIR HANDLING PARTS

POS. NO. PART NO. DESCRIPTION

3/00 6

FAC084J7A1

COMPRESSOR PARTS

3/00 7

FAC084J7A1

1# 5304406829 Compressor

25303283877 Grommet-compressor,3

35308006948 Nut, compressor, 3

63200282 Gasket-cover

73200281 Cover,terminal

8# 3202920 Overload protector

908009077 Nut, cover

10 5303317601 Start Assist Kit, compressor

11# 309619305 Evap-Assy

12# 5303303195 Condenser

13 5303302849 Tray-Evap

14 5304413932 Base/Compressor-Stud Assy

16# 3019025 Capillary Tube

17 5304413933 Tube-process

19 5303002664 Washer,compressor

# = Functional Parts

* = Non-illustrated Parts

COMPRESSOR PARTS

POS. NO. PART NO. DESCRIPTION

3/00 8

FAC084J7A1

15304407729 Seal, frame, top

25303211056 Bracket

45304413847 Frame,LH

50806226 Seal-top rail

6Not Used Retainers are part of cabinet

14 5304413848 Frame,RH

15 309626504 Accordian

16 5304413784 Rail,top

17 3002803 Screw-wood

18 5303303691 Screw, 8-18AB x .38

20 5303295750 Screw, 8-18 x .75

22 5304403252 Retainer, bottom

23 3001806 Screw

24 530802974 Screw

WINDOW MOUNTING PARTS

POS. NO. PART NO. DESCRIPTION

# = Functional Parts

* = Non-illustrated Parts

3/00 9
