Installation Instructions

READ BEFORE INSTALLING UNIT

DESIGNER SERIES Compact II Window Mounting

"fOurair conditioner is designed to install in standard

double hung windows with opening widths of 23 to 36

inches (584 mm to 914 ram) (FIG. 1)

Lower sash must open sufficiently to allow a clear vertical

opening of 14-1/2 incbes (368 ram). Side louvers and the

rear of the AC nlnst have clear air space to allow

enough airflow through the condenser; for heat removal.

The rear of the unit must be outdoors, not inside a

building or garage.

When handling unit, be careful to avoid cuts

fronl sharp metal edges and ahlminum fins on

front and rear coils.

Fig. I

NOTE: SAVECARTON _xl these INSTALLATION

INSTRUCTIONS for future reference. The carton is tile

best way to store unit during winter, or when not in use.

Some asse nbl} s eql ed. Please ead these nst let ols

carefully.

Mounting Hardware

Qty.

3/4"screws

lock frame

sasb lock

TOOLS NEEDED:

•Phillips Screw Driver

• Drill (If pilot holes are needed/

.......................... j/

P/N 66129901129

How to Install

NOTE: Top Rail and Sliding Panels at each side are

offset to provide the proper pitch to the rear of (5/16").

This is necessary for proper condensed water utilization

and drainage. If you are not using the Side Panels for

any reason, this pitch to tile rear must be maintained!

Place unit on flooL\ abench or atable. There is a

Left and Right Window Filler Panel - be sure to

use the proper panel for each side.When installed

the flange for securing the panel in place to the window sill

will be facing into tile room.

A. Hold the

Accordion

Panel m one

hand and

gently pull

back the

center to free

tile open end.

See Figure 2.

C. Once tile panel

has been

installed on tile

side of tile

cabinet, make

sure it sits

securely inside

the frame

channel by

making slight

adjustments. Slide the top and bottom ends of the frame

into the top and bottom rails of tile cabinet. Figure 5.

D. Slide the panel all tile way in and repeat on the other

side.

NOTE: If storm window blocks AC, see FIG. 14.

Keep a filial grip on the air conditioner, carefully

place the unit into the windo_ opening so the

bottom of the air conditiouer frame is against the

window sill (FIG. 6 & FIG. 6A). Carefnlly close the

window behind the top rail of the unit.

B. Slide the fl'ee end ('T'section/of the panel into tile

cabinet as shown in Figures 3A, 3B & 4. Slide the

panel down. Be sure to leave enough space to slip the

top and bottom of the frame into the rails on the cabinet.

WINDOWSILL

Extend the side panels out a_ainst the window

frame (FIG. 7).

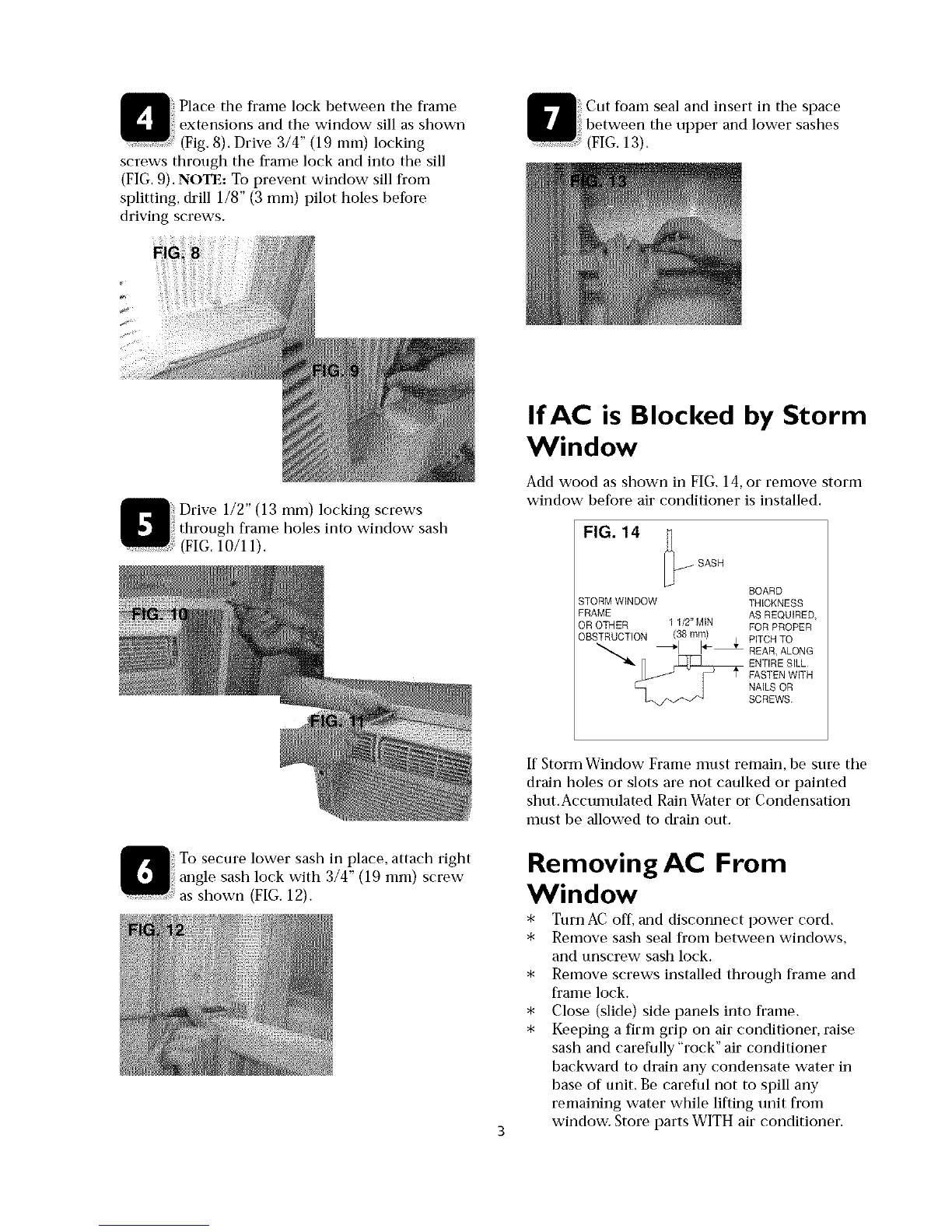

Place the frame lock between the frame

extensions and the window sill as shown

(Fig. 8). Drive 3/4" (19 nun) locking

screws through the frame lock and into the sill

(FIG. 9). NOTE: To prevent window sill from

splitting, drill 1/8" (3 mm) pilot holes before

driving screws.

Cut foam seal and insert in the space

between the ut)per and lower sashes

(FIG, 13),

Drive 1/2" (13 mm) locking screws

through frame holes into window sash

(FIG, lO/1 I),

IfAC is Blocked by Storm

Window

Add wood as shown in FIG. 14, or remove storm

window before air conditioner is installed.

FIG. 14 _j SASH

BOARD

STORM WINDOW THICKNESS

FRAME AS REQUIRED,

OR OTHER 1 1/2" MIN FOR PROPER

OBSTRUCTON (38ram) .

_1 I" _ PITCHTO

REAR. ALONG

@/_ ENTIRE SiLL

FASTEN WITH

NAILS OR

SCREWS.

If Storm Window Frame must remain, be sure the

drain holes or slots are not caulked or painted

shut.Accumulated Rain Water or Condensation

must be allowed to drain out.

To secure lower sash in place, attach right

angle sash lock with 3/4" (19 mm) screw

as shown (FIG. 12).

Removing AC From

Window

* Turn AC off, and disconnect power cord.

* Remove sash seal from between windows,

and unscrew sash lock.

* Remove screws installed through frame and

frame lock.

* Close (slide) side panels into frame.

* Keeping a firm grip on air conditioner, raise

sash and carefully "rock" air conditioner

backward to drain any condensate water in

base of unit. Be carefld not to spill any

remaining water while lifting unit from

window. Store parts WITH air conditioner.
