NOTE: These instructions describe installation

in a typical wood framed window with a wood

SLIDE-BY sash, or installation in a metal

CASEMENT window. Modification may be

necessary when installing in windows made

differently than those shown in these instructions.

Ahigh window accessory kit EA 103W is available

for window heights up to 62"(1575mm).

TABLE OF CONTENTS

SUBJECT PAGE

Meeting Electrical Requirements 1

Electrical Connection 2

Preparing for Installation 2

Sliding Window Installation 4

Casement Window Installation 5

Installation in Wood Window 6

Meeting Electrical Requirements

OBSERVE ALL LOCAL GOVERNING CODES

AND ORDINANCES.

DO NOT, UNDERANY CIRCUMSTANCES, REMOVE

THE POWERSUPPLYCORDGROUNDINGPRONG.

NOTE: If codes permit, and a separate grounding

wire is used; it is recommended that a qualified

electrician determine that the grounding path is

adequate and not interrupted by plastic, non-metallic

gaskets, orother insulating materials.

RECEPTACLE WIRING

Receptacle wiring should bea minimumof 14gauge.

Use copper wire only. It is your responsibility to

provide proper and adequate receptacle wiring,

installed bya qualified electrician.

ELECTRICAL REQUIREMENTS

A 115 volt (103minimum, 126maximum), 60Hertz,

AC only, 15 ampere fused electrical supply is

required. A time delay fuse or time delay circuit

breaker is also required. A separate circuit, serving

only this appliance, MUSTbe provided.

P/N

ili

Electrical Connection

Electrical ground is required on this appliance.

Recommended grounding method:

For your personal safety, thisappliancemustbe

grounded. This air conditioner includes a power

supply cord with a 3-prong grounding plug. To

minimize possible electrical shock hazard:

-cord must be plugged into a mating 3-prong

grounding-type wall receptacle,

-must be grounded in accordance with

National Electrical Code (ANSI/NFPA70-

latest version) and

-all local codes and ordinances.

If a mating 3-prong grounding-type wall

receptacle is not available, it is the responsibility

of the consumer to have a properly grounded

3-prong wall receptacle installed by a qualified

electrician.

Avoid fire hazard or

electric shock. Do notuse an extension

cord or an adaptor plug. Do not remove

any prong from the power cord.

Grounding type wall

receptacle

__ _DDo not, under an_yy

circumstances, cut,

/remove, or bypass /

_he gr°unding Pr°_

Power supply cord

with 3-prong grounding

plug and current

detection device

NOTE: Adamaged powersupply cord CANNOT be

repaired-it MUST be replaced with a new power

supply cord obtained from the product

manufacturer.

NOTE: The rating plate on the unit contains

electrical and other technical data. The rating

plate is located on the right side of the unit.

Preparing for Installation

Installation Tips

For wood-frame casement windows: It may be

necessary to construct a frame, using at least

1-inch thick wood, with a 15-1!2-inch wide

opening.

For brick or cement building construction: It

may be necessary to put awood stool strip under

AC, for mounting purposes.

Tools

Required

Flat-head screwdriver

Phillips-head screwdriver

Carpenter's level

Tape measure

Fine tooth saw

Electric orhand drill

Knife and scissors

Pencil

--2--

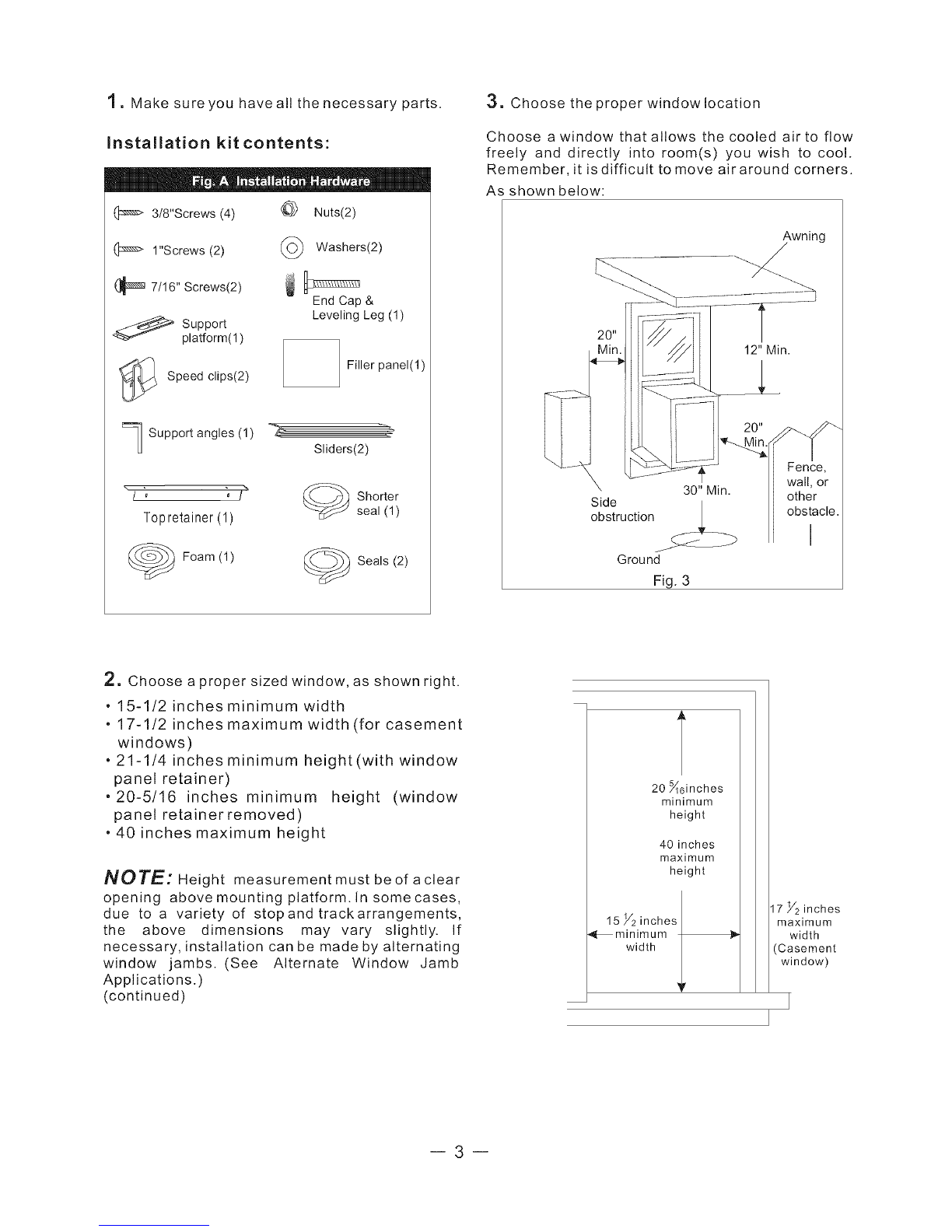

1. Make sure you have all the necessary parts.

Installation kit contents:

(]:=ssss>3/8"Screws (4) @ Nuts(2)

(]:ssss=>1"Screws (2)

(_ 7/16" Screws(2)

_ Support

platform(1 )

(_ Washers(2)

End Cap &

Leveling Leg (1)

Speed clips(2) Filler panel(1 )

_[] Support angles (1) _" Sliders(2)

_0 ;/-

Topretainer (1)

Foam (1)

Shorter

seal (1)

Seals (2)

3. Choose the proper window location

Choose a window that allows the cooled air to flow

freely and directly into room(s) you wish to cool.

Remember, it is difficult to move airaround corners.

As shown below:

Awning

20"

30" Min.

Side I

obstruction

Ground

Fig. 3

20"

Fence,

wall, or

other

obstacle.

2. Choose a proper sized window, as shown right.

• 15-1/2 inches minimum width

•17-1/2 inches maximum width (for casement

windows)

• 21-1/4 inches minimum height (with window

panel retainer)

• 20-5/16 inches minimum height (window

panel retainer removed)

•40 inches maximum height

NOTE: Height measurement must be of a clear

opening above mounting platform. In some cases,

due to a variety of stopandtrackarrangements,

the above dimensions may vary slightly. If

necessary, installation can be made by alternating

window jambs. (See Alternate Window Jamb

Applications.)

(continued)

20 _6inches

minimum

height

40 inches

maximum

height

15 _2 inches

_t, minimum

width

17 _2 inches

maximum

width

(Casement

window)

--3--

Sliding Window Installation

1.Choose the installation site. It is imperative that window

frame assembly and side of structure are adequate to

support weight ofunit. Reinforce ifnecessary.

2.Slide openone window sashto install supportplatform.

3.Loosely attach support angle to bottomof supportplatform

using two 7/16 g machine screws, flat washers, and

nuts. (See fig.A)

4.Place support platform against lower window track and

firmly against verticaledge of windowframe.

5.Attach support platform to window sill using three1 long

selfqapping screws.To overcome interference of support

platformwith windowtrack or stormwindow, securely attach

a 2 wide shim stripto the windowsill. Strip shouldbe as long

as width ofsupport platform and flush with backedge of sill.

Thickness of strip should be controlled by amount of

interference.(See fig. B)

6.Pull support angle against outsideof structure. Tighten two

7/16 long machine screwson top ofsupport platform.

7.Adjust leveling boltto position supportangle in alevel plane.

This willallow for proper unit angle. Tighten leveling bolt

Iocknut.

Important: Unit must be level or tilted back slightly to

facilitate propercondensatedrainage. (See fig. C)

Caution: Do notdrill aholein bottom pan.Unit is designed

to operate withapproximately 1/2 of water inbottom pan.

8.Cut two pieces of adhesive back foam seal toheight of

window opening. Remove backing and apply to vertical

inside edges of window frame andsliding sash that will

rest against unit.(Seefig. D)

9.Slide unit ontosupport platform. Besure unit sidechannel

butts against vertical edge of windowframe.

Note: If unit side channel doesnot fit securely, remove

unit and readjustleveling bolt,

10.Drill two 1/8 holes through window channel frame in

alignment with existing holes in bottom bar. Install two

3/8" long self-tapping screws through these holes. If

window channel frame is not tallenough to useexisting

holes, drill newholes off to the sideof the existinghotes

to attach the unit bottom barto the supportplatform. Unit

should be firmly anchored to window channel fame or

support platform. (Seefig. E)

11.Slide inside window sashclosed. Be surevertical edge

of inside windowsash is pressed firmly against sideof unit

cabinet. Cut remaining adhesive back foamseal to width

of window opening. Remove backing and apply to top

inside edge ofwindow frame. (Seefig. D) 4

Machine screws_ _' I

Support _" ..--i .........

platform .......i[[i[I[[.........

O o

@ @

Three 1

_Support angle

Leveling bolt

'-G. "_. _._

long self-tapping screws

Support platform

assembly

track

Outside edge is 3/16"

lower than inside. _

Solid Piece Wood

(If re

Foamseal Topretainer

_Filler panel

Sliders

12,Installspeedclipsontopandbottominsideedgeofwindow

toprovideIocking,(Seefig,F)

13,Usingsuppliedplasticfoamseal,cuttoproperlength,

insertbetweeninsidewindowsashandoutsidewindow,

(Seefig,F)

14,Placetopretainerontopedgeof fillerpanel,thenplace

thebottomedgeoffillerpanelintogrooveofbottomretainer

(mountedonunit),Fillerpanelmaybetrimmedwithknifeor

scissorstofitwindowheight,(Seefig.D)

15.Slideslidersupwardmakingsurefillerpanelalignsin

sliders,

16,Withslidersupagainsttopretainer,drill1/8"holethrough

windowframeinalignmentwithexistingholeinslider.Install

3/8"longself-threadingscrewin hole,Repeatforother

slider,

17.Checkallsealsandplugforair leaksaroundunit,Use

sealanttofillanyminoropenings,

CasementWindowInstallation

Thisairconditionerisdesignedtofit intomostcasementtypewindows.

As shippedfrom factory,unit witlfit into a minimumwindowopening

151/2" wideand 22" high. The preferredmethodof installationis

througha closedor stationarywindow.Installationinanopenwindow

frameis alsopossiblewhereopenwindowcanbesecuredtooutsideof

buildingorremovedcompletely.

1.Closedorstationarywindow:Installunit instationarysashtoavoid

crankhandlesorwindowlatches,tfunitistobeinstalledinornexttoa

movablesash,it may benecessaryto removecatch,handleorboth.

Removecrankhandleandsecurewindowinclosedposition.Remove

glasspanesandseparatingstripsto aheightsufficienttomountunit.

2.Openwindowframe:Removecrankmechanismandcatchhandles.

Foldwindowsashbackagainstexteriorwallofbuildingandsecure,or

removecompletelywherepossible.

3.Afil[erpanelwit[berequiredatsideofunit wheninstalledinwindows

havingwidthgreaterthan151/2".Fillerpanelshouldbe madefrom

3/4" thickwoodsecurelyanchoredto one sideof openingsothat

151/2" wideopeningis provided.Filledpanelshouldrunfulllength

ofwindow.Painttosuit.

4.installunitinsamemannerasdescribedfor slidingwindows.

Installation inwood sliding orwood

casementwindows

1.Forwoodframecasementwindows,it is necessaryto constructa

frame,usingatleast1"thickwoodwitha 151/2"wideopening.

2.Paintframeandfastenitsecurely,sealingitintowindowopening.

3.tnstaflunit intoframe following proceduresfor metalslidingand

casementwindows.

These installationsare alsotypical,and sincestyles and sizesof

casementwindowsvarywidely,it is advisableto haveunitinstalled

by someoneskilledin thistypeofinstallation.Thedealersellingthese

unitscanrecommendorsupplyqualifiedpeopletoinstallyournewunit.

Support platform

Drilled holes

Window channel frame

Speed clips Drilled holes 3/8 long crews

Foam seal Channel

Caution: Do not block aircirculationto outside louvers

of cabinet.

The above installations are intended to be permanent, and

when installed in apartment or rental properties,

permission to make the above modifications should be

obtained from owners or landlords of buildings prior to

installation of unit.

-- 5 --

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Acondicionador de aire de Frigidaire

Frigidaire

Frigidaire FRS09PYW1 Manual de usuario

Frigidaire

Frigidaire 220211A243 Manual de usuario

Frigidaire

Frigidaire FAS256N2A Manual de usuario

Frigidaire

Frigidaire CRA084KT710 Manual de usuario

Frigidaire

Frigidaire FRA054XT7 Manual de usuario

Frigidaire

Frigidaire FFRA0511R1 Manual del propietario

Frigidaire

Frigidaire FAX052P7A - Window Unit Air Conditioner Last One... Manual de usuario

Frigidaire

Frigidaire GAC102P1A - GIBSON 10000BTU 115V 9.2A 9.8E3 SPD 8 WAY AIR... Guía de inicio rápido

Frigidaire

Frigidaire GAM155Q1A - GIBSON 15100BTU 115V 12.5A 10.3 SPD 4 WAY AIR... Manual de usuario

Frigidaire

Frigidaire Gallery FGRC1244T100 Manual del propietario

Frigidaire

Frigidaire FAC054K7A1 Manual de usuario

Frigidaire

Frigidaire FEC300WH00 Manual de usuario

Frigidaire

Frigidaire FAH086S1T - Through The Wall Room Air... Manual de usuario

Frigidaire

Frigidaire CRA103BT12 Manual de usuario

Frigidaire

Frigidaire GAK085Q7V - GIBSON 8000BTU 115V 6.7A 10.0E3 SPD 4 WAY AIR... Manual de usuario

Frigidaire

Frigidaire FAK085R7V - Slider/Casemen Room Air... Manual de usuario

Frigidaire

Frigidaire GAS255R2AB Manual de usuario

Frigidaire

Frigidaire LRA08PZU1 Manual de usuario

Frigidaire

Frigidaire FHWW153WBE Manual de usuario

Frigidaire

Frigidaire FAC065L7A2 Manual de usuario

Frigidaire

Frigidaire FRA144HT2 Manual de usuario

Frigidaire

Frigidaire FRS093LW11 Manual de usuario

Frigidaire

Frigidaire FAX050S7AA Guía de inicio rápido

Frigidaire

Frigidaire FRA103BT1 Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

Panasonic

Panasonic CS-E12HKEW Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Samsung

Samsung AS09HM3N Manual de usuario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario

Webasto

Webasto Frigo Top 25 DS Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MSC-GE20VB Manual de usuario
