Frigidaire FAX050S7AF Manual de usuario

|nsta||ation |nstruc ions

READ BEFORE iNSTALLiNG UNiT

OPP5K Window Mounting

Your air conditioner is designed to install in standard

double hung windows with opening widths of 23 to 36

inches (584 mm to 914 mm) (FIG. 1)

Lower sash must open sufficiently to allow a clear vertical

opening of 13 inches (330mm). Side louvers and the

rear of the AC must have clear air space to allow

enough airflow through the condenser, for heat removal.

The rear of the unit must be outdoors, not inside a

building or garage.

Fig. 1

__ EXTERIOR

min

Imm

NOTE: SAVECARTON and these INSTALLATION

INSTRUCTIONS for future reference. The carton is the

best way to store unit during winter, or when not in use.

Some assembly is required. Please read these instructions

carefully.

fMounting Hardware

3/4" screws

lock frame

sash lock

Qty.

TOOLS NEEDED:

•PhillipsScrewDriver

.Drill(Ifpilotholesareneeded)

NOTE: DO NOT USE ANY SCREWS OTHER THAN

THOSE SPECIFIED HERE

When handling unit, be careful to avoid cuts

from sharp metal edges and aluminum fins on

front and rear coils.

Before installing unit, the top rail must be

assembled on the unit.

Top Rail Hardware Qty.

_ 3/8" Screw 4

Top Rail 1

Top

TOOL NEEDED:

• Phillips Screwdriver

D°

Remove the air

conditioner from the

carton and place on a

fiat surface.

Remove top rail from

the bottom of the

packaging material as

shown in Fig. A

Align the hole in the

top rail with those in

the top of the unit as

shown in Fig. B

Secure the top rail to

the unit with the 3/8"

Screws as shown in

Fig. C

ging Fig.A

NOTE: FOR SAFETY REASONS, ALL

FOUR (4) SCREWS MUST BE SECURELY

FASTENED.

P/N 2020211A0415

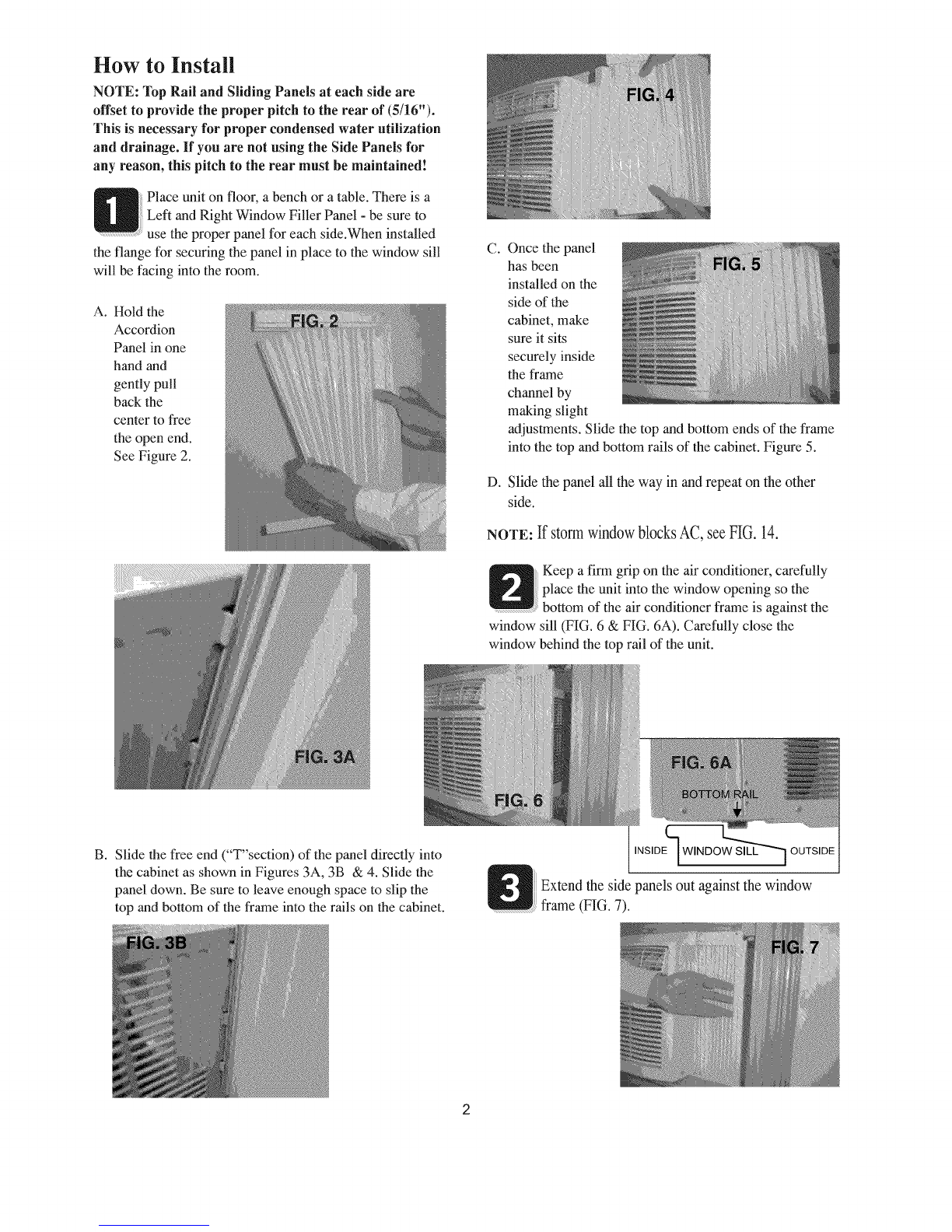

How to Install

NOTE: Top Rail and Sliding Panels at each side are

offset to provide the proper pitch to the rear of (5/16").

This is necessary for proper condensed water utilization

and drainage. If you are not using the Side Panels for

any reason, this pitch to the rear must be maintained!

Place unit on floor, a bench or a table. There is a

Left and Right Window Filler Panel - be sure to

use the proper panel for each side.When installed

the flange for securing the panel in place to the window sill

will be facing into the room.

A. Hold the

Accordion

Panel in one

hand and

gently pull

back the

center to free

the open end.

See Figure 2.

C. Once the panel

has been

installed on the

side of the

cabinet, make

sure it sits

securely inside

the frame

channel by

making slight

adjustments. Slide the top and bottom ends of the frame

into the top and bottom rails of the cabinet. Figure 5.

D. Slide the panel all the way in and repeat on the other

side.

NOTE: If stormwindowblocksAC,seeFIG. 14.

Keep a firm grip on the air conditioner, carefully

place the unit into the window opening so the

bottom of the air conditioner frame is against the

window sill (FIG. 6 & FIG. 6A). Carefully close the

window behind the top rail of the unit.

B. Slide tl_eflee end ("T"section) of the panel directly into

the cabinet as shown in Figures 3A, 3B & 4. Slide the

panel down. Be sure to leave enough space to slip the

top and bottom of the frame into the rails on the cabinet.

WINDOW SILL OUTSIDE

Extend the side panels out against the window

frame (FIG. 7).

Place the frame lock between the frame

extensions and the window sill as shown

(Fig. 8). Drive 3/4" (19 ram) locking

screws through the frame lock and into the sill

(FIG. 9). NOTE: To prevent window sill from

splitting, drill 1/8" (3 ram) pilot holes before

driving screws.

Drive 1/2" (13 ram) locking screws

through frame holes into window sash

(FIG.10/11).

Cut foam seal and insert in the space

between the upper and lower sashes

(FIG.13).

IfAC is Blocked by Storm

Window

Add wood as shown in FIG. 14, or remove storm

window before air conditioner is installed.

FiG. 14

STORM WINDOW

FRAME

OR OTHER 1 1/2" MIN

OBSTRUCTION (38 ram) .

BOARD

THICKNESS

AS REQUIRED,

FOR PROPER

PITCH TO

REAR,ALONG

ENTIRESILL.

FASTENWITH

NAILS OR

SCREWS.

To secure lower sash in place, attach right

angle sash lock with 3/4" (19 ram) screw

as shown (FIG. 12).

If Storm Window Frame must remain, be sure the

drain holes or slots are not caulked or painted

shut. Accumulated Rain Water or Condensation

must be allowed to drain out.

Removing AC From

Window

* Turn AC off, and disconnect power cord.

* Remove sash seal from between windows,

and unscrew sash lock.

* Remove screws installed through frame and

frame lock.

* Close (slide) side panels into frame.

* Keeping a firm grip on air conditioner, raise

sash and carefully "rock" air conditioner

backward to drain any condensate water in

base of unit. Be careful not to spill any

remaining water while lifting unit from

window. Store parts WITH air conditioner.
