Quick Start

The QorIQ T4240 development system (T4240QDS-PB) is

a flexible system that supports the 24 threads. The

T4240QDS main board is mounted in a 4U rack-mounted

chassis and the main PCB is a custom form factor.

An additional layer of flexibility for system clocking, power

distribution, and I/O multiplexing is built into the

T4240QDS board. Eight expansion slots are provided for

adding standard PCIe cards or Freescale specialized SerDes

riser cards (XFI or XAUI networking). The T4240QDS

board comes with a Linux® board support package (BSP)

that provides a comprehensive starting point for Linux

development efforts.

The T4240QDS board is available in two form factors:

• T4240QDS board installed in a chassis

• T4240QDS board as a stand-alone system

When you finish reading this document, you should be

familiar with:

• T4240QDS hardware kit contents

• Board configuration settings

• How to get started and boot the board

Document

Number:T4240QDSQSG

Rev.1, 10/2015

Contents

1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2. Hardware kit contents . . . . . . . . . . . . . . . . . . . . . . . . . 3

3. T4240QDS board diagram . . . . . . . . . . . . . . . . . . . . . 3

4. Connections and switch settings . . . . . . . . . . . . . . . . . 4

5. Starting up and booting system . . . . . . . . . . . . . . . . . 13

6. Pre-loaded RCW and boot flash information . . . . . . 18

7. Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

QorIQ T4240 Development System

Quick Start

1 Introduction

This T4240QDS quick start explains the T4240QDS board settings and physical connections needed to

boot the board. The document provides steps for configuring switches, connectors, jumpers, push buttons,

LEDs, and connecting peripheral devices.

The T4240QDS board works with an integrated development environment (IDE), such as Freescale

CodeWarrior. However, instructions for working with the IDE are beyond the scope of this document.

1.1 Acronyms and abbreviations

Table 1 lists commonly used acronyms and abbreviations.

1.2 Related documentation

The following table lists the documents that you can refer to for more information about the T4240QDS

board operations.

Table 1. Acronyms and abbreviations

IDE Integrated Development Environment PLL Phase Lock Loop

QDS QorIQ Development System SerDes Serializer/Deserializer

RCW Reset Configuration Word USB Universal Serial Bus

PHY Physical Layer Interface Device

Table 1-2. Related documentation

Document name Description

T4240 QorIQ Integrated Multicore

Communications Processor Family

Reference Manual (document

T4240RM)

Provides details about the features and functionalities of the T4240 QorIQ

Integrated Multicore Communications Processor Family.

Link:

http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=T4240&fpsp

=1&tab=Documentation_Tab

QorIQ T4240 Development System -

Fact Sheet (document T4240QDSFS)

Provides details about the features of the 4240 Development System Board.

Link:

http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=T4240QDS

&fpsp=1&tab=Documentation_Tab

T4240 QorIQ

Integrated Multicore Communications

Processor (document T4240)

Provides specific data regarding DC characteristics, power sequencing, input

clocks, interfaces, as well as other design considerations.

Link:

http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=T4240&fpsp

=1&tab=Documentation_Tab

QorIQ T4240 Development System

Reference Manual (document

T4240QDSRM)

Provides details about the features and functionalities of the T4240 Development

System Board.

Link:

http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=T4240QDS

&fpsp=1&tab=Documentation_Tab

QorIQ T4240 Development System Quick Start, Rev.1

Freescale Semiconductor 3

Hardware kit contents

2 Hardware kit contents

Refer to the pack-out list for the list of items included in the kit.

3 T4240QDS board diagram

Figure 1 and Figure 2 shows the T4240QDS board.

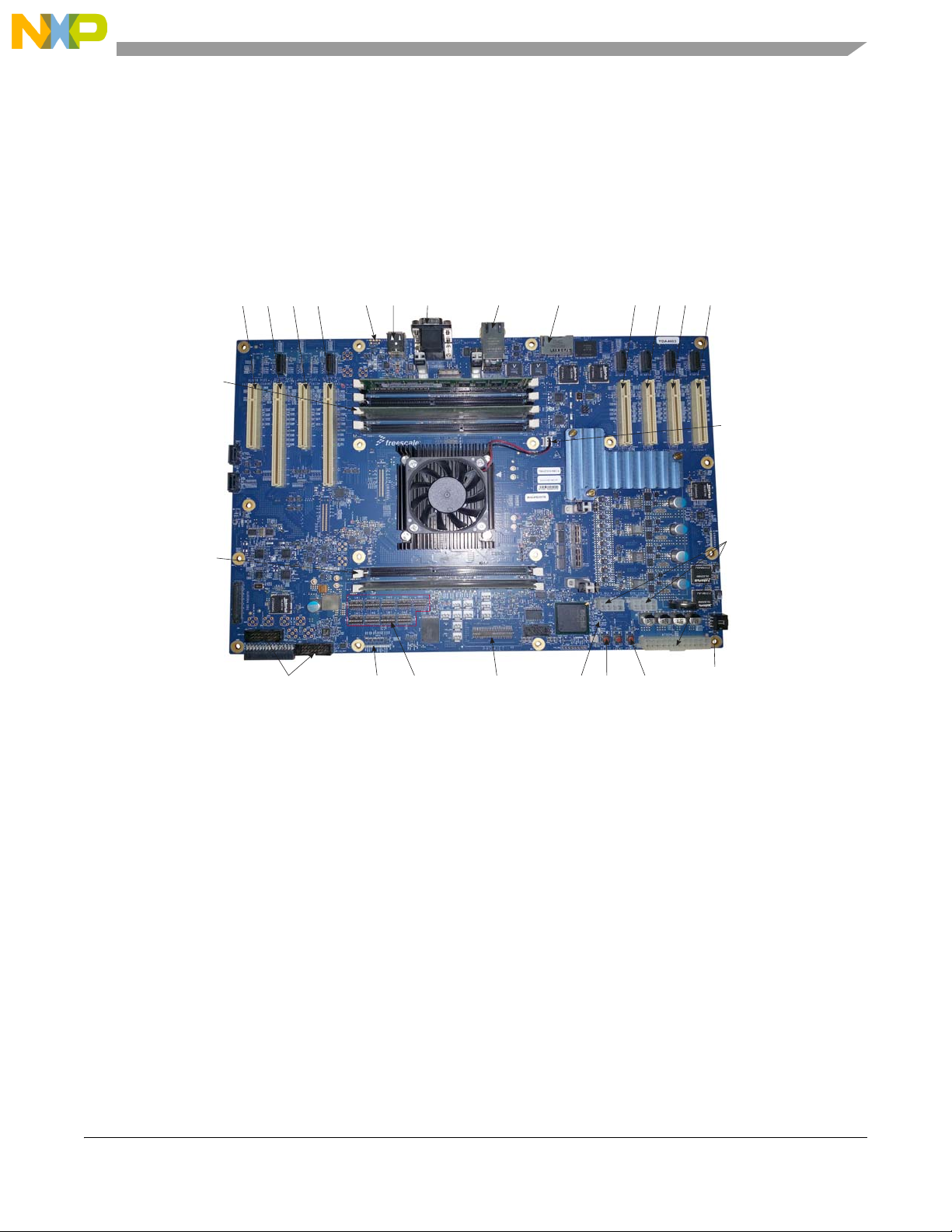

Figure 1. T4240QDS board - Components

3ERDES3LOTS -ICRO

53" 53"

5!244/0

5!24"/4

2'-))4/0

2'-))"/4

3$(#

3OCKET



3ERDES3LOTS



$$2

$)--

3LOTS

$$2

$)--

3LOTS

*4!'

#ONNECTORS

0OWER

,%$S

3WITCHES 0ROM*%4

#ONNECTOR

U0

,%$S 2ESET 0OWER

/./&&

0ANNEL

0OWER2ESET

#ONNECTOR

0OWER

#ONNECTORS

4

&AN(EATSINK

#ONNECTOR

3!4!

3!4!

!URORA

#ONNECTOR

Figure 2. T4240QDS board and case

4 Connections and switch settings

This section explains the T4240QDS connections and switch settings.

4.1 Connection settings

In order to operate the T4240QDS and U-Boot, you need to connect different cables to the board. Some of

the cable connections are required, however, some of the connections are optional.

1. Fan cable (Required): Ensure the 3-wire cable from the pre-installed fan is connected to the 3-pin

Prod Fan header at J15.

This fan cable should already be installed in the received shipment, however ensure that this

connection is always made before powering on the system.

QorIQ T4240 Development System Quick Start, Rev.1

Freescale Semiconductor 5

Connections and switch settings

Figure 3. Main fan cable connection

2. DDR DIMMs (Required): Ensure that at least three DDR DIMMs are installed, one for each of

the three DDR controllers, as shown in Figure 4. Otherwise, U-Boot will not boot. DIMMs should

be in the following slots:

— J23 - D2_DIMM #1, pre-installed DDR3 2GB uDIMM 72 bit (with ECC) Single Rank

— J22 - D1_DIMM #1, pre-installed DDR3 2GB uDIMM 72 bit (with ECC) Single Rank

— J200 - D3_DIMM #1, pre-installed DDR3 2GB uDIMM 72 bit (with ECC) Single Rank

4

&AN(EATSINK

CONNECTOR

*

Figure 4. Default DDR DIMM assembly

3. Power supply (Required): If your power supply appears similar to the power supply shown in

Figure 5, perform the following steps to connect the power supply to the T4240QDS system. For

power supply setup and connections:

a) Gather the following items from the packaging:

— 750 W Magna Gold power supply w/ AC power cord, see Figure 5

— 6-pin to 8-pin +12V supply power cable adapter, see Figure 6

Figure 5. Power supply

*$

$)--

*$

$)--

*$

$)--

QorIQ T4240 Development System Quick Start, Rev.1

Freescale Semiconductor 7

Connections and switch settings

Figure 6. 12 V power cable adapter

b) Attach the AC cable to the power supply. Note the location of the main power supply ON/OFF

switch near the AC plug.

c) The output cabling from the power supply consists of many cables, but only three of them are

attached to the T4240QDS board. Separate the three output power cables from the rest of the

cabling bundle, see Figure 7.

Figure 7. Output power cables to be separated from cabling bundle

d) Next, attach the 12 V power adapter cable to the 6-pin VGA1 connector of the power supply

as shown in Figure 8.

Note that the 2-pin part of the VGA1 connector is unused and does not attach to anything. Be

careful to attach the 6-pin end of the adapter cable to the 6-pin portion of the VGA1 power

supply connector. Also ensure that the latching mechanism of the VGA1 connector aligns with

the latching tab of the 6-pin adapter cable connector, as shown in Figure 9.

Figure 8. 12 V power adapter cable attached to the 6-pin VGA1 connector

Figure 9. Latch of VGA1 connector aligned with latching tab of adapter connector

e) To attach the power supply cables to the T4240QDS system:

– Attach the 2x4 P8 power supply connector to the EPS_BULK_12V header (J27) of the

T4240QDS board. Be careful that connector latch aligns with the latching tab of the mating

connector of the board.

– Attach the 2x4 end of the 12 V adapter cable to the EPS_12V header (J225) of the

T4240QDS board. Be careful that connector latch aligns with the latching tab of the mating

connector of the board.

– The main supply connector consists of two parts: a 2x2 section and a 2x10 section. Attach

the 2x2 section of the main power supply connector to the right-most side of the ATX24

connector (J30), and then attach the 2x10 section of the main power supply connector to the

left-most side of the ATX24 connector (J30). Be careful that connector latch aligns with the

latching tab of the mating connector of the board. Figure 10 and Figure 11 shows the before

and after images of these power supply connections.

QorIQ T4240 Development System Quick Start, Rev.1

Freescale Semiconductor 9

Connections and switch settings

Figure 10. Power supply connections (before insertion)

Figure 11. Completed power supply connections (after insertion)

4. Serial cable (Required): Attach serial cable to UART1_BOTTOM port of the T4240QDS as

shown in Figure 13. Attach other end of cable to the serial port of PC. This connection provides

visibility of boot activity to the COM port window of the PC. Configure the serial port of the host

PC with the settings shown in Figure 12.

Figure 12. Serial port configuration settings

5. Ethernet cable (Optional): Figure 13 shows Ethernet cable connection to the ENET TOP

connector. This ENET port is defined as FM1@DTSEC5. This connection is not required to boot

the system. However, it is useful in loading the boot images from an external boot image source.

Figure 13. Ethernet and serial connections.

6. JTAG / COP TAP (Optional): For additional development purposes, a TAP pod (such as

CodeWarrior USB TAP) can be attached to the COP/JTAG_TAP header at the location J216 on

the board. CCS software application is installed on the PC to support this system control interface.

The red cable edge should be oriented toward the left side of the connector where Pin 1 is located.

4.2 Configuring the T4240QDS in chassis

If the T4240QDS comes in a chassis, it appears as shown in Figure 14:
