DV40 Owner’s Manual

<V1.1 Supplement>

The DV40 software has been upgraded to

Version 1.1.This owner’s manual supplement

describesnewly addedand changedfunctions

on the V1.1 software.

For basic operations and functions, refer to

the DV40 owner’s manual.

8288687000

Contents

1. New UTILITY Menu “Edit Volume Lbl (Edit Volume Label)?” . . . . . . . . . . . . . . . . . . .

1-1. Editing VOLUME LABEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-2. Renaming VOLUME LABEL Recognized as “REEL NUMBER” . . . . . . . . . . . . . . .

2. New UTILITY Menu “Set SCENE&REEL (Set SCENE & REEL No.)?” . . . . . . . . . . . . . . . .

3. Change on “TC UBIT SEL” TC SETUP Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-1. Selecting “SRNo.” as TC UBIT Information . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-2. Selecting “MDYf” as TC UBIT Information . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-3. Selecting “DMYf” as TC UBIT Information . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4. New SETUP Menu “F.Name MD (File Name Mode)?” . . . . . . . . . . . . . . . . . . . . . . . . . .

5. New SETUP Menu “DefaultFileName (Default File Name)?” . . . . . . . . . . . . . . . . . . . . .

6. LIST PLAY Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6-1. Turning On LIST PLAY Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6-2. Confirming Linked Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6-3. Reprogramming PLAY LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6-4. Locating to Beginning of PLAY LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6-5. Locating to End of PLAY LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7. Use of PS/2 Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7-1. Valid and Invalid keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7-2. DV40 & PS/2 Keyboard Key Correspondence . . . . . . . . . . . . . . . . . . . . . . . . .

8. FTP SERVER FUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8-1. Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8-2. FTP Command Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8-3. Saved File Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8-4. FTP Client Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8-5. Checking TCP/IP Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8-6. Changing the TCP/IP Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9. Deletion of “Running Time?” SETUP Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10. LIST of SETUP / UTILITY / TC SETUP MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10-1. SETUP Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10-2. UTILITY Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10-3. TC SETUP Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1. New UTILITY Menu “Edit Volume Lbl (Edit Volume Label)?”

The “VOLUME LABEL” is a name which is used to identify a disk. It is normally named when

formatting a disc. As mentioned in the DV40 Owner’s Manual page 1-5, the default name of

VOLUME LABEL to be attached to the DVD-RAM disk is “DV40-DVD”. This UTILITY menu

has been newly added so that the VOLUME LABEL can be changed even after formatting the

DVD-RAM disk used on DV40. The followings are the procedures explaining about chang-

ing the default VOLUME LABEL “DV40-DVD” of the preformatted DVD-RAM disc.

1-1. Editing VOLUME LABEL

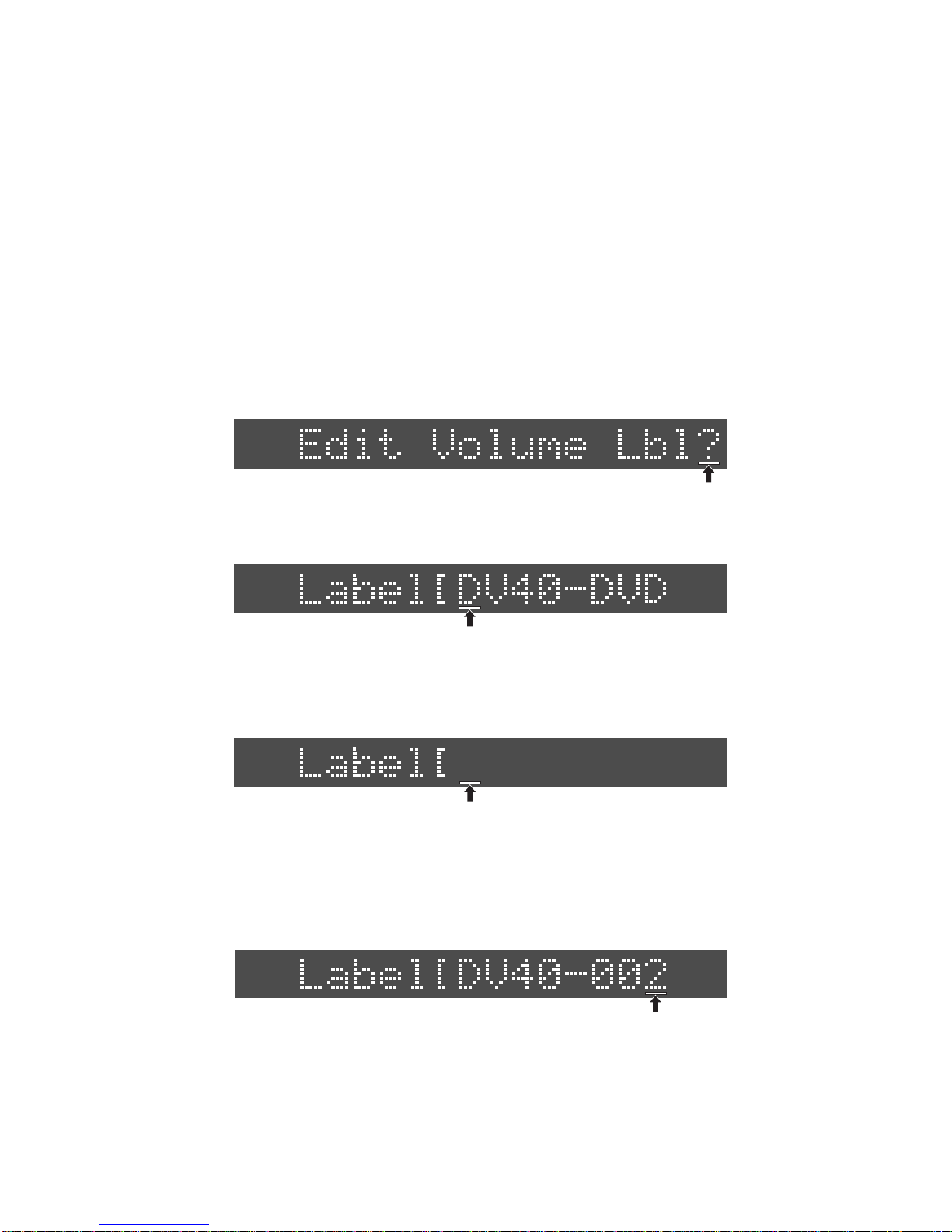

1) While the unit is in STOP mode, press the [SHIFT] key and then [SETUP] key to enter the UTILITY

mode.

2) Rotate the jog dial or press the [SKIP/CURSOR |<<] / [SKIP/CURSOR >>|] key to select the “Edit

Volume Lbl?” menu.

“?” is flashing on the DV40 FL display.

Flashing

4) Press the [MARGIN RESET / CLR] key several times to erase all the alphanumeric characters

named as a VOLUME LABEL.

Regardless of flashing alphanumeric character position, pressing the [MARGIN RESET / CLR] key

several times will erase all the VOLUME LABEL characters.

3) Press the [ENTER/YES] key.

Presume that the default VOLUME LABEL “DV40-DVD” is displayed. The first character “R” is

flashing.

Then, use the alphanumeric keys to rename the VOLUME LABEL. In the case only a couple of

characters are to be modified, instead of pressing the [MARGIN RESET / CLR] several times, moving

the cursor by the [SKIP/CURSOR |<<] and [SKIP/CURSOR >>|] keys to a desired position and rotating

the jog dial is more convenient.

Presume that “DV40-002” is named as a new VOLUME LABEL.

5) Press the [ENTER/YES] key.

Pressing the [ENTER/YES] key will rename the VOLUME LABEL of the DVD-RAM disk put in the

DV40 DVD-RAM drive as “DV40-002”. After pressing the [ENTER/YES] key, “Edit Volume Lbl?” will

be displayed again. (“?” is flashing.)

Flashing

6) Press the [EXIT/NO] key or [STOP] key.

Pressing the [EXIT/NO] key or [STOP] key goes back to the normal display.

CAUTION

There is a limitation on the number of maximum alphanumeric characters on the VOLUME LABEL

recognized by WINDOWS 98/NT, Macintosh computer and UDF standards as follow.

WINDOWS 98/NT: 10 characters

Macintosh: 27 characters

UDF Standards: 127 characters

Considering the usage of DVD-RAM disc in both the WINDOWS and Macintosh platforms, naming

up to 10 characters of VOLUME LABEL would be recommended.

1-2. Renaming VOLUME LABEL Recognized as “REEL NUMBER”

The “REEL NUMBER” is put on each tape (file in the case of DV40) and is used to identify a tape (file)

with time code information. Putting a REEL NUMBER is substantial when creating a EDL (Edit Decision

List). By adding “-XXX (XXX: 000 ~ 999)” after a name, the section “XXX” is recognized as a REEL

NUMBER.

VOLUME LABEL: ######-XXX (######: Name)

(XXX: REEL NUMBER. 000 ~ 999)

CAUTION 1

Due to the limitation of the number of alphanumeric characters used for VOLUME LABEL recog-

nized on Windows OS, using up to 10 alphanumeric characters including the 3-digit REEL NUMBER

are recommended.)

CAUTION 2

The REEL NUMBER XXX is just a character string. Please remember that it does not roll over to the

next digit or roll back to the previous digit.

The following is an example of renaming the VOLUME LABEL to be recognized as a “REEL NUM-

BER”.

1) While the unit is in STOP mode, press the [SHIFT] key and then [SETUP] key to enter the UTILITY

mode.

2) Rotate the jog dial or press the [SKIP/CURSOR |<<] / [SKIP/CURSOR >>|] key to select the “Edit

Volume Lbl?” menu.

3) Press the [ENTER/YES] key.

Presume that the default VOLUME LABEL “DV40-DVD” is currently set.

Flashing

4) Press the [MARGIN RESET / CLR] key several times to erase all the alphanumeric characters

“DV40-DVD”.

Regardless of flashing alphanumeric character position, pressing the [MARGIN RESET / CLR] key

several times will erase all the VOLUME LABEL characters. Then, use the alphanumeric keys to

rename the VOLUME NAME. Presume that “DV40-008” is named as a new VOLUME LABEL.

5) Press the [ENTER/YES] key.

By the press of [ENTER/YES] key, “Edit Volume Sel?” starts flashing.

6) Press the [EXIT/NO] or [STOP] key.

Pressing the [EXIT/NO] key goes back to the normal display. If “SRNo.” is selected in the “TC UBIT

Sel?” menu explained in the section 3. Change on “TC UBIT SEL” TC SETUP Menu, the “REEL NUM-

BER: 008” will be output as a TC UBIT information.

NOTE 1

The REEL NUMBER set in the “Edit Volume Lbl?” UTILITY menu interlocks with the REEL NUMBER

set by another UTILITY menu “Set REEL&SCENE?” which will be explained in the section 2. New

UTILITY Menu “Set SCENE&REEL?”. The latter REEL NUMBER set by either UTILITY menu is going to

be the one to be sent out as a TC UBIT information when the “SRNo.” is selected in the “TC UBIT

Sel?” TC SETUP menu.

NOTE 2

When formatting the DVD-RAM disk, renaming the VOLUME LABEL with 3-digit number (e.g. DV40-

005) from the default name (DV40-DVD) is possible, so that the 3-digit number can be recognized

as a REEL NUMBER which allows to output as a TC UBIT information.

2. New UTILITY Menu “Set SCENE&REEL (Set SCENE & REEL No.)?”

This UTILITY menu has been newly added so that the SCENE NUMBER as well as the REEL NUMBER on

each file created on DV40 can be set. The SCENE / REEL NUMBERS set by this UTILITY menu can be

sent out as a TC UBIT information when “SRNo.” is selected in the “TC UBIT Sel?” TC SETUP menu. The

followings are the procedures explaining about changing the SCENE / REEL NUMBER.

1) While the unit is in STOP mode, press the [SHIFT] key and then [SETUP] key to enter the UTILITY

mode.

2) Rotate the jog dial or press the [SKIP/CURSOR |<<] / [SKIP/CURSOR >>|] key to select the “Set

SCENE&REEL?” menu.

“?” is flashing on the DV40 FL display.

3) Press the [ENTER/YES] key.

The SCENE NUMBER “00000” starts flashing by the press of [ENTER/YES] key.

Select either the SCENE NUMBER or the REEL NUMBER by the [SKIP/CURSOR |<<] / [[

[[

[SKIP/CURSOR

>>|] key and rotate the jog dial / use the alphanumeric keys to set a desired number. The following

example shows that the SCENE NUMBER is set to “00005” and the REEL NUMBER “002”.

3) Press the [ENTER/YES] key.

By pressing the [ENTER/YES] key, the SCENE NUMBER and the REEL NUMBER are set to “00005”

and “002” respectively. Also these values can be sent out as TC UBIT information.

NOTE

The REEL NUMBER set in the “Set REEL&SCENE?” UTILITY menu interlocks with the REEL NUMBER

set by another UTILITY menu “Edit Volume Lbl?” explained in the section 1-2. Renaming VOLUME

LABEL Recognized as “REEL NUMBER”. The latter REEL NUMBER set by either UTILITY mode is

going to be the one to be sent out as a TC UBIT information when “SRNo.” is selected in the “TC

UBIT Sel?” TC SETUP menu.

Flashing

3. Change on “TC UBIT SEL” TC SETUP Menu

This menu allows to select the TIMECODE UBIT information attached to the TIMECODE output from

DV40. In addition to the current selection “MDYf” (Month/Day/Year/File No.) and “DMYf” (Day/

Month/Year/File No.), “SRNo” (S: Scene, R: Reel) is newly added on the V1.1 software. The date

information on “MDYf” and “DMYf” is taken out from the internal clock on DV40 and is based on the

time when the file is created. “SRNo” information is derived from the 3-digit REEL NUMBER attached

to the VOLUME LABEL set in the “Edit VOLUME Lbl?” UTILITY menu or SCENE / REEL NUMBER set in

the “Set SCENE&REEL?” menu. To select the TC UBIT information, follow the procedures below.

1) Press the [SHIFT] key and then [CHASE] key to enter the TC SETUP mode.

2) Rotate the jog dial or press the [SKIP/CURSOR |<<] / [SKIP/CURSOR >>|] key to select the “TC

UBIT Sel?” menu.

The default setting of TC UBIT information is “SRNo”. The following appears on the DV40 FL

display. (“?” flashes.)

3) Rotate the jog dial to select a desired TC UBIT information and press the [ENTER/YES] key.

Pressing the [ENTER/YES] key allows to select the TC UBIT information attached to the TC output

from DV40. The UBIT information you can select is the one among “MDYf”, “DMYf” and “SRNo”

(default setting).

3-1. Selecting “SRNo.” as TC UBIT Information

Rotate the jog dial and select “SRNo.” in the “TC UBIT Sel?” menu. (“SRNo.” is flashing.) Then,

press the [ENTER/YES] key.

If “SRNo.” is selected, the following 8-digit TC UBIT information derived from the 3-digit REEL

NUMBER attached to the VOLUME LABEL set in the “Edit Volume Lbl?” UTILITY menu or the SCENE

/ REEL NUMBER set in the “Set SCENE&REEL?” UTILITY menu will be output.

SSSSSRRR SSSSS: SCENE No. derived from “Set SCENE&REEL?” UTILITY menu + File No.

RRR: 3-digit REEL No. derived from “Edit Volume Lbl?” UTILITY menu or “Set

SCENE&REEL?” UTILITY menu

• Example No.1

VOLUME LABEL: DV40-002

SCENE / REEL No.: 00000 / 002

File No.: 001

• Example No.2

VOLUME LABEL: DV40-005

SCENE / REEL No.: 00006 / 005

File No.: 002

TC UBIT Information: 00001002 TC UBIT Information: 00008005

Flashing

3-2. Selecting “MDYf” as TC UBIT Information

Rotate the jog dial and select “MDYf” in the “TC UBIT Sel?” menu. (“MDYf” is flashing.) Then,

press the [ENTER/YES] key.

If “MDYf” is selected, the following 8-digit TC UBIT information based on the date when the file is

originally created will be output.

MMDDYYff MM: Month by 2-digit (01 ~ 12)

DD: Day by 2-digit (01 ~ 31)

YY: Year by 2-digit (00 ~ 99)

ff: File No. by 2-digit in hexadecimal (01 ~ C7)

• Example No.1

File No.: 001

Created date: July 4, 2002

TC UBIT Information: 07040201

• Example No.2

File No.: 184

Created date: December 23, 2005

TC UBIT Information: 122305B8

3-3. Selecting “DMYf” as TC UBIT Information

Rotate the jog dial and select “DMYf” in the “TC UBIT Sel?” menu. (“DMYf” is flashing.) Then,

press the [ENTER/YES] key.

If “DMYf” is selected, the following 8-digit TC UBIT information based on the date when the file is

originally created will be output.

DDMMYYff DD: Day by 2-digit (01 ~ 31)

MM: Month by 2-digit (01 ~ 12)

YY: Year by 2-digit (00 ~ 99)

ff: File No. by 2-digit in hexadecimal (01 ~ C7)

• Example No.1

File No.: 001

Created date: 6 June, 2001

TC UBIT Information: 06060101

• Example No.2

File No.: 169

Created date: 15 November, 2007

TC UBIT Information: 151107A9

Flashing

4. New SETUP Menu “F.Name MD (File Name Mode)?”

The file on DV40 with a previous software version is named based on the DATE information such as

“B09h51m29s14feb2002.wav” and “S09h53m25s14feb2002.sd2”. From the V1.1 software, the SETUP

menu “F.Name MD?” has been newly added to DV40, which allows to select the file name as either

DATE or TAKE. The newly added “TAKE” mode names files with 3-digit automatic incremental num-

ber attached every time a file is newly created.

Refer to the following explanations for selecting a File Name Mode.

1) Press the [SETUP] key to enter the SETUP mode.

2) Rotate the jog dial or press the [SKIP/CURSOR |<<] / [SKIP/CURSOR >>|] key to select the “F.Name

MD?” menu.

The default File Name Mode is “DATE”. The following appears on the DV40 FL display. (“?” flashes.)

3) Press the [ENTER/YES] key.

By pressing the [ENTER/YES] key, you can select either the DATE or TAKE File Name Mode. In this

condition, “DATE (Default setting)” is flashing.

4) Rotate the jog dial to select either the File Name Mode.

Rotating the jog dial C.W. selects the “TAKE” and C.C.W. selects the “DATE” mode. The example

below indicates that the “TAKE” mode is selected.

5) Press the [ENTER/YES] key.

Pressing the [ENTER/YES] key defines the File Name Mode. In the above example, the “TAKE” File

Name Mode is selected.

6) Press the [EXIT/NO] key or the [STOP] key.

Pressing the [EXIT/NO] key or the [STOP] key goes back to the normal display.

CAUTION

In order to name the file with 3-digit automatic incremental number attached every time a file is

newly created, the “TAKE” File Mode must be selected in the “F.Name MD?” and the file itself must

be properly named as well. The way to name the file is explained in the section 5. New SETUP

Menu “DefaultFileName?”.

If the file is not named in the “DefaultFileName?” SETUP menu properly, the file will be named

based on the DATE information.

SETUP

Flashing

SETUP

Flashing

SETUP

Flashing

5. New SETUP Menu “DefaultFileName (Default File Name)?”

This is the SETUP menu newly added on DV40 with the V1.1 software. This menu should be used to

name a file with 3-digit automatic incremental number every time it is newly created. This mode

becomes valid when the “TAKE” File Name Mode is selected.

Refer to the following explanation for inputting a Default File Name.

1) Press the [SETUP] key to enter the SETUP mode.

The following appears on the DV40 FL display. (“?” flashes.)

2) Press the [ENTER/YES] key.

The following appears on the DV40 FL display. (“_” flashes.)

4) Press the [ENTER/YES] key.

By pressing the [ENTER/YES] key, the file name is defined as “DV40” and 3-digit number “-001”

starts flashing.

3) Input a desired file name.

Using alphanumerical keys, jog dial and [SKIP/CURSOR >>|] / [SKIP/CURSOR |<<] key, input a de-

sired name. The following example names the file as “DV40”.

CAUTION

When naming a file using a PS/2 keyboard, be careful about the use of special characters. The file

name with the following characters are not correctly recognized by the Windows OS platform.

“ / ”, “ ? ”, “ . ”, “ < ”, “ > ”, “ | ”, “ ¥ ”, “ - ”

Remember that the 1st character of the file name must start from an alphabet and the following

use only ASCII characters. Although up to 247 numbers of characters can be used as a file name,

the maximum number of characters recognized by SDII and BWF specifications are 23 and 55

respectively.

5) Set the 3-digit number.

Set the 3-digit number by rotating the jog dial and / or using the 10 alphanumeric keys (001 ~

999). The input 3-digit number sets the number attached to the default file name. The following

example sets the default file name as “DV40-005”.

SETUP

Flashing

SETUP

Flashing

SETUP

Flashing

SETUP

Flashing

Otros manuales para DV-40

Tabla de contenidos

Otros manuales de Grabadora de DVD de Fostex

Fostex

Fostex DV-40 Manual de usuario

Fostex

Fostex PD-6 Manual de usuario

Fostex

Fostex D-1624 Guía del usuario

Fostex

Fostex PD-6 Manual del propietario

Fostex

Fostex DV-824 Manual de usuario

Fostex

Fostex PD204 Manual de usuario

Fostex

Fostex DV-40 Manual de usuario

Fostex

Fostex DV-40 Manual de usuario

Fostex

Fostex D-824 Dimensiones

Fostex

Fostex 8345 Manual de usuario

Fostex

Fostex DV-40 Manual de usuario

Fostex

Fostex DV-40 Manual de usuario

Fostex

Fostex DV-40 Manual de usuario

Fostex

Fostex PD-6 Manual de usuario

Fostex

Fostex DV-40 Manual de usuario

Fostex

Fostex DV-40 Manual de usuario

Fostex

Fostex DV-824 Manual de usuario

Fostex

Fostex PD-6 Manual de usuario

Fostex

Fostex PD-6 Manual de usuario

Manuales populares de Grabadora de DVD de otras marcas

Pioneer

Pioneer DVR-65H-S Guía de configuración

Sony

Sony RDR-VX525 - DVDr/ VCR Combo Manual de usuario

Daewoo

Daewoo DHD-4000D Manual de usuario

Medion

Medion MD 40570 Manual de usuario

Philips

Philips ShowView DVDR3460H Manual de usuario

Sony

Sony RDR-GX355 - Tunerless DVD Recorder Manual de usuario

Sony

Sony DVDirect VRD-MC3 Manual de usuario

Samsung

Samsung DVD-R130/XAA Manual de usuario

FUNAI

FUNAI HD-B2735 Manual de usuario

Panasonic

Panasonic DMR-EH54DEG Manual de usuario

Pioneer

Pioneer PRV-LX1 Manual técnico

Sanyo

Sanyo DRW-1000 Manual de usuario

Philips

Philips DVDR610/05 Manual de usuario

JVC

JVC DR-M10 Manual de usuario

Samsung

Samsung SV-DVD40 Manual de usuario

Philips

Philips DVDR3355 Manual de usuario

FUNAI

FUNAI FDR-90E Manual de usuario

LG RC298 Manual de usuario
