Foscam FI8910W Manual de usuario

support@foscam.us Page | 0 1-800-930-0949

Foscam Digital Technologies LLC

FI8910W User Manual

IP Wired / Wireless Camera

www.foscam.us

support@foscam.us Page | 1 1-800-930-0949

Thank You for Your Purchase!

Foscam IP Cameras are designed and equipped primarily for local and

remote purposes such as home or office security surveillance. We provide

a variety of products suitable for any type of surveillance system setup,

including wired/wireless IP outdoor bullet cameras, IP outdoor dome PTZ

cameras, and IP Indoor PT cameras.

Please check the packaging to make sure you have received all items

including the camera accessories as follows:

- Foscam IP Camera

- Wi-Fi Antenna (If Wi-Fi compatible)

- Network Cable

- Warranty Card

- Quick Installation Guides

- Power Supply

- Installation / Driver CD

- Mounting Bracket

Note: Please contact us immediately if there are any damaged items or if

the package is short of any of the accessories listed above.

If you have any additional questions or concerns, please feel free to contact

us at support@foscam.us or call us at 1-800-930-0949.

support@foscam.us Page | 2 1-800-930-0949

Table of Contents

1. Product Introduction Page 3

2. Product Specifications Page 3

3. Product Views Page 4

4. Software Installation Page 6

5. Hardware Installation Page 8

a. IP Camera Tool Page 9

b. Camera Login Page 14

c. Device Status Page 19

d. For Visitor Page 20

e. For Operator Page 22

f. For Administrator Page 24

6. Configuring Settings in Administrator Page 26

a. Alias Settings Page 26

b. Date & Time Settings Page 26

c. User Settings Page 26

d. Multi-Device Settings Page 28

e. Basic Network Settings Page 29

f. Wireless Settings Page 31

g. ADSL Settings Page 34

h. UPnP Settings Page 35

i. DDNS Service Settings Page 35

j. Mail Service Settings Page 37

k. MSN Settings Page 38

l. FTP Service Settings Page 40

m. Alarm Service Settings Page 42

n. PTZ Settings Page 44

o. Upgrade Device Firmware Page 45

p. Backup & Restore Settings Page 46

q. Restore Factory Settings Page 46

r. Reboot Device Page 46

s. Log Page 47

7. Video Setup Guides Page 48

8. Frequently Asked Questions Page 49

9. Technical Support Page 49

[email protected]s Page | 3 1-800-930-0949

1. Product Introduction

The Foscam FI8910W Wireless Pan/Tilt Indoor IP Camera features high quality video and audio, wireless

N connectivity, pan/tilt, remote internet viewing, motion detection, night vision, embedded IR-Cut filter, as

well as a built in network video recording system. In addition, it is also smartphone compatible (iPhone,

Android & Blackberry) as well as viewable over the internet using standard web-browsers. The camera

functions well as an iPhone baby monitor or as part of a home or office security system with remote

monitoring. It is also compatible with Synology, Blue Iris, and most other surveillance software programs

and NVRs which accept standard MJPEG streams.

2. Product Specifications

- Powerful high-speed video protocol processor

- High definition color CMOS sensor

- 300k Pixels (640 x 480 maximum resolution)

- IR Night vision (Range of 8 meters)

- Panning ability of 300 degrees, Tilt ability of 120 degrees

- Optimized MJPEG video compression for transmission

- Multi-level user management and password definition

- Wi-Fi compliant with wireless standards IEEE 802.11 b/g/n

- Supports an IR-Cut filter for true colored video (no discoloration)

- Supports Dynamic IP (DDNS, No-IP) and UPnP LAN and Internet (ADSL, Cable Modem)

- Features motion detection and alarm triggering, alarm notifications sent via e-mail

- Supports image snapshots

- Supports multiple network protocols: HTTP, TCP/IP, UDP, SMTP, PPPoE, Dynamic DNS,

DNS Client, SNTP, BOOTP, DHCP, FTP

- Supports WEP/WPA/WPA2 wireless encryption

- Supports Daylight Savings Time

- Support G-mail for e-mail notifications

- Supports one-way audio on Firefox and Chrome, audio supported on Safari via third party apps

[email protected]s Page | 4 1-800-930-0949

3. Product Views

Front View

Figure 3.1 –This model comes with 11 IR LEDs, a CMOS sensor, Wi-Fi antenna, and Built-In

Speaker and Microphone

Rear View

Figure 3.2 –The rear of the FI8910W. Includes a DC 5V/2A power supply port, RJ-45/10-100 Base T

port, power and network lights, and input/output audio jacks for external speakers or microphone

[email protected]s Page | 5 1-800-930-0949

Bottom View

Figure 3.3 –The bottom of the camera shows the wired/wireless MAC addresses of the camera. It

also shows the S/N number and has a reset button.

If you ever need to reset your camera to default settings, you can use the reset button. Use a pin to push

down the reset button for 30 seconds. Make sure the camera is plugged in and turned on. When the

camera hard resets, it will start to pan and tilt automatically, this signifies that the camera has reset

completely. You should be able to log in with the default username of “admin” with no password in the

password field.

Note: There are three stickers at the bottom of the camera; these stickers are an important feature of

original Foscam cameras. If your camera does not have any of these three stickers, it may be non-

genuine. Non-genuine cameras cannot use original firmware and are not eligible for warranty or technical

services. Please make sure you only purchase from an authorized Foscam reseller!

[email protected]s Page | 6 1-800-930-0949

4. Software Installation

Firstly, insert the CD into your CD drive, and then open the CD to see the files on your computer.

Figure 4.1 –Double-click your CD/DVD Drive to browse the CD files

Figure 4.2 –Double-click either the Windows OS or Mac OS folder, and then double-click the IP

Cam Setup file to install the software.

[email protected]s Page | 7 1-800-930-0949

Figure 4.3 –Proceed in installing the IP Camera Tool software on your computer.

Once the installation is finished, the IP Camera Tool software icon installs to your desktop automatically,

look for it on your desktop. If you are using Windows 7 and cannot find the icon on your desktop after

installing the software, please check to see if the path of the camera is correct.

For example, the software may have installed to another folder such as

C:/Windows/System32/IPCamera.exe. If this is the case then fix this by moving or pointing the shortcut to

the correct path, which would be C:/Windows/SysWOW64/IPCamera.exe.

[email protected]s Page | 8 1-800-930-0949

5. Hardware Installation

Note: Before installing and using the Foscam IP camera, please remember to only use the power

adapter that was supplied with the camera. Using other power supplies could potentially damage

your IP camera. Make sure your IP camera is being installed in an indoor environment free from

any type of water or weather effects, such as rain and snow. The camera is built as an indoor

camera and thus cannot stand extremely high or low temperatures.

If you would like to use your IP camera outdoors under a covering such as an eve, make sure

there is no potential of rain or any other type of weather prone to hitting the camera. Also make

sure the temperature is within the camera’s operational temperature range. The camera may

malfunction if the temperature drops below 32 degrees F.

1. Install the Wi-Fi antenna by twisting the antenna connector clockwise to the camera’s antenna port (for

wireless models).

2. Plug the power adapter into the camera’s power supply port. This may be external (outdoor models) or

internal (indoor models) depending on which camera you purchased.

3. Plug the network cable into the RJ-45 connecter which is found either on the external wiring (for

outdoor cameras) or on the back of the camera (for indoor cameras), and plug in the other side of the RJ-

45 cable to a port on your router/switch.

4. It takes approximately 30 seconds to boot up the camera, you will see the camera swivel automatically

a few seconds after it is plugged in, this indicates the camera has successfully powered on.

5. When the camera is correctly powered on and the network cable is connected properly, the green LED

on either the RJ-45 connector of the camera (for outdoor models) or the connector on the back of the

camera (indoor models) will remain solid. The yellow LED should continue to flash.

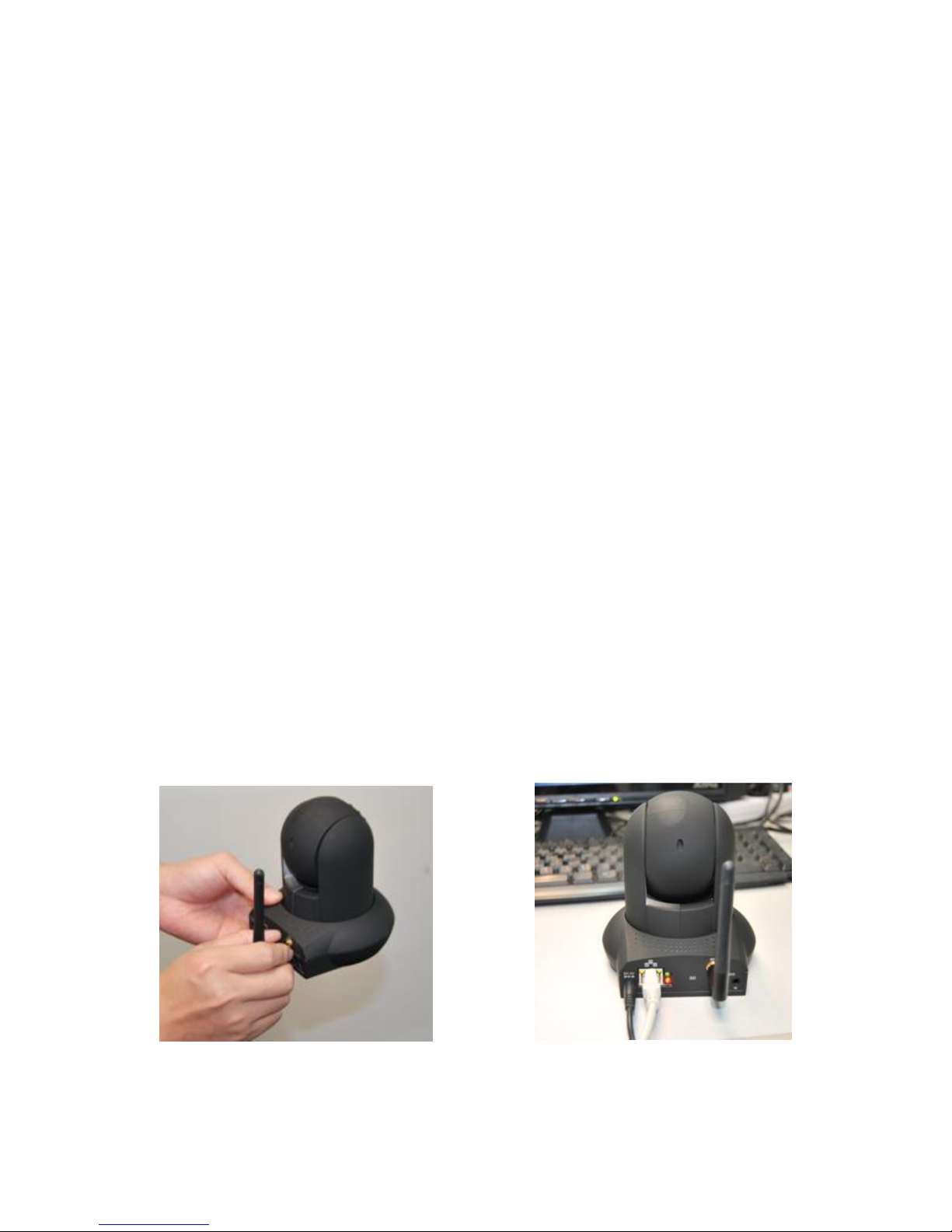

Figure 5.1 - Mount the antenna Figure 5.2 –Plug in the network cable

[email protected]s Page | 9 1-800-930-0949

5.1 –IP Camera Tool

Double click the IP Camera Tool icon and the following screen should appear.

Figure 5.3 –The IP Camera Tool

The IP camera tool should find the camera’s IP address automatically after you plug in the network cable.

If not, please make sure that DHCP is enabled on your router and that MAC address filtering, firewalls

and anti-virus are disabled temporarily until the camera is set up.

MJPEG cameras like the FI8910W will have an “M” next to the local IP address in the software. H.264

compression cameras will have an “H” next to their local IP address.

There are six different options that the IP Camera Tool has. Highlight a camera in the IP Camera Tool list

and right click on it. The six options that appear are: Basic Properties, Network Configuration, Upgrade

Firmware, Refresh Camera List, Flush Arp Buffer, and About IP Camera Tool.

Figure 5.4 –IP Camera Tool showing six different options after right-clicking.
