Forte F24DWS650PR Manual de usuario
USER MANUAL
Top Control Dishwasher
F24DWS650PR
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Main components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Installing and setting up your dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Before using your dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Finding a suitable location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Providing a proper power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Understanding your dishwashers features . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Wash cycle selections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Filter system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Smart wash system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Adjustable upper rack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Using your dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Using the control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Basic operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Preparing and loading dishes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Adding a dish. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Filling the detergent dispenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Filling the rinse aid dispenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Factors affecting performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Using rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Water temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Water pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Maintaining your dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Cleaning the stainless steel panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Cleaning the control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Cleaning the stainless steel inner door and tub . . . . . . . . . . . . . . . . . . . .22
Cleaning the filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Cleaning the door and tub gaskets . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Cleaning the air gap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Protecting your dishwasher for long periods . . . . . . . . . . . . . . . . . . . . . . . .25
Troubleshooting . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Error codes . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Contents
3
WARNING
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within your dishwasher.
This symbol indicates that there are
important operating and maintenance
instructions in the literature
accompanying your dishwasher.
- When using your dishwasher, follow basic
safety precautions, including the following:
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Clean only with a damp cloth.
6 Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
7 Make sure that the available AC power matches the voltage
requirements of this appliance.
8 Refer all servicing to qualified service personnel. Servicing is required
when the appliance has been damaged in any way or it does not
operate normally.
1
2
3
4
•
WARNING
Electric Shock Hazard
Failure to follow these instructions can result in electric shock, fire, or
death.
WARNING-DANGER Never allow children to
play with, operate, or crawl inside the dishwasher.
Turn off the dishwasher before carrying out user maintenance on it.
If a component part is damaged, it must be replaced by the manufacturer,
its service agent, or similar qualified persons in order to avoid a hazard.
This appliance is intended to be used in household and similar environments.
Basic precautions before use:
Read all instructions before using the dishwasher.
The manual does not cover every possible condition and situation that may occur.
Use the dishwasher only for intended function as described in this manual.
When loading items to be washed:
Load sharp items and knives so that they are not likely to damage the door
seal and tub.
Load sharp items and knives with the handles up to reduce the risk of
cut-type injury.
Do not wash plastic items unless they are marked dishwasher safe or the
equivalent, if not marked, check with manufacture for recommendation, items
that are not dishwasher safe may melt and create a potential fire hazard.
If the dishwasher drains in to a garbage disposal, make sure disposal is
completely empty before running dishwasher.
Do not tamper with the controls.
Do not operate your dishwasher unless all enclosure panels are properly in place.
Do not touch the heating element during or immediately after use, especially if
the sanitize option has been selected.
Do not let children abuse, sit, or stand on door or racks of the dishwasher.
Under certain conditions, hydrogen gas may be produced in a hot water system
that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE.
If the hot water system has not been used for such a period, before using on all
hot water faucets and let water flow from each for several minutes. This will
release any accumulated hydrogen gas. Hydrogen gas is flammable. Do not
smoke or use an open flame during this time.
•
•
•
•
•
•
•
•
•
•
•
•
4
•Do not store or use combustible materials, gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
Use only detergents or rinse agents recommended for use in a dishwasher and
keep them out of the reach of children.
Keep young children and infants away from dishwasher when it is operating.
Do not use the dishwasher if it has a damaged power line or plug, and do not
plug the dishwasher into a damaged outlet, failure to observe these instructions
may result in electrical shock.
Remove the door to the washing compartment when removing an old
dishwasher from service or discarding it.
To reduce the risk of injury, do not allow children to play in or on a dishwasher.
•
•
•
•
•
SAVE THESE INSTRUCTIONS
5
Package contents
Dishwasher
Hose
Installation kits
User Guide
Installation Guide
•
•
•
•
•
6
Main components
Top light
Upper spray
arm
Middle spray
arm
Vortex wash
arm (left side)
Lower spray
arm
Detergent
dispenser
Rinse aid
dispenser
Top rack
Cup shelf
Adjustable
upper rack
Tub gasket
Silverware
basket
Bottom rack
Heating
element
Installing and setting up your dishwasher
Water supply temperature should be between 120° F and 149° F (49° C and
65° C).
Dispose of the discarded appliance and packing material properly.
The dishwasher must be grounded or it can result in a risk of electric shock.
If there is any damage of the contact to the dishwasher, please contact
Customer Service. Do to attempt to repair or replace any part by yourself.
1
2
3
4
For information on installing and setting up your dishwasher, refer to
the Installation Guide provided.
Before using your dishwasher
1 Remove the interior packing.
2 Clean the interior surface with lukewarm water using a soft cloth.
Finding a suitable location
This dishwasher is designed to be built-in.
The dishwasher door must be able to swing fully open.
Providing a proper power supply
Check your local power source. This dishwasher requires a 120V, 60Hz
power supply.
Refer to the Installation Guide for additional information
•
•
Understanding your dishwashers features
How your dishwasher cleans
The dishwasher fills with water, covering the filter area at the bottom.
Water is then pumped through the various filter and spray arms, spraying a
mixture of hot water and detergent against the soiled surfaces of your
dishes and silverware. Soil particles are separated and go down the drain as the
dirty water is drained and replaced with clean water. The number of water fills
is determined by the cycle selected.
Wash cycle selections
Cycle times are approximate and will vary with options selected. Hot water is
necessary to activate dishwasher detergent and melt fatty food soils.
An automatic sensor checks the incoming water temperature and, if it is not
hot enough, the timer will be delayed to allow for the water to heat for the
main wash of all cycles. This happens even when hi-temp wash is selected,
so that higher temperature will be available to handle heavier soil loads.
7
Filter system
Your dishwasher has a multiple filter system which includes four separate filter
meshes. It separates dirty water and clean water into different chambers.The
multiple filter system helps your dishwasher to get better performance with less
water and less energy.
Smart wash system
Your dishwasher has a smart wash system under the normal wash program
which selects the wash cycle based on how large and how soiled the load,
permitting your dishwasher to clean more efficiently every time. When a partial
load of lightly soiled dishes is placed in the unit, a short wash cycle is
automatically selected. When a full load of heavily soiled dishes is placed in the
unit, a heavy wash cycle is automatically selected.
Adjustable upper rack
The upper rack of your dishwasher can be raised or lowered to accommodate
loading dishes of varying heights in either rack. After removing the 3rd rack,
the upper rack clearance height can be adjusted from 8" to 10". The lower
rack clearance height can be adjusted from 11" to 13". See Adjusting the
upper rack on page 15.
10" 8"
11" 13"
8
Using your dishwasher
Using the control panel
Your dishwasher's control panel is located on the top edge of the door.
The door must be opened to make settings and operate the dishwasher.
Cycles
Select a cycle based on the type of dishes to be washed and the level of soil on
the dishes.
Cycle times are approximate and will vary with options selected. The timer will
be delayed to allow for the water to heat for the main wash of all cycles if the
sensor detects the water is not hot enough. Below is water use and cycle times
under standard conditions.
CYCLE# DESCRIPTION WATER USE CYCLE TIME
(MINUTES)
1
2
3
4
5
6
AUTO Auto sensing wash, lightly, or heavily
soiled crockery, with or with out
dried-on food.
3.0 - 5.9 gal.
(11.4 - 22.5 l)
100 - 133
NORMAL Use for regularly soiled dinner
dishes or silverware.
3.0 - 5.9 gal.
(11.4 - 22.5 l)
102 - 120
HEAVY Use for hard-to-clean, heavily soiled
dishes, pots, and pans.
6.9 gal. (26.2 l) 138
DELICATE Use for lightly soiled crockery and glass. 5.9 gal. (22.5 l) 114
EXPRESS
Use for pre-rinsing dishes or glasses.
This is only a rinse that keeps food from
drying on your dishes and reduces odor
buildup in your dishwasher until you are
ready to wash a full load. Do not use
detergent.
4.0 gal. (15.1 l) 60
RINSE 2.0 gal. (7.7 l) 20
9
Use for lightly soiled and pre-rinsed
dishes and silverware.
10

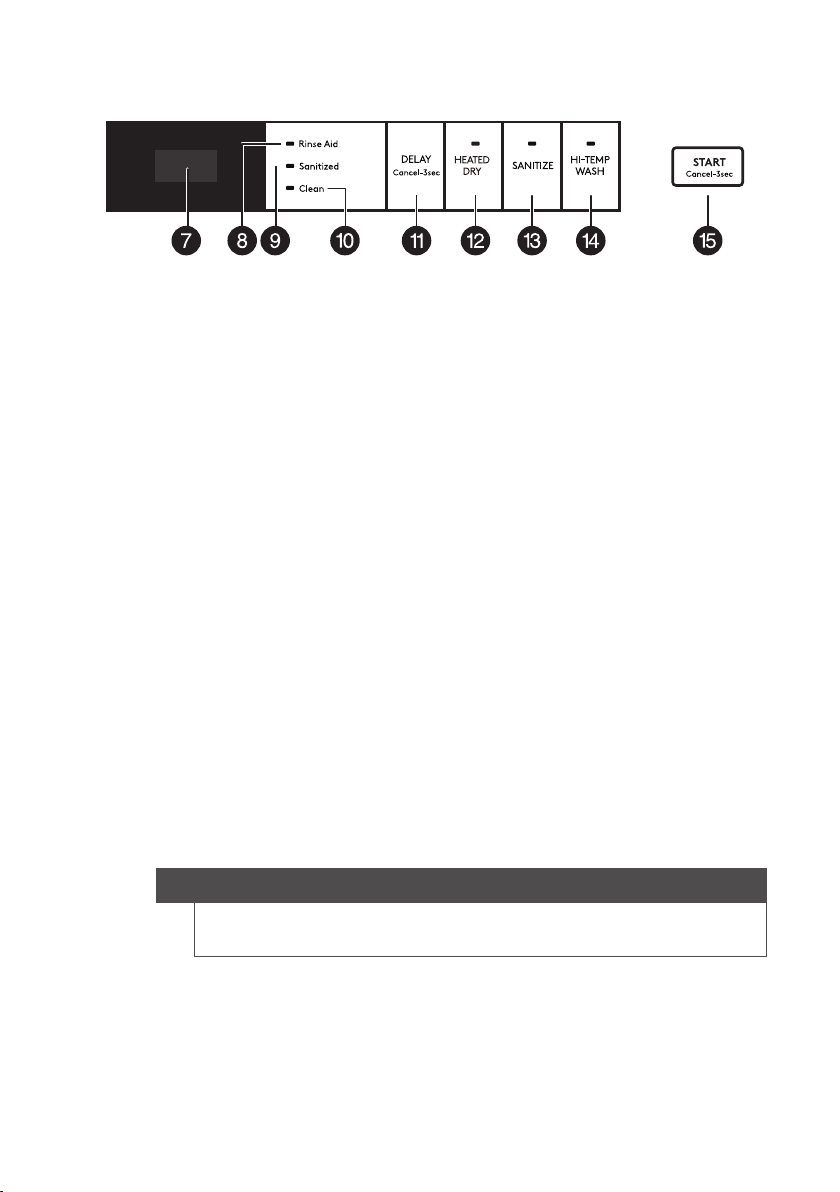

7 - DISPLAYShows the remaining hours and minutes of the current cycle,
delay hours remaining, and error codes (see Error codes on page 26).
8 - Rinse AidTurns on when you need to add rinse aid.
9 - SanitizedTurns on when a sanitized cycle is finished. Turns off after
30 seconds, when the door is opened.
10 - CleanTurns on after a cycle finished. Turns off after 30 seconds when
the door is opened.
11 - DELAYPress repeatedly to delay the start of the selected wash cycle
until the delay time you want is shown on the display. You can select from
one to 24 hours delay. After you select the delay time you want, press
START/CANCEL once, then close the door within four seconds. The delay
begins to count down.
If you open the door while delay is running, press the START/CANCEL,
then close the door within four seconds to begin the cycle from that point.
To cancel the delay and begin the cycle before the delay period is complete,
open the door, then press and hold DELAY for three seconds.
Controls and indicators
Options can add enhancements to the cycle selected.
15 - START/CANCELPress to start the dishwasher after you have selected a
cycle and function (if desired). Close the door. The cycle indicator begins to
blink and the function indicator turns on. If you dont close the door within
four seconds of pressing START/CANCEL, the dishwasher pauses.
Press START/CANCEL again to continue with the cycle.
To cancel a running cycle, open the door, then press and hold START/CANCEL
for three seconds. The dishwasher will return to standby status.
To load more dishes or pause the dishwasher while its already running, open
the door. A safety mechanism stops the cycle.
Caution
To avoid injury open the door slowly and carefully. There is a
possibility of hot steam from inside the dishwasher.
You can add more dishes before the main wash cycle has started. To determine
this, check the detergent dispenser in the door. If the detergent dispenser is still
closed, you can add more dishes. If it is open, you can add dishes to the
dishwasher if the dish quantity is small. If the quantity is large, restart the cycle.
Otros manuales para F24DWS650PR
2
Tabla de contenidos
Otros manuales de Lavavajillas de Forte
Forte
Forte F18DWS450PR Manual de usuario
Forte
Forte F24DWS450PR Manual de usuario
Forte
Forte F24DWS250SS Manual de usuario
Forte
Forte F18DWS250SS Manual de usuario
Forte
Forte F24DWS450PR Manual de usuario
Forte
Forte F24DWS650PR Manual de usuario
Forte
Forte F18DWS450PR Manual de usuario
Forte
Forte F24DWS650PR Manual de usuario
Forte
Forte F24DWS250SS Manual de usuario
Forte
Forte 250 Series Manual de usuario
