Fonteyn Spas Modern-2 Instrucciones de funcionamiento

Modern Sauna

Installation &

Owner’s Manual

Revised April 20, 2009

TABLE OF CONTENTS

Parts List ..................................................................................................... 3

Dealer Information ....................................................................................... 3

Check your Boxes ....................................................................................... 4

Electrical Requirements .............................................................................. 4

Locatin the Sauna ..................................................................................... 4

Basic Tools ................................................................................................. 4

Floor & Wall Assembly ................................................................................ 5

Wall and Ceilin Assembly .......................................................................... 6

Band Assembly ........................................................................................... 7

Door Handle ................................................................................................ 7

Seat Installation .......................................................................................... 8

Heater ......................................................................................................... 10

Heater Fence Assembly and Installation...................................................... 10

Li ht ............................................................................................................ 11

Treatin the Sauna ...................................................................................... 11

Operation .................................................................................................... 12

Takin a Sauna Bath ................................................................................... 12

Steps in Takin a Sauna Bath ..................................................................... 13

Maintainin Your Sauna .............................................................................. 13

Accessories ................................................................................................. 13

Warranty ..................................................................................................... 14

PARTS LIST

QUANTITY PER SAUNA

PART DESCRIPTION 6 X 4 6 X 6 6 X 8

HP1 Horizontal Panel (with rounded corners) 4 4 4

HP2 Horizontal Panel (center) 0 2 0

HP3 Horizontal Panel (center) 0 0 4

FJ1 Floor Joist 44-1/4” lon 3 0 0

FJ2 Floor Joist 65-1/2” lon 0 3 0

FJ3 Floor Joist 90” lon 0 0 3

CP1 Corner Panel 1 1 1

CP2 Corner Panel 1 1 1

CP3 Corner Panel 1 1 1

CP4 Corner Panel 1 1 1

BP Back Panel 1 1 1

SP1 Side Panel 6-1/8” wide 1 0 0

SP2 Side Panel 6-1/8” wide 1 0 0

SP3 Side Panel 27-3/8” wide 0 1 0

SP4 Side Panel 27-3/8” wide 0 1 0

SP5 Side Panel 24-3/8” wide 0 0 2

SP6 Side Panel 27-3/8” wide 0 0 2

FP Front Panel with Door Assembly 1 1 1

SA1 Seat Assembly 47-5/8” lon 1 0 0

SA2 Seat Assembly 69-11/16” lon 1 1 1

SA3 Seat Assembly 69-11/16” lon 0 1 0

SA4 Seat Assembly 38” lon 0 1 0

SA5 Seat Assembly 93-1/4” lon 0 0 1

SA6 Seat Assembly 64” lon 0 0 1

SA7 Seat Assembly 30-5/16” lon 0 0 1

SS1 Seat Support (short) 0 3 6

SS2 Seat Support (tall) 2 2 0

SS3 Seat Support (double) 0 0 2

Final Staves 4 4 4

Heater 4.5 Kw 1 0 0

Heater 6 Kw 0 1 0

Heater 8 Kw 0 0 1

Heater Fence Kit 1 1 1

Door Handle Kit 1 1 1

Rocks 1 1 1

Li ht Fixture with Outside Access Plate 1 1 1

Thermometer, Chrome 5” 1 1 1

Bucket and ladel 1 1 1

Sand timer 1 1 1

Towel hook 1 1 1

Ma azine rack 1 1 1

Instruction Manual 1 1 1

Hardware

Screws #10 100 100 100

Nails 4D 100 100 100

Nuts 1/2” x 13 4 4 4

Stainless Steel Bands 2 2 2

Stainless Steel Bandin Brackets 4 4 4

Black Vinyl Thread Protectors 4 4 4

Threaded Rod 1/2” x 4-3/4” 2 2 2

Simpson Stron Tie 0 0 4

Note: Dimensions may vary sli htly.

For ease of or anization, locate your sauna size above and hi hli ht the items on the list that are included for your

particular sauna.

Please f ll n the follow ng nformat on, t w ll be helpful should you ever have quest ons or concerns

regard ng your sauna.

Model: __________________________________________________

Ser al Number: __________________________________________________

Date Purchased: __________________________________________________

Read th s ent re manual through to the end before proceed ng w th the assembly.

CHECK YOUR BOXES

Be sure to immediately check your boxes a ainst your shippin list and bill of ladin . Examine for any dama e and

report it to the shippin company immediately. Notify us if there needs to be a repair or replacement of dama ed or

missin materials.

ELECTRICAL REQUIREMENTS

All electrical wirin must be performed by A QUALIFIED LICENSED ELECTRICIAN. Please do not attempt to do

the hook-up by yourself. Because of the heat involved in the sauna, it is required that you use copper wire with

90ºC insulation. Do not use aluminum wire to make the connection. Consult with an electrician so you can deter-

mine the requirements of your particular situation. All wirin must conform to all national, state and local codes and

re ulations.

LOCATING THE SAUNA

Because the customary sauna involves a heatin -coolin -restin process, it is important to plan ahead before in-

stallin yours.

You will probably shower durin or after each sauna bath, so consider havin a shower stall nearby. Besides the

shower, you may want to have a loun in area set aside for relaxin after your sauna bath. Make sure the floor is

level and can support the wei ht of the sauna (which can exceed 1,000 lbs. when filled with people). A reinforced

concrete floor is always best .

Verify that both the inlet and outlet vents will remain unobstructed and open into the same room or space.

BASIC TOOLS

You should have the followin tools:

• Wrench-adjustable, box, open end (10mm, 3/4", 1/2”, and 7/16”)

• Nail set

• Step Ladder or Stool

• Sandpaper – 120 Grit

• Utility Knife

• Screwdrivers (Phillips and Flathead)

• Claw Hammer

• Rubber Mallet

o help speed up the installation, substitute deep well socket wrenches for the 3/4”,1/2”, and 7/16” wrenches

and a reversible power drill for the screwdrivers.

FLOOR AND WALL ASSEMBLY

Locate the Horizontal Panels and Floor Joists.

For the 6 x 4 sauna, you will need (2) HP1’s and (3) FJ1’s.

For the 6 x 6 sauna, you will need (2) HP1’s, (1) HP2, and (3) FJ2’s.

For the 6 x 8 sauna, you will need (2) HP1’s, (2) HP3’s, and (3) FJ3’s.

Place the required horizontal floor panels (HP) face down on a flat surface. If you are assemblin this unit on a

concrete floor, you should lay these panels on top of some cardboard or blankets to protect the wood from

scratches. Lay the Floor Joists (FJ) on ed e on top of the Horizontal Panels (HP). Evenly space the Floor Joists

(FJ) and toenail them to the Horizontal Panels with 4 nails on each side of each Floor Joist (FJ). See Fi ure 1.

Make sure to position the joist with the drain hole in the correct corner. Turn the floor assembly over.

Center the Back Panel on the rear side of the Floor Assembly, by ali nin the centerlines provided for this purpose.

The ed es of the floor and ceilin fit into the croze, or roove, in the panels. Usin two nails, attach the Back Panel

(BP) to the floor assembly by nailin throu h the croze and into the ed e of the floor assembly. Next, place Corner

Panel CP1 into position next to the Back Panel. The li ht hole will be at the top. Attach CP1 to the Back panel by

screwin them to ether throu h the top battens (the notched battens of the flat panels overlap the battens on the

corner panels). Do not nail the remainin wall panels to the floor assembly. Follow this with the second Corner

Panel (CP2), screwin it into position in the same manner.

HP2

FJ1

FJ2

Nails (24) required

FIGURE 1

CP1

CP2

FIGURE 2

Floor Assembly

Door Area

Battens

Vent hole Li ht

Croze

Drain Hole

WALL AND CEILING ASSEMBLY

Locate the Side Panels (SP) and screw them to the Corner Panels.

For the 6 x 4 sauna, you will need SP1 and SP2.

For the 6 x 6 sauna, you will need SP3 and SP4.

For the 6 x 8 sauna, you will need (2) SP5’s and (2) SP6’s.

Be in to install the ceilin by slidin a Horizontal Panel (HP1) into the upper croze, or roove. Make sure that the

face side of the panel is facin the inside of the sauna. Follow with the center Horizontal Panel (HP2 or HP3) where

applicable.

Next, center the Front Panel on the front side of the Floor Assembly, a ain, ali nin the centerlines provided. Attach

corner panels as before. The ap between the front corner and side panels will be filled by the Final Staves. First,

position the correct “ball and socket” pieces next to the corner and side panels, with the flat sides facin each other.

Select strai ht staves to fill the remainin aps as full as possible. A ti ht fit is better than loose, as the band as-

sembly will force the staves to ether.

SP1

SP3 or

SP5 and

SP6

SP2

SP4 or

SP5 and

SP6

HP1

HP2

HP3

CP3

CP4

FIGURE 3

Final Staves

here

Final Staves

here

BAND ASSEMBLY

Prepare to install the stainless steel bands by temporarily placin nails to support them. On each wall panel, place

two nails 2 ½” down from the top of the wall and 2” up from the bottom of the wall. Also be sure to remove the 2”

nails that were temporarily installed durin assembly of the wall sections.

The two Band Assemblies are

made up of the followin components:

(2) Stainless Steel Bands

(4) Stainless Steel Bandin Brackets

(4) 1/2” Nuts

(4) Black vinyl thread protectors

(2) 1/2” x 4-3/4” Threaded Rods

Place bands with pre-assembled brackets around sauna, restin on the nails. Insert threaded rod throu h the

brackets. Install nuts evenly. Before ti htenin nuts, check to make sure bands are restin on nails and looks even.

Ti hten nuts and install black vinyl thread protectors. (See F gure 5)

F gure 4

F gure 5

DOOR HANDLE/TOWEL BAR

The door handle/towel bar assembly will consist of the followin components:

(2) Door handles (1) Bindin nut

(2) Short round spacers (1) Lon machine screw

(2) Lon round spacers (2) Wood screws

Locate the sin le hole in the lass door. Push the lon machine screw throu h one of the pre-drilled handles,

throu h a lon round spacer, throu h the lass, throu h another lon round spacer and then throu h the other pre-

drilled handle. Turn the lon machine screw into the bindin nut but don’t fully ti hten. With a level, position each

of the handles so that they are horizontal and then screw the end of the handles into the hin e board that is at-

tached to the lass door with the wood screws. Now ti hten the lon machine screw into the bindin nut. TAKE

CARE THAT YOU DO NOT OVER TIGHTEN THE SCREW AND BINDING NUT OR ALLOW THE WOOD

SCREWS TO HIT THE GLASS. BROKEN GLASS IS NOT COVERED UNDER WARRANTY.

Door Handle Assembly

SEAT ASSEMBLY

Start by layin the ri ht Seat Assembly (SA1, SA3, or SA5) in place on the corner battens. Attach the Seat Assem-

bly by fastenin screws throu h the predrilled holes underneath the seat. Next, insert screws into the predrilled

holes on the front of the seat and attach the front (closest to the door) Seat Support (SS1).

Install the left bench (where applicable) by first fastenin a Seat Support to the front corner of the Seat Assembly.

Lay the Seat Assembly on the battens and fasten to the wall by installin screws in the predrilled holes underneath

the seat.

Install the rear Seat Assembly (SA2) by layin it on the upper battens alon the back wall. It is fastened in the same

manner as the ri ht Seat Assembly except that the rear Seat Supports (SS2) attach to both the lower and upper

Seat Assemblies.

If you are buildin the 6 x 8 sauna, install the final Seat Assembly (SA7) by screwin it from the underside to the

adjacent seats (SA5 and SA6). The short portion of the SS3 faces forward and supports the back of the SA7 Seat

Assembly. See F gure 7.

SA1

SA2

SS2

Li ht

SA4

SA3

SS1

SA2

SS2

SA5

SS1

SS3

SA2

SA6

SA7

Heater and

Heater Fence

6 x 4 Sauna

6 x 6 Sauna

6 x 8 Sauna

FIGURE 7

Li ht

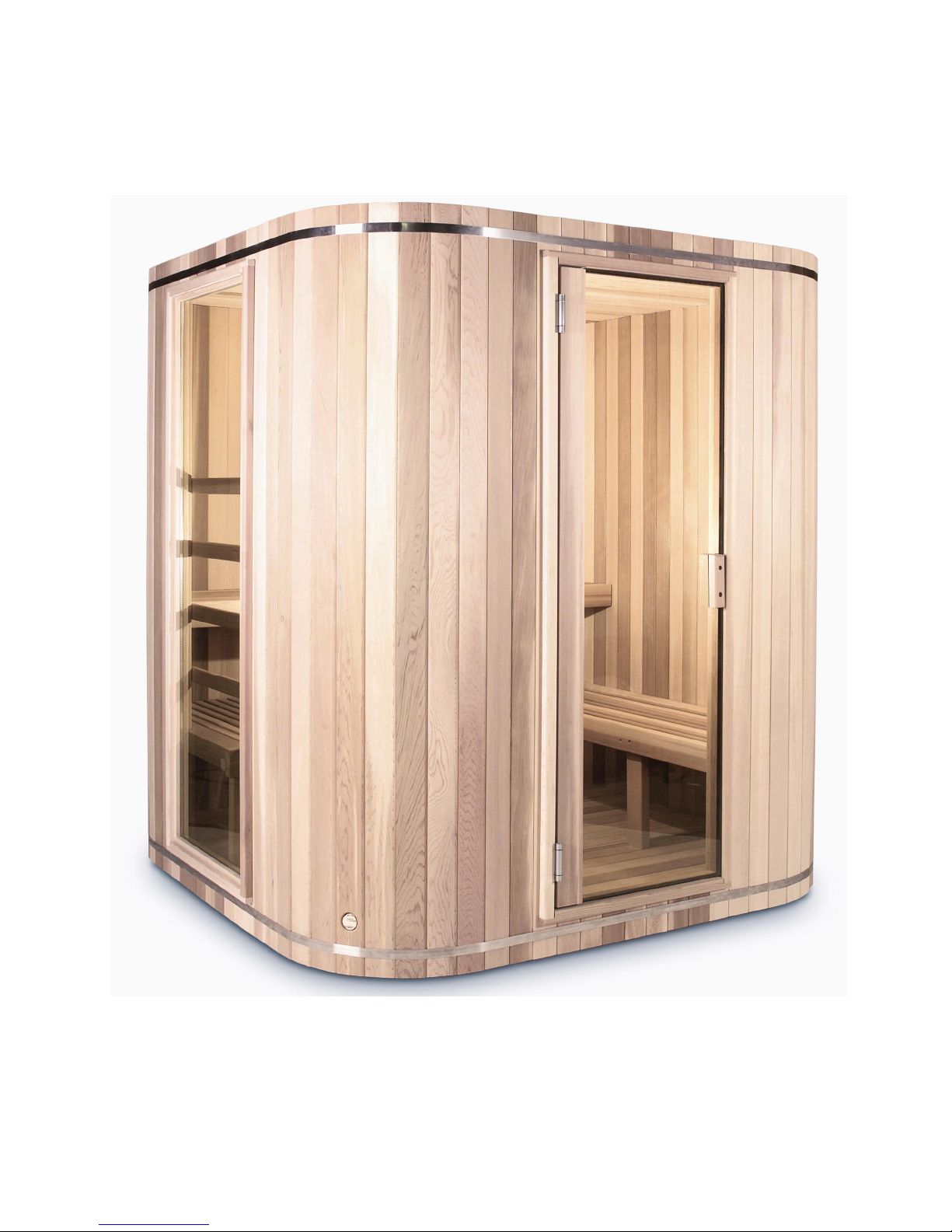

The outside of your sauna should now look like the one pictured below. (Picture shows optional side window)

FIGURE 8

HEATER

Mount the heater as shown in the manufacturer's instructions. The heater should be positioned in the front left cor-

ner of the sauna (mounted on panel CP4, see F gure 7).

The heater should be no lower than 6-1/2 inches

from the floor. The lower the heater is, the hotter the temperature will be at the benches. All the

necessary hardware is supplied with the heater.

All the necessary hardware is supplied with the heater. Do not

attempt to wire the heater yourself. Contact an electrician.

HEATER FENCE ASSEMBLY AND INSTALLATION

The Heater Fence is necessary to ensure that bathers in the sauna do not accidentally contact parts of the heater

that could burn them. It consists of four precut, vertically notched posts and six horizontal rails that must be assem-

bled before it is installed to the wall adjacent to the heater.

The vertical

fence posts

have slots cut

into them for the rails. The two vertical fence posts that o a ainst the wall have slots on just one face, as well as

counter-bored screw holes for attachin them to the sauna wall. The two fence posts that sit away from the wall will

have slots cut into two of their faces.

Note the beveled ends on the fence rails that o into the corner posts. The ends of the rails that o into the fence

posts that attach to the wall are square. Assemble the fence before attachin it to the wall by placin the rails into

the slots in the posts and usin the supplied 1” nails as shown in F gure 9. You may want to put a small amount of

lue into the slots. Be sure to nail at an an le so that the points will not o throu h the post. Countersink all nails.

Once the fence is assembled, attach it to the wall next to the heater usin the supplied wood screws.

F gure 9 - Heater Fence Assembly

Este manual sirve para los siguientes modelos

Tabla de contenidos

Manuales populares de Producto de plomería de otras marcas

Weka

Weka 506.2020.00E Instrucciones de funcionamiento

Kohler

Kohler K-6228 Instrucciones de montaje

UBERHAUS DESIGN

UBERHAUS DESIGN 75175017 Manual de usuario

American Standard

American Standard DetectLink 6072121 Manual de usuario

Uponor

Uponor Contec TS Manual de usuario

Pfister

Pfister Selia 49-SL Manual de usuario

Fortis

Fortis VITRINA 6068700 Manual de usuario

Fortis

Fortis MILANO 78211JS Manual de usuario

Kohler

Kohler K-12183 Instrucciones de montaje

Maxxus

Maxxus MX-M206-01 Manual de usuario

Moen

Moen 5922 Series Manual de usuario

Viega

Viega Prevista Pure 8512 Manual de usuario

Kohler

Kohler Centerset K-15240 Instrucciones de montaje

Viega

Viega Prevista Dry 8522.33 Manual de usuario

Sanela

Sanela Lema SLP 59RB Manual de usuario

Elkay

Elkay EDF15AC Manual de instalación

Hans Grohe

Hans Grohe AXOR Citterio E 36702000 Manual

baliv

baliv WT-140 Manual de usuario
