Follett H_C700AHS Manual de usuario

00978759R00

Order parts online

www.follettice.com

Horizon™Ice Machines with RIDE™Technology

Installation Instructions for Harmony™

801 Church Lane • Easton, PA 18040, USA

Toll free (877) 612-5086 • +1 (610) 252-7301

www.follettice.com

H_C700AHS, H_C700WHS,

H_D700AHS, H_D700WHS,

H_E700AHS, H_E700WHS

(See model number congurator on page 2 for details.)

Horizon Satellite-ll icemakers

t most countertop dispensers manufactured by

Cornelius • Lancer • SerVend

self-contained

2self-contained HARMONY • RIDE Technology

Horizon Series Ice Machine Model Number Configurations

A Air-cooled, self-contained

W Water-cooled, self-contained

A V SC 700HC

C 208-230/60/1

(self-contained only)

D 115/60/1 self-contained

E 230/50/1

(self-contained only)

Icemaker Voltage Series Condenser

V Vision™

H Harmony™

B Ice storage

bin

J Drop-in

700 up to

750 lbs

(340kg)

S RIDE™

(RIDE remote

ice delivery

equipment)

T Top-mount

Application Configuration

HC Horizon

Chewblet®

HM Horizon

Micro Chewblet®

HARMONY • RIDE Technology self-contained

Front cover

Internal connection

Ice transport tube

External connection

Louvered docking assembly

Dispenser preparation

Site preparation

Unpack

Read and complete the following 8 installation steps

4self-contained HARMONY • RIDE Technology

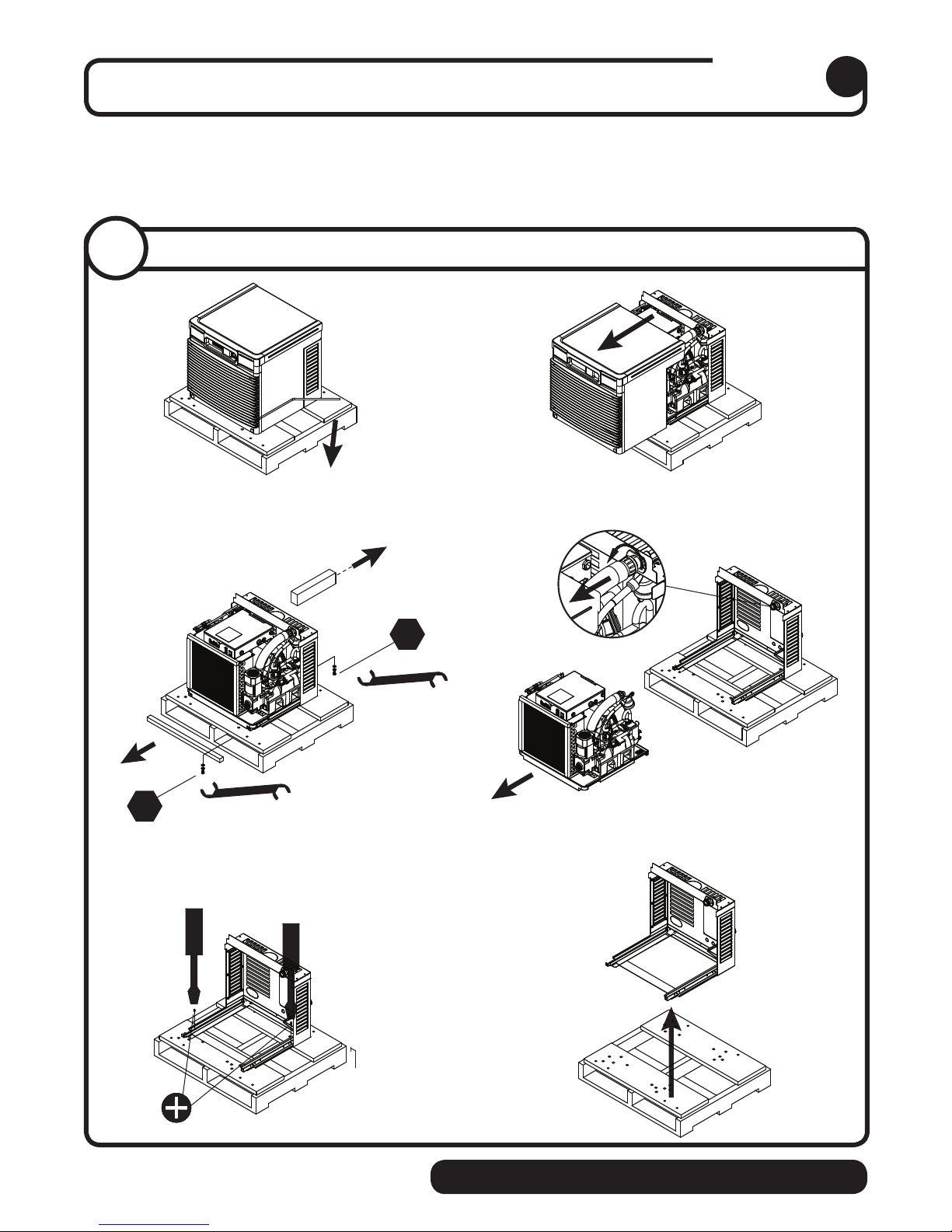

Carefully unpack and inspect the contents of your Follett icemaker. 1

Unpack

7/16"







Unpack icemaker

1. 1

HARMONY • RIDE Technology self-contained

NEMA

6-15

H_D700A/W

NEMA

5-15

H_D700A/W

1/4"









Prepare the installation site. 2

Site preparation

Electrical ➊

• H_C700(A/W)HS 208-230/60/1-15 amp breaker • H_D700(A/W)HS 115/60/1-15 amp breaker

(H_C700A/W Requires a 15 amp dedicated circuit) (H_D700A/W Requires a 15 amp dedicated circuit)

• H_E700(A/W)HS 230/50/1-15 amp‡breaker

(H_E700A/W Requires 15 amp circuit 1.50 mm2wire)

‡ Plug must be provided by end user & must conform to standard EN 60 335-2-24 of the end destination.

Potable water supply ➋

• 10-70 psi (69-483kpa)

• 45 to 90 F (7 to 32 C)

• Water supply must be treated by a scale-inhibiting lter (item# 00130286)

Condenser water supply for water-cooled systems ➌

• 10 psi min.; 150 psi max. (69kpa min.; 1034kpa max.)

• 20 to 90 F (-7 to 32 C)

• 1.5 gallons per minute (5.68 liters per minute)

Drain ➍

• The drain line from the ice machine must be vented and have at least 1/4” per foot

(6,4mm/0,3m) pitch

2.1

Provide drainage, water supply and electrical power to within 6 feet

(2m) of icemaker in accordance with local and national codes. Outdoor

installation is not recommended and will void warranty.

115V ±5%

208V -5% to 230V +5%

Installation site requirements

2.1

6self-contained HARMONY • RIDE Technology

Prepare the dispenser. 3

Dispenser preparation

(127mm)

3" ∅

(76,2mm)

• Locate hole position 5" (127mm) from

back of dispenser top

• Cut 3" (77,2mm) diameter hole in

dispenser top

Top preparation

3.1

• Remove protective tape from gaskets

Top preparation

3.2

➋

➊

➌

➊

• Apply gaskets

➊

• Install shuttle actuator ➋ through

dispenser top and secure with locking nut

➌

Top preparation

3.3

➋

➊

• Screw 4" (102mm) extension ➊ into

bottom of shuttle actuator ➋

Top preparation

3.4

HARMONY • RIDE Technology self-contained

OFF

Cornelius models ED, DB, DF, IDC and

FLAVOR FUSION

Adjust the agitation timer located on the

Cornelius PC board to 1 second on, 1 hour

off. Note: See Cornelius manual for more

information.

Agitation adjust. – CORNELIUS

3.5

PRESS IN ON

THIS SIDE TO

TURN SWITCH

ON.

SWITCH

OFF

PRESS IN ON

THIS SIDE TO

TURN SWITCH

OFF.

ROCKER

SWITCHES

(VIEW LOOKING

DOWN)

SIDE VIEW

12345678

OFF

SWITCH

NUMBER

AGITATION FREQUENCY

NO AGIT

ATION

10 MINUTES

20 MINUTES

30 MINUTES

40 MINUTES

50 MINUTES

60 MINUTES

70 MINUTES

80 MINUTES

90 MINUTES

100 MINUTES

110 MINUTES

120 MINUTES

130 MINUTES

140 MINUTES

150 MINUTES

SWITCH

NUMBER

AGITATION TIME

1 SECOND

2 SECONDS

3 SECONDS

4 SECONDS

X = ON

O = OFF

Lancer 4500 series only

Adjust the agitation time to 1 second, and the agitation frequency to 150 minutes. See Lancer

manual for more information.

Agitation adjustments – LANCER 4500 SERIES

3.6

8self-contained HARMONY • RIDE Technology

Major/Minor

FS-16 Setup

Config Bonus Key

Soda/Plain Water

Config Dispense Only

PC Mode

PC Time

Ice Stir Off

Ice Stir On

Sold Out

Carb Sensors

Ice Bin Sensors

Valve Code Version

Number Of Valves

Reset Defaults No Yes

Reload Defaults?

1 2 3 4

12 0.104 0.104

1000

Ice Bin Optic

Upper Lower

Sold Out #1

Selection Sold Out

05000

On Time (MSEC)

Off On

Set PC Mode Menu

V:1 B1 DLY1

Dispense Delay

V:2 1:S 2:W 3:S 4:W

V:1 T:F M:S B:W

Bonus Key Setup

Brands Per Side

V:1 L:2 R:1

FS-16 Setup

Soda/Plain Water

OFF Time (MIN)

00150

On Time (MSEC)

01000

1000 500

34 0.104 0.104

On On On On

V:1 B:1

Sold Out #1

Off

Sold Out #1

Ver. 0.200

Lancer FS-16

Sub-CatagoryMain Menu

Initialization Screen

2nd Sub-Catagory

(Boot Up Only)

Cancel Enter

Scrolls through Main Menu

Press "Enter" to enter sub-catagory

Moves curser to right or left

Changes value (number/letter)

Press "Enter" to enter save changes

Press "Cancel" to exit menu

➊

Lancer FS series only

• Hold down “cancel” and “left button” to get to hidden menu ➊

• Type in code 6655

• Type in 150 minutes “off time” and 1000 milliseconds (1 second of time) as the preferred setting

Note: See Lancer manual for more information

Agitation adjustments – LANCER FS SERIES

3.7

Agitation adjustments – SERVEND

3.8

SerVend models only

No agitation adjustment required

HARMONY • RIDE Technology self-contained

10-32 nut

flat washer

ice chute

gasket

apply food-grade

silicone sealant

to this surface

to seal to bin gate

mounting plate

ice diverter

(supplied)

mounting

gate

plate

storage bin

plate

gate

restrictor

gate opening

bin through

into storage

flange extends

➋

➊

Cornelius ED, DF and DB series only

These dispensers require the installation of an ice diverter at the dispenser opening.

• Disassemble chute assembly

• Discard factory restrictor plate ➊

• Replace with alternate diverter plate, ➋(supplied)

Dispenser diverter plate installation – CORNELIUS ED, DF and DB SERIES

3.9

10 self-contained HARMONY • RIDE Technology

➊

➋

adjust restrictor

plate to fully

open position

Cornelius IDC and Flavor Fusion

These dispensers require the adjustment of the ice restrictor plate.

• Loosen four nuts on ice chute assembly ➊

• Adjust restrictor plate to fully open position ➋

• Replace four nuts and tight to 50 in lbs (max.)

Restrictor plate adjustment – CORNELIUS IDC and FLAVOR FUSION

3.10
