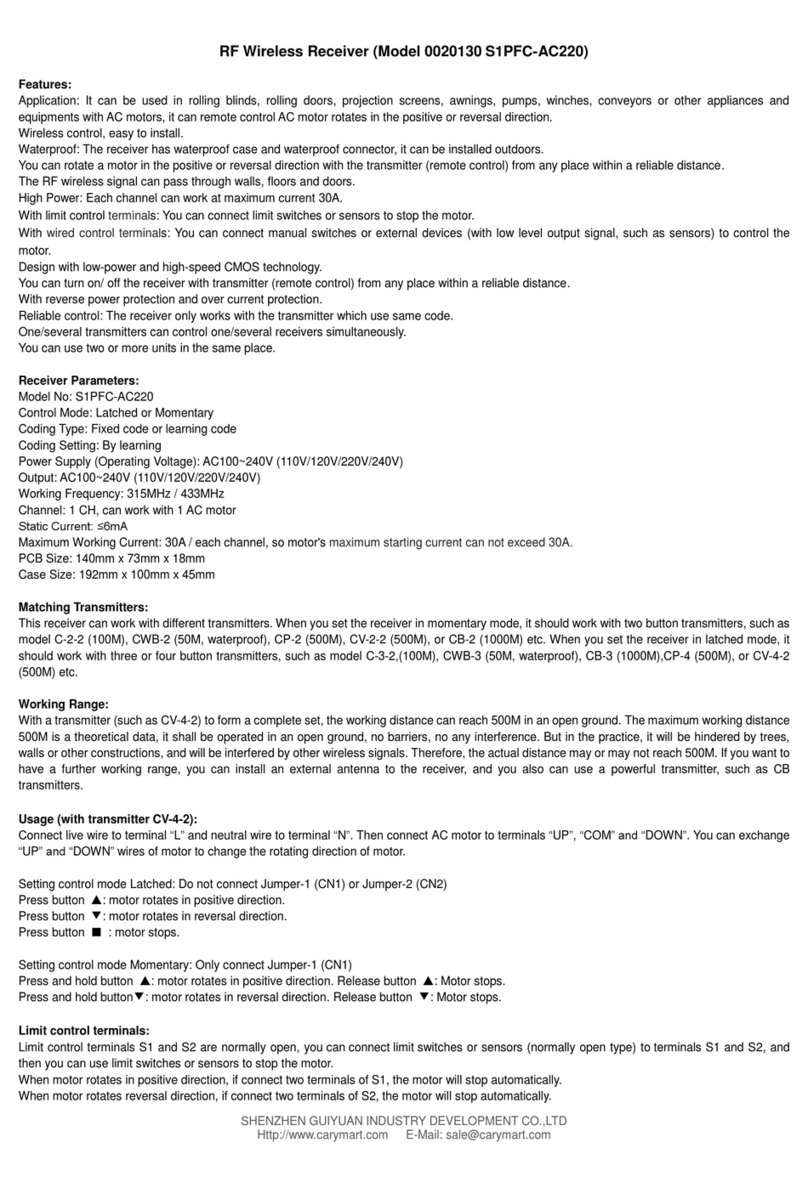

RF Wireless Remote Control Kit (Model 0020210 2S1PFC-AC220+CV-4-3)

The receiver is designed for one-transmitter-many-receivers system. You can use a 4 buttons transmitter to control 2 receivers, or use a 6

buttons transmitter to control 3 receivers, or use a 8 buttons transmitter to control 4 receivers, or use a 12 buttons transmitter to control 6

receivers.

Package Include:

2 X Receiver: S1PFC-AC220

1 X Transmitter: CV-4-3

1 X Use manual

Features:

Application: It can be used in rolling blinds, rolling doors, projection screens, awnings, pumps, winches, conveyors or other appliances and

equipments withAC motors, it can remote controlAC motor rotates in the positive or reversal direction.

Wireless control, easy to install.

Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.

You can rotate a motor in the positive or reversal direction with the transmitter (remote control) from any place within a reliable distance.

The RF wireless signal can pass through walls, floors and doors.

High Power: Each channel can work at maximum current 30A.

With limit control terminals: You can connect limit switches or sensors to stop the motor.

With wired control terminals: You can connect manual switches or external devices (with low level output signal, such as sensors) to control the

motor.

Design with low-power and high-speed CMOS technology.

You can turn on/ off the receiver with transmitter (remote control) from any place within a reliable distance.

With reverse power protection and over current protection.

Reliable control: The receiver only works with the transmitter which use same code.

One/several transmitters can control one/several receivers simultaneously.

You can use two or more units in the same place.

Receiver Parameters:

Model No: S1PFC-AC220

Control Mode: Latched or Momentary

Coding Type: Fixed code or learning code

Coding Setting: By learning

Power Supply (Operating Voltage): AC100~240V (110V/120V/220V/240V)

Output: AC100~240V (110V/120V/220V/240V)

Working Frequency: 315MHz / 433MHz

Channel: 1 CH, can work with 1 AC motor

Static Current: ≤6mA

Maximum Working Current: 30A / each channel, so motor's maximum starting current can not exceed 30A.

PCB Size: 140mm x 73mm x 18mm

Case Size: 192mm x 100mm x 45mm

Transmitter:

Model No.: CV-4-3

Shell Color: White

Channel/Button: 4

Button Symbol: Two▲, Two▼,

Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)

Operating Current: 15mA

Encoding Chip: PT2262

Encoding Type: Fixed code by soldering, up to 6561 codes

Transmitting Distance: 500m / 1500ft (theoretically)

Modulation Mode: ASK

Operating Temperature: -20 °C to +70 °C

Unit Size: 110mm x 50mm x 18mm

Working Range:

With a transmitter (such as CV-4-3) to form a complete set, the working distance can reach 500M in an open ground. The maximum working distance

500M is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees,

walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may or may not reach 500M.

Usage (with transmitter CV-4-3):

Connect live wire to terminal “L”and neutral wire to terminal “N”. Then connect AC motor to terminals “UP”, “COM” and “DOWN”. You can exchange

“UP” and “DOWN”wires of motor to change the rotating direction of motor.

SHENZHEN GUIYUAN INDUSTRY DEVELOPMENT CO.,LTD

Http://www.carymart.com E-Mail: sale@carymart.com

Setting control mode Latched: Do not connect Jumper-1 (CN1) or Jumper-2 (CN2)

Press button ▲of first row: motor of receiver 1 rotates in positive direction.

Press button ▼of first row: motor of receiver 1 rotates in reversal direction.

Press button ▲of second row: motor of receiver 1 stops;

motor of receiver 2 rotates in positive direction.

Press button ▼of second row: motor of receiver 2 rotates in reversal direction.

Setting control mode Momentary: Only connect Jumper-1 (CN1)

Press and hold button ▲of first row: motor of receiver 1 rotates in positive direction. Release button ▲of first row: Motor stops.

Press and hold button▼of first row: motor of receiver 1 rotates in reversal direction. Release button ▼of first row: Motor stops.

Press and hold button ▲of second row: motor of receiver 2 rotates in positive direction. Release button ▲of second row: Motor stops.

Press and hold button▼of second row: motor of receiver 2 rotates in reversal direction. Release button ▼of second row: Motor stops.

Limit control terminals:

Limit control terminals S1 and S2 are normally open, you can connect limit switches or sensors (normally open type) to terminals S1 and S2, and

then you can use limit switches or sensors to stop the motor.

When motor rotates in positive direction, if connect two terminals of S1, the motor will stop automatically.

When motor rotates reversal direction, if connect two terminals of S2, the motor will stop automatically.

Wired control terminals:

You can connect manual switches, external devices or sensors (with low level output signal) to control the motor.

1) The manual switches:

You can connect manual switches to terminals “Signal 1+”, “Signal 1-”, “Signal 2+”, “Signal 2-”, then you can use manual switches to control the

motor.

When connect terminals “Signal 1+”and “Signal 1-”, motor rotates in positive direction.And when disconnect “Signal 1+”and “Signal 1-”, motor stops.

When connect terminals “Signal 2+”and “Signal 2-”, motor rotates in reversal direction. And when disconnect “Signal 2+”and “Signal 2-”, motor

stops.

2) Signal input:

You can connect external devices (with low level output signal) to terminals “Signal 1+”, “Signal 1-”, “Signal 2+”, “Signal 2-”, then the external

device’s output signal can control the motor.

When the external device outputs low level signal to terminal “Signal 1-”and “Signal 1+“, motor rotates in positive direction.

When the external device outputs low level signal to terminal “Signal 2-”and “Signal 2+“, motor rotates in reversal direction.

How to pair the transmitter to the receiver:

1) Press the learning button of receiver for 1- 2 seconds; signal LED on the receiver is on. The receiver enters into status of LEARNING.

2) Press any one button on transmitter. If signal LED flashes quickly 15 times and turns off, it means learning is successful.

3) When receiver is in the status of LEARNING, press again the button of receiver, signal LED turns off, learning process will be discontinued.

4) The receiver can learn several remote controls with different codes.

Delete all transmitters:

We have learned remote control to the receiver. If you don’t want the receiver to work with the remote control, you can delete all codes of remote

controls, which are stored in the receiver.

Operation: Press and hold the button of receiver until signal LED flashes slowly; release the button, LED keeps slow flash. That means all stored

codes have been deleted successfully.

SHENZHEN GUIYUAN INDUSTRY DEVELOPMENT CO.,LTD

Http://www.carymart.com E-Mail: sale@carymart.com

CN2

CN1

Control AC Motor

External Device

RF module

Antenna

Signal LED

Learning Button

Limit Terminals

AC Motor

Power Supply

DOWN

Relay1

Relay2

Power LED

Status LED 1

Status LED 2

Live wire

Neutral wire

COM

Signal 1+

Signal 1-

Signal 2-

Signal 2+

AC Power Supply
