Fluke IRR1-SOL Manual de usuario

Fluke IRR1-SOL

Irradiance Meter

Users Manual

5237649, September 2020



All product names are trademarks of their respective companies.

Fluke Corporation Fluke Europe B.V.

P.O. Box 9090 P.O. Box 1186

Everett, WA 98206-9090 5602 BD Eindhoven

U.S.A. The Netherlands

Introduction

The Fluke IRR1-SOL Irradiance Meter (the Meter) provides digital read-outs

related to photovoltaic (PV) panels. Measures and reads:

•Solar irradiation (W/m2) on the surface of a photovoltaic (PV) panel

•Temperature (°F or °C) on the surface of a photovoltaic (PV) panel

•Inclination (degrees) of a photovoltaic (PV) panel

•

The read-outs provided by the Meter help determine optimum positioning of the

photovoltaic (PV) panel for best performance.

Kit Components



1 FLK-IRR1-SOL/001 Solar Irradiance Meter

1 

1 

4 AA Alkaline Batteries

1 User Manual

English

99 Washington Street

Melrose, MA 02176

Phone 781-665-1400

Toll Free 1-800-517-8431

Visit us at www.TestEquipmentDepot.com

Symbols

Symbol Description

WARNING. RISK OF DANGER.

Consult user documentation.

Battery or battery compartment.

Conforms to relevant South Korean EMC Standards.

Conforms to relevant Australian standards.

Conforms to European Union directives.





󰀩

not discard this electrical/electronic product in domestic



the equipment types in the WEEE Directive Annex I, this

product is classed as category 9 “Monitoring and Control

Instrumentation” product. Do not dispose of this product as



Safety Information

A Warning

dangerous to the user. A Caution

can cause damage to the Product or the equipment under test.

Warning

To prevent personal injury and damage to the Product:

• Read the entire users manual before using the Meter.

• Use the Meter only as described in the Users Manual otherwise

the protection provided by the equipment may be impaired.

• Inspect the Meter before use. Do not use it if it appears damaged.

• Do not use the Meter around explosive gas, vapor, and/or in damp

or wet environments that exceeds IP40.

• The Meter contains no user-serviceable parts. Do not open

the instrument.

• Use only AA batteries, properly installed in the Meter case, to

power the Meter (see Battery Replacement).

• To avoid false readings, replace the batteries as soon as the low

battery indicator appears.

• Remove the batteries if the Meter is not used for an extended

period of time, or if stored in temperatures above 140 °F (60 °C).

If the batteries are not removed, battery leakage can damage the

Meter.

• 

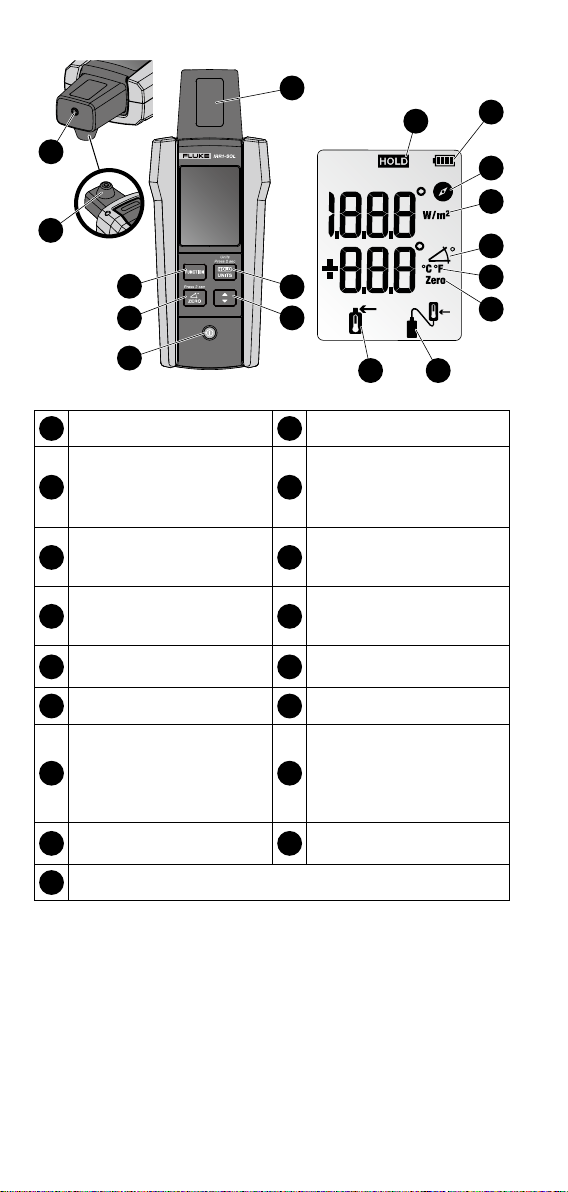

Product Overview

910

1617

1ON/OFF Button 10 Battery Level Indicator

Angle Reset Button

* Use function to measure

󰀨

panel and surface

11 Compass Function Indicator

Function key for Irradiance,

Temperature, Compass and

Angle measurements

12 Irradiance Units and

Function Indicator

Integrated Temperature

Sensor for panel's surface

measurement

13 Angle Function Indicator

5External Temperature

Probe Socket 14 Temperature Units Indicator

(Celsius / Fahrenheit)

6Photovoltaic Irradiance Sensor 15 Angle Reset Indicator

Hold Button to hold

measurement on the display

*Push button for 2 seconds

to enable Temperature Units

Change mode

16 External Temperature

Probe Indicator

8

Button (Celsius / Fahrenheit) 17 Integrated Temperature

Sensor Indicator

9Hold Indicator

Operation



Change Function Screens

Change Temperature Units

Connect the External Temperature Probe

Reset Inclination

Hold Function

Measuring Temperature and Irradiance

Irradiance and Internal Sensor Temperature Measurements

The Meter can measure irradiance and temperature by simply placing the

meter directly onto the PV panel. The internal, embedded conductive sensor



Temperature can also be taken through the external temperature probe.

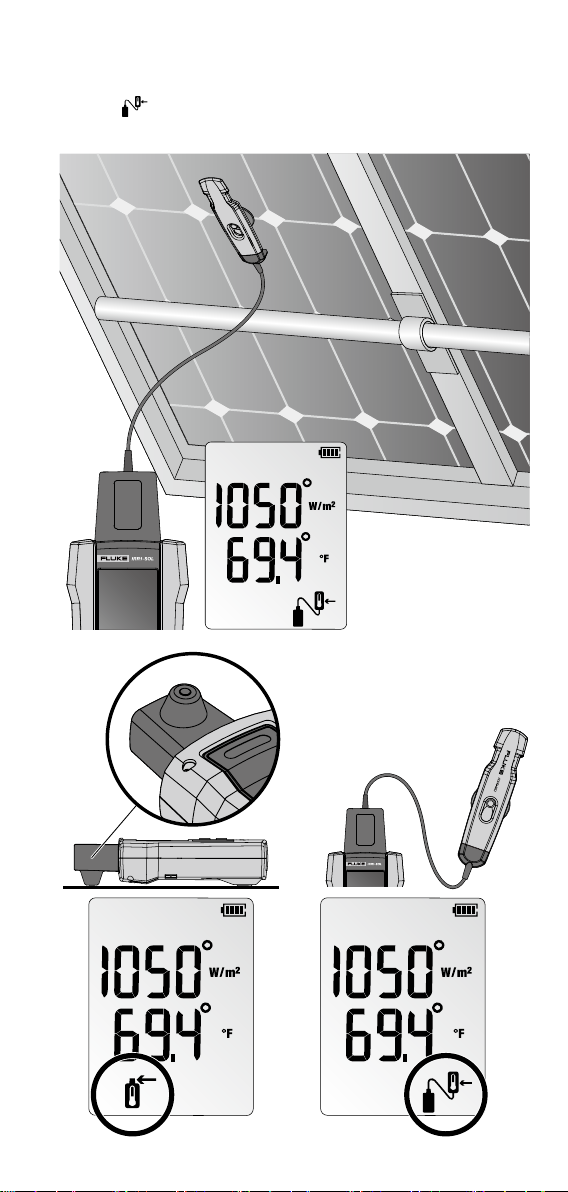

Connecting the External Temperature Probe

Attach the temperature probe to the top of the Meter. The screen automatically

the icon once connected. The icon indicates that the temperature

Place the Meter on or beside the PV

panel and connect the suction cup to the underside of the PV panel.

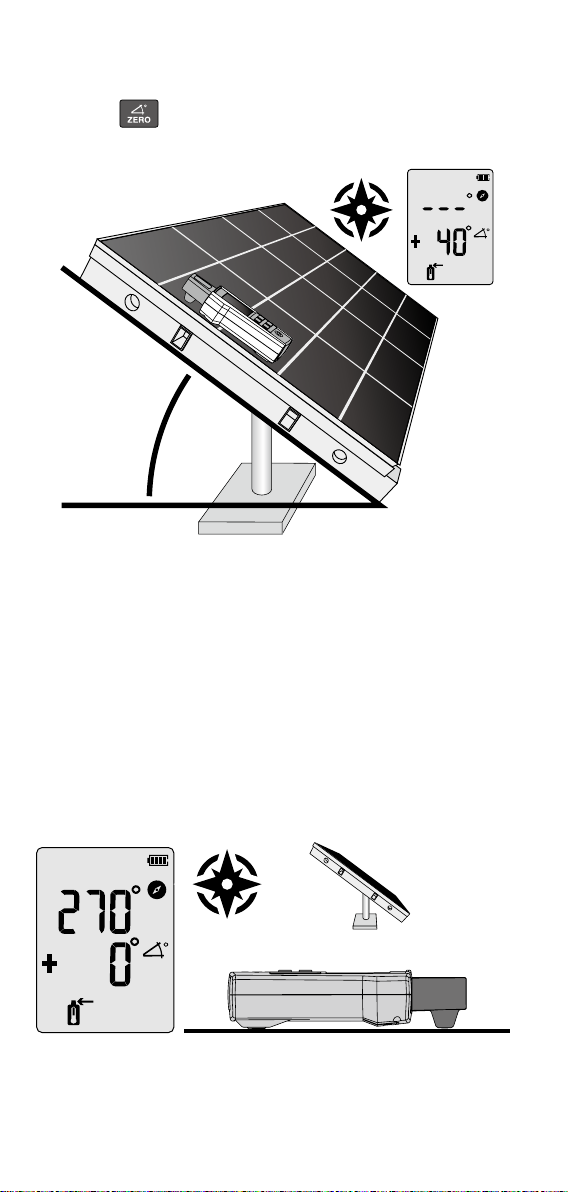

Measuring Inclination and Cardinal Direction

Place the Meter directly onto the PV panel to get accurate tilt.

󰀨

ZERO button for 2 seconds to reset the angle and measure the true

inclination of a solar panel.

≤90°



cardinal direction.















tilt) pointing the tip of the meter in the direction that the PV panel faces. Keep



Note

The compass will reference magnetic north. The compass reading will

be unreliable if the meter is placed on or near objects containing metal

(including solar panels, metal roofs, concrete surfaces with rebar, etc).

Maintenance

Battery Replacement

The battery compartment on the back of the Meter makes it easy to change

the batteries. Use four (4) AA 1.5 V alkaline batteries.

Note: Batteries are not pre-installed in the meter.

1. 󰀨

2. 

3. Remove the battery cover.

4. Install batteries.

5. 

3AA 4x

Cleaning



Caution

To prevent damage to the Meter:

• The Meter contains no user-serviceable parts. To avoid injury, or

damage to the Meter, do not open the case.

• To avoid damaging the Meter, do not use abrasives or solvents to

clean the Meter case.

Storage

During longer periods of non-use (>60 days), remove and store the

battery separately.

Service and Parts



contact your nearest Fluke dealer or service center.

Specications

Irradiance

Measuring range ................0 to 1400 W/m²

Resolution ..........................1 W/m²

Measuring Accuracy...........±(5 % + 5 Digit)

Temperature Measurement

Measuring range (°C).........-30 °C to 100 °C (-22 °F to 212 °F)

Resolution ..........................

Measuring Accuracy...........





14 °F) and 75 °C to 100 °C (167 °F to 212 °F)

Note: Temperature measurement response time: ~30 sec.

Inclination Angle

Measuring range ................-90° to +90°

Resolution ..........................0.1°

Measuring Accuracy...........





Compass

Measuring range ................0° to 360°

Resolution ..........................1°

Measuring Accuracy...........±7°

Note:

a) Measurements valid for device inclination between -20° and +20° to

horizontal. Outside that range on LCD will be shown "---".

b) Result is referred to magnetic north.

Operating Temperature

Operating temperatures .....

noncondensing

80PR-IRR: -30 °C to 100 °C

Storage temperature ..........

Altitude ...............................0 m to max. 2000 m

Electromagnetic Compatibility (EMC)

International

IEC 61326-1: Portable Electromagnetic Environment

CISPR 11: Group 1, Class A

Group 1: Equipment has intentionally generated and/or uses conductively-

coupled radio frequency energy that is necessary for the internal function

of the equipment itself.

Class A: Equipment is suitable for use in all establishments other than

domestic and those directly connected to a low voltage power supply

network that supplies buildings used for domestic purposes. There may

be potential diculties in ensuring electromagnetic compatibility in other

environments due to conducted and radiated disturbances.

Caution: This equipment is not intended for use in residential

environments and may not provide adequate protection to radio reception

in such environments.

Korea (KCC)

Class A Equipment (Industrial Broadcasting & Communication Equipment)

Class A: Equipment meets requirements for industrial electromagnetic

wave equipment and the seller or user should take notice of it. This

equipment is intended for use in business environments and not to be

used in homes.

USA (FCC)

47 CFR 15 subpart B. This product is considered an exempt device per

clause 15.103.

Protection

IP Protection.......................IP40

Power Supply & Battery Life

Batteries.............................4 AA Alkaline Batteries

Battery Life (typical) ...........50 hours (>9000 readings)

󰀨..................30 minutes

Dimensions

L x W x H............................150 x 80 x 35 mm

(5.90 x 3.14 x 1.37 in)

Weight................................231g (0.5lb)
