FIBER QUICKMAP™

Multimode Troubleshooter

Users Manual

LIMITED WARRANTY AND LIMITATION OF LIABILITY

Fluke Networks mainframe products will be free from

defects in material and workmanship for one year from the

date of purchase, unless stated otherwise herein. Parts,

accessories, product repairs and services are warranted for

90 days, unless otherwise stated. Ni-Cad, Ni-MH and Li-Ion

batteries, cables or other peripherals are all considered parts

or accessories. This warranty does not cover damage from

accident, neglect, misuse, alteration, contamination, or

abnormal conditions of operation or handling. Resellers are

not authorized to extend any other warranty on Fluke

Networks’ behalf.

To obtain service during the warranty period, contact your

nearest Fluke Networks authorized service center to obtain

return authorization information, then send your defective

product to that Service Center with a description of the

problem.

For a list of authorized resellers, visit

www.flukenetworks.com/wheretobuy.

THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER

WARRANTIES, SUCH AS FITNESS FOR A PARTICULAR

PURPOSE, ARE EXPRESSED OR IMPLIED. FLUKE NETWORKS IS

NOT LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR

CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM

ANY CAUSE OR THEORY.

Since some states or countries do not allow the exclusion or

limitation of an implied warranty or of incidental or

consequential damages, this limitation of liability may not

apply to you.

4/15

Fluke Networks

PO Box 777

Everett, WA 98206-0777

USA

Contents

Introduction .................................................................................... 1

Registering Your Product .............................................................. 1

The Fluke Networks Knowledge Base......................................... 1

Symbols ............................................................................................ 2

Safety Information.................................................................... 2

Battery Installation and Life.......................................................... 4

Physical Features............................................................................. 4

Display Features.............................................................................. 6

Settings ............................................................................................ 8

The Connector Adapter................................................................. 9

How to Clean Connectors.............................................................. 10

How to Use a Mechanical Device ............................................ 10

How to Use Swabs, Wipers, and Solvent................................ 11

Protect Connectors .................................................................... 12

About Launch and Receive Fibers ................................................ 13

How to Use the Troubleshooter................................................... 14

Measurement Results..................................................................... 16

Maintenance ................................................................................... 20

Contacting Fluke Networks........................................................... 21

Options and Accessories ................................................................ 22

Specifications................................................................................... 22

FIBER QUICKMAP Users Manual

Introduction

The FIBER QUICKMAP™Multimode Troubleshooter does these

tests to help you find incidents on multimode fiber optic cables:



Maps the connections in multimode fiber plants by

showing the number of incidents on the fiber and the

distance to each incident.



Measures the length of multimode fiber optic cables



Measures the distance to reflective and loss incidents



Measures the reflectance of connectors

Registering Your Product

When you register your product with Fluke Networks you get

access to valuable information on updates, troubleshooting

procedures, and other support services.

To register online, go to www.flukenetworks.com/registration.

The Fluke Networks Knowledge Base

The Fluke Networks Knowledge Base gives answers to typical

questions about Fluke Networks products and includes

information on technology and procedures for network and

cable tests. To see the Knowledge Base, go to

www.flukenetworks.com, then click SUPPORT > Knowledge

Base.

FIBER QUICKMAP Users Manual

Symbols

Safety Information

Warning: Class 1 Laser

To prevent possible damage to your eyes caused by

hazardous radiation:



Do not look directly into optical connectors. Some

optical equipment emits invisible radiation that can

cause permanent damage to your eyes.



Do not turn on the troubleshooter unless a fiber is

attached to the port.

Warning or Caution: Risk of damage to or destruction of

equipment or software. See explanations in the manual.

Warning: Risk of electrical shock.

Warning: Class 1 laser. Risk of damage to your eyes caused

by hazardous radiation.

Conforms to relevant European Union directives

Conforms to relevant Australian standards

Listed by the Canadian Standards Association

CSA C22.2 No. 61010.1.04

Conforms to FCC Rules, Part A, Class A

Do not put products that contain circuit boards into waste

containers. Refer to local regulations for disposal

procedures.

This key turns the Product on and off.

Safety Information



Do not use a magnifying device to look at the optical

outputs without the correct filter.



Use of controls, adjustments, or procedures that are

not in this manual can cause exposure to hazardous

radiation.

Caution

To prevent damage to fiber connectors, to prevent

data loss, and to make sure that your test results are

as accurate as possible:



Do not connect APC connectors to the troubleshooter.

An APC connector will cause damage to the fiber

endface in the connector on the troubleshooter.



Use only test cords that comply with GR-326-CORE

specifications and have UPC connectors. Other test

cords can cause unreliable measurements.



Use the correct procedures to clean all fiber connectors

before each test. If you do not do this or if you use

incorrect procedures, you can get unreliable test

results and can cause permanent damage to the

connectors.



Put protective caps on all connectors when you do not

use them.



Do not connect the troubleshooter to a network that

is on. If you do, the troubleshooter can cause problems

in the network.



If ACTIVE LINE blinks, immediately disconnect the

troubleshooter from the fiber. Optical power levels

more than +7 dBm can cause damage to the detector

in the troubleshooter.

FIBER QUICKMAP Users Manual



The troubleshooter senses optical signals only at

850 nm. If there might be signals at other wavelengths

on a fiber, use a different instrument to make sure that

the fiber is not active before you connect the

troubleshooter to the fiber.

Battery Installation and Life

fjy03.eps

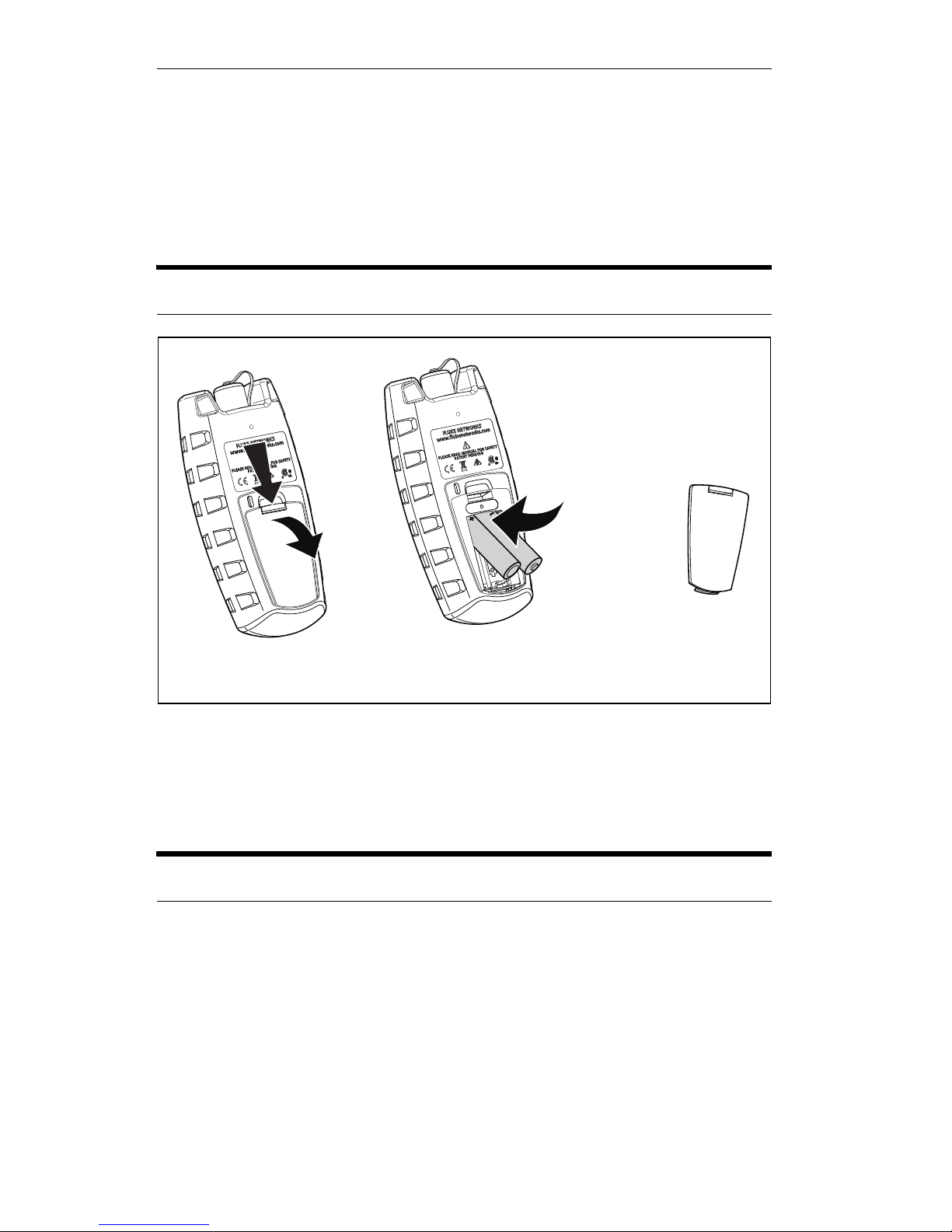

Figure 1. How to Install the Batteries

The troubleshooter can do approximately 1500 tests before you

must replace the batteries.

Physical Features

See Figure 2.



Output port with SC adapter and UPC endface



Starts a test



On/off key



Navigation keys

IEC LR6

NEDA 15A

Note: Fluke Networks recommends alkaline batteries.

Physical Features



Press to see the setup menu, to select an item, and to save

a setting



LCD display

gbw04.eps

Figure 2. Physical Features

FIBER QUICKMAP Users Manual

Display Features

gbw01.eps

Figure 3. Display Features



When the low battery symbol shows, replace the batteries

soon. See page 4.



When you press , the troubleshooter looks for an

850 nm optical signal on the fiber. If there is an 850 nm

signal stronger than -15 dBm on the fiber, ACTIVE LINE

blinks and the troubleshooter will not do a test.

Caution

If ACTIVE LINE blinks, immediately disconnect the

troubleshooter from the fiber. Optical power levels

more than +7 dBm can cause damage to the detector

in the troubleshooter.
