PN 2842344

June 2007

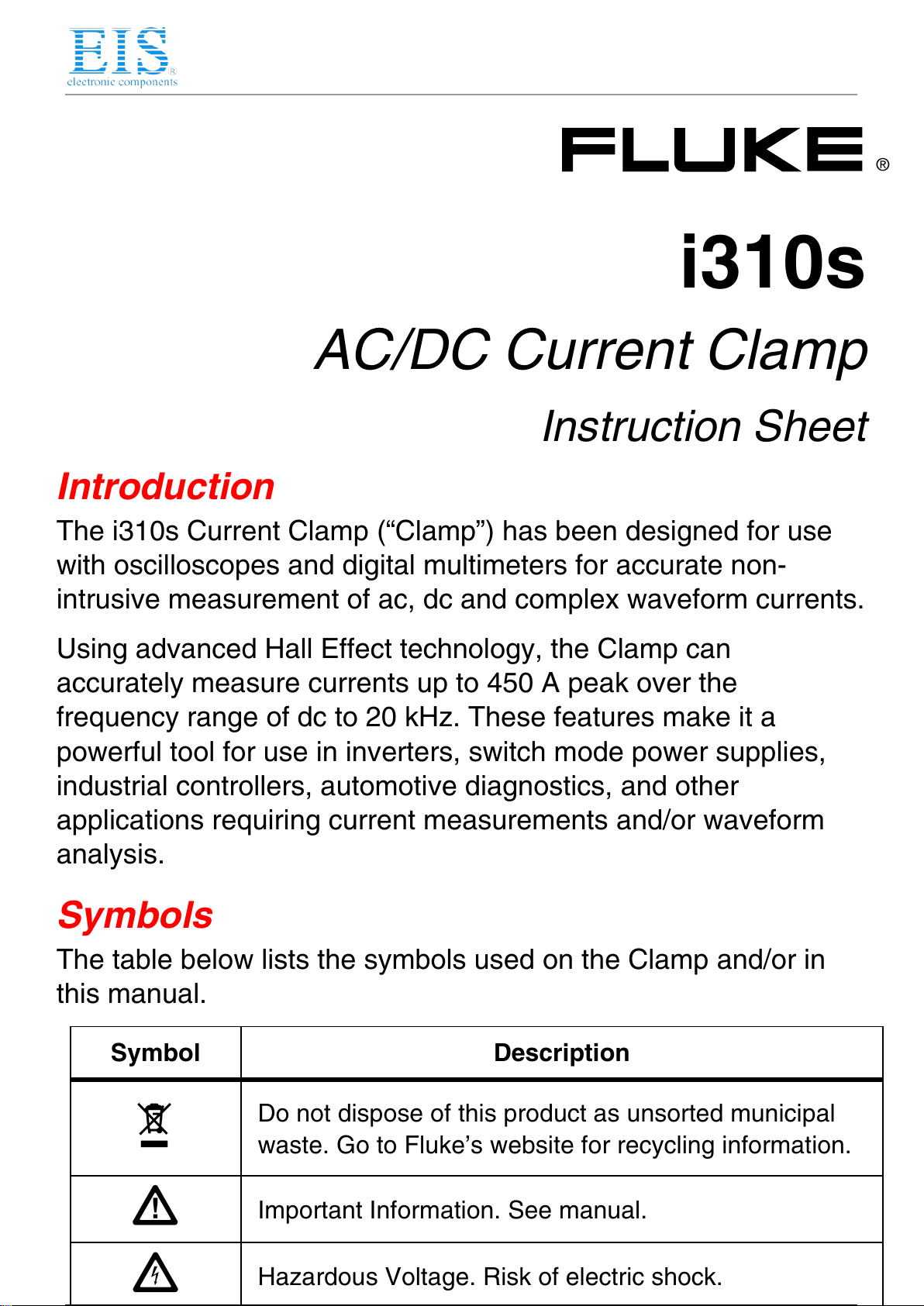

i310s

AC/DC Current Clamp

Instruction Sheet

Introduction

The i310s Current Clamp (“Clamp”) has been designed for use

with oscilloscopes and digital multimeters for accurate non-

intrusive measurement of ac, dc and complex waveform currents.

Using advanced Hall Effect technology, the Clamp can

accurately measure currents up to 450 A peak over the

frequency range of dc to 20 kHz. These features make it a

powerful tool for use in inverters, switch mode power supplies,

industrial controllers, automotive diagnostics, and other

applications requiring current measurements and/or waveform

analysis.

Symbols

The table below lists the symbols used on the Clamp and/or in

this manual.

Symbol Description

~Do not dispose of this product as unsorted municipal

waste. Go to Fluke’s website for recycling information.

WImportant Information. See manual.

XHazardous Voltage. Risk of electric shock.

TDouble insulation.

,Application around and removal from HAZARDOUS

LIVE conductors is permissible.

)Conforms to Canadian Standards Association.

PComplies with the relevant European standards.

;Conforms to Australian standards.

2 / 9

Distributor of Fluke Electronics: Excellent Integrated System Limited

Datasheet of I310S - CURRENT PROBE AC/DC

i310s English Instruction Sheet

Page 2

Safety Instructions

Please read this section carefully. It will make you familiar with

the most important safety instructions for handling your product.

In this instruction sheet, a Warning identifies conditions and

actions that pose hazard(s) to the user. A Caution identifies

conditions and actions that may damage the calibrator or the test

instruments.

WX Warning

The Clamp may only be used and handled by

qualified personnel. To avoid personal injury, follow

these precautions:

•To avoid electric shock, use caution during

installation and use of this product; high

voltages and currents may be present in circuit

under test.

•Do not use the Clamp if damaged. Always

connect to display device before it is installed

around the conductor.

•Always ensure the Clamp is removed from any

live electric circuit, and leads are disconnected

before removing the battery cover.

•Use the Clamp only as specified in the

operating instructions; otherwise the safety

features may not protect you.

•Adhere to local and national safety codes.

Individual protective equipment must be used

to prevent the shock and arc blast injury where

hazardous live conductors are exposed.

•Do not hold the Clamp anywhere beyond the

tactile barrier.

•Before each use, inspect the Clamp. Look for

cracks or missing portions of the housing or

output cable insulation. Also look for loose or

weakened components. Pay particular attention

to the insulation surrounding the jaws.

•Use caution when working with voltages above

60 V dc, 30 V ac rms or 42 V ac peak. Such

voltages pose a shock hazard.

•Use of this equipment is designed to protect

against transients in equipment in fixed

equipment installations, such as distribution

panels, feeders and short branch circuits, and

lighting systems in large buildings.

3 / 9

Distributor of Fluke Electronics: Excellent Integrated System Limited

Datasheet of I310S - CURRENT PROBE AC/DC

i310s English Instruction Sheet

Page 3

•CAT III equipment is designed to protect against

the transients in the equipment in fixed

equipment installations, such as distribution

panels, feeders and short branch circuits, and

the lighting systems in large buildings.

•Do not use Clamp in wet environments or in

locations that hazardous gases exist.

Specifications

Electrical Characteristics

All accuracies stated at 23°C ± 1°C (73.4 °F ± 33.8 °F)

Current Range 30 A and 300 A ac rms or

± 45 A and 450 A dc

Inrush Current 600 A ac rms Max

Output Sensitivity 10 mV/A (30 A)

1 mV/A (300 A)

Accuracy (30 A range) ± 1 % of reading ± 50 mA

(300 A range) ± 1 % of reading ± 300 mA

@25 °C, Bandwidth dc to 1 kHz

Bandwidth to Meet

Accuracy

Specification

1 kHz

Phase Shift below 1

kHz < 2 degrees

Resolution ± 50 mA (30 A)

± 100 mA (300 A)

Load impedance > 10 k Ωand ≤100 pF

Conductor Position

Sensitivity ± 1.5 % relative to center reading

Frequency Range

(small signal) DC to 20 kHz (-3 dB)

Temperature

Coefficient ± 0.01 % of reading / °C

Power Supply 9 V Alkaline, NEDA 1604/PP3 IEC 6LR61

Working Voltage 300 V ac rms or dc

Battery Life 30 hours, low battery indicator

4 / 9

Distributor of Fluke Electronics: Excellent Integrated System Limited

Datasheet of I310S - CURRENT PROBE AC/DC

i310s English Instruction Sheet

Page 4

General Characteristics

Maximum Conductor

Size 19 mm (0.748 in) diameter

Output Cable and

Connections

Safety BNC connector supplied

with safety 4 mm adapter

Output Zero Manual adjust via thumbwheel

Cable Length 2 meters

Operating Temperature

Range -10 to +50 °C (14 to +122 °F)

Storage Temperature

Range (with battery

removed)

-20 to +85 °C (-4 to +185 °F)

Operating Humidity 15 % to 85 % (non-condensing)

Weight 250 g (8.812 oz)

Safety Standards

EN 61010-1: 2001

EN 61010-2-032: 2002

EN 61010-031: 2002

300 V rms Category III, Pollution Degree 2

Use of the Clamp on non-insulated conductors is limited to 300

V ac rms or dc and frequencies below 1 kHz.

EMC Standards

EN 61236 :1998 +A1, A2, & A3

5 / 9

Distributor of Fluke Electronics: Excellent Integrated System Limited

Datasheet of I310S - CURRENT PROBE AC/DC

i310s English Instruction Sheet

Page 5

Typical Performance Plots

Frequency in Hz

Gain in dB

300A Range

30A Range

Typical Frequency Response i310s

evy01_4.eps

Typical Frequency Response

Amps

-2

-1.5

-1

-0.5

0.5

1.5

% Error of Reading

Typical Accuracy i310s 30A range

evy02.eps

Typical Frequency Response

Amps

-2

-1.5

-1

-0.5

0.5

1.5

% Error of Reading

Typical Accuracy i310s 300A range

evy03.eps

Typical Accuracy Curve

6 / 9

Distributor of Fluke Electronics: Excellent Integrated System Limited

Datasheet of I310S - CURRENT PROBE AC/DC

i310s English Instruction Sheet

Page 6

Operating Instructions

1 LED

2 Zero Adjust

3 Battery Cover

6 7

4 ON/OFF Range Switch

5 Tactile Barrier

6 Jaws

7 Battery Cover

Screw (Captive)

evy04.eps

Figure 1. i310s AC/DC Current Clamp

WX Warning

To avoid injury, when using the Clamp, ensure that

your fingers are behind the protective barrier as

shown in Figure 1.

Do not use the Clamp if any part, including the lead

and connector(s), appears to be damaged or if a

malfunction of the instrument is suspected.

Switch On

Switch the Clamp to the required current range, and check that

the LED is lit. The LED starts flashing when the battery voltage is

too low for normal operation and warns the user that it requires

changing. This procedure is described below.

Zero Adjustment

The output zero offset voltage of the Clamp may change due to

thermal shifts and other environmental conditions. To adjust the

output voltage to zero, depress the thumbwheel and rotate.

Ensure that the Clamp is away from the current carrying

conductor whilst the adjustment is made.

7 / 9

Distributor of Fluke Electronics: Excellent Integrated System Limited

Datasheet of I310S - CURRENT PROBE AC/DC

i310s English Instruction Sheet

Page 7

Current Measurement

1. Switch on the Clamp to the required current range and

check that the LED is lit.

2. Connect the output lead to an oscilloscope, multimeter,

or other measuring equipment.

3. If necessary, adjust the Clamp output voltage to zero as

described in section Zero Adjustment.

4. Clamp the jaw around the conductor ensuring a good

contact between the closing faces of the jaws.

5. Observe and take measurements as required. Positive

output indicates that the current flow is in the direction

shown by the arrow on the Clamp.

Maintenance

Cleaning

Clean the case periodically by wiping it with a damp cloth and

detergent. Do not use abrasive cleaners or solvents. Do not

immerse the Clamp in liquids.

Battery Replacement

WX Warning

To avoid personal injury, always ensure the Clamp

is removed from any live electric circuit, and leads

are disconnected before removing the battery cover.

Never operate the Clamp without the battery cover

fitted.

The red LED will flash when the minimum operating voltage is

approached. Refer to Figure 1. Use the following procedure:

1. Unclamp from the conductor, turn it off using the On –

Off switch and disconnect the output leads, from

external equipment.

2. Loosen the captive screw that secures the battery

cover. Lift the cover through 30° and pull it clear of the

Clamp body as shown in Figure 1. The battery is then

accessible. Replace the battery and re-fit the battery

cover and fasten the screw.

Note

Replacement with other than the specified type of

battery will invalidate the warranty.

Fit only the type 9 V PP3 Alkaline (MN 1604).

8 / 9

Distributor of Fluke Electronics: Excellent Integrated System Limited

Datasheet of I310S - CURRENT PROBE AC/DC

i310s English Instruction Sheet

Page 8

LIMITED WARRANTY AND LIMITATION OF LIABILITY

This Fluke product will be free from defects in material and

workmanship for one year from the date of purchase. This

warranty does not cover fuses, disposable batteries, or damage

from accident, neglect, misuse, alteration, contamination, or

abnormal conditions of operation or handling. Resellers are not

authorized to extend any other warranty on Fluke’s behalf. To

obtain service during the warranty period, contact your nearest

Fluke authorized service center to obtain return authorization

information, then send the product to that Service Center with a

description of the problem.

THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER

WARRANTIES, SUCH AS FITNESS FOR A PARTICULAR

PURPOSE, ARE EXPRESSED OR IMPLIED. FLUKE IS NOT

LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR

CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM

ANY CAUSE OR THEORY. Since some states or countries do

not allow the exclusion or limitation of an implied warranty or of

incidental or consequential damages, this limitation of liability

may not apply to you.

Fluke Corporation

P.O. Box 9090

Everett, WA 98206-9090

U.S.A.

Fluke Europe B.V.

P.O. Box 1186

5602 BD Eindhoven

The Netherlands

11/99

9 / 9

Otros manuales para i310s

Tabla de contenidos

Otros manuales de Instrumento de medición de Fluke

Fluke

Fluke DTX-1800 Manual de uso y cuidado

Fluke

Fluke C9970 Manual de usuario

Fluke

Fluke 430 Series Manual de instrucciones

Fluke

Fluke OptiFiber PRO OTDR Manual de usuario

Fluke

Fluke 1520 Manual de usuario

Fluke

Fluke 914 Series Manual de usuario

Fluke

Fluke 1735 Manual de usuario

Fluke

Fluke ProcessMeter 787B Manual de usuario

Fluke

Fluke PQ Window Manual de usuario

Fluke

Fluke 922 Manual de usuario

Fluke

Fluke ProcessMeter 787 Manual de usuario

Fluke

Fluke BT521 Manual de usuario

Fluke

Fluke 15B MAX Manual de usuario

Fluke

Fluke 365 Manual de usuario

Fluke

Fluke ESA614 Manual de usuario

Fluke

Fluke CableAnalyzer DSP-4100 Manual de usuario

Fluke

Fluke 3210-PR-TF Manual de usuario

Fluke

Fluke 3000 FC Manual de usuario

Fluke

Fluke SigmaPace 1000 Manual de usuario

Fluke

Fluke 189II/AN Manual de usuario

Fluke

Fluke Nuclear Associates 76-907 Manual de usuario

Fluke

Fluke ScopeMeter 123 Manual de usuario

Fluke

Fluke 8808A Manual de uso y cuidado

Fluke

Fluke ScopeMeter 123B Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario

Fluke i310s Manual de usuario

Manuales populares de Instrumento de medición de otras marcas
