Fluidmaster EVERYTHING Manual de usuario

K-400H-038

‘THE EVERYTHING’TM

3˝ TOILET TANK REPAIR KIT

HOW-TO VIDEO

VISIT: FLUIDMASTER.COM

K-400H-038 PRODUCT PAGE

VIDEO

HELPFUL

TOOLS INCLUDED!

FRENCH - Page 23

*See back page for important product warnings and warranty information.

GETTING STARTED

PARTS OVERVIEW

PERFORMAX®FILL VALVE FLUSH VALVE

TOOLS

Rubber Washer (x2)

Stainless Steel Washer (x2)

Large Hex Nut (x2)

Stainless Steel Bolts (x2)

Locknut

Shank

Washer

Rell Tube

Tank Water Level

Adjustment Screw

Bowl Water Level Dial

Rell Clip

Red WrenchGreen Tool

Red Tank-to-Bowl Gasket

Overow Pipe

3” Universal Flapper

Locknut

Tank Lever

STEP 1: PREPARE TANK

SEE INSTRUCTION VIDEO ON WEBSITE FOR REFERENCE.

B: DRAIN WATER

Flush toilet to drain most of the water from tank.

FLUSH

A: TURN OFF WATER

HOW-TO VIDEO

VISIT: FLUIDMASTER.COM

K-400H-038 PRODUCT PAGE

STEP 2: REMOVE OLD PARTS

A: REMOVE CONNECTOR

Remove water supply connector from

bottom of ll valve by twisting con-

nector nut to the left.

B: REMOVE OLD LOCKNUT

Use green tool to twist locknut to the

left below tank to remove locknut from

ll valve.

C: REMOVE OLD FILL VALVE

Including rell tube, rell clip and

shank washer. Drain any excess

water into the back panel of

empty packaging by removing ll

valve from tank. (Pull ll valve up)

D: DISCONNECT

FLAPPER CHAIN

Towel

(Optional)

NOTE: Inspect water

supply connector. Replace it if

it is worn, or you don’t know

how old it is, to prevent ooding

and property damage.

Green Tool

Tank Lever

E: REMOVE TANK FROM BOWL

Use green tool to twist large hex nut to

the left and remove bolts from tank.

G: REMOVE GASKET

Remove tank-to-bowl gasket from

below the tank.

F: LAY TANK ON ITS SIDE

Place on a safe and secure surface.

H: REMOVE FLUSH VALVE

LOCKNUT

Using red wrench, twist locknut left

to remove. Remove old ush valve

from tank.

Screwdriver

(Optional)

Red Wrench

Green Tool

NOTE: Bolts can be

loosened from inside tank.

STEP 3: INSTALL FLUSH VALVE

NOTE: Do not cover tank bolt holes with ush valve. If ush valve covers

a bolt hole, turn ush valve slightly to the right (overow tube to the right)

to clear the bolt hole. In some cases, placing bolts in the holes rst may

be necessary.

A: INSERT FLUSH VALVE INTO TANK HOLE

Position overow pipe toward back of tank.

STEP 3: INSTALL FLUSH VALVE (CONTINUED)

B: USE RULER ON THE RED WRENCH TO MEASURE

AND ADJUST NEW FLUSH VALVE

Mark the ush valve 1” below bottom of tank lever hole.

NOTE: The top of the overow pipe must be at minimum of 1” below

the tank lever hole.

TOP OF

OVERFLOW PIPE

Overow

Pipe

Lever Hole 1"

BOTTOM OF

TANK LEVER HOLE

Adjusted

Height

C: ADJUST FLUSH VALVE HEIGHT

Twist to unlock, pull or push to correct

height, twist to lock in place.

STEP 4: INSTALL TANK-TO-BOWL GASKET

B: Apply red tank-to-bowl gasket to

bottom of ush valve locknut, fully

covering locknut.

Red Wrench

A: INSTALL LOCKNUT

Holding ush valve in place, turn right to screw locknut

onto bottom of ush valve and hand-tighten to secure. Use

red wrench to go ½ turn beyond hand-tight.

Do not overtighten.

STEP 5: SECURE TANK TO BOWL

A: INSTALL RUBBER WASHERS

Place one rubber washer on each

tank bolt.

B: INSERT BOLTS INTO TANK

Place tank bolts through bottom

holes of tank.

C: SECURE TANK ONTO BOWL

Set tank onto bowl. Place metal

washer and large hex nut on each

bolt under toilet bowl. Using green

tool, twist right to tighten hex nuts

evenly until tank is snug and does

not rock. Do not overtighten.

Rubber

washer

Rubber

washer

Tank

Metal washer

Large hex nut

Bowl

Green Tool

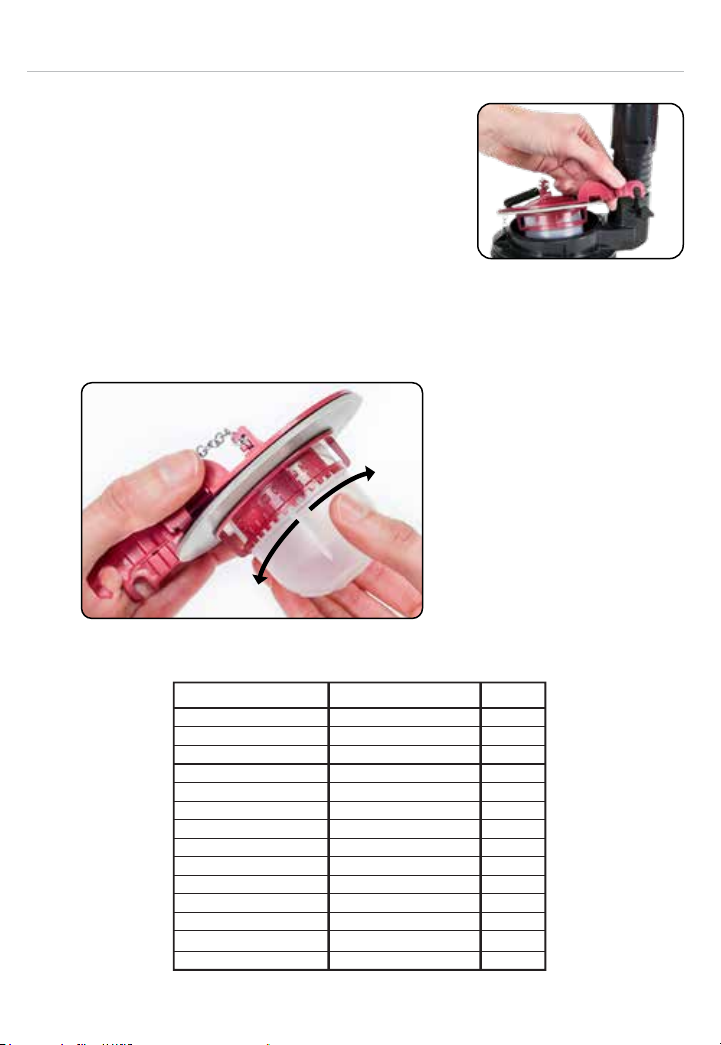

STEP 6: ADJUST FLAPPER

A: REMOVE FLAPPER

Remove apper from ush valve by

pulling the frame of the apper up one

side at a time.

B: ADJUST FOR MOST EFFICIENT FLUSHAdjust from

0 to 10 to nd the perfect ush for your setup.

Hint: The higher the number,

the longer the apper stays

open for more water ushed.

FLAPPER SETTINGS

AMERICAN STANDARD

CATO

ELJER

GERBER

GLACIER BAY

KOHLER

MANSFIELD

ST. THOMAS

PEGASUS

TOTO

VITRA

Cadet 3

Titan

Avalanche

2-Pc High Efficiency

Cimarron

Maverick

Arlington

Palermo

Westminster

Drake

Clayton

Vespin

Corina

SETTINGBRAND MODEL

Note: Flapper dial is pre-set to maximum setting (10). If toilet model

not listed, keep apper at

default setting 10.
