USER MANUAL

FLIR MODEL CM55 and CM57

FLEX CLAMP METERS with Bluetooth®

FLIR CM55_CM57 USER MANUAL Document Identifier: CM55_CM57-en-US_AD

Table of Contents

1. DISCLAIMERS 3

1.1 Copyright 3

1.2 Quality Assurance 3

1.3 Documentation 3

1.4 Disposal of Electronic Waste 3

2. SAFETY 4

2.1 FCC Compliance 6

2.2 Industry Canada Compliance 7

3. INTRODUCTION 8

3.1 Key Features 8

4. DESCRIPTIONS 9

4.1 Meter Description 9

4.2 Display Icon Description 10

4.3 Control buttons 10

5. OPERATION 11

5.1 Powering the Meter 11

5.2 Work Lights 11

5.3 Data Hold 11

5.4 AC Current Measurements 12

5.5 Data Recording and Bluetooth® Data Transfer 14

5.5.1 Data Recording 14

5.5.2 Meter Identification (ID) Number 14

5.5.3 Transferring Readings with Bluetooth® 15

5.5.4 Streaming Bluetooth® Communication 15

6. MAINTENANCE 16

6.1 Cleaning and Storage 16

6.2 Battery Replacement 16

7. SPECIFICATIONS 17

7.1 General specifications 17

7.2 AC Current Electrical specifications 18

8. TECHNICAL SUPPORT 19

9. WARRANTY 19

9.1 FLIR Global Limited Lifetime Warranty 19

FLIR CM55_CM57 USER MANUAL Document Identifier: CM55_CM57-en-US_AD

1. Disclaimers

1.1 Copyright

code may be reproduced, transmitted, transcribed or translated into any language or computer

language in any form or by any means, electronic, magnetic, optical, manual or otherwise, without

the prior written permission of FLIR Systems.

The documentation must not, in whole or part, be copied, photocopied, reproduced, translated or

transmitted to any electronic medium or machine readable form without prior consent, in writing,

from FLIR Systems.

Names and marks appearing on the products herein are either registered trademarks or

trademarks of FLIR Systems and/or its subsidiaries. All other trademarks, trade names or company

names referenced herein are used for identification only and are the property of their respective

owners.

1.2 Quality Assurance

The Quality Management System under which these products are developed and manufactured

has been certified in accordance with the ISO 9001 standard.

FLIR Systems is committed to a policy of continuous development; therefore we reserve the right

to make changes and improvements on any of the products without prior notice.

1.3 Documentation

To access the user manuals, extended warranty registration and notifications go to the Download

tab at: http://support.flir.com. In the download area you will also find the latest releases of

manuals for our other products, as well as manuals for our historical and obsolete products. The

extended warranty page can also be found at www.Flir.com/testwarranty.

1.4 Disposal of Electronic Waste

As with most electronic products, this equipment must be disposed of in an

environmentally friendly way, and in accordance with existing regulations for

electronic waste.

Please contact your FLIR Systems representative for more details.

FLIR CM55_CM57 USER MANUAL Document Identifier: CM55_CM57-en-US_AD

2. Safety

Safety Notes

Before operating the device, you must read, understand, and follow all instructions, dangers,

warnings, cautions, and notes.

FLIR Systems reserves the right to discontinue models, parts or accessories, and other items,

or to change specifications at any time without prior notice.

Remove the batteries if the device is not used for an extended period of time.

Warning Statements

WARNINGS identify hazardous conditions and actions that could cause BODILY HARM or DEATH.

Individual protective equipment should be used if HAZARDOUS LIVE parts in the installation

where measurements are to be carried out could be accessible.

If the equipment is used in a manner not specified by the manufacturer, the protection

provided by the equipment may be impaired.

To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

Verify the meter operation by measuring a known current. If in doubt, have the meter

serviced.

Do not apply more than the rated voltage/current as marked on the meter.

To avoid false readings that can lead to electric shock and injury, replace battery as soon as

the low battery indicator appears.

Do not use the meter in or around explosive gas or vapor.

Do not use a flexible current sensor if the inner copper wire of the flexible cord is visible.

De-energize the installation under test or wear suitable protective clothing when placing or

removing the flexible current probe from a test setup.

Do not apply/remove the flexible current probe to/from UNINSULATED HAZARDOUS LIVE

conductors which may cause electric shock, electric burn, or arc flash.

FLIR CM55_CM57 USER MANUAL Document Identifier: CM55_CM57-en-US_AD

Cautions

Do not use the device for a procedure that it is not made for. This can cause damage to the

protection.

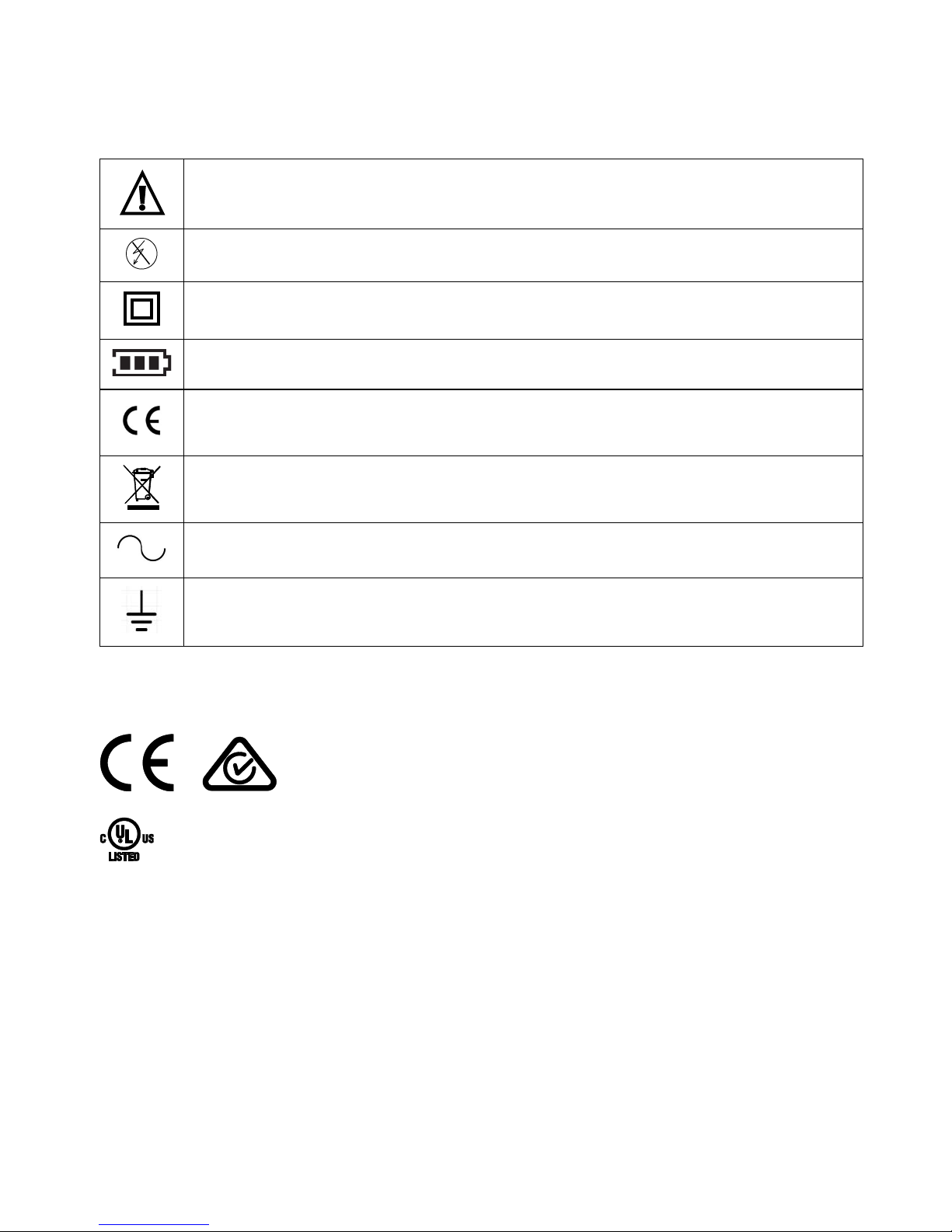

This symbol, adjacent to another symbol, indicates the user must refer to the manual

for further information.

Do not apply or remove clamp from HAZARDOUS LIVE conductors

Equipment protected by double or reinforced insulation

Battery symbol

Conforms to EU directives

Do not discard this product in household trash.

AC measurement

Earth ground

Agency Approvals:

UL listing is not an indication or a verification of the accuracy of the meter

FLIR CM55_CM57 USER MANUAL Document Identifier: CM55_CM57-en-US_AD

2.1 FCC Compliance

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause

undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

4. Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Exposure to Radio Frequency Radiation.

To comply with FCC/IC RF exposure compliance requirements, a separation distance of at

least 20 cm must be maintained between the antenna of this device and all persons. This

device must not be co-located or operating in conjunction with any other antenna or

transmitter.

WARNING

Changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment.

FLIR CM55_CM57 USER MANUAL Document Identifier: CM55_CM57-en-US_AD

2.2 Industry Canada Compliance

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to

the following two conditions: (1) this device may not cause interference, and (2) this device must

accept any interference, including interference that may cause undesired operation of the device.

CAUTION

Exposure to Radio Frequency Radiation.

To comply with RSS 102 RF exposure compliance requirements, for mobile configurations, a

separation distance of at least 20 cm must be maintained between the antenna of this device

and all persons. This device must not be co-located or operating in conjunction with any other

antenna or transmitter.

FLIR CM55_CM57 USER MANUAL Document Identifier: CM55_CM57-en-US_AD

3. Introduction

Thank you for choosing the FLIR Flex Clamp with Bluetooth® that can measure up to 3000A AC

rms. The CM57 is the 18” (45.7cm) clamp version and the CM55 is the 10” (25.4cm) clamp

version, otherwise both meters are the same.

These devices are professional CAT IV 600V CAT III 1000V instruments that offer Data Recording,

Bluetooth®, Auto Power OFF, Data Hold, Display backlight, and high power Work Light features.

These meters are shipped fully tested and calibrated and, with proper use, will provide years of

reliable service.

3.1 Key Features

3000A AC True RMS Current Measurements

Convenient Flexible Clamp with locking mechanism

0.3” (7.5mm) coil diameter for measuring in tight spaces

Auto ranging

3000 count large scale backlit LCD display

Bluetooth® communication and Data Recording

Data Hold

Auto Power OFF

Battery status icon

High power work lights

Long life battery power

www.Flir.com/testwarranty

FLIR CM55_CM57 USER MANUAL Document Identifier: CM55_CM57-en-US_AD

4. Descriptions

4.1 Meter Description

1. Work Lights

2. Flexible Current Clamp Coil

3. Display

4. INRUSH / REC (Record) button

5. Power / Work Light button

6. RANGE / SEND button

7. HOLD / Start-Stop Record / Bluetooth® button

8. Clamp Lock mechanism

Note that battery compartment is located on the back of the meter

Fig. 4-1 Meter Description

FLIR CM55_CM57 USER MANUAL Document Identifier: CM55_CM57-en-US_AD

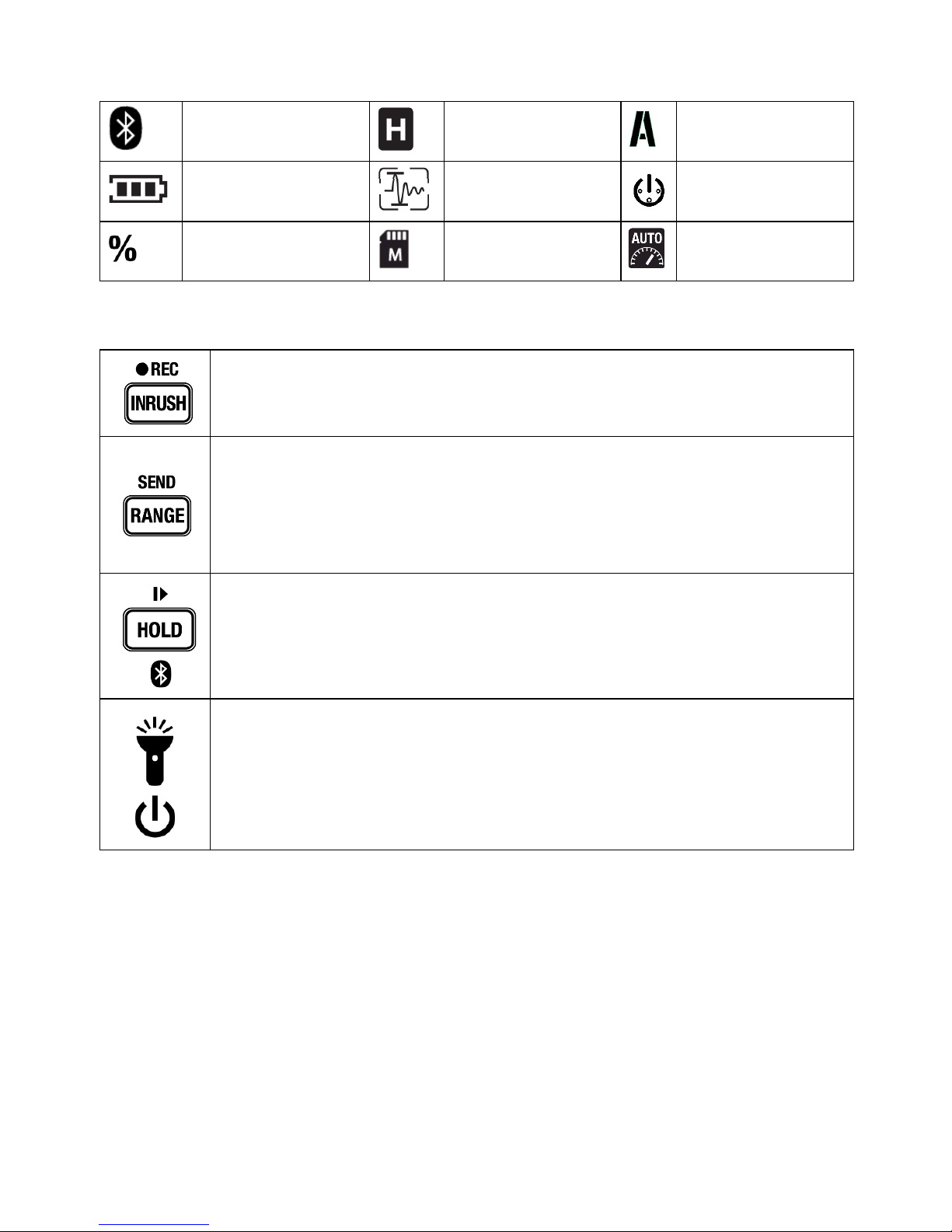

4.2 Display Icon Description

Bluetooth®

Display Hold

Amperes

Battery status

Inrush Current

Auto Power Off

Data Transmission

Memory Mode

Auto Range

4.3 Control buttons

Momentary press to access INRUSH mode

Press and hold to access the Record Memory mode

Momentary presses step through the ranges manually

Press and hold while in manual range mode to return to Auto

range

Press and hold to Send data via Bluetooth

Momentary press to access the Data Hold mode

Press and hold to activate/deactivate Bluetooth® communication

While in Record mode, momentary press to Pause/Resume

Press and hold to switch power ON/OFF

When powered, press to activate/deactivate work light
