Flight Model Funtama 100 Instrucciones de operación

CAUTION : this plane is not a toy!

Before use , please carefully read this manual.

●First-time builders should seek advice from people having building

experience in order to assemble the model correctly and to produce its

●Assemble this kit only in places out of children’s reach!

●Take enough safety percautions prior to operating this model.

You are responsible for this model’s assembly and safe operation!

●Always keep this instruction manual ready at hand for quick

reference,even after completing the assembly.

performance to full extent .

Engine:26-28CC GAS;

Radio:4channels 5servos;

Flying Weight:3600g;Wing Span:70in/1780mm;

Wing Area:61sq.dm;

Length:62.9in/1600mm

KIT CONTENTS

Connect the aileron and main

wing with horns.

The finished picture as shown.

Pay attention to glue firmly.

Cut away covering film for

the servo.

MAIN WINGS

AB GLUE

Install the tri-horn and

servo arm with pushrod

as shown.

Measure the length of the

extention .

Pull out the extention from

the rib of the main wing.

Find out the holes in

each sides of fuselage,

then cut the film.

Connect the main wings and

the fuselage with joiner.

Also pull the extension

into the fuselage.

Fixup the wings with nylon

screws as shown.

Install the wheel with

screw and collars as shown.

Fixup the wheel to the

landing gear by screw.

Use two TP screws to fix

the wheel cover to the

landing gear.

MAIN LANDING GEAR

Install the main landing

gear on the bottom of the

fuselage.

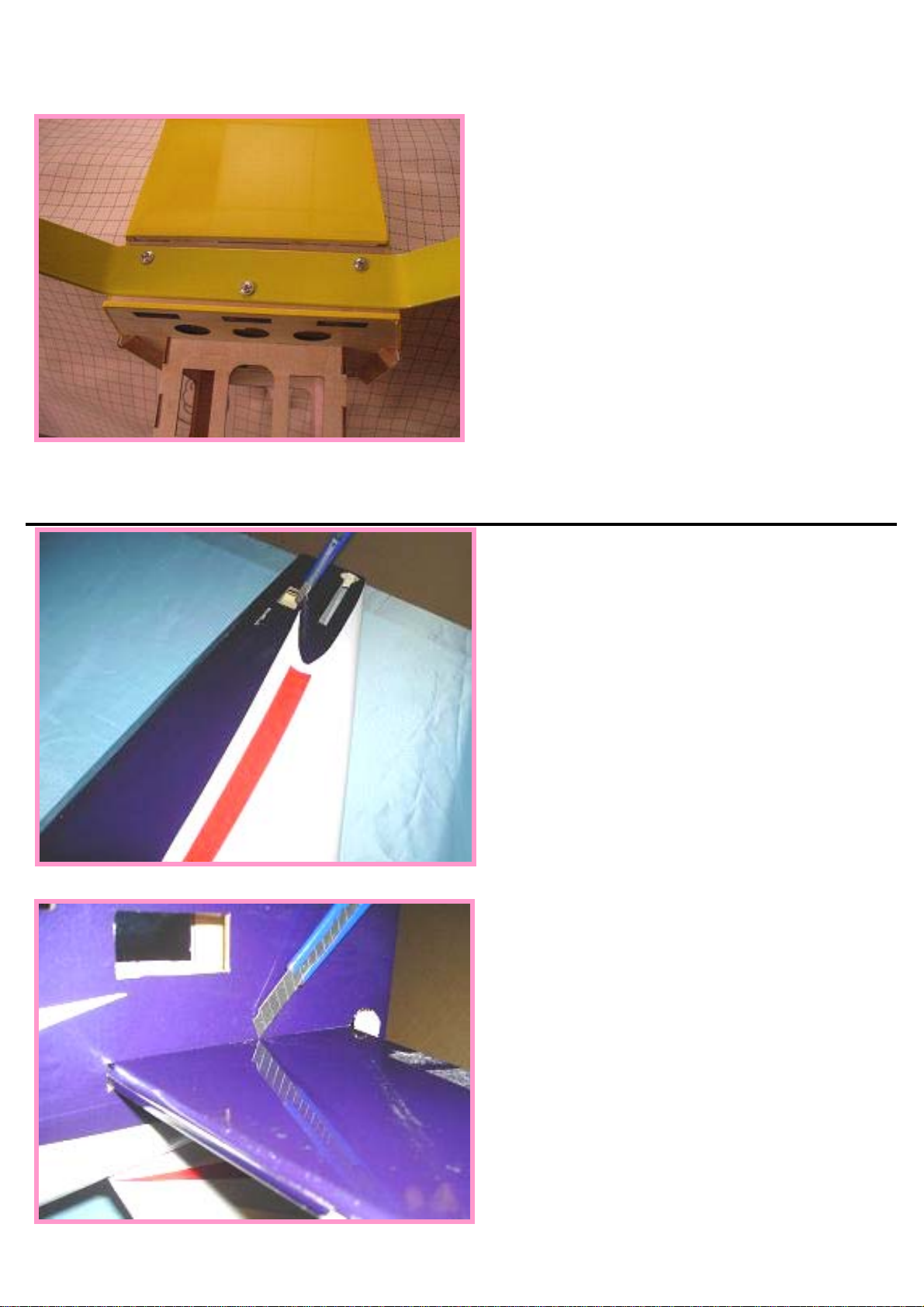

Find and cut the hole for

stabilizer and also the

servo holes.

Cut away the film along

the edges, and glow the

stabilizer to the fuselage.

TAIL WHEEL

Cut the rudder film along

the edges, and glue the

rudder to the fuselage.

Securely glue up and

soaked up the hinge with

instant glue.

Bend the tail landing

gear to fit for the rudder

and insert it into the

rudder.

Glue the rudder to the

fuselage.

Glow the tail landing gear

to the rudder securely.

Install the tail wheel,

and fasten the presser

of the tail wheel to the

stabilizer by screws.

Insert elevator to the

tailplane with U shape wire.

Connect the control horn

to the linkage of the

servo.

Tighten the second loop

through the brass swage

tube.

ELEVATOR AND RUDDER

P10
