Fishman Isys Manual de usuario

USER GUIDE

ISYS ONBOARD PREAMPS

www.ﬁshman.com

2

Isys Quick Start

1. Set the controls • Set volume off and the contour control to off (button

out).

2. Plug in • Connect the Isys to an ampliﬁer or PA with a ¼-inch instrument

cable. The batt light will ﬂash once quickly to indicate it has switched on.

3. Turn up • Raise the volume and adjust the contour control to your liking.

3

Isys Controls

Volume • For the cleanest signal, set the volume knob as high as possible,

without causing distortion or feedback.

Contour • This one-button tone control lets you choose between a natural

sound with no EQ (button out) or a “Scooped” sound with emphasized treble

and bass and reduced midrange (button in).

Phase • Use the phase switch to improve bass response at low volume and

suppress feedback at high volume.

When the batt lamp lights steadily it is time to change the battery (approx. 125

hours of use). To conserve the battery, unplug the instrument when not in use.

4

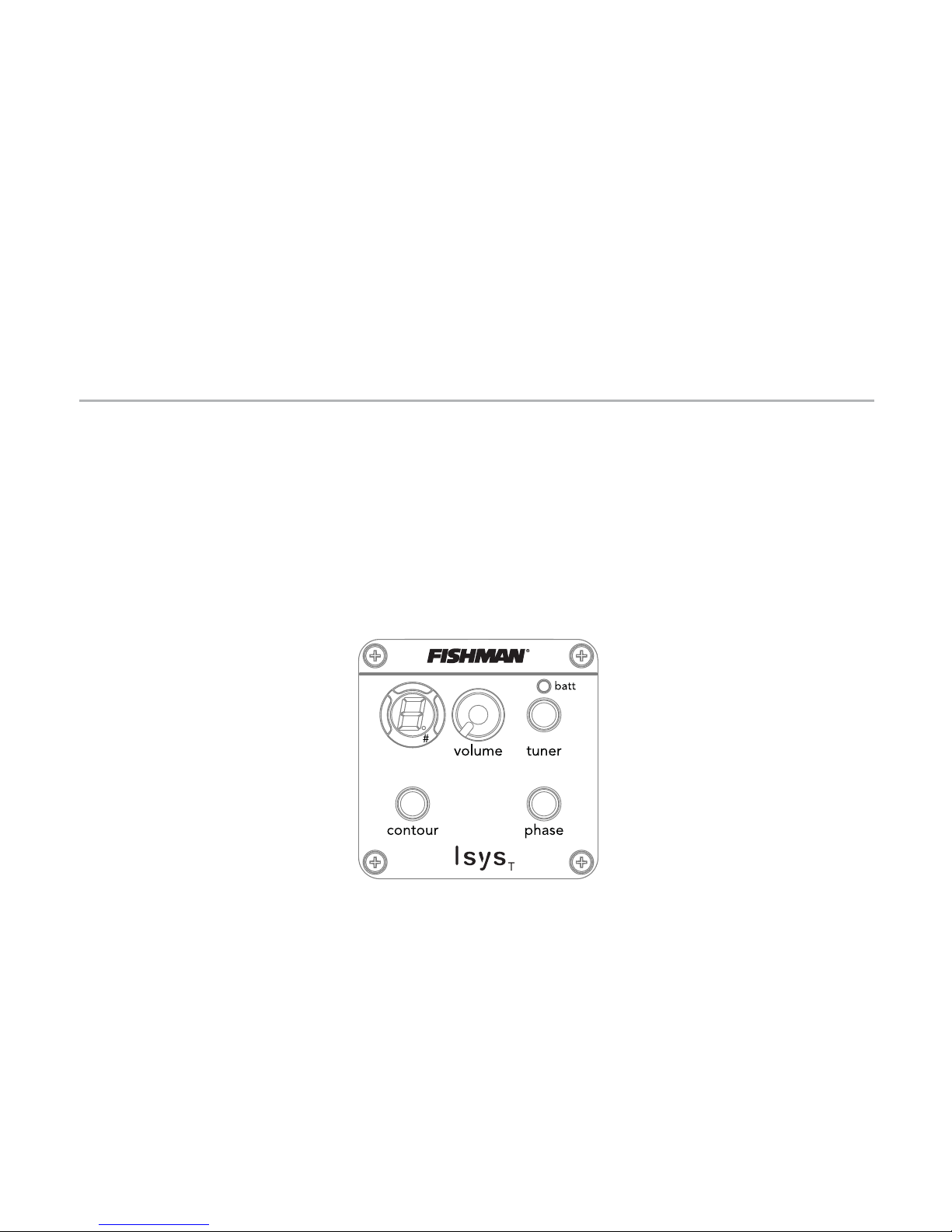

Isys T Quick Start

1. Set the controls • Set volume off and the contour control to off (button

out).

2. Plug in • Connect the Isys T to an ampliﬁer or PA with a ¼-inch instrument

cable. The batt light will ﬂash once quickly to indicate it has switched on.

3. Tune up • Press the tuner button. When it’s on, the tuner mutes the

signal. Press again to exit.

4. Turn up • Raise the volume and adjust the contour control to your liking.

5

Isys T Controls

Volume • For the cleanest signal, set the volume knob as high as possible,

without causing distortion or feedback.

Contour • This one-button tone control lets you choose between a natural

sound with no EQ (button out) or a “Scooped” sound with emphasized treble

and bass and reduced midrange (button in).

Phase • Use the phase switch to improve bass response at low volume and

suppress feedback at high volume.

Tune • Use the tuner lights as shown below to tune your instrument.

When the batt lamp lights steadily it is time to change the battery (approx. 125

hours of use). To conserve the battery, unplug the instrument when not in use.

“A” note

below pitch

“A” note

in tune

“A” note

above pitch

“A#” note

in tune

6

Isys Plus Quick Start

1. Set the controls • Set volume off and bass and treble controls to center.

2. Plug in • Connect the Isys Plus to an ampliﬁer or PA with a ¼-inch instrument

cable. The batt light will ﬂash once quickly to indicate it has switched on.

3. Tune up • Press the tuner button. When it’s on, the tuner mutes the

signal. Press again to exit.

4. Turn up • Raise the volume and adjust the bass and treble controls to your

liking.

7

Isys Plus Controls

Volume • For the cleanest signal, set the volume knob as high as possible,

without causing distortion or feedback.

Bass • Boost here to add depth and weight to the sound of the guitar.

Treble • Boost to cut through the mix. Cut to mellow and subdue the sound.

Phase • Use the phase switch to improve bass response at low volume and

suppress feedback at high volume.

Tune • Use the tuner lights as shown below to tune your instrument.

When the batt lamp lights steadily it is time to change the battery (approx. 110

hours of use). To conserve the battery, unplug the instrument when not in use.

“A” note

below pitch

“A” note

in tune

“A” note

above pitch

“A#” note

in tune

www.ﬁshman.com

513-300-141 Rev E 8-11
