This manual is a step-by-step guide that will aquaint you with the system’s features and benefll. It defines the

components and their funotions, describes their operation, and instructs you wfth normal and emergency prooedures.

Keep this manual in a convenient place so that you can refer to ft as necessary.

SYSTEM OVERVIEW

General Congratulations on your ownership of a First Alert Professionat Security

System. You’ve made a wise decision in choosing it, for it represents the

latest in security protection technology today, including miCrOCOmpUter

technology to monitor all system status,

Basically, this system offers you three forms of protection: burglary, fire

and emergency. Your system may consist of at least one keypad which

provides full control of system operation, plus various devices such as

door and window sensors and motion detectors. It may also include a

selected number of smoke or combustion detectors designed to provide

early warning in case of fire. Your system may also have been

programmed to automatically transmit alarm or status messages over the

phone lines to a central alarm monitoring station.

Keypads

Your keypads allow you to control all system functions and feature a

telephone style (digital) keypad and a Liquid Crystal Display (LCD) that

shows the nature and location of all occurrences and a built-in sounder

which sounds during alarms and troubles.

For additional information, see the following section: ABOUT THE

KEYPADS.

Zones

Your system’s sensing devices have been assigned to various “zones”.

For example, the sensing device on your Entry/Exit door may have been

assigned to zone 01, sensing devices on windows in the master bedroom

to zone 02, and so on. These zone numbers will appear on the display

when an alarm or trouble condiion occurs.

-4-

(continued)

SYSTEM OVERVIEW

Alarms When an alarm occurs, both the keypad and external sounders will sound,

and a message at the keypad will identify the zone(s) causing the alarm. In

addition, if your system is connected to a central monitoring station, an

alarm message will be sent. To stop the alarm sounding, you simply disarm

the system.

Fire Protection

The fire protection portion of your security system (ii.used) is always on

and will sound an alarm if a fire condition is detected. Refer to the FIRE

ALARM SYSTEM section for important information concerning fire .pro-

tection, smoke detectors and planning emergency exit routes from your

premises.

Burglary Protection

The burglary protection portion of your system must be turned on or

“armed” before it will sense burglary alarm conditions and sound an alarm.

Your system can be armed in one of four modes: STAY, AWAY, INSTANT

and MAXIMUM. Refer to the ARM/h/G THE SYSTEM sections for

instructions in using these modes of operation.

Your system also provides a CHIME mode for alerting you to the opening

and closing of doors and windows while the system is disarmed.

Memory Of Alann

When an alarm or trouble condition occurs, the keypad displays the

number(s) of the zone(s) that caused the problem, and displays the type

of alarm or trouble (ex. FIRE, ALARM, CHECK). The display remains until it

is cleared by entering the OFF sequence (security code +

OFF

key) twice.

Pager Notification

If you have chosen to be notified of alarms or other system conditions by

pager, the following codes will be sent to your pager by the control:

1811=Trouble 191l=Alarrn

a 1001 =Open 1002=Close

-5

Keypad Types

Keypad Styles

dures in this man-

ual apply equally to

all keypad types

and sty/es.

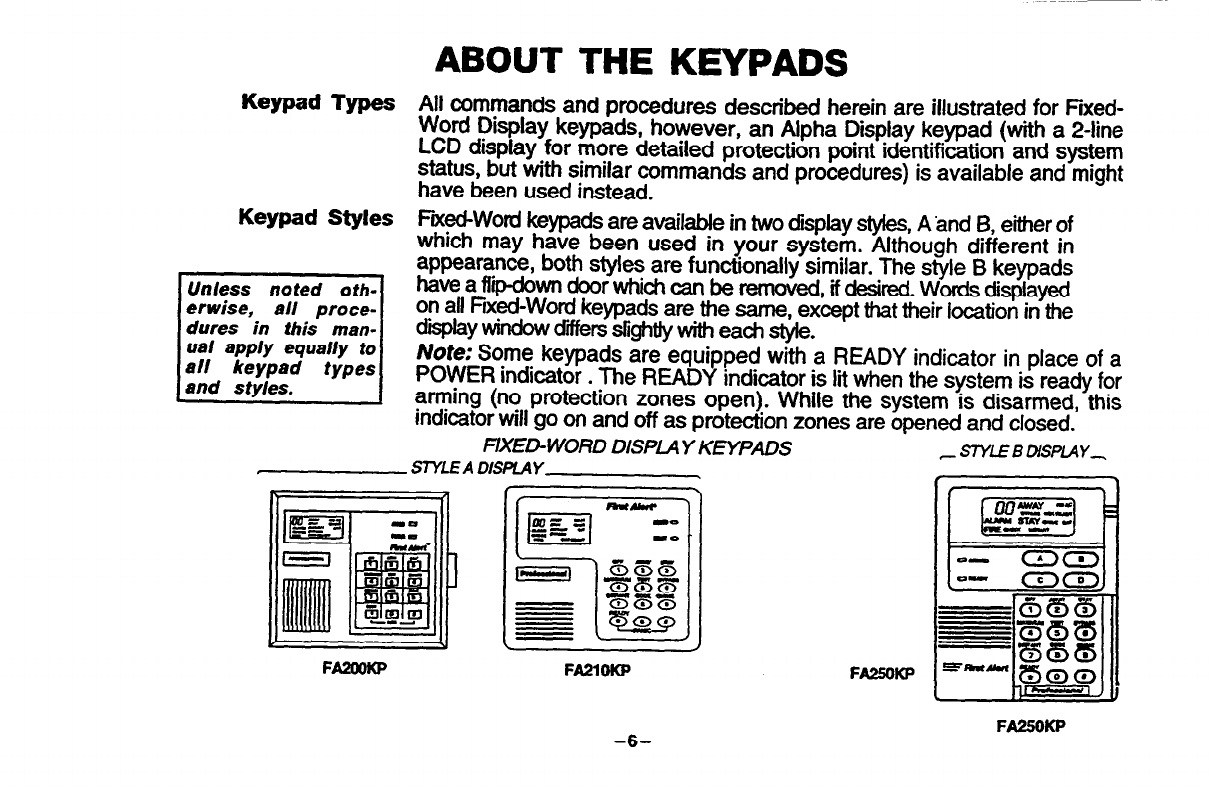

ABOUT THE KEYPADS

All commands and procedures described herein are illustrated for Fixed-

Word Display keypads, however, an Alpha Display keypad (with a e-line

LCD display for more detailed protection point identification and system

status, but with similar commands and procedures) is available and might

have been used instead.

Faed-Word keypads are available in two display styfes,A and B, either of

which may have been used in your system. Although different in

appearance, both styles are functionally similar. The style B keypads

have a fliiwn door which can be removed, ifdesired.Words displayed

on all Fuced-Wordkeypads are the same, except that their location in the

displaywindow diiers slightlywith each style.

Note: Some keypads are equipped with a READY indicator in place of a

POWER rndrcator . The READY indicator is lii when the system is ready for

arming (no protection zones open). While the system is disarmed, this

indicator will go on and off as protection zones are opened and closed.

FIXED-WORDDISPLAY KEYPADS

- STYLE B DISPLAY,

SWLEA DISPLAY

-6-

SUMMARY OF SYSTEM STATUS DISPLAYS

AWAY

STAY

INSTANT

BYPASS

NOT READY

READY

NO AC

CHIME

BAT

ALARM

CHECK

FIRE

tkbut;y zones, interior & perimeter,

Perimeter burglary zones, such as windows

and doors are armed.

Perimeter burglary zones armed and

entry delay is turned off.

One or more burglary protection zones

have been bypassed.

Appears when burglary portion of the system

is not ready for arming (due to one or more

open protection zones).

The burglary portion of the system

is ready to be armed. STYLE A KEYPAD DISPLAY

Appears when AC power has been cut off.

System is operating on backup battery power.

Appears when AC power is present.

Appears when the CHIME feature is ON.

Low system battery.

Appears when an intrusion has been

detected and the system is armed (also

appears during a Fire alarm). Accompanied by STYLE B KEYPAD DISPLAY

the ID # of the zone in alarm. 4 - .-.-

Appears when a maffunction is discovered in the system atany trmeor if a f&t is

detected in a PlRE zone at any time or in a DAY(Troubie)/NlGHT(Alarm) burglary zone

during a disarmed period. Accompanied by a display of zone number in trouble.

Appears when a fire alarm is present. Accompanied by a display ofthe zone # in alarm.

-7-

SUMMARY OF KEYPAD FUNCTIONS

DISPLAY WINDOW:

Displays protection zone

ID and system status messages.

OFF KEY: Disarms burglary portion of the 9.

system, silences alarms and audible trouble

indicators, and clears visual display after ,Q

problem’s correction.

AWAY KEY: Arms the entire burglary sys-

tem, perimeter and interior.

STAY KEY: Arms perimeter portion of bur- 11.

glary system only. Interior protection is not

armed, which allows movement within l2

premises without causing alarm.

MAXIMUM

KEY:

Arms in manner similar to

AWAY mode, but without the entry delay

feature, thus providing maximum protectron. 13.

An alarm will occur immediately upon opening ,4 -

any protection point, including the entry/exit

door.

feature. Entering via the entry/exit door will

causean instantalarm.

CODE KEY: Used to assign additional user

codes for other users of the system.

CHIME KEY:

Turns CHIME mode on and

off. When on, the opening of windows or

doors while the system is disarmed will sound

3 beeps at the keypad(s).

READY KEY: Displays all open protection

zones.

KEY: “Quick Arm” key permits ARMING of

the system

without use of a security code (if

so programmed).

TEST

KEY:

Tests the system and alarm

sounder if disarmed. Refer to TESTING THE

SYSTEM section for test procedures.

BYPASS

KEY: Removes individual pro-

tection zones from being monitored by the

system.

KEYS Q-9t: Used to enter your security code(s).

READY

INDICATOR:

(GREEN) Lit when the

system is ready to be armed (no faults present).

While the system is disarmed, this indicator will go

on and off as protection zones are closed and

opened.

Note:

On some ke

POWER

INDI

ads there is, instead, a

ATOR

(GREEN) which LS lit

INSTANT KEY: Arms in manner similar to

STAY mode, but without the entry delay

F-l -

when AC power is present. If the indicator is

off,the systemmay

still

be operatin , but on

its backup baite ?i power. See Power a&e in

TROUBLECON

mO!VSsection.

tNote:

Keys ilJ through M each perform their associated companion functions (OFF, AWAY,

STAY,

etc.) when

preceded by

an entry

of the security code (as described later).

-8-

15. ARMED INDICATOR:

(RED) Lit when

the s stem

AWAY has been armed (STAY,

, INSTANTor MAXIMUM).

16.

INTERNAL SOUNDER:

The built-in

keypad sounder mimics the alarm

sounder during alarms, and will also

“beep’ during certain system functions.

(see SUMMARY OF AUDIBLE/ VISUAL

NOTIFEATION).

17, EMERGENCY KEYS:

Individual keys

A, B,

and C (key D not

used).

On some keypads, these keys are not

present, and the following key pairs may

be available, instead, for emergency

functions:

Some or all of these keys/pairs may be

programmed for panic functions by your

installer (see PANIC KEYS section).

IMPORTANTI: When entering codes and

commands, sequential key depressions must be

made within 2 seconds of one another. If 2 seconds

elapses without a key depression, the entry is

aborted and must be repeated from its beainnina.

KEYPAD with STYLE B DISPLAY

-9-

SECURITY CODES

General

At the time of installation, your installer programmed a personal four-digit

Master code, known only to you and yours. This code is used to perform

most system functions, including arming and d&arming of the system. As an

additional safety feature, temporary user codes can be assigned (see next

page) for use by those not having a need to know the Master code. Note

that the Master code remains in effect even when other user codes are

assigned.

Duress Code

to disarm or arm the

normally, but can

service has been

Important: The Duress code is useful only when connected to a central

station.

Quick hing If your system supports ‘Quick Arming”, the V” ke

place of the security code when arming the system. f-h

can be pressed in

required, however, when disarming the system. e security code is

-1 o-

Tabla de contenidos

Otros manuales de Sistema de seguridad de First Alert

First Alert

First Alert SFA600 Manual de usuario

First Alert

First Alert FA168CPSSIA Instrucciones de montaje

First Alert

First Alert First Alert CO400 Manual de usuario

First Alert

First Alert ReadyGuard Manual de usuario

First Alert

First Alert FA148CP Series Manual de usuario

First Alert

First Alert FA848C Manual de usuario

First Alert

First Alert FA162C Manual de usuario

First Alert

First Alert SC9120B Manual de usuario

First Alert

First Alert FA168CPS Series Manual de usuario

First Alert

First Alert D-575 Manual de usuario

First Alert

First Alert FA147C Manual de usuario

First Alert

First Alert FA1660C Instrucciones de montaje

First Alert

First Alert 3035DF Cómo utilizar

First Alert

First Alert D-520 Manual de usuario

First Alert

First Alert pod Manual de usuario

First Alert

First Alert ReadyGuard Plus Manual de usuario

First Alert

First Alert FA168CPS Series Manual de usuario

First Alert

First Alert FA148C Manual de usuario

First Alert

First Alert CO606 Manual de usuario

First Alert

First Alert ReadyGuard-R Manual de usuario

First Alert

First Alert CO606 Manual de usuario

First Alert

First Alert FAS-124 Manual de usuario

First Alert

First Alert ZCOMBO Manual de usuario

First Alert

First Alert FA120C Manual de usuario

Manuales populares de Sistema de seguridad de otras marcas

Inner Range

Inner Range Concept 2000 Manual de usuario

Climax

Climax Mobile Lite R32 Instrucciones de montaje

CADDX

CADDX NX-6 Manual de usuario

FBII

FBII XL-31 Series Manual de usuario

Johnson Controls

Johnson Controls PENN Connected PC10 Manual de usuario

Aeotec

Aeotec Siren Gen5 Manual de usuario

Blaupunkt

Blaupunkt SA 2700 Manual de usuario

IDEAL

IDEAL Accenta Manual del propietario

AJAX

AJAX DoubleButton Manual de usuario

Swann

Swann SW-P-MC2 Manual de usuario

Ecolink

Ecolink Siren+Chime Manual de usuario

Digital Monitoring Products

Digital Monitoring Products XR150 Manual de usuario

EDM

EDM Solution 6+6 Wireless-AE Manual de usuario

Highway Safety Group

Highway Safety Group EA401 Manual de usuario

Siren

Siren LED GSM Manual de usuario

Detection Systems

Detection Systems 7090i Instrucciones de montaje

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manual de usuario

Siemens

Siemens FDM273 Manual de usuario
