FingerTec AdapTec Plus Instrucciones de montaje

Installer Guide

AdapTec Plus combines power supply and door access controller features

in a compact metal casing for an encrypted and secure I/O function, en-

hancing door access control functionalities and easing installation proc-

esses. The AdapTec Plus is an exceptional FingerTec accessory in a small

package!

UNDERSTANDING ADAPTEC PLUS FUNCTIONS

Enhanced Security with Encrypted Signals

It supports FingerTec encrypted 26-bit Wiegand communication output;

providing enhanced security level for extra protection.

Power Up Terminals & Door Lock Systems

A single AdapTec Plus can provide power simultaneously to a maximum 2

units of FingerTec terminals and 2 sets of door lock accessories such as EM

Lock and drop bolt in one single system installation.

Prolonged Life Span of Hardware

With data encryption, the life span of the terminals could be prolonged

without the risk of short circuiting when using AdapTec Plus.

Control IN/OUT Terminals At An Entrance

AdapTec Plus is a perfect choice for an IN/OUT installation, where a door

is controlled both, at the entrance and the exit.

Support Rechargeable Backup Battery

Connects well to any 12V rechargeable backup battery, providing power

to ensure protection of access during any events of power failure.

Adaptability to Enhanced Security

Emergency Alerts with Siren

Compatible with an NC siren type with a maximum of 0.5A load for emer-

gency event e.g if the terminal is being illegally dismantled.

Seamless Integration with FingerTec Terminals

Mix and match the FingerTec terminals via AdapTec Plus for a cost effec-

tive access control system suitable for small and medium sized offices.

Choose a DIY Metal Casing for Cleaner Installation

Store an AdapTec Plus and a backup battery in an exclusive FingerTec DIY

metal casing, providing a cleaner installation.

SPECIFICATIONS

MODEL AdapTec Plus

PRODUCT DIMENSION (L X W X H), mm 198 x 45 X 131

WEIGHT 1.1 kg

CPU 8 MHz 16-bit microprocessor

POWER INPUT AC 110 ~ 240V (universal input)

POWER OUTPUT DC12V 3A - Supports up to:

• 2 x FingerTec access control terminals

• 2 x electrical energized locks

BACKUP POWER SYSTEM UPS or DC 12V rechargeable backup battery

INPUT SIGNAL FingerTec encrypted Wiegand signal

OUTPUT SIGNAL 2 x FORM C Relay

• 1 x 0.5A siren (max)

• 1 x DC12V 3A EM output (max)

DOOR LOCK • Electromagnetic locks

• Door strike

• Drop bolt/Dead bolt

OPERATING TEMPERATURE 0°C to 55°C

HUMIDITY 10% to 90% RH (non-condensing)

1 2 3

UNDERSTANDING THE DESIGN

AdapTec Plus consists of 2 main modules and a timer:

1Power supply/power input module

2Access control/power output module

3Door lock timer

Power supply/power input module

1This portion is to be connected to power source with AC110~240V. AC current will

be supplied into this side and a DC 12V 3A current will be generated as output.

2These two cables, -V and +V are default and are connected to the inner part of

AdapTec. Please do not remove or change these cables.

Access control/power output module

1These cables connect to a DC12V rechargeable backup battery. During a power failure,

the battery will power up the AdapTec Plus.

This is a Door Lock Timer

Lengthen timing

Shorten timing

2These are the power outputs from AdapTec. Refer to the wiring diagrams in page 3, for

details.

3Power LED – a lit LED indicates power supply/power input module is working.

EM lock LED– a lit LED indicates that the AdapTec Plus is working to power up door

lock system.

Contact your local reseller or [email protected] in case either LED is not lit up.

Door lock timer

Users can adjust the timing for the EM Lock and Drop Bolt to close after opening using

the door lock timer. Turn the timer using a screwdriver; turning clockwise will lengthen

the time, turning anti-clockwise will shorten the time.

Note: AdapTec Plus can be connected to other devices which have the same power con-

sumption. Please consult FingerTec’s advice through [email protected] before using

AdapTec with other FingerTec models.

L N E -V

Power Supply/Power Input Module

AC110~240V

L - Live

N - Neutral

E - Earth

R B G

RRed

BBlue

GGreen

DC 12V

Rechargeable

Backup

Battery

AdapTec Plus

Access Control/Power Output Module

To Battery Tamper Siren EM Output Siren Door Wiegand

Switch Output 12V Voltage Accept Exit Input

- + Input 12V 0V GND WD0 WD1

Connection

Points

GND

PWR

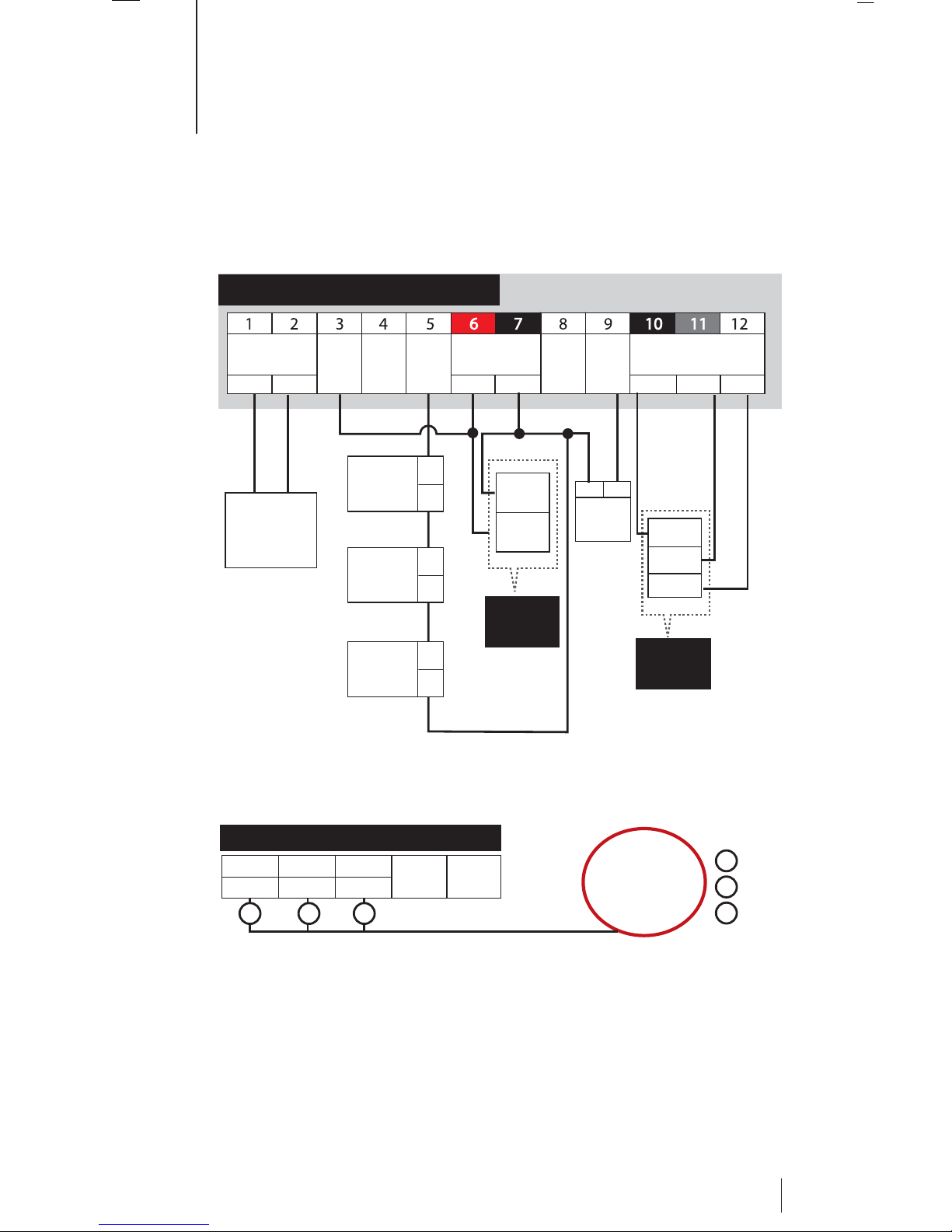

WIRING DIAGRAMS

AC900

FUNCTION • Time Attendance Only

STEP 1 • Connection Points

STEP 2 • Connect AdapTec Plus to a Power Source

STEP 3 • Turn on the power to use FingerTec AC900 for time attendance

only.

L N E -V +V

Power Supply/Power Input Module

AC110~240V

L - Live

N - Neutral

E - Earth

R B G

RRed

BBlue

GGreen

AdapTec Plus

Access Control/Power Output Module

To Battery Tamper Siren EM Output Siren Door Wiegand

Switch Output 12V Voltage Accept Exit Input

- + Input 12V 0V GND WD0 WD1

Connection

Points

GND

PWR GND

WD0

WD1

DC 12V

Rechargeable

Backup

Battery

Connection

Points

Release

Button

EM +

Lock -

Emergency 2

Break

Glass (NC) 3

ON-OFF C

Key Switch

(NC) D

WIRING DIAGRAMS

AC900

FUNCTION • Access Control Only or Time Attendance

& Door Access

STEP 1 • Connection Points

STEP 2 • Connect AdapTec Plus to a Power Source

STEP 3 • Turn on the power to use FingerTec AC900 for door access con-

trol only or for time attendance and door access control simultaneously

RRed

BBlue

GGreen

L N E -V +V

Power Supply/Power Input Module

AC110~240V

L - Live

N - Neutral

E - Earth

R B G

DC 12V

Rechargeable

Backup

Battery

AdapTec Plus

Access Control/Power Output Module

To Battery Tamper Siren EM Output Siren Door Wiegand

Switch Output 12V Voltage Accept Exit Input

- + Input 12V 0V GND WD0 WD1

Connection

Points

GND

+12V

WIRING DIAGRAMS

R2, i-Kiosk100, i-Kiosk100 Plus, Q2i, Kadex

and m-Kadex

FUNCTION • Time Attendance Only

STEP 1 • Connection Points

STEP 2 • Connect AdapTec Plus to a Power Source

STEP 3 • Now you can turn on the power to use the system for time at-

tendance only.

RRed

BBlue

GGreen

L N E -V +V

Power Supply/Power Input Module

AC110~240V

L - Live

N - Neutral

E - Earth

R B G

AdapTec Plus

Access Control/Power Output Module

To Battery Tamper Siren EM Output Siren Door Wiegand

Switch Output 12V Voltage Accept Exit Input

- + Input 12V 0V GND WD0 WD1

Connection

Points

GND

+12V GND

WD0

WD1

DC 12V

Rechargeable

Backup

Battery

Connection

Points

Release

Button

EM +

Lock -

Emergency 2

Break

Glass (NC) 3

ON-OFF C

Key Switch

(NC) D

WIRING DIAGRAMS

R2, i-Kiosk100, i-Kiosk100 Plus, Q2i, Kadex

and m-Kadex

FUNCTION • Access Control Only or Time Attendance

& Door Access

STEP 1 • Connection Points

STEP 2 • Connect AdapTec Plus to a Power Source

STEP 3 • Turn on the power to use the model for door access control

only or for time attendance and door access control simultaneously.

L N E -V +V

Power Supply/Power Input Module

AC110~240V

L - Live

N - Neutral

E - Earth

R B G

RRed

BBlue

GGreen

DC 12V

Rechargeable

Backup

Battery

AdapTec Plus

Access Control/Power Output Module

To Battery Tamper Siren EM Output Siren Door Wiegand

Switch Output 12V Voltage Accept Exit Input

- + Input 12V 0V GND WD0 WD1

Connection

Points

GND

+12V

WIRING DIAGRAMS

Face ID 2

FUNCTION • Time Attendance Only

STEP 1 • Connection points

STEP 2 • Connect AdapTec Plus to a power source

STEP 3 • Turn on the power to use FingerTec Face ID 2 for time attend-

ance.
