FCC BBQ Ultimate Pro 4.1 Manual de usuario

Sare  u  cookin!

MANUAL

Installation, use, maintenance and safety

FCC-G-202180-41

!OUTDOORUSEONLY

READTHEMANUAL, FOLLOWTHE

ASSEMBLYINSTRUCTIONSSTEPBY

STEP. GETTOKNOWYOURGRILLAND

THESAFETYINSTRUCTIONSBEFORE

USINGTHEAPPLIANCE!

Contents

Warnings .......................................................................................................................3

Technical Data .............................................................................................................4

Read before assembly ...........................................................................................4

Parts list .........................................................................................................................6

Exploded Drawing ..................................................................................................7

Assembly instructions ...........................................................................................8

Regulator and hose - Connecting the gas .................................................16

Check for leaks before using the barbecue ...........................................17

Last check ...................................................................................................................18

Lighting instructions ............................................................................................19

Maintenance ..........................................................................................................20

Advice, tips and safety .....................................................................................22

Troubleshooting ...................................................................................................23

Consumer Contact ............................................................................................24

WARNINGS!

●ACCESSIBLE PARTS OF THE GRILL BECOME VERY HOT

DURING USE. KEEP CHILDREN AND OTHERS WHO NEED

SUPERVISION AT A SAFE DISTANCE.

●THE GRILL IS INTENDED FOR OUTDOOR USE ONLY IN WELL-

VENTILATED AREAS.

●LEAK TESTS (SEE PAGE 17) MUST ALWAYS BE CARRIED

OUT BEFORE THE GRILL IS USED AND WHEN REPLACING

THE GAS CYLINDER. ALSO PERFORM A LEAK TEST IF THE

PRODUCT HAS NOT BEEN IN USE FOR A LONG TIME AND IN

ADVANCE OF A NEW BARBECUE SEASON. ALWAYS CHECK

THE GAS HOSE FOR DAMAGE AND CRACKS BEFORE USING

THE BARBECUE.

●NEVER BARBECUE IN CLOSED ROOMS OR UNDER ROOFS,

AS THIS MAY LEAD TO A LACK OF OXYGEN.

●FAILURE TO FOLLOW THE INSTRUCTIONS PROVIDED CAN

IMPLY A RISK OF SERIOUS INJURY TO PERSONNEL AND

FIXED INSTALLATIONS.

●REBUILDING / MODIFYING THE BARBECUE CAN CAUSE

DANGER AND WILL INVALIDATE THE WARRANTY.

●ALWAYS SUPERVISE THE BARBECUE DURING USE AND KEEP

SUITABLE EXTINGUISHING EQUIPMENT WITHIN REACH.

THE GRILL SHOULD NOT BE OPERATED BY INTOXICATED

PERSONS.

●THE BARBECUE MUST NOT BE USED IN PLACES THAT ARE

BELOW NORMAL GROUND LEVEL. GAS CAN ACCUMULATE

AND REPRESENT A DANGER OF EXPLOSION. GAS

ACCUMULATION CAN ALSO CAUSE OXYGEN DEFICIENCY.

●THE BARBECUE MUST BE CLEANED REGULARLY AND

THOROUGHLY TO PREVENT UNCONTROLLED GREASE FIRE.

READ MORE ABOUT GREASE FIRE ON PAGE 20

ALSO READ PAGE 22 FOR MORE ADVICE AND TIPS ON GRILLING AND SAFETY.

33 fccbbq.com

Tekniske data

Total Heat input: 18.9 kW (Main burners 3.8kWx4=15.2kW, Side infrared burner 3.7kW).

Gas consumption: 1375 gram/hour

Gas cylinder (not included): Use standard cylinder approved for use in the Nordic Region.

Even though butane and propane gas can be used, we recommend propane for use in the Nordic

Region. Approved hoses and regulators are available from most outlets selling gas equipment.

NB! Gas hoses used for this product must not exceed 120 cm in length.

Technical Data

LU, NL, DK, FI, SE, CY,

CZ, EE, LT, LV, MT, SK, SI,

BG, IS, NO, TR, HR, RO,

IT, HU

ø0.96 mm main burner

ø0.94 mm infrared side burner

G30(Butane

G31(Propane)

and their mixtures

I3B/P(30)

The product is manufactured in accordance with European Gas Appliances Regulation (EU) 2016/426

USE ONLY GAS TYPE AND GAS CATEGORY ENTERED IN THIS MANUAL.

DESTINATION OF

COUNTRIES TO USE GAS TYPEVALVE SIZE GAS CATEGORY

1008-20

W: 143 cm D: 60cm

H: 119cm

Make sure that all parts and screws are in the box before

mounting the product, please note that some parts may be

located in the styrofoam in the side walls of the packaging.

Compare the parts list with the contents of the box.

Do not mount this barbecue if parts are missing, contact

your dealer or support@fccbbq.com. Remove all packaging

material and any plastic wrap from the barbecue.

●FOLLOW THE ORDER IN THIS MANUAL TO AVOID ERROR

ASSEMBLY. PARTS OF THE ASSEMBLY WILL REQUIRE HEAVY LIFTS

WHICH SHOULD BE CARRIED OUT BY TWO PERSONS TOGETHER.

SOME METAL PARTS MAY BE SHARP, USE PROTECTIVE GLOVES.

●POWER TOOLS SHOULD NOT BE USED FOR INSTALLATION AS

THIS MAY DAMAGE THE SURFACE TREATMENT ON SCREWS AND

LOOSE PRE-MOUNTED NUTS.

FOLLOW THESE INSTRUCTIONS CAREFULLY

TO AVOID SERIOUS PERSON INJURY OR

DAMAGE TO YOUR BARBECUE.

Read before assembly

A screwdriver and adjustable/allen wrench (not provided)

is necessary when assembling the BBQ.

The BBQ should be assembled by two persons.

5fccbbq.com

CODE DESCRIPTION QTY

LIDHANDLE 

THERMOMETER 

THERMOMETERBEZEL 

WARMINGRACK 

CASTIRONGRATEA 

CASTIRONGRATEB (W/ MGSINSERT) 

ROUNDCASTIRONGRATEC 

FMETAMER 

SIDETABLEASSY 

 DRIPTRAYHANDLE 

 DRIPTRAY 

 SIDEBURNERRACK 

 SIDEBURNERASSY 

 SIDEBURNERELECTRODE 

 SIDEBURNERTABLEASSY 

 KNOBBEZEL 

 KNOB 

 CROSSFIRESLOT 

 MAINBURNER 

 STOVEBODYASSY 

 CUSHION 

 GASTUBEASSY 

 LEFTSIDEPANELOFCABINET 

 REARPANELOFCABINET 

 RIGHTSIDEPANELOFCABINET 

 BOTTOMPANELOFCABINET 

 UPPERBEAMOFCABINET 

 LEFTDOORASSY 

 RIGHTDOORASSY 

 CASTORWITHBRAKE 

 CASTORWITHOUTBRAKE 

 DOORSTOPPER 

 SMALLKNOB 

 SMALLKNOBBEZEL 

 SIDETABLEHOOK 

 SIDEOILTRAY 

Parts List

Exploded Drawing

HARDWARE

CODE DESCRIPTION FIGURE QTY CODE DESCRIPTION FIGURE QTY

AMx Screw  D M Washer 

BM Spring Washer  E Mx Screw 

CMx Screw  FMx Screw 

7fccbbq.com

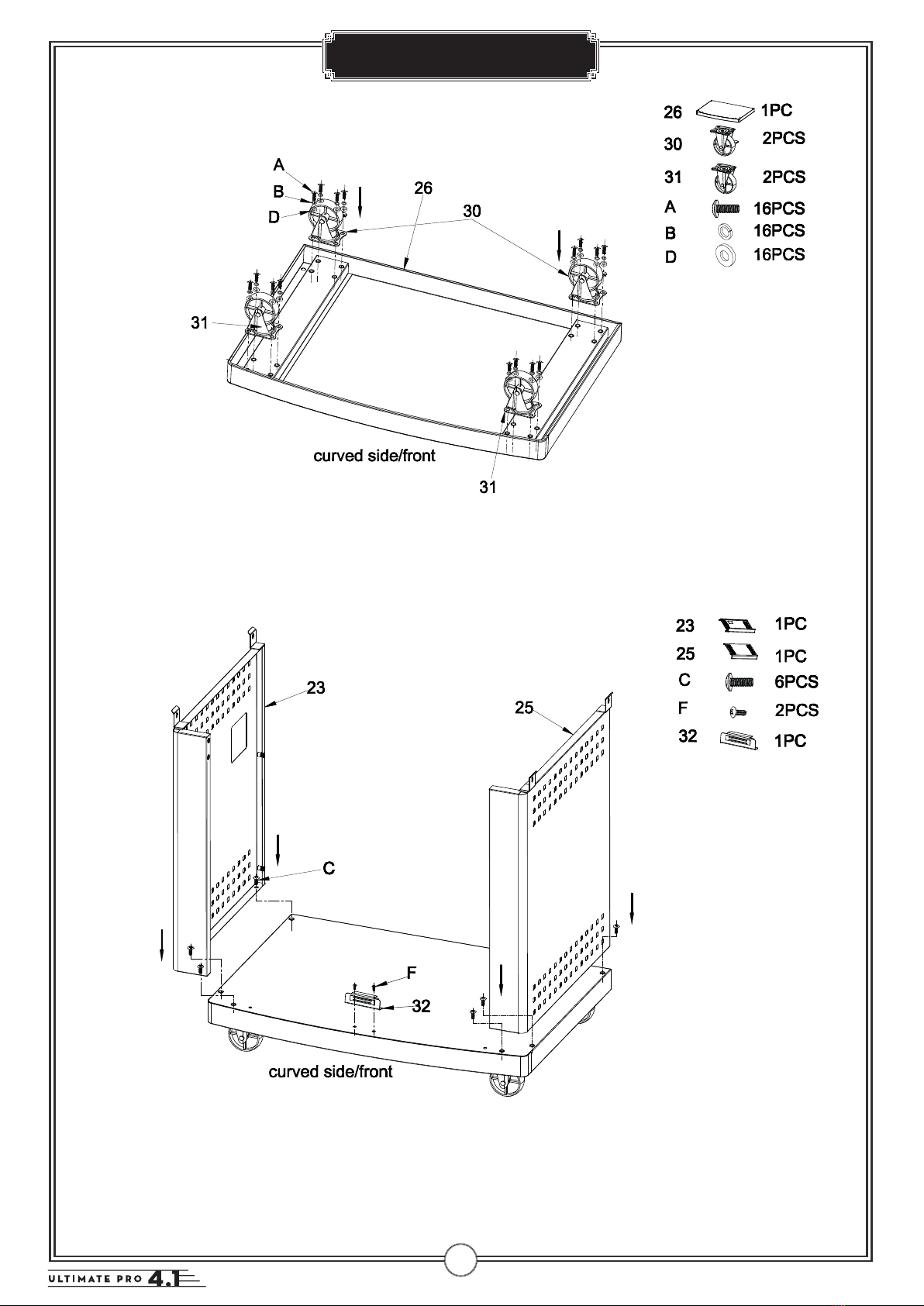

1. Turn bottom panel of cabinet (26) upside down, and ﬁx castors with

brake(30) and castors without brake(31) with A,B,D.

2. Fix left side panel (23) and right side panel (25) with screw C as below.

Fix door block component (35) with screw F as illustration above.

Assembly

3. Fix rear panel (24) with screw E as illustration above.

4. Fix upper beam (27) with screw C as shown in illustration.

9fccbbq.com

5. Follow

in the illustration above to insert lower rotating axis of left

door assy (28) into hole in the bottom panel of cabinet, then follow

in the

illustration to press spring pin and insert into hole of upper beam(27).

Same assembling procedure for right door assy (29).

Assembly

NOTE!

TWO PERSONS IS

RECOMMENDED

WHEN LIFTING

THE STOVE BODY

6. Fix stove body assy (20) with screw (C) onto cabinet.
