F&F PK-2P Manual de usuario
- 1 -
PK-2P 230 V
Electromagnetic
relay
Electromagnetic relay in single-module housing for direct moun-
ting on TH-35 rail.
Applying the supply voltage to the relay coil will switch the con-
tacts to positions 8-9 and 11-12. This state is indicated by a green
LED. After a power failure, the contacts return to positions 8-7
and 11-10.
1.Switch off the power supply.
2.Mount the relay on the rail in the distribution box.
3.Connect the power supply to terminals 1-3 (in any order).
4.Connect the power supply circuit of the controlled receiver via
contacts 8-9 and 11-12 (NO contacts).
Purpose
Functioning
Assembly
F&F Filipowski sp. j.
Konstantynowska 79/81, 95-200 Pabianice, POLAND
phone/fax (+48 42) 215 23 83 / (+48 42) 227 09 71
www.fif.com.pl; e-mail: biuro@fif.com.pl
Do not dispose of this device in the trash along with other waste! According
to the Law on Waste, electro coming from households free of charge and
can give any amount to up to that end point of collecon, as well as to sto-
re the occasion of the purchase of new equipment (in accordance with the
principle of old-for-new, regardless of brand). Electro thrown in the trash or
abandoned in nature, pose a threat to the environment and human health.
- 2 -

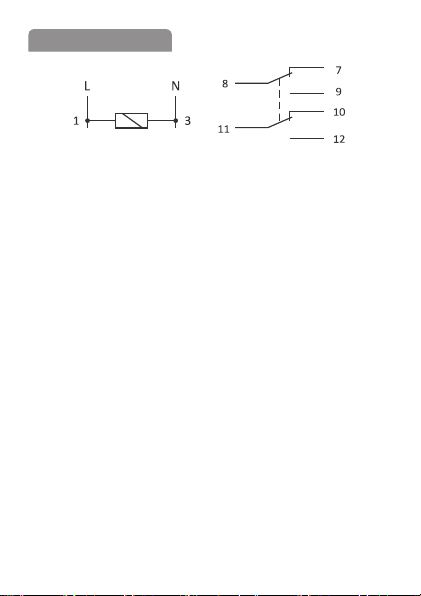

1-3 power supply 230 V AC
7 NC break contact (passive)
8 COM common contact
9 NO closing contact (active)
10 NC break contact (passive)
11 COM common contact
12 NO closing contact (active)
Connecting diagram
- 3 -
power supply 230 V AC
maximum load current (AC-1) 2×8 A*
switching voltage 250 V AC
contact 2×NO/NC
usage category AC-7a
insulation voltage 400 V
surge voltage
contacts-coil 2.5 kV
contact separation 1.2 kV
surge resistance 3 kV
current consumption 25 mA
activation time <40 ms
deactivation time <20 ms
mechanical durability min. 5×10⁶ cycles
electrical durability min. 1×10⁵ cycles
power indicator LED
power consumption 25 mA
working temperature -25÷50°C
terminal screw terminals 2.5 mm²
tightening torque 0.4 Nm
dimensions 1 module (18 mm)
mounting on TH-35 rail
protection level IP20
* modular contactors are recommended
Technical data
- 4 -
F&F products are covered by a 24-month warranty from the date
of purchase. The warranty is only valid with proof of purchase.
Contact your dealer or contact us directly.
F&F Filipowski sp. j. declares that the device is in conformity
with the essential requirements of The Low Voltage Directive
(LVD) 2014/35/EU and the Electromagnetic Compatibility (EMC)
Directive 2014/30/UE. The CE Declaration of Conformity, along
with the references to the standards in relation to which confor-
mity is declared, can be found at www.fif.com.pl on the product
page: www.fif.com.pl from the product subpage.
Warranty
CE declaration
E201017
