Fanaway CORBELLE Guía de instalación
V1.1 AU (09/2019)
FANAWAY CORBELLE
CEILING FAN
•INSTALLATION
•OPERATION
•MAINTENANCE
•WARRANTY INFORMATION
CAUTION
READ INSTRUCTIONS CAREFULLY FOR SAFE
INSTALLATION AND FAN OPERATION.
Fanaway Corbelle Installation Instructions
2 | P a g e
THANK YOU FOR PURCHASING
Thank you for purchasing this quality Fanaway product. To ensure correct function and safety, please read
and follow all instructions carefully before assembly, installation and use of this ceiling fan. Please keep
instructions for future reference.
SAFETY PRECAUTIONS
1. In Europe: This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning the use of the appliance in a safe way and understand the
hazards involved. Cleaning and maintenance shall not be undertaken by children without supervision.
2. In Australia: The appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning the use of the appliance by a person responsible for their safety.
3. Children should be supervised to ensure that they do not play with the appliance.
4. An all-pole disconnection switch must be incorporated into the fixed wiring, in accordance with local
wiring rules.
IN AUSTRALIA
WARNING:
FOR SAFE USE OF THIS FAN AN ALL-POLE DISCONNECTION
MUST BE INCORPORATED INTO THE FIXED WIRING IN
ACCORDANCE WITH THE WIRING RULES.
As outline in clause 7.12.2 of AS/NZS 60335-1 for meeting the minimum
electrical safety of this standard.
Please note warranty will be void if installation is without a means for an
all-pole disconnection incorporated in the fixed wiring in accordance with
the wiring rules.
Fanaway Corbelle Installation Instructions
3 | P a g e
Example: If a fan is connected to a circuit that can be isolated via an
all-pole safety switch at the switchboard, then this is considered to be an
all-pole disconnection to the ceiling fan electrical circuit, meeting the
requirements of clause 7.12.2 of AS/NZS 60335.1.
A single-pole switch on the active of the receiver input of remote
control must also be included in the wiring, and located the same
room as the ceiling fan.
5. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection
facilities. Contact your local government for information regarding the collection systems available. If
electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the
ground water and get into the food chain, damaging your health and well-being.
6. The structure to which the fan is to be mounted must be capable of supporting a weight of 65kg.
7. The fan should be mounted so that the blades are at least 2.3 m above the floor in Europe or 2.1 m
above the floor in Australia.
8. This fan is suitable for indoor use only. Mounting the fan in a location where it is subject to water or
moisture is dangerous and may increase the risk of damage, injury or electrical shock and will void the
warranty.
9. Must be assembled and installed by a licensed electrician.
10. WARNING: If unusual wobbling or oscillating movement is observed, immediately stop using the ceiling
fan and contact the manufacturer, its service agent or suitably qualified persons.
11. The replacement of parts of the safety suspension system device shall be performed by the
manufacturer, its service agent or suitably qualified persons.
12. The fixing means for attachment to the ceiling such as hooks or other devices shall be fixed with a
sufficient strength to withstand 4 times the weight of the ceiling fan; that the mounting of the suspension
system shall be performed by the manufacturer, its service agent or suitably qualified persons.
Fanaway Corbelle Installation Instructions
4 | P a g e
PARTS LIST
•Unpack your ceiling fan carefully. Remove all parts and hardware.
•Lay out all the components on a smooth surface and make sure there are no components missing before
assembling. If parts are missing, return the complete product to the place of purchase for inspection or
replacement.
•Check whether the ceiling fan has been damaged during transport. Do not operate/install any product
which appears damaged in any way. Return the complete product to the place of purchase for inspection,
repair or replacement.
•Examine all parts, you should have the following:
Fig. 1
Fanaway Corbelle Installation Instructions
5 | P a g e
1
Mounting bracket x 1
10
Retraction mechanism x 1
2
Canopy screws x 4
11
Light kit base x 1
3
Canopy x 1
12
Light kit x 1
4
Down rod x 1
13
Mounting screws x 2
5
Down rod coupling housing cover x 1
14
Wall switch x 1 set
6
Lock pin x 1
7
Hatch pin x 1
8
Top housing x 1
9
Blades x 4
INSTALLING THE MOUNTING BRACKET
•The ceiling fan must be installed in a location so that the blades are spaced 300mm from the tip of the
blade to the nearest objects or walls.
•Install the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least
50kg, with two long screws provided. Ensure at least 30mm of the screw is threaded into the support.
(Fig. 2)
NOTE: The bracket screws provided are for use with wooden structures only. For structures other
than wood, the appropriate screw type MUST be used. Ensure the screws used are suitable for the
mounting surface and the surrounding environment.
ANGLED CEILING INSTALLATION
This fan hanging system supports a maximum 15 degree angled
ceiling installation.
Fig. 3
Fig. 2
50 KG
Fanaway Corbelle Installation Instructions
6 | P a g e
INSTALLING THE FAN
INSTALLING THE DOWN ROD (Fig. 4)
1. Remove the ball joint (2) and dowel pin from the down rod (5) by loosening the set screw (3).
Do not discard keep these parts, they are required to reassemble later.
2. Feed the wires and plug (1) through the down rod (5).
3. Insert the down rod (5) into the down rod coupling housing (7), line up the down rod coupling housing
holes with the down rod holes and insert the lock pin (8) and secure with the hatch pin (9).
4. Secure the down rod (5) by tightening the two set screws (10) on the coupling (7).
5. Slide the down rod housing cover (6) over the down rod housing (7).
6. Slide the canopy (4) over the down rod (5).
7. Install the ball joint and dowel pin back onto the down rod (5) and secure by tightening the set screw (3).
HANGING THE FAN
Lift the fan assembly onto the mounting bracket. Ensure the key slot (A) of the hanger ball is positioned on
the key pin (B) of the mounting bracket (C) to prevent the fan from rotating when in operation. (Fig. 5)
Fig. 5
Fig. 4
Fanaway Corbelle Installation Instructions
7 | P a g e
LIGHT KIT INSTALLATION
LIGHT KIT INSTALLATION (Fig. 6 & 7)
1. Loosen the screw (1) from the fan bracket. Align the two slot screws with the keyhole slots (2) of the light
kit bracket. (Fig. 6)
2. Turn the light kit bracket counterclockwise until the slot screws are firmly at the end of the slots (2).
3. Secure screw (1) to the lamp shade bracket. Tighten all three screws. Do not over-tighten.
4. Connect the quick connector to the lamp holder part (3). (Fig. 7)
5. Secure the lamp-holder part (3) to the light kit bracket by tightening the 3 screws (4). Do not over-tighten.
6. Install the globes (5) (Not included) to the lamp holders. Do not exceed the maximum power rating.
Fig. 6
Fig. 7
Fanaway Corbelle Installation Instructions
8 | P a g e
ELECTRICAL WIRING DIAGRAM
WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A
LICENSED ELECTRICIAN.
NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED
WIRING.
NOTE: Wiring diagram includes the light kit wiring. The light wiring diagram and switch is omitted
when no light kit is used with the ceiling fan.
USE WITH WALL SWITCH WIRING DIAGRAM:
Ensure the motor earth wire is connected to the single earthing terminal block “2” in the diagram below. (Fig.
8)
Fig. 8
Fanaway Corbelle Installation Instructions
9 | P a g e

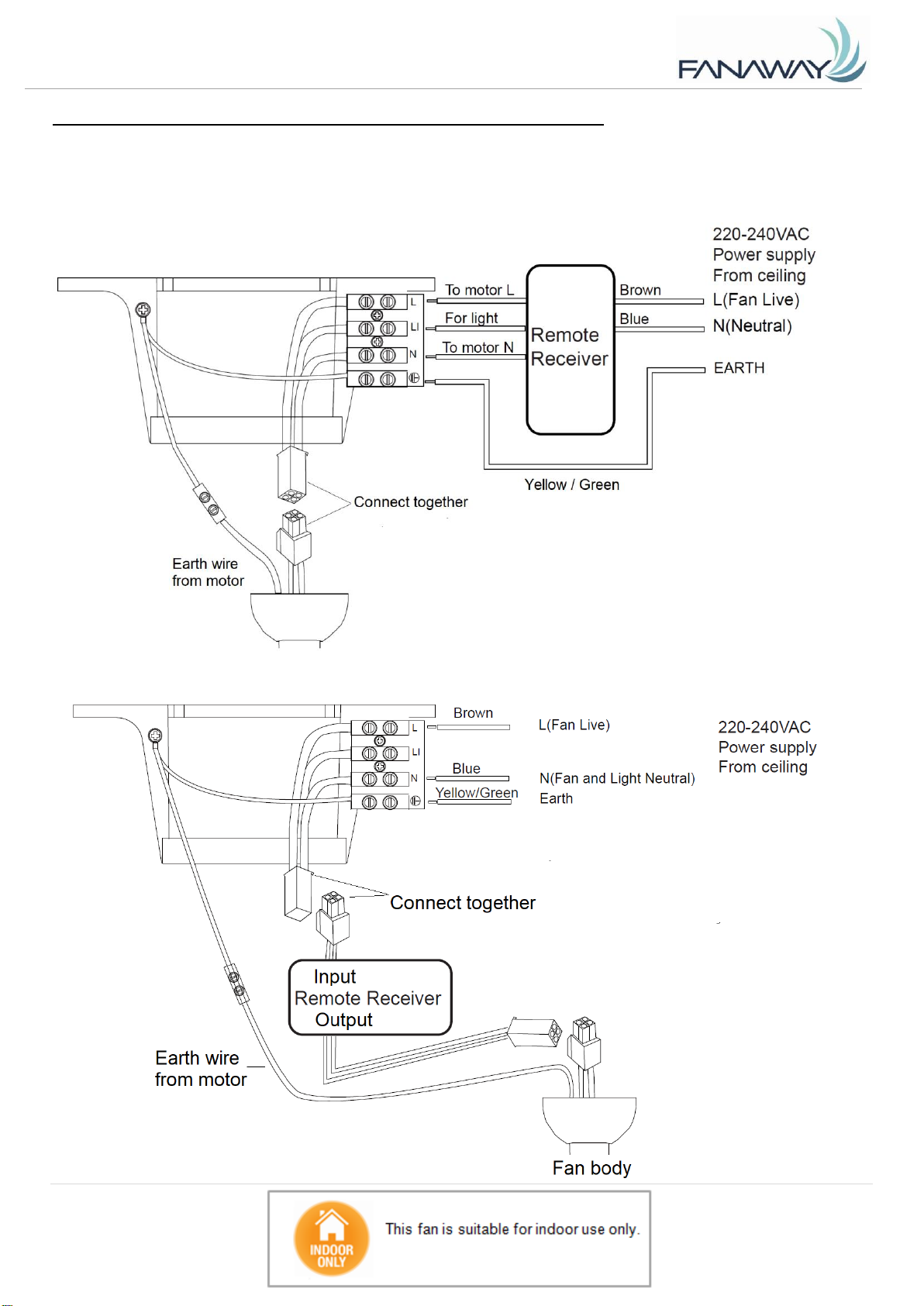

USE WITH REMOTE WIRING DIAGRAM: (REMOTE sold separately)
Ensure the motor earth wire is connected to the single earthing terminal block “2” in the diagram (Fig. 8), for
(Fig. 9 and Fig. 10)
1/ Remote without quick connectors (manual wiring)
2/ Remote with quick connectors (using quick connectors)
Fig. 9
Fig. 10
Fanaway Corbelle Installation Instructions
10 | P a g e
FINISHING THE INSTALLATION
•After completing the electrical connection at the mounting bracket terminal block, connect the ceiling fan
wiring via the quick connector plug.
•Ensure the earth wiring is secure and correct, by performing an earthing continuity test from the fan’s
accessible metal body and lamp base back to the earth terminal at the terminal block on the mounting
bracket.
•Cover the mounting bracket with the canopy. Ensure all electrical wiring is tucked inside the canopy and
that the wires are not damaged during this step. Secure the canopy to the hanger bracket using the
screws provided. (Fig. 11)
•Switch ON mains power supply to the fan. Test the fan operations or enjoy using the fan following
instructions the under “USING YOUR CEILING FAN” section of this instruction manual.
USING YOUR CEILING FAN
FAN WALL CONTROL (Fig. 12)
Turn on the power and check the operation of the fan.
• OFF Position – Fan Off
• 3rd Position – Low fan speed
• 2nd Position – Medium fan speed
• 1st Position – High fan speed
LIGHT CONTROL (Fig .12)
• Toggle Switch – ON / OFF
Fig. 11
Fig. 12
