SW2 DP • Setup Guide

The Extron SW2 DP is a two input, one output, DisplayPort switcher that switches DisplayPort video and embedded

multi-channel digital audio signals. The SW2 DP is HDCP-compliant and supports data rates up to 10.8 Gbps and computer

resolutions up to 2560x1600 @ 60 Hz. This guide provides basic instructions for an experienced installer to set up and

operate this switcher.

NOTE: For full installation, conﬁguration, and operation details, see the SW2 DP User Guide, available at

www.extron.com.

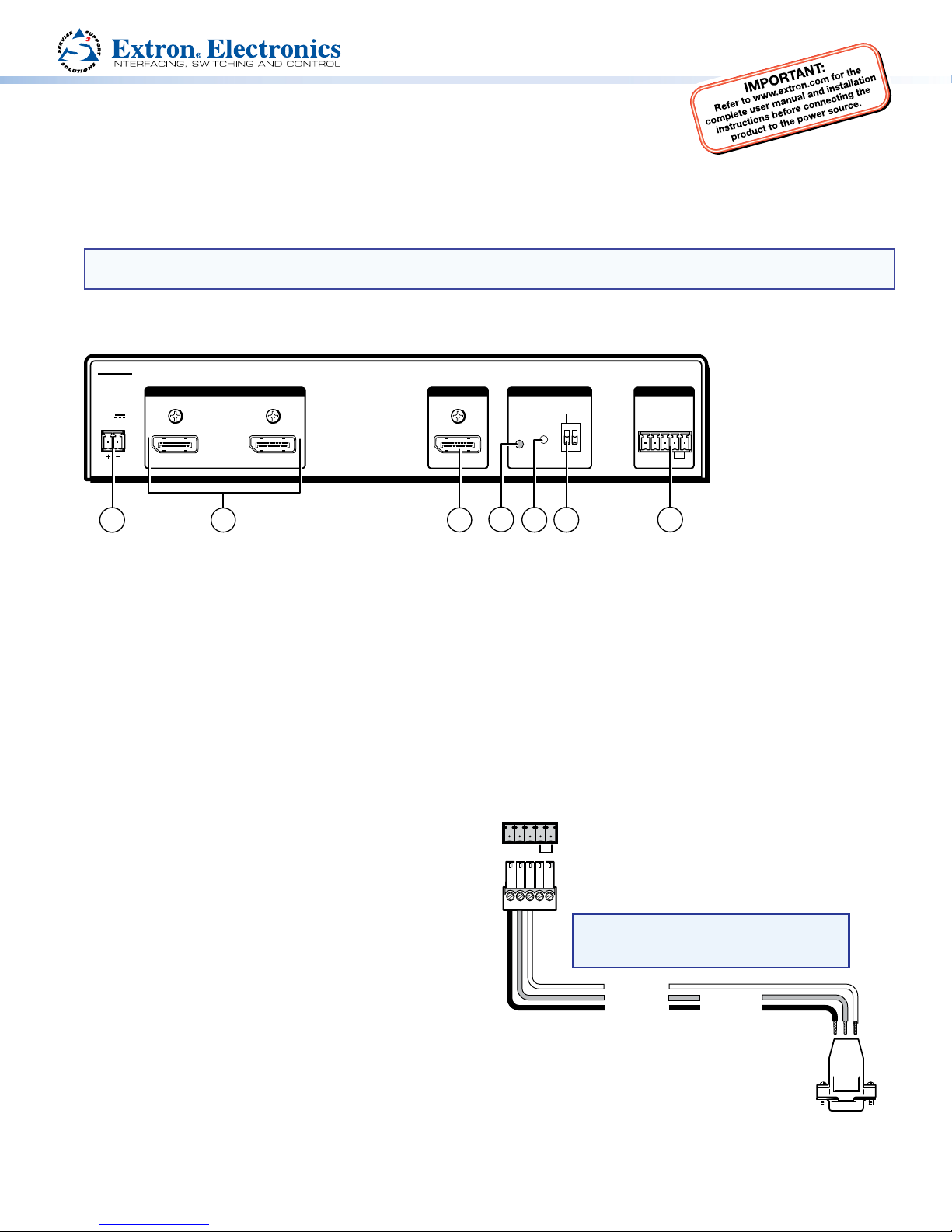

Rear Panel Features and Connections

12V

0.6A MAX

POWER

EDID

STORE

DEFAULT

STORED

RS-232 AUTO

Rx GTx

INPUTS OUTPUT EDID REMOTE

SW2 DP

167

aPower connector for 12 VDC, 1 A power supply eEDID Store button

bDisplayPort input connectors eEDID DIP switch

cDisplayPort output connector gRS-232 and auto-switching connector

dEDID Store LED

Installation Steps

1. Turn off all of the equipment and disconnect it from the power source.

2. (Optional) Mount the switcher on a rack shelf or furniture.

3. Connect DisplayPort sources to one or both of the SW2 DP input connectors (bon the rear panel diagram above).

4. Connect a DisplayPort output device to the output connector (c).

5. Connect control devices: Connect your computer to either of the following SW2 DP communication ports to

conﬁgure and control the switcher via SIS commands:

• RS-232 port — Connect the unterminated transmit,

receive, and ground wires of an RS-232 cable to the

ﬁrst three pins on the provided 5-pole captive screw

plug, as shown in the illustration at right. Connect

the plug to the rear panel Remote shared connector

(g).

Connect the other end of the cable (terminated with

the female 9-pin HD connector) to your computer

serial port.

Protocol for the RS-232 port is 9600 baud, 8 data

bits, 1 stop bit, no parity.

• Cong port — Connect a USB A-to-mini B cable

between a USB port on your computer and the front

panel USB connector (eon the front panel diagram

on the next page) for USB control.

RS-232 Auto

Computer or

Control System

RS-232 Port

SW2 DP Switcher

Rear Panel

Remote Port

NOTE: If you use cable that has a drain

wire, tie the drain wire to ground

at both ends.

TxRx G

Ground (G)

Transmit (Tx)

Receive (Rx) Transmit (Tx)

Receive (Rx)

9-pin HD

Connector



68-2245-50 Rev. A

06 12

Extron Headquarters

+800.633.9876 InsideUSA/CanadaOnly

Extron USA - West Extron USA - East

+1.714.491.1500 +1.919.850.1000

+1.714.491.1517 FAX +1.919.850.1001 FAX

ExtronEurope

+800.3987.6673

InsideEuropeOnly

+31.33.453.4040

+31.33.453.4050 FAX

ExtronAsia

+800.7339.8766

InsideAsiaOnly

+65.6383.4400

+65.6383.4664 FAX

ExtronJapan

+81.3.3511.7655

+81.3.3511.7656 FAX

ExtronChina

+4000.EXTRON

+4000.398766

InsideChinaOnly

+86.21.3760.1568

+86.21.3760.1566 FAX

Extron

Middle East

+971.4.2991800

+971.4.2991880 FAX

ExtronKorea

+82.2.3444.1571

+82.2.3444.1575 FAX

ExtronIndia

1800.3070.3777

InsideIndiaOnly

+91-80-3055.3777

+91 80 3055 3737 FAX

12V

- - A MAX

POWER

EDID

STORE

DEFAULT

STORED

RS-232 AUTO

RX GTX

INPUTS

OUTPUT EDID REMOTE

SW2 DP RS

6. (Optional) Enable auto-input switching. Attach the 5-pole

captive screw plug to the Remote connector (gon the rear

panel diagram on the previous page) if this was not done in

step 5for the RS-232 connection. Use a jumper wire to short pins 4

and 5 of the shared plug together (see the illustration at right).

When auto-input switching is in effect, the green Auto Switch LED

on the front panel lights (aon the diagram below).

7. If necessary, wire a 2-pole captive screw connector (provided) to

your Extron power supply as shown below.

Captive Screw Connector

Tie Wrap

Heat

Shrink 1/8”

(3 mm)

7/8”

(22 mm)

3/16”

(5 mm) Max.

ATTENTION: •The power supply must not be permanently ﬁxed to the

building structure or similar structures.

• The power supply must not be located within environmental

air handling spaces or the wall cavity.

8. Set the rear panel EDID DIP switch (switch 1, on the left) as follows:

• Set the switch to Stored (down) if you want to store the EDID (resolution, refresh rate, and

clocking rate) of the connected display at the SW2 DP output (see the illustration at right), then

press the recessed EDID Store button. The EDID LED ﬂashes amber, then lights steadily green

when the EDID has been stored.

• Set the switch to Default (up) to select the Extron DisplayPort default EDID of 1920x1080 @

60 Hz with 2-channel audio.

NOTE: DIP switch 2 (on the right) is not functional.

9. Power on the output display.

10. Connect power to the switcher.

11. Power on the source devices.

Front Panel Features

CONFIG

AUTO

SWITCH

SW2 DP

DISPLAYPORT SWITCHER

1 2 12

SIGNAL

INPUTS OUTPUT

HDCP

INPUTS

aAuto Switch LED

bInput Selection buttons

cSignal Status LEDs

dHDCP Status LEDs

eUSB Conﬁg port

EDID

STORE

DEFAULT

STORED

EDID
