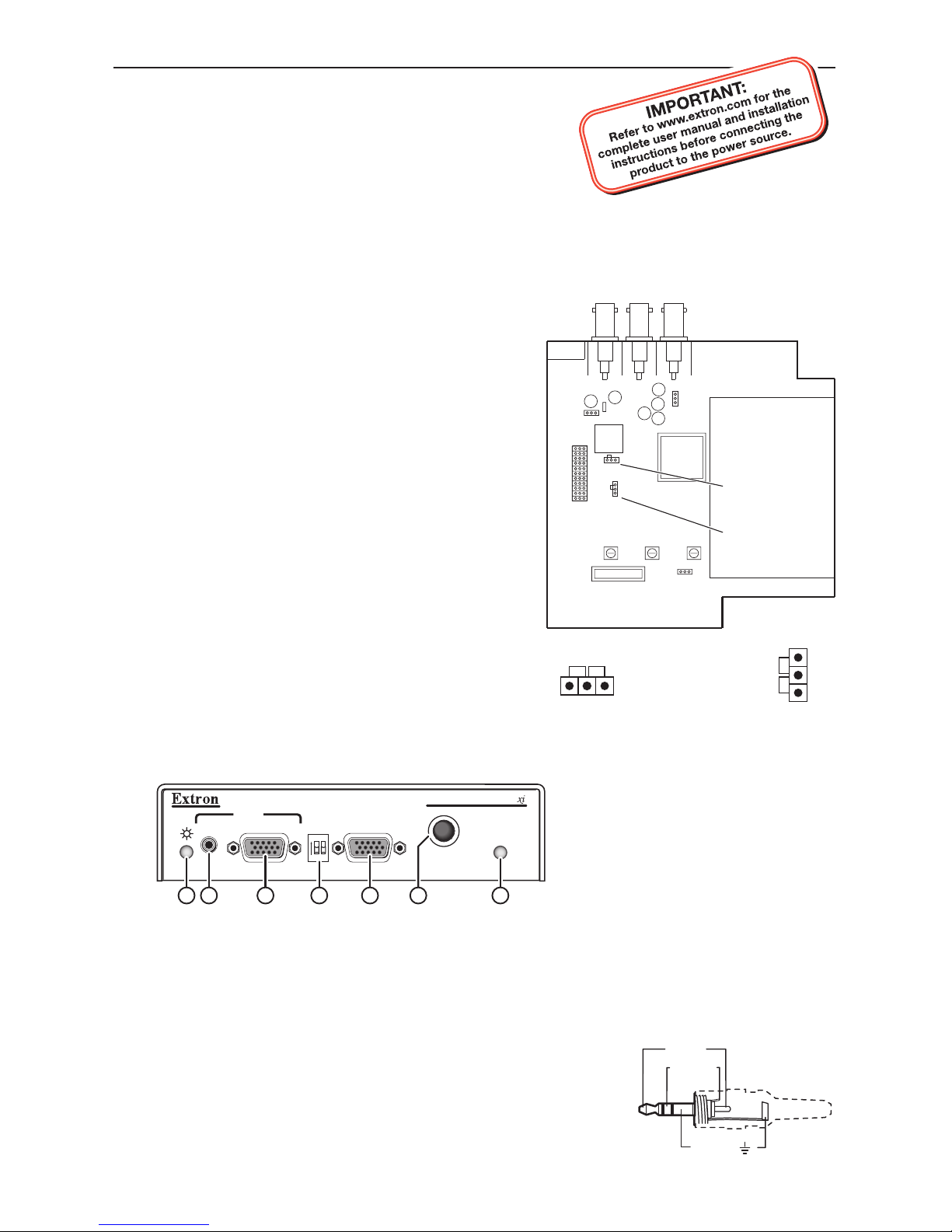

Setup Guide — RGB 160xi and RGB 164xi

C These instructions provide a quick setup guide for experienced installers. Installation

and service must be performed by authorized personnel only.

Step 1 — Disconnect power

Turn off all equipment and disconnect their power sources.

Step 2 — Conﬁgure sync settings

W Changes to internal jumpers must be

performed by authorized service personnel

only. Take steps to prevent electrostatic

discharge.

a. Open the interface and locate jumper blocks J20

and J40 (see the ﬁgure at right).

b. Set the sync polarity (jumper J20):

To force H and V output syncs to negative,

connect pins 1 and 2.

For output sync to follow input sync, connect

pins 2 and 3 (default setting).

c. Set vertical sync pulse width (jumper J40).

For a narrow V output sync pulse, connect pins

1 and 2.

For a wide V output sync pulse (default setting),

connect pins 2 and 3.

d. Replace the cover.

Step 3 — Mount the interface

The interface can be mounted on a desk, in a rack (RGB 164xi only), under a desk, or through a

desk. See the RGB 160xi and RGB 164xi User’s Guide for details.

RGB 160

MIN/MAX

INPUTS

AUDIO ANALOG

BUFFERED LOCAL

MONITOR OUTPUT

UNIVERSAL INTERFACE W/ADSP

NO MONITOR

1 2 3 4 5 7

H. SHIFT

N This ﬁgure shows the RGB 160xi front panel. The features of the RGB 164xi front panel are

similar.

Step 4 — Connect video input

Connect an RGBHV, RGBS, RGsB, or RsGsBs video input to the 15-pin HD input connector on

the front panel (c).

Step 5 — Connect audio input

Connect an unbalanced stereo audio source to the 3.5 mm mini

Tip-Ring-Sleeve (TRS) stereo audio connector (b) for unbalanced

audio input. Wire the plug as shown in the ﬁgure at right.

Step 6 — Connect local monitor

If required, connect a local monitor to this 15-pin HD connector (e).

The Extron® RGB 160xi and RGB 164xi interfaces accept

RGBHV video and unbalanced stereo audio input and

provide one buffered local monitor output, one balanced

or unbalanced stereo audio output, and one (RGB 160xi)

or two (RGB 164xi) remote video outputs.

J19

J40

J20

Front

Rear

Power Supply

J20: Sync

polarity

jumper

J40: Vertical

sync

width

jumper

Sleeve ( )

Ring (R)

Tip (L)

Negative

Wide

Narrow

Setup Guide — RGB 160xi and RGB 164xi (cont’d)

Extron USA - West

Headquarters

+800.633.9876

Inside USA / Canada Only

+1.714.491.1500

+1.714.491.1517 FAX

Extron USA - East

+800.633.9876

Inside USA / Canada Only

+1.919.863.1794

+1.919.863.1797 FAX

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+800.7339.8766

Inside Asia Only

+65.6383.4400

+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Extron China

+400.883.1568

Inside China Only

+86.21.3760.1568

+86.21.3760.1566 FAX

Extron Middle East

+971.4.2991800

+971.4.2991880 FAX

68-549-50

Rev. A

02 10

100-240V 0.5 A MAX

50-60Hz

UNITY

50%

100%

GAIN/

PEAK

SOG

DDSP

SERR

SPARE

L R

AUDIO

RGB

HVS

OUTPUT 2OUTPUT 1

RGB

HVS

8 109 13

11 12

N This ﬁgure shows the RGB 164xi rear panel. The features of the RGB 160xi rear panel are

similar except there is no Output 2 (l).

Step 7 — Connect video output(s)

Connect the RGBHV, RGBS, or RGsB video displays to Output 1 (k) and,

if required, Output 2 (l — RGB 164xi only), as shown in the ﬁgure at

right.

Step 8 — Connect audio output

Connect an audio device to the ﬁve-pole, 3.5 mm captive screw connector

(m). Follow the wiring diagram below for unbalanced or balanced stereo

output.

Unbalanced Stereo Output

Tip

NO GROUND HERE.

Sleeve(s)

Tip

NO GROUND HERE.

Balanced Stereo Output

Tip

Ring

Sleeve(s)

Tip

Ring

L R

Left

Right

Left

Right

CAUTION For unbalanced audio, connect the sleeve(s) to the center contact ground.

DO NOT connect the sleeve(s) to the negative (-) contacts.

Step 9 — Connect power

Connect a standard IEC AC power connector (100-240 VAC, 50-60 Hz) to this socket (i).

Power on input and output devices.

Step 10 — Set rear panel DIP switches

The ﬁrst three rear panel DIP switches (j) control:

Sync on Green (SOG) — Set to on (up) for RGsB output; set to off for RGBHV or

RGBS output.

Digital Display Sync Processing (DDSP™) — Set to off (down) for sync processing; set to on

(up) for no sync processing (may be needed for some LCD and DLP plasma displays) .

Serration Pulses — Set to on (up) to keep serration pulses; set to off to remove them. If there is

ﬂagging or bending at the top of the video image, set this switch to off.

N Turning on the DDSP switch disables the horizontal shift.

Step 11 — Set rear panel Gain/Peak switch

This rear panel switch (i) can be set to Unity (no gain and no peaking), gain with 50%

peaking, gain with 100% peaking. For cable runs of 125 feet or less, use the Unity setting.

Step 12 — Set front panel DIP switches

These front panel ID bit termination DIP switches (d) must both be set to on (up) if using a

laptop and no local monitor. Both switches must be set to off if using a local monitor.

Step 13 — Adjust horizontal shift

This front panel knob (f) adjusts the horizontal shift of the remote output display device(s).

RGBS

Video

RGBHV

Video

RGsB

Video

SOG

DDSP

SERR

SPARE
