SSP 200 • Setup Guide

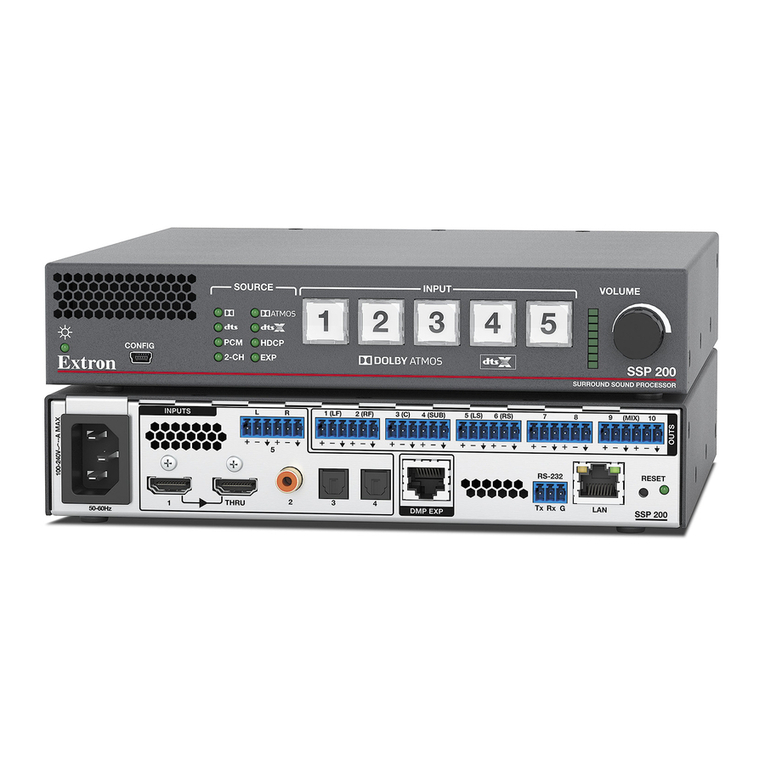

The Extron SSP 200 is a high-performance surround sound processor that automatically decodes Dolby®, DTS®, and PCM

formats from digital input sources to discrete audio outputs. Providing up to ten built-in balanced analog outputs, the SSP200

provides the exibility needed for pro A/V applications in corporate, commercial, and education environments. It supports

the latest immersive formats of Dolby Atmos and DTS:X plus legacy Dolby and DTS formats. An upmix function synthesizes

exceptional multichannel audio from stereo content. The SSP 200 features an HDMI input with loop through, coaxial and optical

digital inputs, and an analog stereo input. It is designed for integration into pro A/V installations, featuring a compact, half-rack

metal enclosure, RS-232 serial and LAN control, and balanced line level outputs.

This guide provides instructions for an experienced user to set up and congure the SSP 200. It covers how to connect

other devices and perform basic operations using rear panel connections and the front panel controls. For full operation and

conguration through Extron Product Configuration Software (PCS), internal web pages, and Simple Instruction Set (SIS™)

commands, see the SSP 200 User Guide.

NOTE: For information while using PCS, see the SSP 200 PCS Help File.

Rear Panel Connectors

50-60 Hz

100-240V --A MAX

1 THRU

OUTS

DMP EXP

INPUTS

SSP 200

1(LF) 2(RF) 3(C) 4(SUB) 5(LS) 6(RS)789 10(MIX)

RS-232

Tx Rx G LAN

RESET

SSP 200

CONFIG

PCM

2-CH

ATMOS

HDCP

EXP

SURROUND SOUND PROCESSOR

SOURCE INPUT VOLUME

1 2 3 4 5

AAA

AAA CCC

BBB CCC

BBB

DDD EEE

DDD EEE FFFGGG

Figure 1. Rear Panel Connectors

AAC power connector

BAudio inputs

CDMP expansion port

DRS-232 port

ELAN port

FReset button

GStatus light

HAnalog outputs

The SSP 200 (A) uses an IEC power cable to connect to a 100-240 VAC, 50-60 Hz, power source.

The SSP 200 (B) accepts one HDMI input with embedded audio, three digital inputs, and one analog input. In addition, there is

an HDMI loop out (through) connector.

• Input 1 accepts digital signals through an HDMI cable, supporting HDMI version 2.0 with HDCP version 2.3 compliance.

• Input 2 accepts a 75 ohm unbalanced digital coaxial S/PDIF input.

• Inputs 3 and 4 accept digital signals through S/PDIF optical (TOSLINK®) cables.

• Input 5 accepts a balanced or unbalanced, stereo or mono, analog input through a 6-pole captive screw connector.

Connect an EXP-enabled device to the DMP expansion port (C) for a digital audio connection using Extron proprietary protocol.

Use the included one-foot long shielded CAT6 cable to connect the SSP 200 to a Primary EXP-enabled device (see the SSP 200

User Guide for EXP bus operation details).

The ten outputs (H) are balanced or unbalanced, line level, analog signals made available through captive screw connectors

providing outputs for the following surround sound channels.

Number Abbreviation Channel Description Number Abbreviation Channel Description

1LF Left front 6 RS Right surround

2 RF Right front 7 See note below

3 C Center 8 See note below

4 SUB Subwoofer 9 See note below

5 LS Left surround 10 See note below

NOTE: Numbers 7 through 10 are configurable as back, height, or downmix channels using PCS.

By default, the SSP 200 is set to 7.1 with downmix enabled with all ten analog outputs enabled. Outputs in this conguration are

7 – Left Back, 8 – Right Back, 9 – Downmix Left, and 10 – Downmix Right.

SSP200 • Setup Guide (Continued)

Mounting and Cabling

Step 1 —Mount the device

a. Turn off or disconnect all equipment power sources.

b. Mount the SSP 200 using optional rack and under-furniture mounting kits (available at www.extron.com), or place on a table

using the provided rubber feet. The SSP 200 is housed in a 1U-high, 8.5 inch deep, half-rack wide enclosure.

Step 2 —Connect inputs

Make the following input connections as needed (see ﬁgure1, B, on the previous page):

• Connect digital sources to Inputs 1 through 4 depending on connector type.

• Connect balanced or unbalanced analog audio sources to Input 5 through the 6-pole input connector.

Step 3 —Connect outputs

Make the following output connections as needed:

• Connect balanced or unbalanced analog audio output devices to the captive screw output connector (H). Refer to Audio

Wiring on the next page for more information. A representative application diagram is shown below.

ATTENUATION 8Ω/4Ω OUTPUTSREMOTEINPUTS

∞0

∞

1234G

STANDBY

CLASS 2 WIRING

1234

LIMITER/

PROTECT

SIGNAL

1 2 3 4

100-240V 1.0A,50-60Hz

XPA U 1004

RS-232

Rx G

DMP EXP

OUTS

INPUTS

1 2 3 4

THRU

RESET

LAN

100-240V --AMAX

50-60HzSSP 200

LR1 (LF) 2 (RF) 3 (C) 4 (SUB) 5 (LS) 6 (RS) 78910(MIX)

ATTENUATION 8Ω/4Ω OUTPUTSREMOTEINPUTS

∞0

∞

1234G

STANDBY

CLASS 2 WIRING

1234

LIMITER/

PROTECT

SIGNAL

1 2 3 4

100-240V 1.0A,50-60Hz

XPA U 1004

ATTENUATION

∞0

∞

CLASS 2 WIRING

LIMITER/

PROTECT

SIGNAL

1 2

100-240V 0.6A,50-60Hz

XPA U 1002

STANDBY

REMOTEINPUTS 8Ω/4Ω OUTPUTS

Extron Extron Extron

Extron Extron

100-240V 1.5A, 50-60 Hz

STANDBY

XPA 4002

GREEN - ACTIVE

AMBER - STANDBY

LIMITER/

PROTECT

SIGNAL

∞

2 1 2

∞

ATTENUATION INPUTS BRIDGEMODE 8Ω/ 4Ω OUTPUTS

REMOTE

OFF

1 2

CLASS 2 WIRING

BRIDGE

8ΩONLY

(BRIDGE)

BRIDGE

Extron

XPA U 1004

Power Amplier

Extron

SSP 200

Surround Sound

Processor

Extron

XPA U 1004

Power Amplier

Extron

XPA U 1002

Power Amplier

Extron

SM 26

Speakers

HDMI

Audio

Ch. 1 & 2

Bridged

Extron

SM 28

Speakers

Extron

XPA 4002

Power Amplier

Extron

SF 26CT

Two-Way Ceiling Speakers

LHF RHF LHB RHB

CRF

Extron

SF 10C SUB

Subwoofer

HDMI Source

Audio

Figure 2. Typical Application Diagram for a 5.1.4 Speaker Setup

Step 4 —Connect control devices

• To control the SSP 200 through Ethernet, connect a LAN or WAN to the LAN connector (E).

• For serial RS-232 control, connect a host device to the 3-pole captive screw connector (D). The default baud rate is 9600.

• For control through USB, connect a host device to the front panel USB mini-B port (see figure3 , B, on the next page).

Step 6 —Connect power

Connect a 100 to 240 VAC, 50-60 Hz power source to the AC power connector (ﬁgure1, A, on the previous page).

Audio Wiring

Wire the audio input and output connectors as shown at right. Use

the supplied tie wrap to strap the audio cable to the extended tail of

the connector.

NOTE: The length of exposed wires is important. The ideal

length is 3/16 inch (5 mm).

RS-232 Port Wiring

To transmit and receive IR signals, connect a control device to

the three-pole RS-232 connector (D) as shown below.

RS-232

Tx Rx G

REMOTE

Transmit

Receive

Ground

RS-232 protocol defaults

• 9600 baud • no parity • 1 stop bit

• 8 data bits • no flow control

Ethernet Connection

The Ethernet cable can be terminated as a straight-through

cable or a crossover cable and must be properly terminated

for your application as shown at right.

• Crossover cable — Direct connection between the

computer and the SSP.

• Patch (straight) cable — Connection of the SSP to

an Ethernet LAN.

Front Panel Features

50-60 Hz

100-240V --A MAX

1 THRU

OUTS

DMP EXP

INPUTS

SSP 200

1(LF) 2(RF) 3(C) 4(SUB) 5(LS) 6(RS)789 10(MIX)

RS-232

Tx Rx G LAN

RESET

SSP 200

CONFIG PCM

2-CH

ATMOS

HDCP

EXP

SURROUND SOUND PROCESSOR

SOURCE INPUT VOLUME

1 2 3 4 5

A C

B C

D E

E F

Figure 3. Front Panel Features

AStatus LED

BConfiguration port

CInput source format indicators

DInput selection buttons

EVolume adjustment knob and LED

bar

AStatus LED — This LED indicates the current power and boot status of the SSP 200. It lights solid green when operational

and solid amber during bootup and reset.

"(5 mm) MAX. (typ)

3-pole Audio Input Wiring

Balanced Input

Sleev

Ring

Tip Tip

Sleeve

Jumper

Unbalanced Input

Tip

Slee

Ring

Tip

Sleeve

Ring

Tip

Sleeve

Tip

Sleeve

6-pole Audio Input Wiring

Balanced Input Unbalanced Input

Jumper

3-pole Audio Output Wiring

Unbalanced Output

Tip

Sleeve

NO Ground Here

Balanced Output

Tip

Sleev

Ring

Tip

Sleeve

Tip

Sleeve

Tip

Slee

Ring

Tip

Sleeve

Ring

6-pole Audio Output Wiring

Balanced Output Unbalanced Output

NO Ground Here

12345678

RJ-45

Connector

Insert T

wisted

Pair Wires

Pins:

A cable that is wired as TIA/EIA T568A at one

end and T568B at the other (Tx and Rx pairs

reversed) is a "crossover" cable.

A cable wired the same at both ends is called

a "straight-through" cable because no pin/pair

assignments are swapped.

T568B T568A T568B T568B

Straight-through Cable

(for connection to a switch, hub, or router)

End 1 End 2

Pin Wire Color Pin Wire Color

1 white-orange 1 white-orange

2 orange 2 orange

3 white-green 3 white-green

4 blue 4 blue

5 white-blue 5 white-blue

6 green 6 green

7 white-brown 7 white-brown

8 brown 8 brown

Crossover Cable

(for direct connection to a PC)

End 1 End 2

Pin Wire Color Pin Wire Color

1 white-orange 1 white-green

2 orange 2 green

3 white-green 3 white-orange

4 blue 4 blue

5 white-blue 5 white-blue

6 green 6 orange

7 white-brown 7 white-brown

8 brown 8 brown

68-3281-50 Rev. A

12 20

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the

Extron Safety and Regulatory Compliance Guide on the Extron website.

All trademarks mentioned are the property of their respective owners.

Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876

BConfiguration port — The SSP200 can be configured through PCS or by using SIS commands through this USB mini-B

port or through the LAN and RS-232 ports on the rear panel. In addition, this configuration port is used for firmware updates

from a PC.

CInput Source format indicators — The bank of eight LEDs identify the format of the audio input.

DInput selection buttons — Push one of the buttons to select between the five audio inputs. When a button is selected, the

button lights green indicating it is the active input. For digital inputs 1 through 4, the button turns amber when it is selected

and the digital clock signal has not been detected.

EVolume adjustment knob and LED bar — Use the rotary encoder to adjust the output volume from 0to 100. The default

setting is 80.

Conﬁguration and Operation

Extron PCS

To congure and operate the SSP 200 using PCS, install the software (available on the Extron website, www.extron.com) to

a PC connected to the processor via Ethernet (using the LAN connection) or the front panel USB conguration port. After the

installation, start the program and connect to the device (see the SSP 200 User Guide at www.extron.com). For full instructions

while operating PCS, press <F1> on the keyboard or click the ?button in the software and select Help File.

Toolbelt Software

To manage the SSP 200 using Toolbelt, install the software (available on the Extron website, www.extron.com) to a PC

connected to the processor via Ethernet (using the LAN connection). After the installation, start the program and connect to the

device by using Device Discovery to locate and then select the desired device. For full instructions while operating Toolbelt,

press <F1> on the keyboard or click the Help button in the software and select Toolbelt Help.

Internal Web Pages

To congure the SSP 200 using the factory-installed web pages in a web browser, connect the LAN connector to a LAN or WAN.

The default IP address is 192.168.254.254. There is a limited amount of conguration that can be performed with the web pages

(see the SSP 200 User Guide at www.extron.com).

SIS Commands

To congure the SSP 200 with SIS commands via an RS-232, USB, or Ethernet connection, use the Extron DataViewer utility or

a control system to send and receive SIS commands. For a list of SIS commands and variables, see the SSP 200 User Guide at

www.extron.com.

Firmware Updates

Download rmware updates from www.extron.com to a local computer and upload them via the internal web pages or PCS (see

the SSP 200 User Guide at www.extron.com).

Otros manuales para SSP 200

Otros manuales de Equipo de grabación de Extron electronics

Extron electronics

Extron electronics P/2 DA1 USB Manual de usuario

Extron electronics

Extron electronics RGB 158xi Manual de usuario

Extron electronics

Extron electronics VersaTools MTP DA4 Manual de usuario

Extron electronics

Extron electronics CIA111 Manual de usuario

Extron electronics

Extron electronics RAC 104 Manual de usuario

Extron electronics

Extron electronics AXI 02 AT Manual de usuario

Extron electronics

Extron electronics RGB 202 Rxi VTG Manual de usuario

Extron electronics

Extron electronics SSP 7.1 Manual de usuario

Extron electronics

Extron electronics CVEQ1 WM Manual de usuario

Extron electronics

Extron electronics RGB 160 Manual de usuario

Extron electronics

Extron electronics RGB 302 Manual de usuario

Extron electronics

Extron electronics RGB 190F Manual de usuario

Extron electronics

Extron electronics RGB 192 Manual de usuario

Extron electronics

Extron electronics HAI 100 4K Manual

Extron electronics

Extron electronics RGB 302 Manual de usuario

Extron electronics

Extron electronics SSP 7.1 Manual de usuario

Extron electronics

Extron electronics SSP 200 Manual de usuario

Extron electronics

Extron electronics TLI Pro 201 Manual de usuario

Extron electronics

Extron electronics RGB 203 Rxi VTG Manual de usuario

Extron electronics

Extron electronics RGB 560 AKM Manual de usuario

Extron electronics

Extron electronics RWM 1 Manual de usuario

Extron electronics

Extron electronics DMP 64 Manual de usuario

Extron electronics

Extron electronics SSP 7.1 Manual de usuario

Extron electronics

Extron electronics CCI Pro 700 Manual de usuario

Manuales populares de Equipo de grabación de otras marcas

KV2 Audio

KV2 Audio 500 Series Manual de usuario

Robotics Technologies

Robotics Technologies microBus-Cam II Manual de usuario

Seca

Seca 460 Manual de usuario

Cognex

Cognex MVS-8000 Series Manual de usuario

Mect

Mect MPNC006 Series Manual de usuario

Bad Caf

Bad Caf THE LEASH Manual de usuario

Strymon

Strymon NIGHTSKY Manual de usuario

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manual de usuario

Tews Technologies

Tews Technologies TPMC465 Manual de usuario

Honeywell

Honeywell Excel 50 Manual de usuario

SeaLevel

SeaLevel COMM+8.LPCI Manual de usuario

Arturia

Arturia AUDIOFUSE STUDIO Manual de usuario

Rukra

Rukra RK-1240 Manual de usuario

Samson

Samson SCOM Manual de usuario

Dynacord

Dynacord DPS260 Manual de usuario

Nice

Nice Core Manual de usuario

Pyle Pro

Pyle Pro PSS8 Manual de usuario

RF-System

RF-System TinyGate Manual de uso y cuidado
