AP410C Hardware User Guide

Read about and view specifications and compliance information for the AP410C in this topic. Install the AP410C using this topic.

The AP410C is a high-performance 802.11ax dual-5G. dual band access point designed for indoor high-density environments. This device supports

IEEE 802.11ax Orthogonal Frequency-Division Multiple Access (OFDMA) multi-user access.

For regulatory and compliance information, see "Regulatory Compliance Statements".

Important! Change the Country Code

If youraccess point is configured for the World Regulatory Domain, it is important to set the country code to the country in which the APwill be

deployed to meet regulatory requirements and for optimal wireless operation. To do this, follow these steps:

The country code selection is for World models only and is not available to FCC, CAN, and other country-specific models. Per FCC reg-

ulations, all Wi-Fi products marketed in the United States must be set to U.S. channels only.

1. Power on the AP and allow it to find and connect to ExtremeCloudIQ. Once the APis connected it appears in the table of devices on the

Manage > Devices page.

2. Select the check box next to the AP, and then choose Assign Country Code from the Actions drop-down list. In the dialog box, select the

appropriate country from the drop-down list, and then click Save.

3. Upload your changes to the device.

Safety Guidelines

The safety information in this section applies to AP410C devices.

The following safety icons are used in these guidelines to identify the type of precaution:

AP410C Hardware Guide

This icon indicates a general caution. Failure to comply with a caution notification can result in damage to equipment.

This icon indicates an electrical caution. Failure to comply with an electrical notification can result in serious injury or

death, and extensive damage to equipment.

This icon indicates a laser caution. Failure to comply with a laser caution can result in serious injury.

The following table lists the safety precautions you should follow when installing your AP410C devices.

Extreme Networks devices must be installed by a professional installer who is certified to install these types of devices

and to ensure that they are properly grounded and meet applicable local and national electrical codes.

These devices are intended for indoor use only.

Do not install the device in an environment where the operating ambient temperature might exceed the recom-

mended ranges.

Warning: This is a Class A product. In a domestic environment this product may cause radio interference in which case

the user may be required to take adequate measures.

For products available in the USA/Canada market, for the 2.4 GHz band, only channels 1-11 can be operated. Selec-

tion of other channels is not possible.

Changes or modifications made to this device that are not expressly approved by the party responsible for com-

pliance could void the user's authority to operate the equipment.

Use only attachments and accessories specified by Extreme Networks.

These devices are not intended for use by persons (including children) with reduced physical, sensory, or mental cap-

abilities, or with lack of experience of knowledge unless they are given supervision or instruction concerning use of the

devices by a person who is responsible for their safety. Children should be supervised to ensure that they do not play

with the devices.

Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. ESD damage occurs when elec-

tronic components are improperly handled and can result in complete or intermittent failures. Be sure to follow ESD-pre-

vention procedures when handling electronic components and equipment.

During operation, the surfaces of the AP410C can become hot. Use caution when handling.

To meet federal radiation exposure requirements, these devices should be installed at a minimum distance of 8" (20 cm)

from people or animals.

Install the AP

Youcan mount the AP410C on a flat surface or wall, or on the rails of a standard dropped ceiling grid. There is also an accessory mounting bracket

that allows you to install the device in Armstrong-style dropped ceilings (ordered separately).

The following sections describe how to install your AP410C devices.

Shipping Carton Contents

The AP410C shipping carton contains the following items:

lAP410C chassis

lMounting bracket

AP410C Hardware Guide

lRead Me card

Install the APon a Ceiling Track

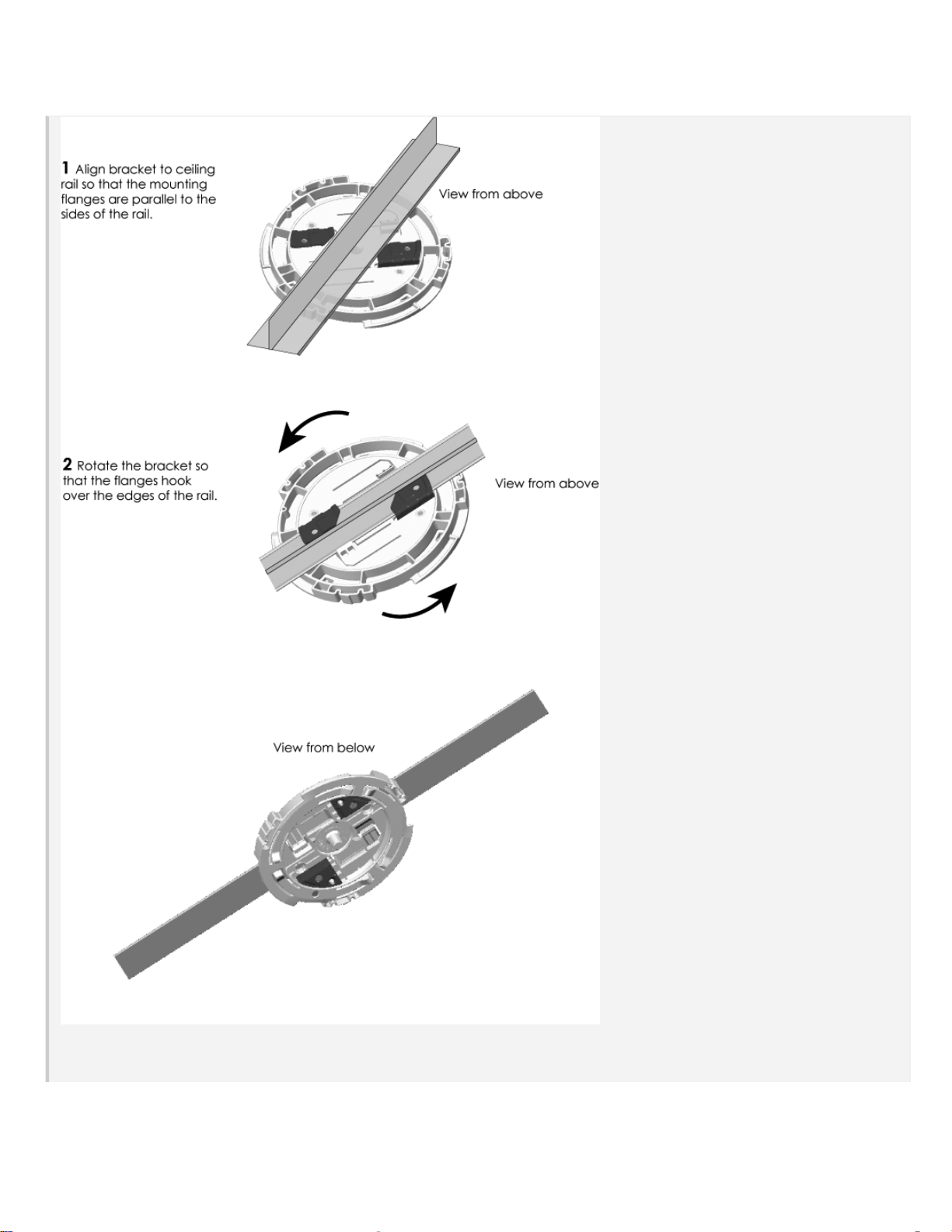

The AP410C ships with a mounting bracket that lets you easily install it on the rail of a standard dropped ceiling grid. The following illustration

shows how to attach the bracket to the ceiling rail, and then install the APon the bracket.

Once the bracket is secure, install the AP using the following steps:

1. Align the red dot on the bottom of the AP with the reddot on the bracket.

2. Lift the APstraight up and keep the red dots aligned until the bracket is seated in the round depression on the bottom of the device.

AP410C Hardware Guide

3. Rotate the APclockwise until it clicks into place on the bracket.

Mounting brackets are available for these devices that will allow you to install them on non-standard ceiling tracks. The following accessory brack-

ets are available:

lAH-ACC-BKT-AX-IL: Mounting bracket for Interlude ceilings.

lAH-ACC-BKT-AX-SL: Mounting bracket for Silhouette 1/8" and Silhouette 1/4" ceilings.

lAH-ACC-BKT-AX-TB: Mounting bracket for Prelude 15/16" and Suprafine 9/16" ceilings.

lAH-ACC-BKT-AX-WL: Mounting bracket for direct-to-wall installations.

AP410C Hardware Guide

Use the holes in the bracket as atemplate to markthe wall. Drill holes in the wall and attach the bracket to the wall using wall screws and wall

anchors if necessary. Attach the APto the bracket in the same manner as shown in the previous section.

Lock the AP

You can secure the AP using a Kensington®lock in the lock slot on the device, or you can use a security bracket and a crosshead screw or a secur-

ity screw. Security brackets and screws can be ordered separately from Extreme Networks (not available in Brazil).

Extreme Networks recommends a variety of Kensington locks. For more information, contact your sales representative.

Hardware Components

Youcan see the hardware components of the AP410C in the illustration below and read about them in the sections that follow.

Component Descriptions

Status Light

The status light conveys operational states for system power, firmware updates, Ethernet and wireless interface activity, and major alarms. The

AP410C has two status lights on the top of the chassis. At setup, this light cycles through the following sequence:

lSolid White: The power is on and the device is operational..

lSolid Amber: The device is on and is booting..

lBlinking Amber: The device is performing a firmware upgrade.

lDark: The power is off.

Light Sensor LED

The AP410C also has alight sensor on the top ofthe device.

Ethernet Ports

Two RJ45 Ethernet ports (Eth0 and Eth1) automatically negotiate half- and full-duplex connections with the connecting device. Eth0 is

100/1000/2500 BASE-T, and Eth1 is 10/100/1000 BASE-T. These ports are autosensing and adjust to straight-through and crossover standard Cat5

or better Ethernet cables automatically. The APreceives power through an Ethernet connection to the ETH1 port from PSE (power sourcing

equipment) that is compatible with the 802.3at and 802.3at standards.

Micro USB Console Port

Use the Console port to make a serial connection between your management system and the AP. When you connect to the device using the

Console port, the management station from which you connect to the device must have a VT100 emulation program, such as Tera Term Pro© (a

free terminal emulator) or Hilgraeve HyperTerminal® (provided with Windows® operating systems from XP forward).

The serial connection settings are: 9600 bits per second, 8 data bits, no parity, 1 stop bit, no flow control.

Reset Button

Use the Reset button to reset the device or restore the factory default settings. Insert a paper clip or similar tool into the Reset pinhole and press

AP410C Hardware Guide

Mount the APon a Wall

the button. To reboot the device, press the button for 5 seconds. To return the configuration to the factory default settings, press it for at least 10

seconds. After releasing the button, the indicator light goes dark, and then glows steady amber while the firmware loads and the system per-

forms a self-test. After the software finishes loading and the AP has connected to ExtremeCloudIQ, the status indicator glows steady white.

To prevent the reset button from resetting the configuration, enter this command:

no reset-button reset-config-enable

When this command is enabled, pressing the button for 5 seconds will still reboot the AP, but pressing it for more than 10 seconds will not reset its

configuration.

Security Slot

The AP410C has a security slot for locking the device.

Extreme Networks recommends a variety of Kensington®locks. For more information, contact your sales representative.

Hardware Specifications

The following sections list radio, device, power, and environmental specifications for the AP410C.

Radio Specifications

lRadio 1: 5 GHx 2x2 band 1 and 2 + 2.4 GHz 2x2

lRadio 2: 2.4 Hz 1x1+ 5 GHz 1x1 (scanner)

lRadio 3: 5 GHz 4x4 full band or 5 GHz band 3 and 4

Operating Frequency:

l2402 - 2483.5 MHz for the 2.4 GHz radio

l5150-5850 MHz for the 5 GHz radio

Wi-Fi Channel Support

lWiFi 2.4G RX requirement: -96dBm@1Mbps

lWiFi 5G RX requirement: -93dBm@6M

Bluetooth BLE Beacon (BLE5.0)

l2402 - 2480 MHz

lFrequency Hopping Spread-spectrum (FHSS) 802.11a

l5150-5250, 5725-5850 MHz operating frequency

lOrthogonal Frequency Division Multiplexing (OFDM)

modulation

lRates (Mbps): 54, 48, 36, 24, 12, 9, 6 with auto fallback

802.11b

l2.4-2.48 GHz operating frequency

lDirect-Sequence Spread-Spectrum (DSSS) modulation

lRates (Mbps): 11, 5.5, 2.1 with auto fallback

802.11g

l2.4-2.48 GHz operating frequency

lOrthogonal Frequency Division Multiplexing (OFDM)

modulation

lRates (Mbps): 54, 48, 36, 24, 12, 9, 6 with auto fallback

802.11n

l5 GHz 5150-5250, 5725-5850 MHz operating frequency

l802.11n modulation

lRates: MCS0 - MCS7

l2x2 MIMO radio

lHT20/HT40 support (HT40 is for 5 GHz only)

lA-MPDU and A-MSDU frame aggregation

AP410C Hardware Guide

802.11ac

l802.11ac modulation (256-QAM)

l2.4 - 2.48 GHz MCS0-9, NSS=1-2

l5150-5250, 5725-5850 MHz operating frequency

lRates: MCS0 - MCS9, NSS = 1-2

l2x2 MIMO radio

lVHT20/VHT40/VHT80 support (VT40 and VT80 for 5GHz only)

802.11ax

l5150-5250, 5725-5850 MHz operating frequency

l2.4 - 2.48 GHz operation frequency

l802.11ax modulation (1024-QAM)

lRates: MCS0 - MCS11, NSS = 1-2

lOFDMA support

l2x2 MU-MIMO

lHE20/HE40/HE80 support (HE40 and HE80 for 5GHz only)

Transmit Power and Sensitivity Specifications

Output power may be limited by regulatory requirements.

AP410C Hardware Guide

Channel Data Rate Power (dBm)

11b 1,2,5.5,11 18

11g 54 Mbps 15

48 Mbps 16

36 Mbps 17

6 Mbps 18

HE20 MCS 0,1,2 18

MCS 3 17

MCS 4, 5 16

MCS 6,7 15

MCS 8,9 14

MCS 10,11 12

2.4 G Sensitivity

11b 1 Mbps -99

11 Mbps -90

11g 6 Mpbs -96

36 Mpbs -84

48 Mbps -80

54 Mbps -78

HE20 MCS 0 -95

MCS 1 -91

MCS 2 -89

MCS 3 -86

MCS 4 -83

MCS 5 -79

MCS 6 -77

MCS 7 -76

MCS 8 -72

MCS 9 -70

MCS 10 -67

MCS 11 -64

AP410C Hardware Guide

Power: 2.4 GHz:

Tolerance +2/-2 dB @25°C

Mode Data Rate Power (dBm)

11a 54 Mbps 17

48 Mbps 17

36 Mbps 18

6 Mbps 19

HE20 MCS 0, 1, 2 19

MCS 3, 4 17

MCS 5, 6 16

MCS 7, 8 15

MCS 9 14

MCS 10 13

MCS 11 12

HE40 MCS 0, 1, 2 17

MCS 3, 4, 5 16

MCS 7, 15, 23 14

MCS 6, 7, 8 15

MCS 10 13

MCS 11 12

HE80 MCS 0,1,2 17

MCS 3,4,5 16

MCS 6,7,8 15

MCS 9 14

MCS 10 13

MCS 11 12

Sensitivity

11a 6 Mbps -94

36 Mbps -83

48 Mbps -79

54 Mbps -77

11n HE20 MCS 0 -94

MCS 1 -91

MCS 2 -88

MCS 3 -86

MCS 4 -82

MCS 5 -78

MCS 6 -77

MCS 7 -75

MCS 8 -71

MCS 9 -69

AP410C Hardware Guide

AP410C Power: 5 GHz:

Mode Data Rate Power (dBm)

MCS 10 -66

MCS 11 -63

11n HE40 MCS 0 -92

MCS 1 -88

MCS 2 -86

MCS 3 -83

MCS 4 -80

MCS 5 -76

MCS 6 -74

MCS 7 -73

MCS 8 -69

MCS 9 -67

MCS 10 -63

MCS 11 -60

HE80 MCS 0 -88

MCS 1 -85

MCS 2 -83

MCS 3 -80

MCS 4 -77

MCS 5 -73

MCS 6 -71

MCS 7 -69

MCS 8 -66

MCS 9 -64

MCS 10 -60

MCS 11 -57

AP410C Hardware Guide

Otros manuales para AP410C

Tabla de contenidos

Otros manuales de Punto de acceso inalámbrico de Extreme Networks

Extreme Networks

Extreme Networks Altitude 4522 Series Manual de usuario

Extreme Networks

Extreme Networks Altitude 3510 Manual de usuario

Extreme Networks

Extreme Networks ExtremeWireless WS-AP3805i-FCC Manual de usuario

Extreme Networks

Extreme Networks ExtremeWireless AP310i Manual de usuario

Extreme Networks

Extreme Networks Altitude 4511 Hoja de instrucciones

Extreme Networks

Extreme Networks AP3000 Manual de usuario

Extreme Networks

Extreme Networks AP305C Manual de instalación

Extreme Networks

Extreme Networks AP410C Manual de usuario

Extreme Networks

Extreme Networks ExtremeWireless AP3935i Manual de usuario

Extreme Networks

Extreme Networks ExtremeWireless AP560i Manual de usuario

Extreme Networks

Extreme Networks Altitude 4521 Series Manual de usuario

Extreme Networks

Extreme Networks WS-AP3801i Manual de usuario

Extreme Networks

Extreme Networks Altitude 4511 Manual de usuario

Extreme Networks

Extreme Networks Altitude 4700 Series Manual de instalación y operación

Extreme Networks

Extreme Networks ExtremeWireless WS-AP3915i-FCC Manual de usuario

Extreme Networks

Extreme Networks ExtremeWireless AP5050D Manual de usuario

Extreme Networks

Extreme Networks Altitude 3500 Series Manual de instalación y operación

Extreme Networks

Extreme Networks AP-8432 Manual de usuario

Extreme Networks

Extreme Networks ExtremeRouting SLX 9640 Manual de usuario

Extreme Networks

Extreme Networks WiNG AP-7602 Manual de usuario

Extreme Networks

Extreme Networks Altitude 4760 Series Manual de usuario

Extreme Networks

Extreme Networks ExtremeWireless AP560i Manual de usuario

Extreme Networks

Extreme Networks Altitude 4600 Series Manual de usuario

Extreme Networks

Extreme Networks ExtremeWireless AP5010 Manual de usuario

Manuales populares de Punto de acceso inalámbrico de otras marcas

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manual de usuario

Ubiquiti

Ubiquiti NanoStation NSM2 Manual de usuario

Cisco

Cisco Aironet 1550 Series Manual de usuario

Aruba

Aruba IAP-335 Manual de usuario

Advantek Networks

Advantek Networks AWN-AP-54MR Manual de usuario

IP-COM

IP-COM AP355 Manual de usuario

Buffalo

Buffalo AirStation WLA-L11G Manual de usuario

EnGenius

EnGenius EnStationACv2 Manual de usuario

D-Link

D-Link DAP-3662 Manual de usuario

xG Technology

xG Technology xMax CN1300 Manual de usuario

Widelink

Widelink ezWave WAP-1100 Series Manual de usuario

Edimax

Edimax CAP1200 Manual de usuario

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manual de usuario

Aruba

Aruba AP-203R Manual de usuario

LuXout Shades

LuXout Shades LUXSHADE MOTION Manual de usuario

CreatComm

CreatComm TB5F Manual de usuario

SineDigital

SineDigital MW-1500AP(H) Manual de usuario

TP-Link

TP-Link AP9650 V1 Manual de usuario
