Extreme Networks Evaluation Guide

This document will describe the industrial design and

modularity, and provide step-by-step conﬁgurations for

typical use cases in multi-tenant markets such as hotels.

The glossary of features lists the webUI screens, along

with a short description of the functionality. The high-

powered radio will need to be tested by comparing the

Altitude™ 4511 with other, “known” access points. When the

comparison is made, the value of the Altitude 4511 will

become more apparent.

Altitude 4511

Access Point

Evaluation Guide

Extreme Networks Evaluation Guide: Altitude 4511 Access Point

The Extreme Networks Altitude 4511 Access Point can

change the way wireless networks are installed, while

lowering the deployment and operations expense

associated with a wireless network.

When evaluating the Altitude 4511, take note of these

three key features and their cost saving advantages:

Advanced Industrial Design –

“Hide-in-Plain-Sight”

The Altitude 4511 access point installs in minutes

anywhere a CAT 5/6 cable is located. Due to its tiny size,

the Altitude 4511 will hide in plain sight; ceiling mount,

tabletop, or wall surface. A patent-pending mechanical

design is optimized for installation over any structured

wiring CAT 5/6 wall jack. The wallplate form factor is

25mm (1 inch) thick, and ﬂush mounted to the wall

surface. The AP does not protrude into the wall cavity.

This design allows for ecient heat transfer and a

universal installation over any structured wiring plate.

The modular design allows the end-user to add switched

Ethernet ports as needed, and snap in any keystone or

Leviton QuickPort® style connector to the wallplate.

High-Powered 802.11a/b/g/n Radio

Under the sleek exterior, the Altitude 4511 packs a 26dBm

transmitter along with dual omni-directional 3dBi peak

gain antennas. The AP supports either 2.4Ghz or 5.2Ghz

operating bands. 2x2 multiple-input and multiple-output

(MIMO) technology and support for legacy 802.11a/b/g is

ideal for supporting a wide range of laptops, portable

media players, tablets, mobile computers, Wi-Fi phones

and wireless enabled smartphones.

Controller AP

The Altitude 4511 can be managed via CLI or webUI as a

standalone access point. When more than one AP is

installed, any single Altitude 4511 can operate as a

Controller AP for a network of up to 25 Altitude 4511s. By

using the hardware of an access point to run controller

features, the Altitude 4511 dramatically lowers the cost of

a managed, RF controller-based network for small

hotels. All the features you want from an RF controller

are here; ﬁrmware management, central conﬁguration,

status and statistics. Also advanced features such as fast

roaming, Smart RF, and Rogue AP detection are all

included in the Controller AP function.

Scope of this Document

This document will describe the industrial design and

modularity, and provide step by step conﬁgurations for

typical use cases in multi-tenant markets such as hotels.

The glossary of features lists the webUI screens, along

with a short description of the functionality. The high

powered radio will need to be tested by comparing the

Altitude 4511 with other, “known” access points. When

the comparison is made, the value of the Altitude 4511

will become more apparent.

Use Case 1: Conﬁgure a single AP as a standalone AP

using the conﬁguration overrides.

Use Case 2: Use the Initial Setup Wizard to conﬁgure a

Controller AP and dependent APs with one WLAN.

Use Case 3: Use the conﬁguration screens to conﬁgure a

Controller AP with two WLANs; one open and one

secure. VLANs will be added to WLANs and switched

Ethernet ports.

Extreme Networks Evaluation Guide: Altitude 4511 Access Point

Advanced Industrial Design

Key Features

• Keystone or Leviton QuickPort® connector

• One port RJ-45 Ethernet Module, Three port RJ-45

Ethernet Module

• Snap-on installation in any location where an

Ethernet cable is located

Keystone Connector

The snap-in port is designed to accept any keystone-

style or Leviton QuickPort® connector. These connectors

are a popular mechanical form factor for RJ-11, RJ-45,

F-connector and many more network and communica-

tions connectors.

Snap out the blanking plug on the wallplate and snap in

the connector of your choice. The latch on the keystone

connector should always face toward the top of the AP.

One-Port RJ-45 Ethernet Module

The keystone port also accepts a one-port RJ-45 Ethernet

Module. This module is supplied in the shipping box with a

pigtail connector terminating in a 9-pin header. Snap in

the RJ-45 connector and connect the header pin to the

matching header on the back of the unit, labeled “FE1”

RJ-45 Connector for Ethernet

or Digital Phone

RJ-11 Analog

POTs Connector

Three-Port RJ-45 Ethernet Module

The front of the Altitude 4511 has an access cover that

can be removed to expose a hidden connector. A

three-port RJ-45 Ethernet Module connects to the

hidden header and snaps onto the Altitude 4511 in place

of the access cover.

Remove the access cover by using a sharp tool to

depress the latch on the bottom of the Altitude 4511.

Pull the access cover up and away from the Altitude 4511.

Reverse the procedure to install the three-port

Ethernet Module.

The Ethernet Module has three ports labeled “FE2”,

“FE3”, and “FE4”.

RJ-45 Ethernet Module – Supplied

Three Port RJ-45 Ethernet Module – Optional

Extreme Networks Evaluation Guide: Altitude 4511 Access Point

Vital Information Before

We Begin

Power

The Altitude 4511 requires Power over Ethernet. Connect

an 802.3af PoE switch or PoE midspan injector to the

port labeled UP1/PoE on the back of the unit. The AP

will draw between 6.5W and 9W of power depending on

the number of Ethernet ports connected and the trans-

mission speed.

The AP takes three minutes to completely boot up. At two

minutes, the Web server is active and will respond to a

Web browser. However, the backend database will not

authenticate user login for another minute.

The Altitude 4511 can be accessed from a webUI or CLI.

This guide will use the webUI login.

The webUI requires the Adobe Systems ﬂash plugin. If it is

not installed, the webUI will prompt the administrator to

install ﬂash.

For instructions on upgrading the system ﬁrmware, see

the Appendix.

Default user name: admin

Default password: admin123

Default IP address: IP address assigned by DHCP client, or

zero-conﬁg IP address where the last two octets in the IP

address are the decimal equivalent of the last two bytes in

the MAC address.

Example: MAC address 00:C0:23:00:F0:0A

Zero-conﬁg IP address: 169.254.240.10

To use the zero-conﬁg IP address, manually set your PC to

same IP subnet. See the Appendix for further assistance

converting the MAC bytes in hex to its decimal equivalent.

After the ﬁrst login following a factory default conﬁgura-

tion, the administrator will be prompted to change the

password.

Extreme Networks Evaluation Guide: Altitude 4511 Access Point

Reset Default Conﬁguration, View Running Conﬁg

Use the Operations menu to reload ﬁrmware, restart, or view the running conﬁguration. Navigate to Operations ->

Devices. Select the action from the list at the bottom of the page.

Controller AP

A Controller AP is any single Altitude 4511 that is conﬁg-

ured to operate as an RF controller. The Controller AP

provides a necessary set of management features

required for a small facility. Key features of the Controller

AP include:

• Automatic adoption of dependent APs

• Central conﬁguration for all APs

• Firmware upgrade on all APs

• One IP address for the network management. The

dependent APs are managed via a secure Layer 2

protocol. IP addresses can be assigned to depen-

dent APs if desired

• Central status and statistics for APs and connected

wireless clients

• IPS/IDS for rogue AP detection

• SmartRF for ecient spectrum management

and redundancy

– Automatic channel selection

– Automatic transmit power adjustment

– Neighbor AP recovery

• Fast roaming for mobile devices

• Role-based client access

• Layer 2 and Layer 3 access control

By default, an AP will be dependent if a Controller exists

in the network. Adoption is automatic.

A dependent AP obtains its conﬁguration from a proﬁle

stored on the Controller AP. Any manual conﬁguration

changes on a dependent AP will be overwritten by the

Controller upon reboot. Up to 24 dependent APs can be

connected to a Controller AP.

Extreme Networks Evaluation Guide: Altitude 4511 Access Point

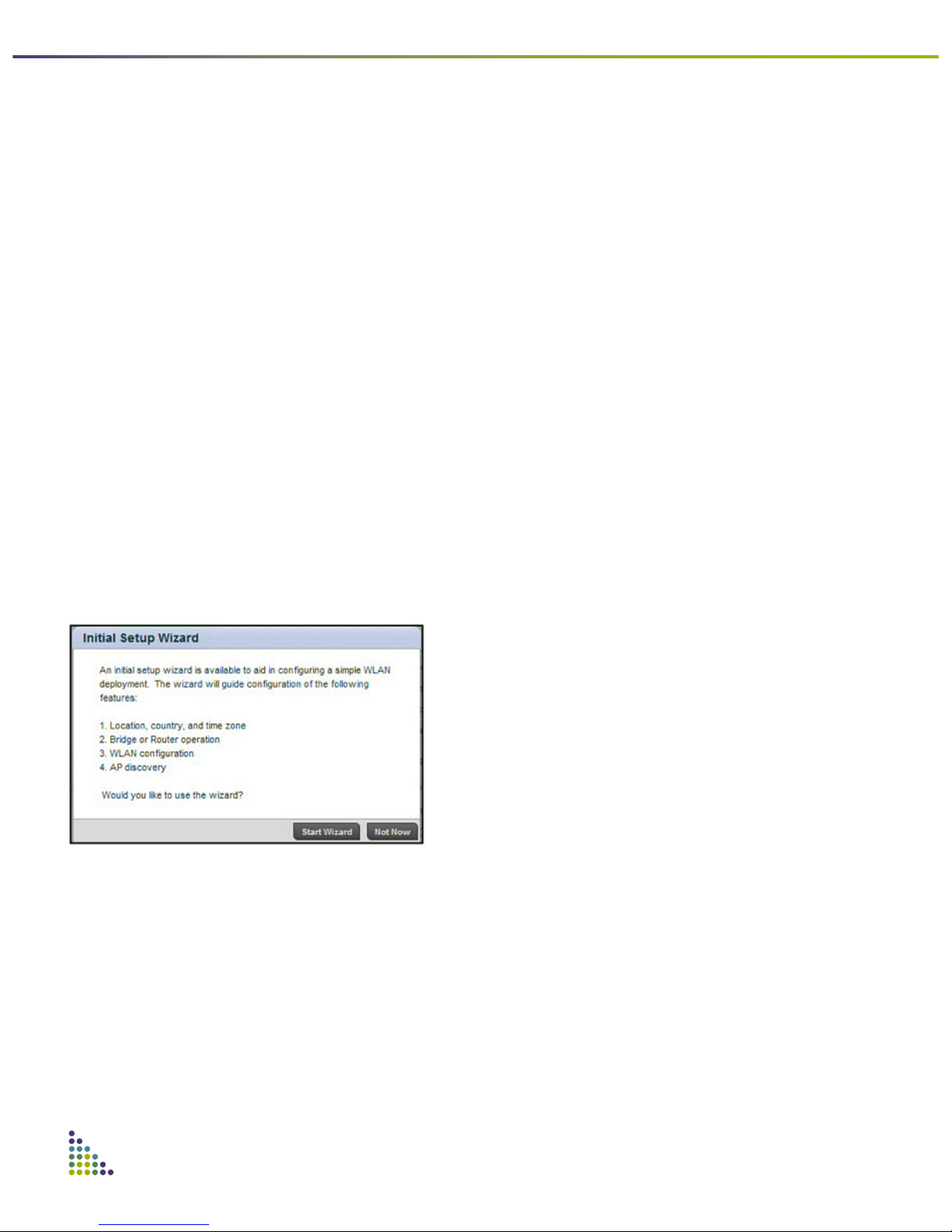

Initial Setup Wizard

The Wizard will run automatically after a factory reset. It

will walk the administrator through a set of minimum

required conﬁgurations. Once complete, proﬁles will be

created and assigned to the device. To restart the

Wizard, you must reset the unit to factory defaults. See

the Appendix for instructions on resetting the factory

default conﬁguration.

The conﬁguration screens in the Setup Wizard include:

Operating Mode: Standalone AP; Controller AP;

Dependent AP

Basic System Info: Password, Timezone, Country,

Network Access

VLAN and IP Address: Set the native VLAN and member

VLANs for all interfaces. Set whether the interface is an

access or trunk port. Assign the IP address to the uplink

LAN port.

WLAN Conﬁguration: Set up multiple WLANs and set

the minimum required information such as SSID,

Authentication, and VLAN. If needed, set up a RADIUS

server to authenticate a WLAN.

Policies, Proﬁles and Adoptions

Policies

Most (but not all) conﬁguration elements such as

Firewall and WLAN are conﬁgured as a policy. Multiple

policies can be created and edited. Once a policy is

created, it must be mapped onto a device proﬁle. If a

policy is edited, those edited changes are automatically

applied to any device mapped to that policy.

Note that there are policies inside of policies. For

example, Wireless Clients can be allowed or denied

access to the network based on an IP or MAC ﬁrewall

policy. Thus, the Wireless Client Roles policy requires a

Firewall policy.

Policies can be created at any time. When the adminis-

trator is presented with a drop down box to select a

policy, there will always be a “create” and “edit” button

to allow the additional policy to be created at that time.

To keep the conﬁguration steps clear, we recommend

creating a core set of policies at the beginning. Thus,

these policies will be ready for selection when the device

proﬁles are created.

Device Proﬁles

Device Proﬁles are a container for policies and other

conﬁgurations, and are assigned to devices either

manually or by an adoption policy. Device proﬁles should

be created for major groups of devices. For example, a

typical network would have at least two proﬁles; one

proﬁle for the Controller AP, and one proﬁle for all

dependent APs. If APs will service distinct areas of a

hotel; such as guest rooms and meeting rooms, then a

unique dependent AP proﬁle may be created for each of

these unique applications.

Device Overrides

Note that any proﬁle conﬁguration can be overridden by

speciﬁcally conﬁguring the device. It is recommended

that device overrides be used at a minimum. Commonly,

a device override is used to assign the management IP

address and default gateway to a Controller AP. Another

use for device overrides is to quickly conﬁgure a

standalone AP. If a device conﬁguration is overridden, be

certain to document the conﬁguration to prevent

confusion later.

Extreme Networks Evaluation Guide: Altitude 4511 Access Point

Adoption

Dependent APs are adopted by a Controller AP. By default, each AP is standalone or dependent. When a new AP is

installed in the network, it will begin the network discovery process to ﬁnd a Controller AP. On the Controller AP, an

adoption policy can be created to control which APs are adopted. The policy rules can include MAC address, serial

number, DHCP option, and other parameters.

Policies Available for Conﬁguration

Refer to the Appendix for a description of each of these policies. The core policies that will always be conﬁgured are

shown in green. Note that there are policies inside of policies. Also, some policies, notably ﬁrewall policies, can be

selected in multiple screens.

TIP

Conﬁgure Policies ﬁrst then map policies to Device Proﬁles.

In a simple network, edit the “default” policy to match your requirements rather than create new policies.

Policies WebUI Navigation

Devices Menu

Adoption Policy Proﬁle -> <proﬁle name>

RF Domain Menu

RF Domain RF Domain

Wireless Menu

WLANs Proﬁle -> <proﬁle name> -> Radio -> WLAN Mapping

WLAN QoS <link to other policy> Wireless -> Wireless LAN -> Basic Conﬁguration

Radio QoS Proﬁle -> <proﬁle name> -> Radio -> Radio Settings

Remote AAA Server <link to other policy> Wireless -> Wireless LAN -> Security

Services -> Captive Portal

MAC Association ACL Proﬁle -> <proﬁle name> -> Radio -> Radio Settings

SmartRF <link to other policy> RF domains -> Basic Conﬁguration

Bridging Proﬁle -> <proﬁle name> -> General

Security Menu

Wireless Firewall Proﬁle -> <proﬁle name> -> Security -> Settings

IP Firewall Proﬁle -> <proﬁle name> -> Interface -> Ethernet ports

Proﬁle -> <proﬁle name> -> Interface -> Virtual Interface

MAC Firewall Proﬁle -> <proﬁle name> -> Interface -> Ethernet ports

Proﬁle -> <proﬁle name> -> Interface -> Virtual Interface

Wireless IPS <link to other policy> RF Domains -> Basic Conﬁguration

Wireless Client Roles Proﬁle -> <proﬁle name> -> Security -> Services

Services Menu

Hotspot <link to other policy> Wireless -> Wireless LAN -> Security

DNS Whitelist Services -> Captive Portal

Management Menu

Management Policy Proﬁle -> <proﬁle name> -> Management -> Settings

Extreme Networks Evaluation Guide: Altitude 4511 Access Point

Use Case One

This case will show the conﬁguration required for a

Standalone AP using the device Overrides conﬁguration.

This is the most direct method to conﬁgure a standalone

AP and is ideal for conducting a site survey.

Extreme Networks equipment required:

One (1) Altitude 4511

Third-party equipment required:

Two PCs; one upstream and one downstream. Set the

PCs with a static IP address to be on the same subnet.

Alternatively, connect the Altitude 4511 to a subscriber

gateway and test using an Internet connection.

Test Setup

Conﬁgure the network and test PCs as shown in

the diagram.

Diagnostics

• Verify the test PCs have the correct IP addresses

• Verify the AP actually has a WLAN associated. Use

the information in the Diagnostics section to view

the WLANs and wireless clients on each AP

5644-01

Downstream Test PC

192.168.100.3/24

Layer 2 Network Switch

Gateway and Router DHCP Server

192.168.100.254/24

Controller Conﬁguration

Password: helpme

Access Method: Telnet, SSH, HTTP

192.168.100.1/24

Upstream Test PC

192.168.100.2/24

Altitude 4511

Standalone Access Point

Extreme Networks Evaluation Guide: Altitude 4511 Access Point

Conﬁguration

Use the device Overrides conﬁguration to conﬁgure a standalone AP. Proﬁles can be used, but the easier path is to

directly conﬁgure the device.

RF Domain Overrides

webUI navigation: Conﬁguration -> Devices -> Device Conﬁguration ->

RF Domain Overrides

Select Time Zone and Country

Click OK

Proﬁle Overrides

webUI navigation: Conﬁguration -> Devices -> Device Conﬁguration ->

Proﬁle Overrides

Virtual Interface with IP

Click Interfaces -> Virtual Interfaces

Click Add, leave the VLAN 1 name

Uncheck “Use DHCP to Obtain IP”

Assign an IP address, 192.168.100.1/24

Click OK, then Exit

Radio and WLAN

Click Interfaces -> Radios

Select Radio1, click Edit

Under Radio Settings

Select an operating Channel. Do not select “Smart”

Enter a Transmit power e.g. “24”. Do not select “Smart”

Click OK

Select the WLAN Mapping screen

Click Create a New WLAN

Enter a friendly name in the top box, Enter an SSID

Click create next to the WLANQoS box. Enter a friendly name

Click OK, then Exit

Select your WLAN from the right side pane, click the << arrow

Click OK, then Exit

Default Gateway

Click Network -> Static Routes

Click Add Row

Enter 0.0.0.0/0 as the network address

Enter 192.168.100.254 as the gateway

Click OK

Commit and Save

Click the Commit button, then Save in the upper right corner

Extreme Networks Evaluation Guide: Altitude 4511 Access Point

Use Case Two

One WLAN will be conﬁgured with open authentication.

The access points will bridge all packets and VLANs will

not be used anywhere in the network. This Use Case will

use the setup wizard. Reset the unit to the factory

default before beginning this use case.

Set static IP addresses on test PCs for this test.

Extreme Networks® equipment required:

Two (2) or Three (3) Altitude 4511s. One will serve as the

Controller for the network.

Third-party equipment required:

The uplink LAN ports of the access points can be

connected to a Layer-2 network switch or to an Internet

router. A PC with a wireless network card can be used to

test the network.

Test Setup

1. Reset the unit to factory defaults. Consult the

Appendix for instructions

2. Connect three APs to a Layer-2 switch

3. Connect a upstream test PC to the upstream

Layer-2 switch

4. To connect to the AP you wish to designate as the

Controller, use the zero-conf IP address:

• Set the upstream Test PC to a manual IP address

in the 169.254.x.x network

• Convert the last two bytes of the AP MAC

address to decimal (see Appendix)

5. When the conﬁguration is done; set the IP address

of the upstream Test PC to 192.168.100.2.

Diagnostics

• Verify the wireless test PC and upstream PC have IP

addresses in the same subnet.

• Verify the AP actually has a WLAN associated. Use

the information in the Diagnostics section to view

the WLANs and wireless clients on each AP

5645-01

Downstream Test PC

192.168.100.3/24

Network Controller for all APs

WLAN 1: Open

FE1: Not Used

Controller Conﬁguration

IP Address: 192.168.100.1/24

Gateway: 192.168.100.1

Password: helpme

Access Method: Telnet, SSH, HTTP, HTTPS

Upstream Test PC

192.168.100.2/24

Altitude 4511

Controller + AP

Altitude 4511

Dependent AP

Altitude 4511

Dependent AP

Layer 2 Network Switch

Otros manuales para Altitude 4511

Tabla de contenidos

Otros manuales de Punto de acceso inalámbrico de Extreme Networks

Extreme Networks

Extreme Networks ExtremeMobility AP460i Manual de usuario

Extreme Networks

Extreme Networks AP-7602 Manual de servicio

Extreme Networks

Extreme Networks IdentiFi 3600 Manual de usuario

Extreme Networks

Extreme Networks ExtremeRouting SLX 9640 Manual de usuario

Extreme Networks

Extreme Networks ExtremeWireless WS-AP3805i-FCC Manual de usuario

Extreme Networks

Extreme Networks AP-8432 Manual de usuario

Extreme Networks

Extreme Networks AP305C Manual de instalación

Extreme Networks

Extreme Networks ExtremeMobility AP410i/e Manual de usuario

Extreme Networks

Extreme Networks Altitude 350-2d AP Manual de usuario

Extreme Networks

Extreme Networks Altitude 4700 Series Manual de usuario

Extreme Networks

Extreme Networks Altitude 3500 Series Manual de instalación y operación

Extreme Networks

Extreme Networks ExtremeWireless AP3935i Manual de usuario

Extreme Networks

Extreme Networks ExtremeWireless AP3965i Manual de usuario

Extreme Networks

Extreme Networks ExtremeWireless AP410i Manual de usuario

Extreme Networks

Extreme Networks Altitude 4700 Series Manual de instalación y operación

Extreme Networks

Extreme Networks ExtremeWireless AP560h Manual de usuario

Extreme Networks

Extreme Networks ExtremeWireless AP3935e Manual de usuario

Extreme Networks

Extreme Networks ExtremeWireless AP5010 Manual de usuario

Extreme Networks

Extreme Networks ExtremeWireless WS-AP3915i-FCC Manual de usuario

Extreme Networks

Extreme Networks ExtremeWireless AP5050D Manual de usuario

Extreme Networks

Extreme Networks AP460C Manual de usuario

Extreme Networks

Extreme Networks AP60C Manual de instalación

Extreme Networks

Extreme Networks Altitude 3550 Guía de referencia rápida

Extreme Networks

Extreme Networks AP305C Manual de instalación

Manuales populares de Punto de acceso inalámbrico de otras marcas

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manual de usuario

Ubiquiti

Ubiquiti NanoStation NSM2 Manual de usuario

Cisco

Cisco Aironet 1550 Series Manual de usuario

Aruba

Aruba IAP-335 Manual de usuario

Advantek Networks

Advantek Networks AWN-AP-54MR Manual de usuario

IP-COM

IP-COM AP355 Manual de usuario

Buffalo

Buffalo AirStation WLA-L11G Manual de usuario

EnGenius

EnGenius EnStationACv2 Manual de usuario

D-Link

D-Link DAP-3662 Manual de usuario

xG Technology

xG Technology xMax CN1300 Manual de usuario

Widelink

Widelink ezWave WAP-1100 Series Manual de usuario

Edimax

Edimax CAP1200 Manual de usuario

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manual de usuario

Aruba

Aruba AP-203R Manual de usuario

LuXout Shades

LuXout Shades LUXSHADE MOTION Manual de usuario

CreatComm

CreatComm TB5F Manual de usuario

SineDigital

SineDigital MW-1500AP(H) Manual de usuario

TP-Link

TP-Link AP9650 V1 Manual de usuario
