USER MANUAL

Noise Dosimeter, Datalogger, and

Sound Level Meter With PC Interface

Model SL355

Additional User Manual Translations available at www.extech.com

2SL355-en-GB_V1.8 8/17

1. Table of Contents

1. Table of Contents ……………………………………………………………….…….. 2

Introduction …………………………………………….………………………….……

Features …………………………………………………………………………….…..

Meter Description ……………………………………………………………………...

Display Description ……………………………………………………………….……

Preparation ………………………………………………………………………….….

6.1 Getting Started ……….……………………………………………..……............

6.2 Battery Installation, Replacement, and Disposal ………………………………

6.3 Batter Status Symbols …………………………………………………........……

6.4 Microphone Installation …………………………………………..……….………

Calibration Procedure ……………………………………………………….………...

Dose Testing and Datalogging …………………………………………….………… 8

8.1

Overview of Dose Testing and Datalogging ……………………..………...….. 8

8.2 Running Dose Tests and Datalogger ……………………………………..……. 8

8.3 Reviewing Dose Test Setups and Measurement results ………….........…… 9

8.4 Review Stored Datalogger Data ……………………………………..........……. 9

8.5 Data Mode - Menu Table ………………………….………………………..…… 10

8.6

Data Mode - Meter Screen Shots ………………………………………..…….. 11

8.6.1

Select Dose Meter Setup from Memory ……………..………….………. 11

8.6.2 Measure and Store Dose Data ……………………...………….………… 11

8.6.3 Screen Shots for Recalling and Reviewing Dose Data …..…….………

Sound Level Meter (SLM) Mode ……………………………………………….…….

9.1 SLM Menu Table ……………………...……………………………………..…....

9.2 SLM Screen Shots ……………………..………………………………..……..…

10.

Meter Setup - Software Method ……………..………………………...…….……….

11.

Meter Setup - Manually ………………………..………………………………………

11.1 SETUP Mode ……………………………….…………………...……....……….

11.2SETUP Mode - Menu Table …………………………..………………….……..

11.3 SETUP Mode - Screen Shots ……………………...……………………...……

11.4 OPTION Mode ……….…..……………………………………………..………..

11.5 OPTION Mode - Menu Table ……………………………….……...….……….

11.6

OPTION Mode - Basic Screen Shots …………………..………….………….. 23

11.7

OPTION Mode - Set the Time and Date ………...……..…...………….…….. 24

11.8 OPTION Mode - Editing ……………...………………………………….……… 25

12. Clear the Meter’s Memory ……………………………………………….…………… 27

13. Specifications ………………………………………………………….………………. 28

14. Maintenance …………………………………………………………………….……... 31

15.

Software Installation and Operation …………………………………….…………... 31

16. Glossary of Terms ……………………………………………………….……………. 32

3SL355-en-GB_V1.8 8/17

2. Introduction

Congratulations on the purchase of the Model SL355. The SL355 is a combination Noise

Dosimeter, Datalogger, and Sound Level Meter (SLM). The SL355 can be configured manually via

push-button navigation of the menu system or through the PC interface using the supplied software

(recommended for ease of use). Refer to the dedicated software User Guide on the supplied CD-

ROM for detailed instructions on using the software program for downloading data, configuring the

SL355 meter, and remotely controlling the meter.

The SL355 Noise Dosimeter is designed to test noise exposure and provide noise surveys for

compliance with OSHA, MSHA, DOD, ACGIH, and ISO standards. The SL355 monitors

accumulated noise exposure and measures frequency weighted noise exposure and peak sound

level simultaneously for % dose and TWA (time weighted average or sound exposure in dB).

Up to twenty (20) noise surveys can be recorded and up to five (5) automated dose tests can be

programmed up to 30 days in advance. Each test includes a ‘repeat’ feature where tests can be

rerun a pre-programmed number of times. Criterion Level, Threshold, Exchange rate and other

parameters are user-programmable. Noise Survey results can be viewed on the meter’s display and

downloaded using the supplied PC software.

The SL355 Sound Level Meter (SLM) displays real-time sound pressure level (SPL) readings

along with LEQ, SEL, and elapsed time as a typical type 2 SLM would. The SLM has selectable

measurement ranges: 60 to 130 & 70 to 140dB, ‘A’ and ‘C’ frequency weightings, Linear ‘Z’, and ‘C’

Peak weightings, Fast & Slow response time settings, and an adjustable energy exchange rate (Q).

The SL355 Datalogger has a built-in real-time clock for date/time stamped data records. The

datalogger can store up to 14,400 readings in the meter’s memory. Sampling time (rate) is

programmable from 1 second per reading up to 1 hour per reading. Logged readings are

downloaded using the supplied PC software.

This device has been calibrated and tested before shipment. With proper care, years of reliable

service can be expected.

Conventions of this User Guide

The SL355 is a sophisticated device with a variety of features. This User Guide is intended to

optimize the user experience with regard to ease of use and convenience.

To accomplish this, most sections of this User Guide include instructional text, a Menu table, and a

section that illustrates the actual “Screen shots” seen by the user while programming the meter.

Be sure to review all three of these approaches (instructional text, menu tables, and screen shots)

and determine if one, or a combination of the three, work best for the application at hand. If

questions arise please contact our technical support staff.

4SL355-en-GB_V1.8 8/17

3. Features

•Combination Dose Meter, Datalogger, and Sound Level Meter.

•User-defined measurement configurations. Selectable Criterion Level, Exchange Rate,

Threshold, Frequency Weighting, and Response Time settings.

•Completely configurable using the supplied PC software (recommended).

•Twenty (20) internal memory locations with a total capacity of 14,400 readings.

•Download Dose, TWA, and Datalogger data to a PC using supplied PC software.

•Real-time clock and date/time stamp datalogging capability.

•Keypad lock protects against inadvertent meter operation.

•Included USB PC interface and WindowsTM configuration and datalogging software.

•Kit includes a microphone, microphone clip, microphone windscreen, belt clip, batteries,

protective case, keypad cover, user guide, software CD-ROM, and USB cable.

4. Meter Description

1. Microphone input jack

2. Calibration potentiometer for 114db adjustment

3. LCD Display

4. ON-OFF and MENU button

5. Left arrow button

6. Down arrow button

7. USB PC interface jack

8. Right arrow button

9. Up arrow button

10. RUN/PAUSE and RETURN button

Keyboard cover:

Notes: Battery compartment and belt clip are located on rear of meter. Microphone lapel clip,

calibration screwdriver, microphone, windscreen, and other kit items are not pictured.

5SL355-en-GB_V1.8 8/17

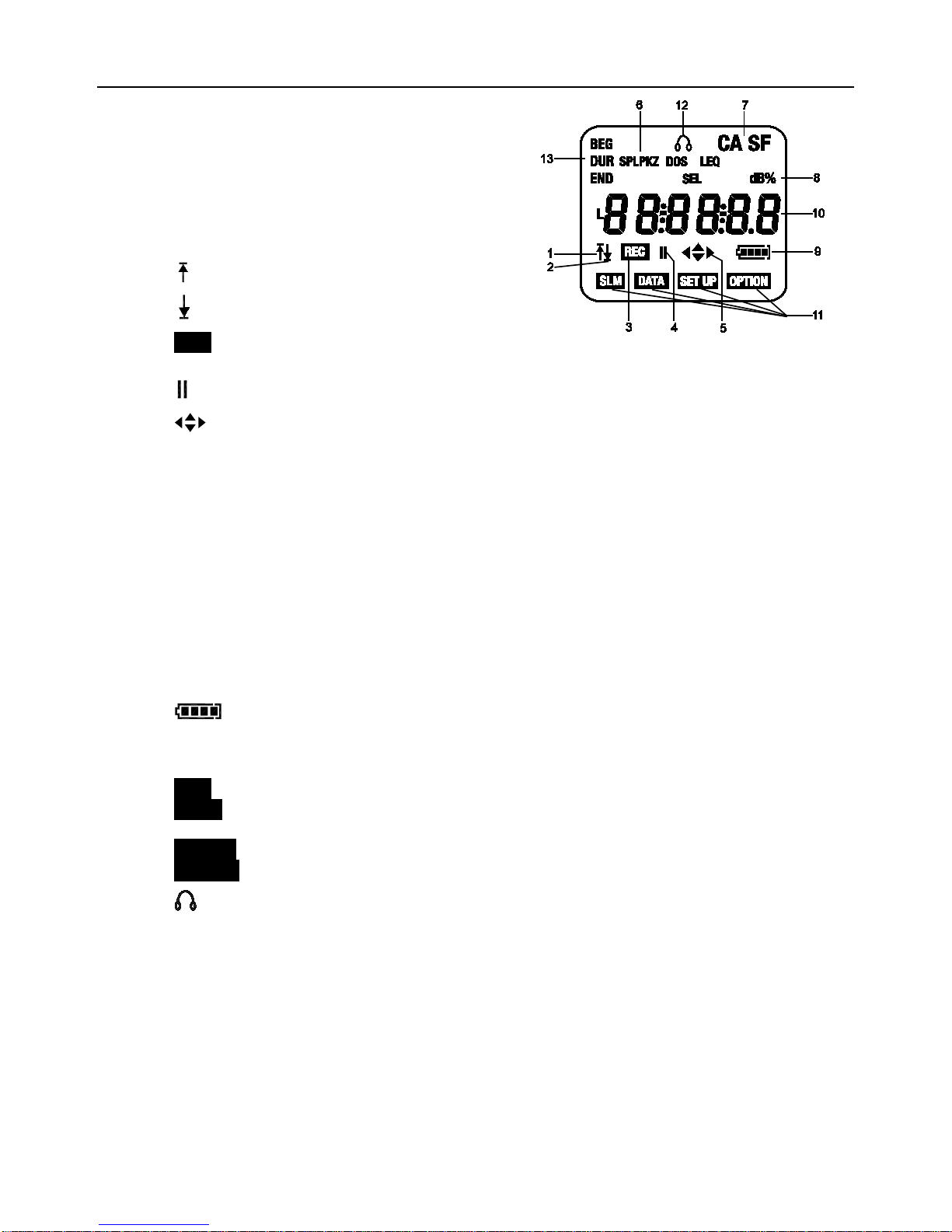

5. Display Description

1. Over range indicator

2. Under range indicator

3. REC Flashing: Timer standby; Solid:

Recording

4. Recording Pause indicator

5. ‘Smart’ navigation buttons

6. SPL (Sound Pressure Level)

PK (Peak mode: ‘C’ frequency weighting)

PKZ (Peak mode: Linear ‘Z’ weighting)

DOSE (%dose)

LEQ (Equivalent Continuous Sound Level)

TWA (Time Weighted Average)

SEL (Single Event Noise Exposure Level)

7. SSlow (response time weighting)

FFast (response time weighting)

C‘C’ frequency weighting

A‘A’ frequency weighting

8. dB% Percent or decibel readout units

9. Battery status

10. Primary reading, date/time display, or menu items for the programming modes

11. Mode Icons:

SLM Sound level meter mode

DATA Dosimeter/Datalogger (when flashing, Data is recording and the keypad is locked;

when solid, the meter is waiting for the Timer to countdown before recording can begin)

SET UP Setup mode of operation

OPTION Option mode of operation

12. Headphone icon indicates that a SPL of over 115db has occurred

13. BEG Start test time

END Stop test time

DUR Test duration

6SL355-en-GB_V1.8 8/17

6. Preparation

6.1 Getting Started

1. Power the instrument by momentarily pressing the power/menu button at the upper left side of

the keypad.

2. When the unit is turned on, the model number (355) appears briefly on the left side of the LCD

and the firmware version (1.1, for example) appears on the right side.

3. The meter defaults to the SLM mode (SLM icon is shown) where the main display indicates the

sound pressure level (SPL) in db, the A/C frequency weighting setting, the F/S response time

setting, and the battery status icon (an up or down arrow will be

visible if the current reading is above or below the selected range

respectively). See screen shot diagram.

4. If the meter will not switch on, check that the batteries are installed

and are fresh.

5. To turn the meter OFF, press and hold the power/menu button for

three (3) seconds.

6. The SL355 can be used as a Sound Level Meter or a Dosimeter/Datalogger.

7. Note that the four arrow buttons are ‘smart’ navigation keys. For any given meter mode only the

active arrow buttons appear on the LCD.

6.2 Battery Installation, Replacement, and Disposal

1. Slide the rear battery cover off of the meter.

2. Remove the old batteries (if applicable) and insert three (3) ‘AAA’ 1.5V

batteries. Ensure that the battery orientation and polarity are correct. Do

not mix fresh and partially used batteries.

3. Carefully re-assemble the meter before use.

Never dispose of used batteries or rechargeable batteries in household waste.

As consumers, users are legally required to take used batteries to appropriate

collection sites, the retail store where the batteries were purchased, or wherever

batteries are sold.

Disposal: Do not dispose of this instrument in household waste. The user is

obligated to take end-of-life devices to a designated collection point for the disposal

of electrical and electronic equipment.

6.3 Battery Status

The battery status icon appears as empty when the battery is depleted. The battery symbol

indicates the remaining capacity in numbers of bars or segments, as follows:

6.4 Microphone installation

Insert the microphone plug into the connector on the top of the meter as shown in

accompanying diagram. Turn clockwise to secure in place; be careful not to over-

tighten.

7SL355-en-GB_V1.8 8/17

7. Calibration Procedure

1. A standard 114db acoustic calibrator is required (as shown in diagram below).

2. Insert the meter’s microphone carefully into the insertion hole of the calibrator (as shown).

3. Switch the calibrator ON and set its output amplitude to 114 db.

4. Switch the meter ON.

5. Access the Calibration mode (CL) by repeatedly pressing the MENU button until the CL XX.X

display is shown and the SLM, DATA, SETUP, and OPTION mode icons are all switched off

(refer to accompanying screen shot illustration).

6. Adjust the meter’s potentiometer (recessed at top of meter) using the supplied adjustment tool

until the display reads 114db, matching the 114db output level of the calibrator.

7. Press the RUN/PAUSE/RETURN button to save the calibration.

8SL355-en-GB_V1.8 8/17

8. Dose Testing and Datalogging

8.1 Overview

The dosimeter noise survey and datalogging functions operate at the same time. For example, while

the %dose and TWA (time weighted average) values are being calculated and displayed (for the

dose meter’s noise survey) individual SPL readings are being stored by the datalogger.

Noise surveys and logged data are stored in ‘RUNS’ which are memory locations (1 to 20). Note that

the meter can collect up to 14,400 readings total, spread out over the 20 RUN memory locations. The

‘RUN’ parameter is located in the DATA menu. The DATA Mode Menu table and a Screen-Shot

section are provided directly after the instructional text below:

8.2 Running the Dose Meter Noise Survey and Datalogger

1. Use the supplied software program (recommended) to configure the meter’s noise survey and

datalogging parameters (a software User Guide is provided on the supplied CD-ROM), or

manually configure the meter following the instructions provided in the SETUP and OPTION

mode sections of this guide. For compliance, the noise survey parameters must match the

requirements of the regulation/standard in question.

2. In the SETUP mode (or using the supplied software) set the Criterion Level, Exchange Rate,

Threshold, Frequency Weighting, Response time, Range, and Peak parameters. Note that if a

configuration has already been stored, it can be recalled in the SETUP mode. Reference Section

11.3 for SETUP Mode details.

3. In the OPTION mode (or using supplied software) set the Date/Time, Test Duration, Test Begin

(BEG) time, Test End time, Sample rate (logging period), Repeat, Pair, and Timer functions.

Reference Section 11.5 for OPTION Mode details.

Note: for an 8 hour Dose noise survey the minimum Sample rate is 2 seconds.

4. For the entirety of the test, the microphone should be clipped to the test person’s lapel and the

meter should be clipped to the test person’s belt.

5. To run the dosimeter/datalogger the meter must be in the DATA Mode of operation. Press the

Menu button to select the DATA Mode (if not already selected).

TIMER Notes:

•The Timer setting is critical for determining whether the test begins immediately (Timer OFF)

or at a programmed time (Timer ON).

•With the TIMER set to OFF, recording can begin immediately by pressing the RUN/PAUSE

button. When the meter is recording, the REC icon will appear solid and the DATA icon will

flash.

•With the TIMER set to ON, and with the Beginning and End times programmed, after

RUN/PAUSE is pressed recording will NOT start until the programmed Begin (BEG) time is

reached. The REC icon will be flashing (indicating that the meter is in “standby” waiting for

the Begin time); the DATA icon will be on solid.

•Up to 5 Begin/End times can be pre-set and tests can be programmed up to 30 days in

advance.

9SL355-en-GB_V1.8 8/17

DUR (DURATION) Notes:

•DUR allows the user to select a specific RUN Duration time.

•When a duration period is set by the user to anything other than OFF, it takes precedence

over the Timer setting so that any preset Begin and End times will be ignored. DUR is

available in the OPTION mode menu.

6. While testing, the meter’s DATA menu can be navigated (see DATA Menu table and Screen

Shots below) as long as the keypad is unlocked. This allows the user to view the current setup, %

dose, and TWA while the test is running.

7. The arrow keys are locked automatically when recording begins. Press ◄and ▼ simultaneously

to unlock the keypad. The DATA icon will cease flashing, indicating that the keypad is unlocked

and ready for navigation. To re-lock the keypad, press ▲and ► simultaneously.

8. To pause a recording, press RUN/PAUSE. The pause icon || will appear. Press again to resume.

9. To stop the recording if the END time has not been automatically set, first unlock the keypad by

pressing ◄and ▼ simultaneously and then press the MENU key. The display will show STOP

and will count down from 3 to zero; press the RUN/PAUSE button before zero is reached to

successfully stop the recording.

10. Switch the meter off to conserve battery power. To switch the meter off, press and hold the menu

button until the unit switches off.

11. %Dose and TWA calculations are viewable using the PC interface or by navigating the DATA

mode (refer to the DATA Menu table and Screen Shots below). Individually logged readings are

retrievable via the PC interface only. Follow the directions in the Software User Guide supplied on

the enclosed CD-ROM.

Testing notes:

•Do not shout into the microphone or strike the microphone as this will affect the test.

•To obtain reliable data, the user’s activities must reflect a typical workday.

8.3 Reviewing Noise Survey Setups and Measurement Results

1. Note that the PC interface can be used to review setups and measurement results. Refer to

the Software User Guide on the supplied CD-ROM for instructions. To work manually, follow

the steps below.

2. Switch the meter ON; the meter will be in the SLM mode. Press MENU to access the DATA

mode.

3. Use ►to scroll to the ‘RUN’ display. Now use▼▲ to select the desired RUN (memory

location).

4. When the desired RUN is selected, use ◄►to scroll the setup data and noise survey results

as shown in the DATA Menu table and Screen Shots below.

8.4 Reviewing Stored Datalogger Data

The stored datalogger readings can only be viewed by downloading the data to a PC using the

supplied cable and PC software program. Refer to the Software User Guide on the supplied CD-

ROM for detailed instructions.

10 SL355-en-GB_V1.8 8/17

8.5 DATA Mode Menu Table

Display Description Display Description

HH:MM:SS

(Use ▼to scroll

items below) Current Time HH:MM:SS

(Use ►to scroll items

below) Current Time

DD:MM:YY Current Date BEG Datalogger Begin Time

SPL Sound Pressure

Level rUN†Current memory location

(01-20)

DUR

Test Duration

USr (selected setup) View %DOSE and TWA

using ▲and ▼buttons

60 to 130db

70 to 140db Measurement Ranges

Er Exchange rate (Q) in db

tHr Threshold in db

CrIt Criterion level in db

LP Logging Period (mm:ss)

from 1 sec. to 1 hour

† Scroll the RUN parameter list using the ▼▲ buttons to locate the EPty XX parameter which indicates the

number of empty memory locations or runs remaining (00 to 20); if recording is attempted with all memory

locations full, the meter will display ‘EPty00’ indicating that there are no (zero) empty storage locations

remaining (data must then be cleared from the meter before continuing; use the OPTION menu to clear

data).

Tabla de contenidos

Otros manuales de Instrumento de medición de Extech Instruments

Extech Instruments

Extech Instruments HD450 Manual de usuario

Extech Instruments

Extech Instruments MO300 Manual de usuario

Extech Instruments

Extech Instruments LT250W Manual de usuario

Extech Instruments

Extech Instruments HD750 Manual de usuario

Extech Instruments

Extech Instruments PH220 Manual de usuario

Extech Instruments

Extech Instruments HD350 Manual de usuario

Extech Instruments

Extech Instruments ExStik SX800 Series Manual de usuario

Extech Instruments

Extech Instruments MA150-T Manual de usuario

Extech Instruments

Extech Instruments 433201A Manual de usuario

Extech Instruments

Extech Instruments 407113 Manual de usuario

Extech Instruments

Extech Instruments HD755 Manual de usuario

Extech Instruments

Extech Instruments LT40 Manual de usuario

Extech Instruments

Extech Instruments 451212 Manual de usuario

Extech Instruments

Extech Instruments 407355-NIST Manual de usuario

Extech Instruments

Extech Instruments MO50 Manual de usuario

Extech Instruments

Extech Instruments 451104 Manual de usuario

Extech Instruments

Extech Instruments 382152 Manual de usuario

Extech Instruments

Extech Instruments RPM33-NIST Manual de usuario

Extech Instruments

Extech Instruments RH401 Manual de usuario

Extech Instruments

Extech Instruments 380976-K Manual de usuario

Extech Instruments

Extech Instruments HDV7C-55-HD-1 Manual de usuario

Extech Instruments

Extech Instruments EC100 Manual de usuario

Extech Instruments

Extech Instruments RPM40 Manual de usuario

Extech Instruments

Extech Instruments HD750 Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
