Excell SI-130 Manual de usuario

User Manual

Weighing Scale

SI-130

The information contained herein is the property of Excell Precision Limited and is supplied

without liability for errors or omissions. No part may be reproduced or used except as

authorized by contract or other written permission. The copyright and the foregoing

restriction on reproduction and use extend to all media in which the information may be

embodied.

02025100 ZSME300000339

EXCELL PRECISION CO., LTD.

Table of Contents

Chapter 1 Introduction......................................................................................................................... 2

Preparing To Use the Scale...............................................................................................................2

Componennts................................................................................................................................... 2

Apperence ........................................................................................................................................ 2

Specification.....................................................................................................................................3

Keypad function ............................................................................................................................... 3

Display.............................................................................................................................................. 4

Firmware Version ............................................................................................................................. 4

Error Massages................................................................................................................................. 4

Unit Converion .................................................................................................................................4

Chapter 2 Operation ............................................................................................................................ 5

Tare................................................................................................................................................... 5

Net value / Gross value....................................................................................................................5

Counting Function............................................................................................................................ 5

Auto Power Off, Backlight, Hold Mode ............................................................................................ 6

02025100 ZSME300000339

EXCELL PRECISION CO., LTD.

Keys

AC power

Battery

cover

4 Feet

Bubble level

Chapter 1 Introduction

Preparing To Use the Scale

1. Please keep the scale in a cool dry place. Do not store it at high temperature.

2. Avoid objects impacting with the scale. Do not drop loads onto the scale or subject the weigh

pan to any strong shock loads.

3. Remove any weight that might be on the weigh pan before power on the scale.

4. We suggest to warm up the scale for 15~20 minutes before operation to ensure best accuracy.

5. Adjust the four levelling feet (if fitted) to set the scale pan level using the spirit bubble level

located at the front of the scale.

6. All goods weighed should be placed in the centre of the weigh pan for accurate weighing. The

overall dimensions of the goods being weighed should not exceed the dimension of the weigh

pan.

7. Notes for dry battery models

If the scale is not going to be used, please take out the dry batteries to avoid electrolyte leakage.

Do not mix different types of dry battery or mix used dry batteries with new dry batteries.

Please make sure “+” , “- “ poles are placed in the correct direction.

Please don’t place the battery in hot areas or try to dissemble the battery, to avoid electrolyte

leakage.

Please don’t keep the used-up battery in the battery case to avoid breakdown.

Componennts

Stainless steel pan plastic pan + scale AC adapter manual

Apperence

02025100 ZSME300000339

EXCELL PRECISION CO., LTD.

Specification

Model

Capacity

Division

Resolution

SI130-2.5

2,500g

0.5g

1/5,000

SI130-5

5,000g

1/5,000

SI130-10

10,000g

1/5,000

SI130-15

15,000g

1/5,000

Operating Temperature：0°C ~ 40°C（32°F ~ 104°F）

Power Source : 4* C (UM-2) 1.5V dry batteries (excluded)

Adapter input: AC 100V ~ 240V output: 12VDC/1A

Keypad function

Press this key to power off.

This key possesses two functions: Power on and zero function.

When the scale is off, press this key to power on.

When the scale is on and the weigh pan is empty (free of load) and the display is not

showing zero, press this key to zero the scale. The zero indication “” shows on left side of

the display.

Zero range: ±2% of full scale (standard, OMIL & NTEP models); ±4% of full scale (Sri Lanka

models)

Press this key to deduct the weight of the container.

This key is not functional when the weight value shown on the display is negative or over the

full scale capacity.

Press this key to select desired weight units or piece unit (Pcs). The indications will

indicate the active units

Press this key to switch between the “Net value” and the “Gross value”

The gross weight = Tare weight + Net weight (The key is ONLY functional in the Tare mode)

02025100 ZSME300000339

EXCELL PRECISION CO., LTD.

TARE

ZERO

Pcs

Weight unit

When using counting function,

pcs indication on; otherwise off

Low power

indication

Display

Firmware Version

When power is off, hold key and press key to

wait till display shows

and then press key twice to enter .Press key and displays firmware

version and then press key to display maintenance number for 2 secs.

Press key to back to last screen and displays .Press key and display

and then press key to exit self-test mode, the scale will restart automatically.

Error Massages

The EEPROM memory is not working correctly.

Zero is higher than the zero range when power on the scale.

Zero is lower than the zero range when power on the scale.

A/D value is unstable

A/D IC malfunction (cannot read A/D value).

The weight of the object is over 9 divisions of the maximum capacity

The display resolution is greater than internal resolution after calibration.

G value is not within the range 9.772~9.829

Error setting

The weight value is greater than zero range, when re-zero the scale.

The weight value is below zero range, when re-zero the scale.

Unit Converion

1 g = 0.001 kg

1 g = 1 g

1 g = 0.002204623 lb

lb,oz

1 g = 0.03527396 oz

02025100 ZSME300000339

EXCELL PRECISION CO., LTD.

Chapter 2 Operation

Tare

Place the object on the weigh pan

When the weight stable, press

to deduct the weight and tare

indication“” shows on.

Remove the object and press

to clear the tare value and tare

indication “” goes off.

Tare continuously: Press key, when weight is added or deducted on weigh pan.

Tare value = the full capacity (the scale can be tared continuously to the full capacity)

Net value / Gross value

In tare mode, tare indication “” shows on

Press to show the gross value,

and tare indication “” goes off

Press again to show the net value

and tare indication “” shows again.

The key is functional ONLY in tare mode.

Counting Function

Use to enter the counting mode.

Pcs indication “” shows on.

Press to select the counting sample

size (10,20,50,100,200)

Place the samples on the weigh pan,

and then press

After the weight is stable, the display

shows the quantity of the samples.















Pcs

TARE

ZERO

Pcs

TARE

ZERO





Pcs

TARE

ZERO

Pcs

TARE

ZERO

Pcs

TARE

ZERO

Pcs

TARE

ZERO

Pcs

TARE

ZERO

Pcs

TARE

ZERO

Pcs

TARE

ZERO

Pcs

TARE

ZERO

02025100 ZSME300000339

EXCELL PRECISION CO., LTD.

After power off the scale, the scale memorizes the selected sample quantity, The scale will show

the same selected sample quantity, when entering the counting mode next time.

If the sample quantities weighed larger than 65536 pcs, the display shows the error message

“”.

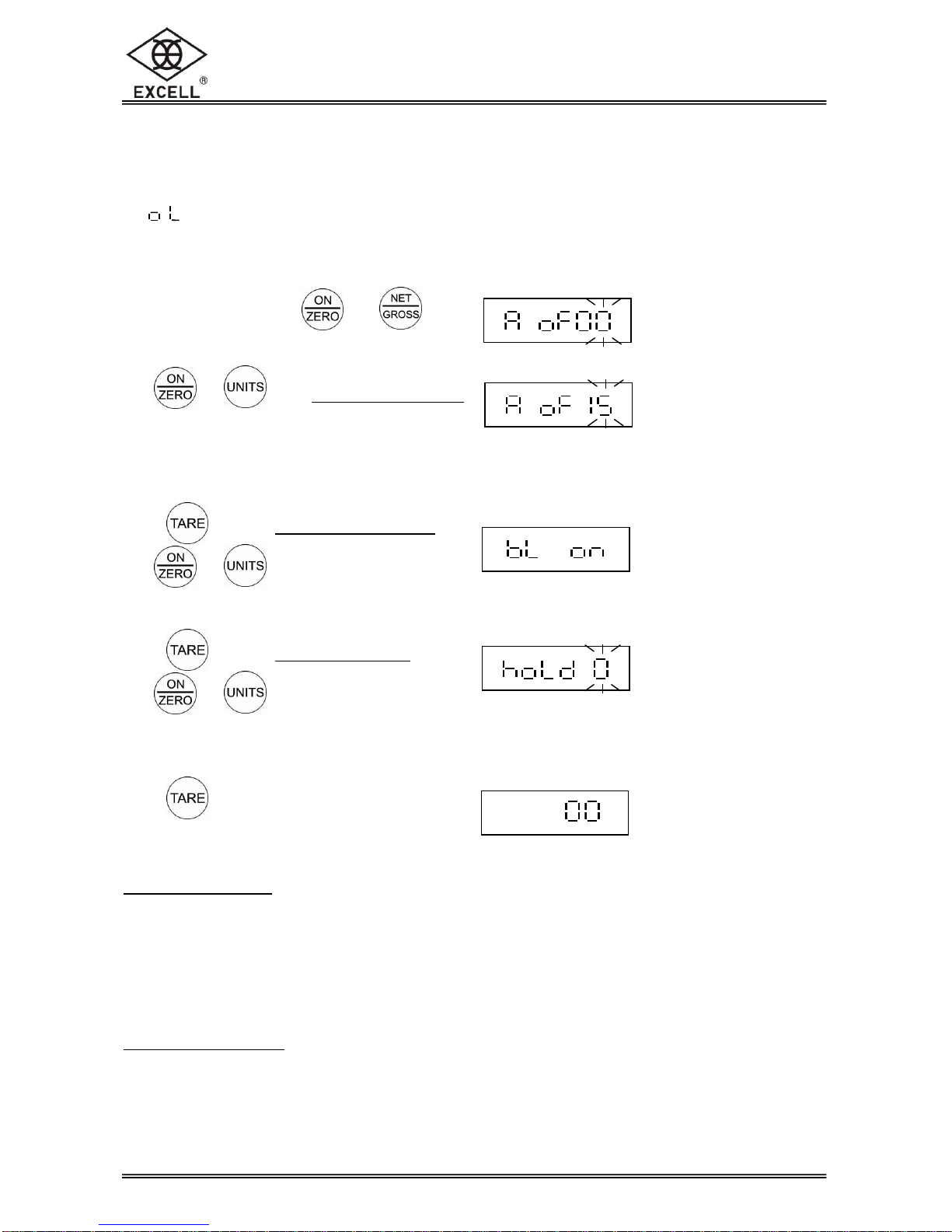

Auto Power Off, Backlight, Hold Mode

In weighing mode, press and

together to enter the setting mode.

Use or to set Auto power off time1

Parameter 0～19 (0: No auto power off, 1～19：

When the scale is idle for 1~19 minutes, the scale

auto power off.)

Press to enter Auto backlight setting 2

Use or to select “on”or “off”

(on:Auto backlight on , off : Auto backlight on)

Press to enter Hold mode setting 3

Use or to select hold mode

(0: Hold function disabled, 1: “Peak hold” mode

2: “Stable hold 1”mode, 3: “Stable hold 2”mode)

Press to complete the setting and

back to weighing mode.

Auto power off time1

When the weight on weigh pan is less than 10d or remains idle for the set time, the scale will

automatically power off.

Auto power off is not functional, when using AC adapter as power source.

Therefore, auto power off is ONLY active, when using dry batteries as power source.

Auto backlight setting2

When the weight is over 10d, the display backlight will be on. After the weight is stable for 10

seconds or when the scale returns to zero, the display backlight switches off.





Pcs

TARE

ZERO

02025100 ZSME300000339

EXCELL PRECISION CO., LTD.

upward key (0~9) comfirm/enter key

downward key (9~0) move the c cursor to left

Hold mode setting 3

= Hold function disabled

= “Peak hold” mode

The scale shows the maximum weight value detected from the continuously

changing weight values. Press any key to exit the hold function.

=“Stable hold 1”mode

After the scale is stable, the display shows the current weight value. Press any key to

exit the hold function.

= “Stable hold 2”mode

After the scale is stable, the display shows the current weight value. Exit the hold

function when unloaded and return to zero.
